产品中心
product

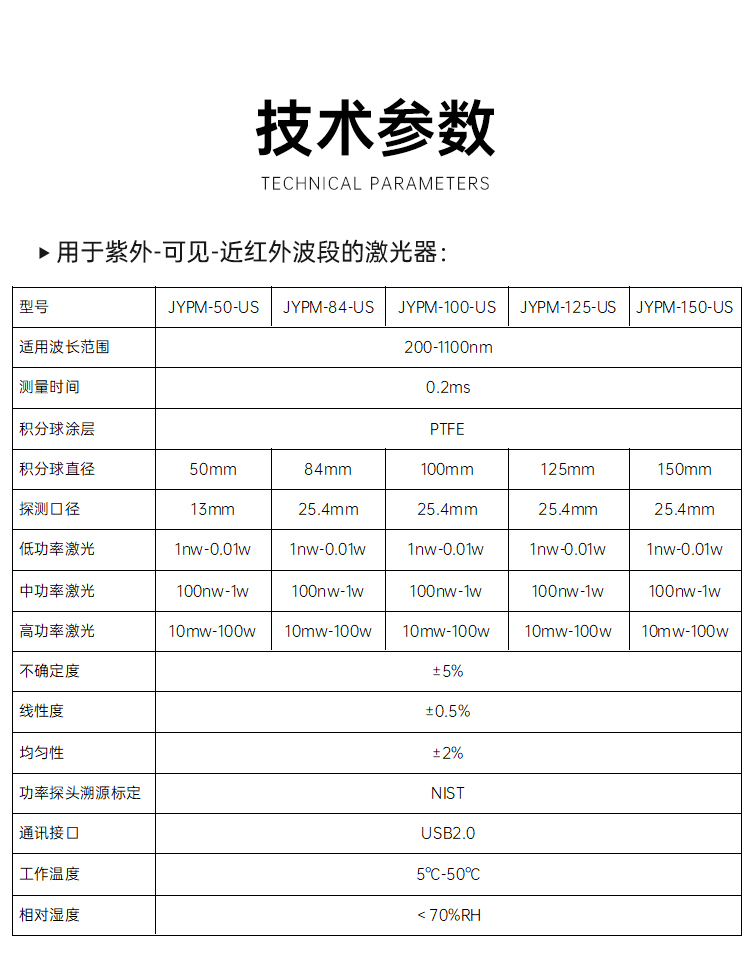

| 型号 | JYPM-50-US | JYPM-84-US | JYPM-100-US | JYPM-125-US | JYPM-150-US |
|---|---|---|---|---|---|
| 适用波长范围 | 200-1100nm | ||||
| 测量时间 | 0.2ms | ||||
| 积分球涂层 | PTFE | ||||
| 积分球直径 | 50mm | 84mm | 100mm | 125mm | 150mm |
| 探测口径 | 13mm | 25.4mm | 25.4mm | 25.4mm | 25.4mm |
| 低功率激光 | 1nw-0.01w | 1nw-0.01w | 1nw-0.01w | 1nw-0.01w | 1nw-0.01w |
| 中功率激光 | 100nw-1w | 100nw-1w | 100nw-1w | 100nw-1w | 100nw-1w |
| 高功率激光 | 10mw-100w | 10mw-100w | 10mw-100w | 10mw-100w | 10mw-100w |
| 不确定度 | ±5% | ||||
| 线性度 | ±0.5% | ||||
| 均匀性 | ±2% | ||||
| 功率探头溯源标定 | NIST | ||||
| 通讯接口 | USB2.0 | ||||
| 工作温度 | 5℃-50℃ | ||||
| 相对湿度 | <70%RH |

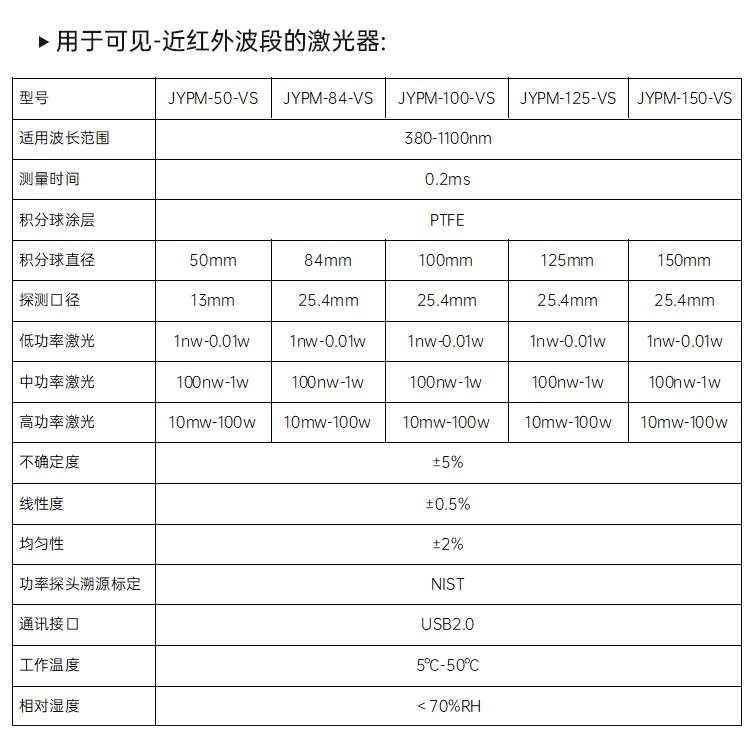

| 型号 | JYPM-50-VS | JYPM-84-VS | JYPM-100-VS | JYPM-125-VS | JYPM-150-VS |
|---|---|---|---|---|---|
| 适用波长范围 | 380-1100nm | ||||
| 测量时间 | 0.2ms | ||||
| 积分球涂层 | PTFE | ||||
| 积分球直径 | 50mm | 84mm | 100mm | 125mm | 150mm |
| 探测口径 | 13mm | 25.4mm | 25.4mm | 25.4mm | 25.4mm |
| 低功率激光 | 1nw-0.01w | 1nw-0.01w | 1nw-0.01w | 1nw-0.01w | 1nw-0.01w |
| 中功率激光 | 100nw-1w | 100nw-1w | 100nw-1w | 100nw-1w | 100nw-1w |
| 高功率激光 | 10mw-100w | 10mw-100w | 10mw-100w | 10mw-100w | 10mw-100w |
| 不确定度 | ±5% | ||||
| 线性度 | ±0.5% | ||||
| 均匀性 | ±2% | ||||
| 功率探头溯源标定 | NIST | ||||
| 通讯接口 | USB2.0 | ||||
| 工作温度 | 5℃-50℃ | ||||
| 相对湿度 | <70%RH |

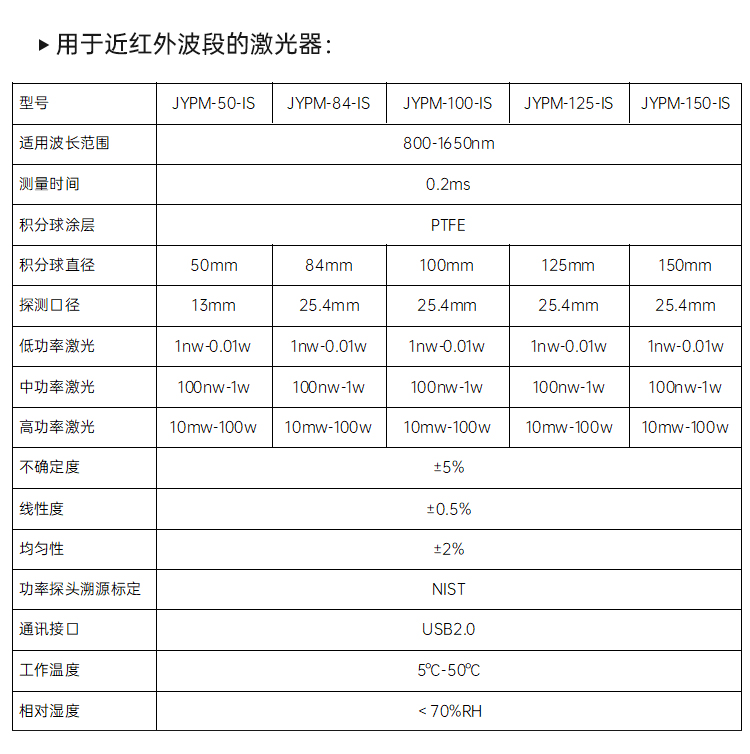

| 型号 | JYPM-50-IS | JYPM-84-IS | JYPM-100-IS | JYPM-125-IS | JYPM-150-IS |
|---|---|---|---|---|---|
| 适用波长范围 | 800-1650nm | ||||
| 测量时间 | 0.2ms | ||||
| 积分球涂层 | PTFE | ||||
| 积分球直径 | 50mm | 84mm | 100mm | 125mm | 150mm |
| 探测口径 | 13mm | 25.4mm | 25.4mm | 25.4mm | 25.4mm |
| 低功率激光 | 1nw-0.01w | 1nw-0.01w | 1nw-0.01w | 1nw-0.01w | 1nw-0.01w |
| 中功率激光 | 100nw-1w | 100nw-1w | 100nw-1w | 100nw-1w | 100nw-1w |
| 高功率激光 | 10mw-100w | 10mw-100w | 10mw-100w | 10mw-100w | 10mw-100w |
| 不确定度 | ±5% | ||||
| 线性度 | ±0.5% | ||||
| 均匀性 | ±2% | ||||
| 功率探头溯源标定 | NIST | ||||
| 通讯接口 | USB2.0 | ||||
| 工作温度 | 5℃-50℃ | ||||
| 相对湿度 | <70%RH |
