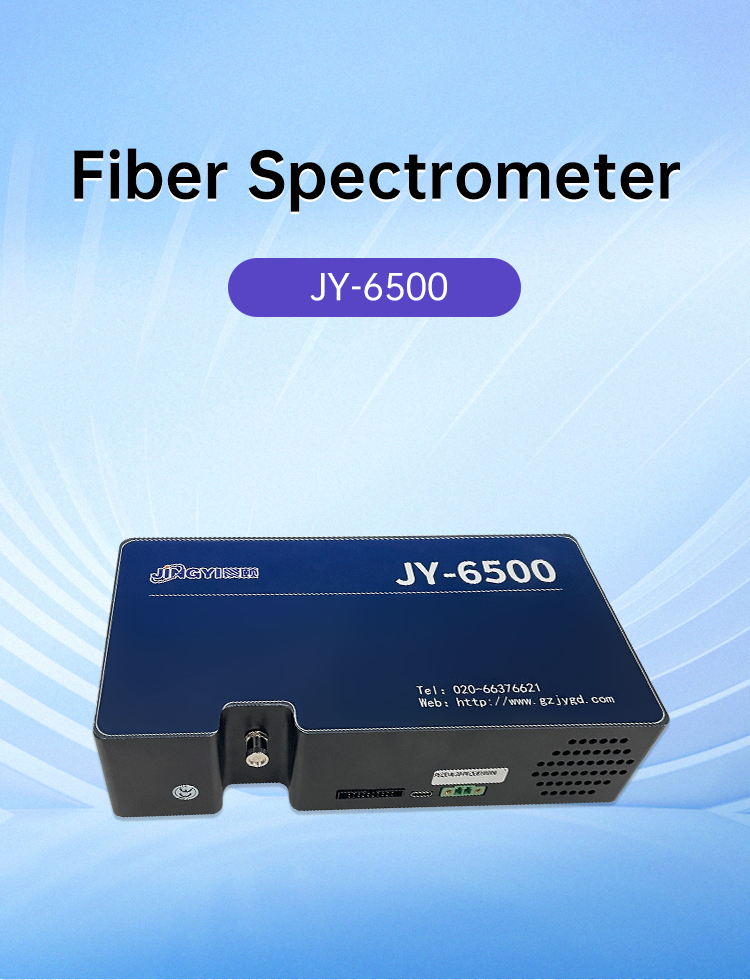

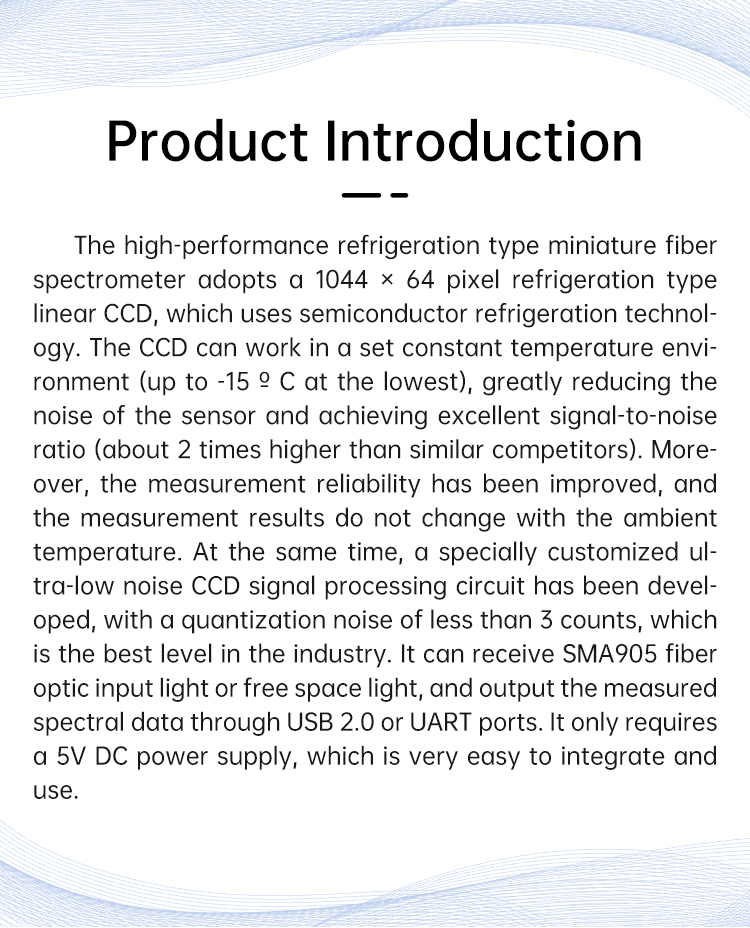

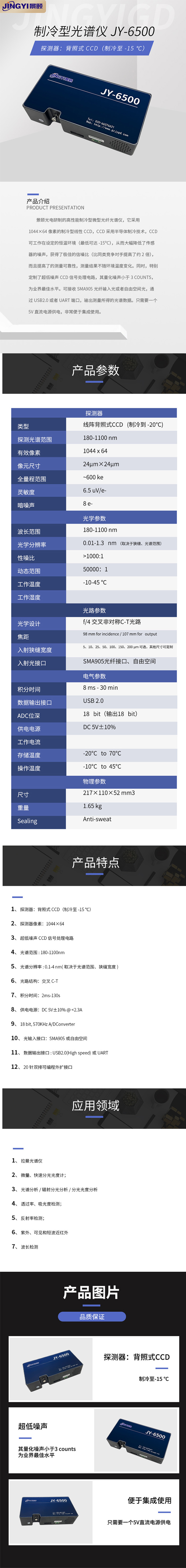

Product Introduction
The high-performance refrigerated miniature fiber optic spectrometer features a 1044 × 64 pixel back-illuminated linear CCD equipped with semiconductor cooling technology. The CCD operates at a stable temperature as low as –15 °C, significantly reducing thermal noise and achieving an excellent signal-to-noise ratio—approximately twice that of comparable products.
This advanced design ensures enhanced measurement reliability, with results remaining consistent regardless of ambient temperature fluctuations. A specially developed ultra-low noise CCD signal processing circuit delivers quantization noise below 3 counts, setting a new benchmark in the industry.
The spectrometer supports both SMA905 fiber optic input and free-space light input, enabling flexible integration into various optical setups. It outputs spectral data via USB 2.0 or UART interfaces and operates on a simple 5V DC power supply, making it highly convenient for system integration and field deployment.

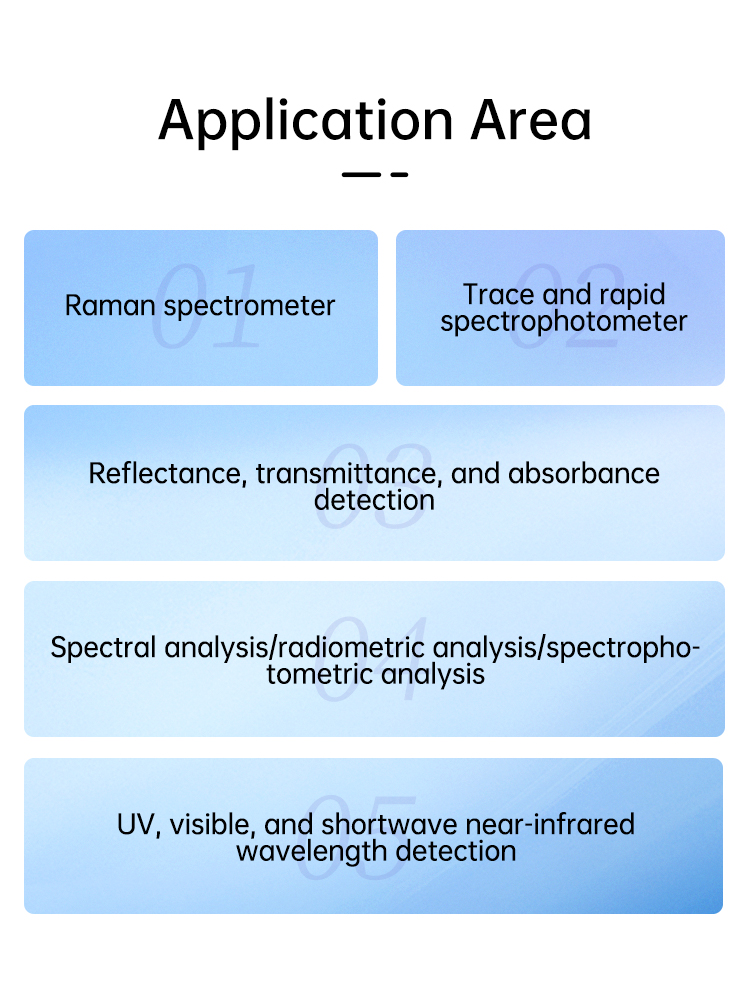

Application Areas
- Raman Spectroscopy
Ideal for molecular fingerprinting and material identification in pharmaceuticals, forensics, and environmental analysis.
- Trace and Rapid Spectrophotometry
Enables fast, sensitive detection of low-concentration substances in chemical and biological applications.
- Reflectance, Transmittance, and Absorbance Detection
Suitable for colorimetry, film thickness measurement, and material characterization.
- Spectral Analysis / Radiometric Analysis / Spectrophotometric Analysis
Supports comprehensive optical property evaluation across UV, visible, and near-infrared ranges.
- UV, Visible, and Short-Wave Near-Infrared (SWIR) Wavelength Detection
Covers a broad range from 180 nm to 1100 nm, ideal for multi-domain research and industrial inspection.

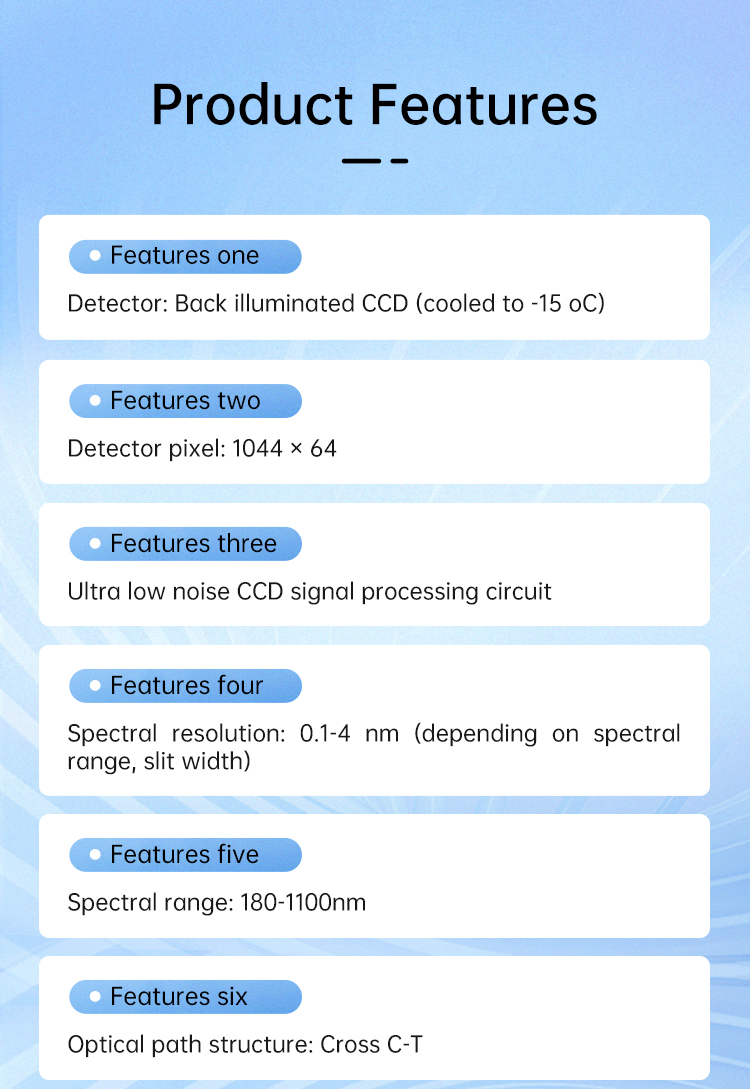

Product Features
• Feature One: Cooled Back-Illuminated CCD
Detector cooled to –15 °C to minimize dark current and thermal noise.
• Feature Two: High-Resolution Sensor Array
1044 × 64 pixel linear array for detailed spectral resolution.
• Feature Three: Ultra-Low Noise Signal Processing
Custom-designed circuitry achieves quantization noise <3 counts—industry-leading performance.
• Feature Four: High Spectral Resolution
Achieves 0.1–4 nm resolution, depending on slit width and spectral range.
• Feature Five: Broad Spectral Range
Covers 180–1100 nm, including UV, visible, and short-wave NIR wavelengths.
• Feature Six: Cross C-T Optical Path Design
Optical configuration enhances efficiency, stability, and compactness.

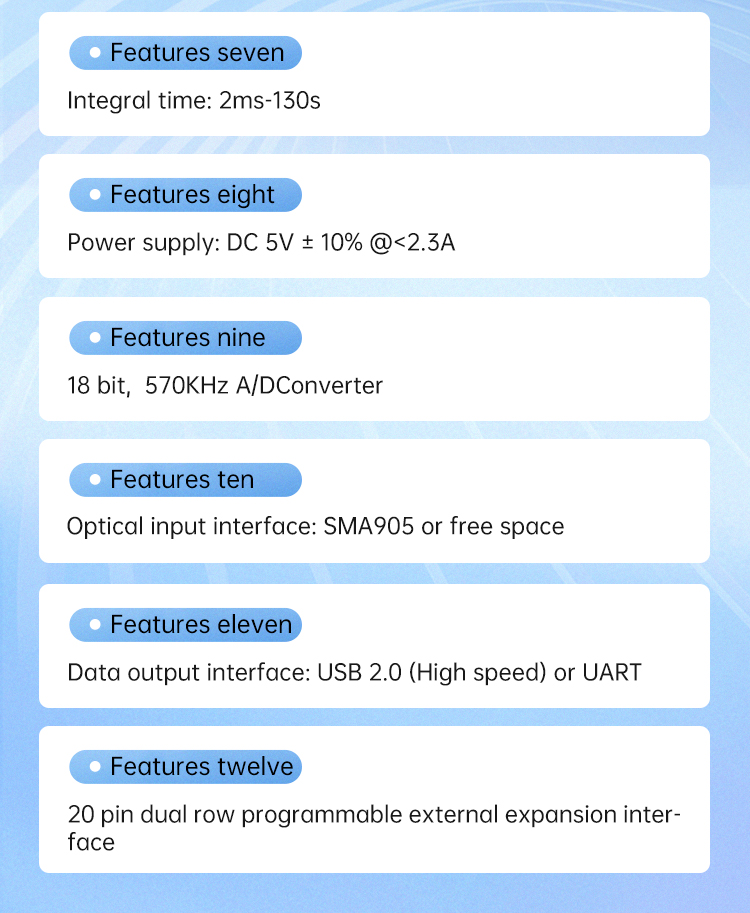

• Feature Seven: Flexible Integration Time
Supports integration times from 2 ms to 130 seconds, enabling adaptability to weak or strong signals.
• Feature Eight: Low-Voltage Power Supply
Operates on DC 5V ±10% @ <2.3A, compatible with USB-powered systems.
• Feature Nine: High-Precision ADC
Equipped with an 18-bit, 570 kHz A/D converter for accurate data acquisition.
• Feature Ten: Versatile Input Options

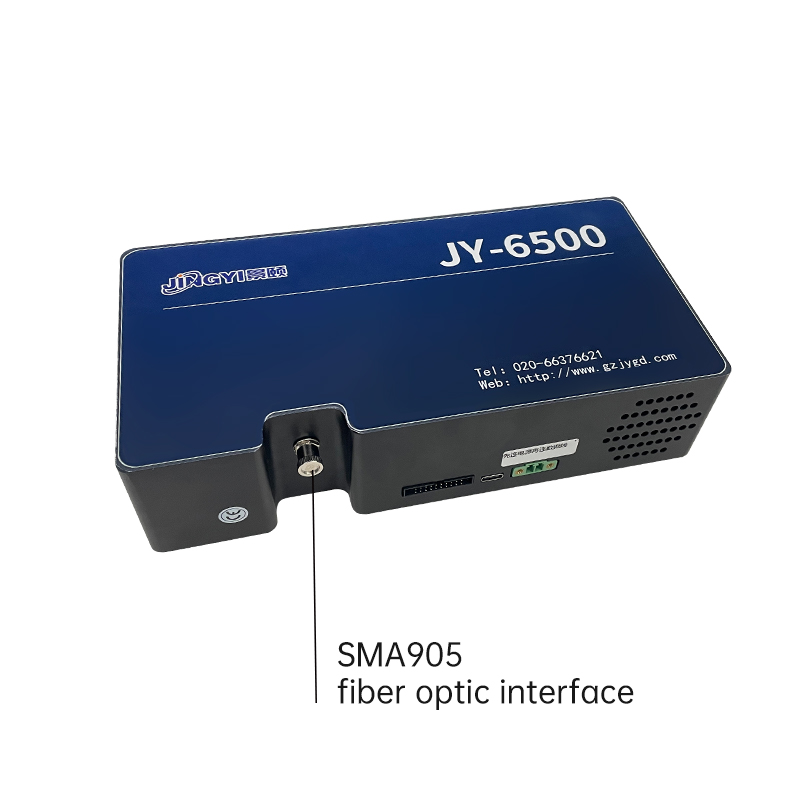

Accepts SMA905 fiber optic cable or free-space light input for maximum flexibility.
• Feature Eleven: Multiple Output Interfaces
Data output via USB 2.0 (High-Speed) or UART, supporting real-time monitoring and remote control.
• Feature Twelve: Programmable Expansion Interface
Includes a 20-pin dual-row programmable external expansion interface for custom system integration.

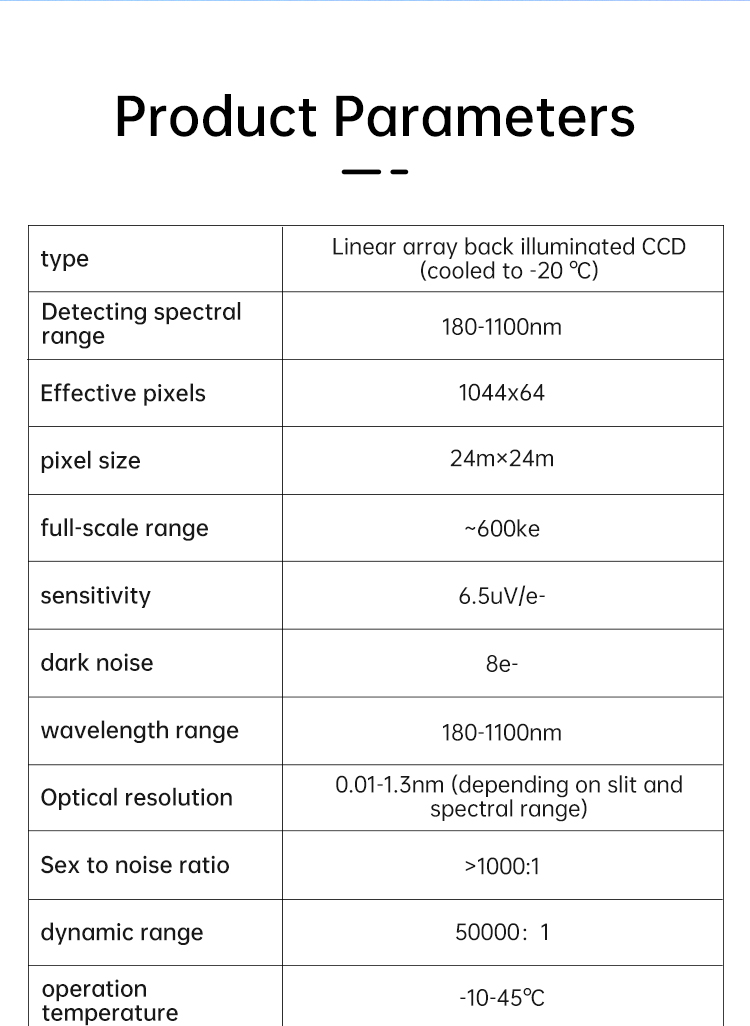

Product Parameters
| Parameter |
Specification |
| Type |
Linear array back-illuminated CCD (cooled to –20 °C) |
| Detecting Spectral Range |
180–1100 nm |
| Effective Pixels |
1044 × 64 |
| Pixel Size |
24 µm × 24 µm |
| Full-Scale Range |
～600 ke |
| Sensitivity |
6.5 µV/e⁻ |
| Dark Noise |
8 e⁻ |
| Wavelength Range |
180–1100 nm |
| Optical Resolution |
0.01–1.3 nm (depends on slit and spectral range) |
| Signal-to-Noise Ratio |
>1000:1 |
| Dynamic Range |
50,000:1 |
| Operating Temperature |
–10 °C to +45 °C |
| Storage Temperature |
–20 °C to +70 °C |

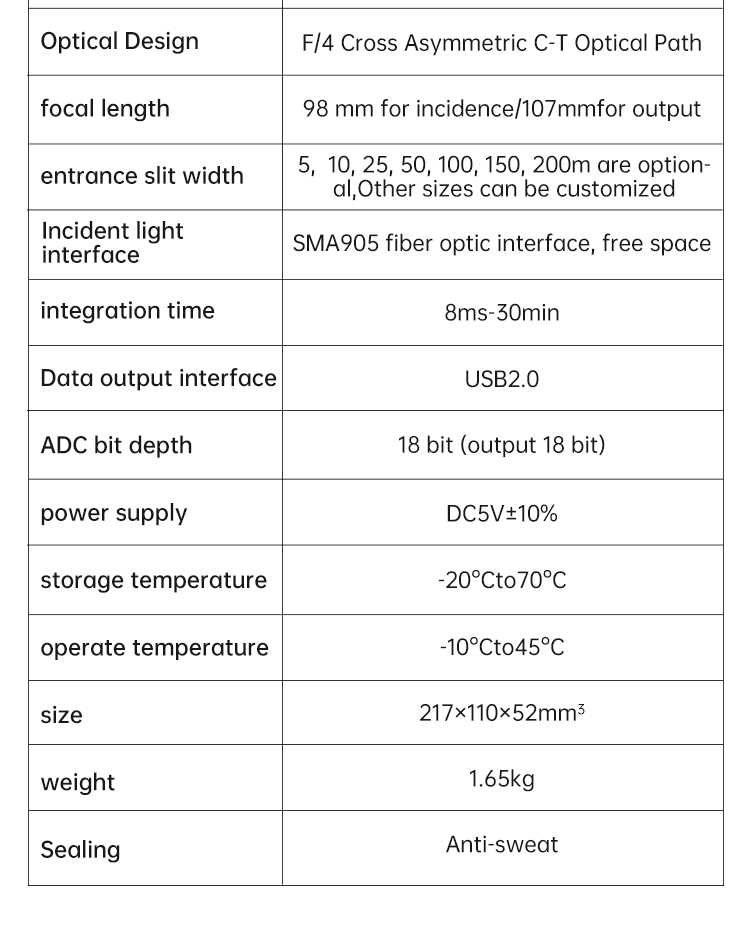

| Optical Design |
F/4 Cross Asymmetric C-T Optical Path |
| Focal Length |
98 mm (incidence), 107 mm (output) |
| Entrance Slit Width |
5, 10, 25, 50, 100, 150, 200 µm (customizable) |
| Incident Light Interface |
SMA905 fiber optic or free space |
| Integration Time |
8 ms – 30 min |
| Data Output Interface |
USB 2.0 |
| ADC Bit Depth |
18-bit (output 18-bit) |
| Power Supply |
DC 5V ±10% |
| Size |
217 × 110 × 52 mm³ |
| Weight |
1.65 kg |
| Sealing |
Anti-sweat design |
