JY4095 植物光谱分析仪产品介绍及应用

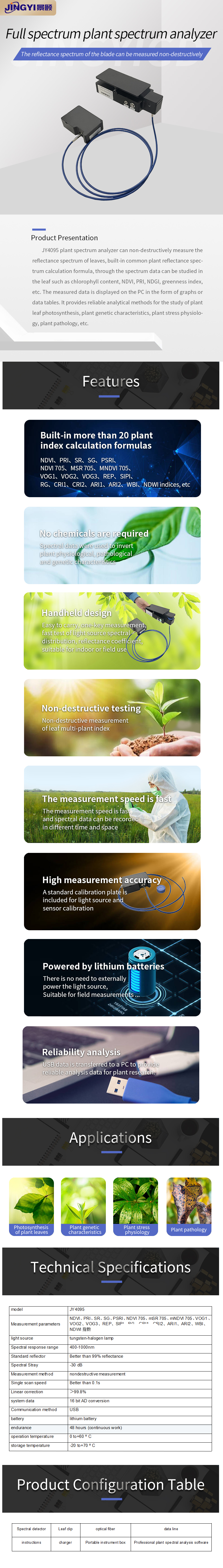

Full spectrum plant spectrum analyzer
The reflectance spectrum of the blade can be measured non-destructively
Product Presentation
JY4095 plant spectrum analyzer can non-destructively measure the reflectance spectrum of leaves, built-in common plant reflectance spectrum calculation formula, through the spectrum data can be studied in the leaf such as chlorophyll content, NDVI, PRI, NDGI, greenness index, etc. The measured data is displayed on the PC in the form of graphs or data tables. It provides reliable analytical methods for the study of plant leaf photosynthesis, plant genetic characteristics, plant stress physiology, plant pathology, etc.
Features
Built-in more than 20 plant index calculation formulas
NDVI、PRI、SR、SG、PSRI、NDVI 705、MSR 705、MNDVI 705、VOG1、VOG2、VOG3、REP、SIPI、RG、CRI1、CRI2、ARI1、ARI2、WBI、NDWI indices, etc
No chemicals are required
Spectral data were used to invert plant physiological, pathological and genetic characteristics
Handheld design
Easy to carry, one-key measurement, fast test of light source spectral distribution, reflectance coefficient, suitable for indoor or field use
Non-destructive testing
Non-destructive measurement of leaf multi-plant index
The measurement speed is fast
The measurement speed is fast, and spectral data can be recorded in different time and space
High measurement accuracy
A standard calibration plate is included for light source and sensor calibration
Powered by lithium batteries
There is no need to externally power the light source, Suitable for field measurements
Reliability analysis
USB data is transferred to a PC to provide reliable analysis data for plant research.
Applications
Photosynthesis of plant leaves
Plant genetic characteristics
Plant stress physiology
Plant pathology
Technical Specifications
|
Item
|
Parameter
|
|
model
|
JY4095
|
|
Measurement parameters
|
NDVI、PRI、SR、SG、PSRI、NDVI 705、mSR 705、mNDVI 705、VOG1、VOG2、VOG3、REP、SIPI、RG、CRI1、CRI2、ARI1、ARI2、WBI、NDWI indices, etc
|
|
light source
|
tungsten-halogen lamp
|
|
Spectral response range
|
400-1000nm
|
|
Standard reflector
|
Better than 99% reflectance
|
|
Spectral Stray
|
-30 dB
|
|
Measurement method
|
Non-destructive measurement
|
|
Single scan speed
|
Better than 0.1s
|
|
Linear correction
|
>99.89%
|
|
system data
|
16 bit AD conversion
|
|
Communication method
|
USB
|
|
battery
|
lithium battery
|
|
endurance
|
48 hours (continuous work)
|
|
operation temperature
|
0 to +60 °C
|
|
storage temperature
|
-20 to +70 °C
|
Product Configuration Table
Spectral detector
Leaf clip
optical fiber
data line
instructions
charger
Portable instrument box
Professional plant spectral analysis software
Transmittance detector
JY-T02
Product Introduction
This transmittance detector is a universal transmittance detector that uses advanced spectral measurement technology for rapid full spectrum transmittance measurement, meeting various measurement standards: EN ANSI AS/NZS、BS EN ISO 12312-1: 2013+AI: 2015、ANSI Z80.3-2015、AS/NZS1067.1: 2016、GB10810.3-2006、ISO8980-3 14889(2013)、AS/NZS1337,1:2010+A2012、CSA Z94.3-07(R2014)、QB 2457-99、QB/T 2506-2017、GB/T 11417.5-2012、EN166:2001-EN170:2002 EN166:2001-EN172:1994, ANSI Z87.1-2015, ASTM F659-10, etc., paired with professional and comprehensive analysis software.
Application Area
Suitable for detecting the transmittance of various optical components
Transmittance testing of flat glass, eyeglass lenses, films, and filters
Transparency detection of display screens, mobile phone screens, and touch panels, etc
Product Features
Adopting advanced spectral measurement technology for rapid full spectrum transmittance measurement
Real time display of transmittance data and spectral curves for each wavelength range of 360-1000nm
Users can customize measurement schemes, set average transmittance and calibration standards
Can calculate CIE color parameters, xy, Lab, Main wavelength, saturation, color purity and other parameters
Professional testing software that can set, store, and print list data according to actual operational needs
The software is equipped with powerful measurement and analysis management software, which can customize measurement schemes, spectral data processing, quality inspection functions, CIE color measurement functions, development databases, and print reports according to customer requirements
Compliant with measurement standards and specifications both domestically and internationally
Product Advantages
Advantages one
The advantage of supplementary light is significant, the combination of complementary light paths forms a ultraviolet-visible-infrared spectrum (360nm-1000nm) measurement source, higher energy and shorter detection time
Advantages two
Advantages three
Third party organization certification
This product has authoritative certification, has been calibrated by a metrology institute and can be accompanied by a calibration certificate
This product can also perform CIE color detection, calculate various CIE color parameters of the samples, such as x, y, main wavelength, etc
Advantages four
The quality tester can set the upper and lower limits of any wavelength range to quickly determine the product
Product Parameters
|
Item
|
Parameter
|
|
model
|
JY-T02
|
|
wavelength range
|
360-1000nm
|
|
spot size
|
Diameter 3mm (customizable)
|
|
Transmittance range
|
0-100%
|
|
Measure wavelength interval
|
1nm
|
|
Single sampling time
|
Better than 1 second
|
|
Transmittance accuracy
|
Better than 1%
|
|
Test repeatability
|
Better than 1%
|
|
Integral sphere coating transmittance
|
>98%
|
|
Background dark
|
automatic
|
|
Light source lifespan
|
2000 hours
|
|
Measurable parameters
|
wavelength transmittance, average transmittance, transmittance spectral curve, transmittance over time curve, transmittance color xy, XYZ, Lab, etc
|
|
Computer operating system
|
USB interface
|
|
Support operating system
|
Windows98/2000/XP/Vista/ Windows7/8/10
|
JY4095 植物光谱分析仪：非破坏性测量的新标杆
Full spectrum plant spectrum analyzer
The reflectance spectrum of the blade can be measured non-destructively
Product Presentation
JY4095 plant spectrum analyzer can non-destructively measure the reflectance spectrum of leaves, built-in common plant reflectance spectrum calculation formula, through the spectrum data can be studied in the leaf such as chlorophyll content, NDVI, PRI, NDGI, greenness index, etc. The measured data is displayed on the PC in the form of graphs or data tables. It provides reliable analytical methods for the study of plant leaf photosynthesis, plant genetic characteristics, plant stress physiology, plant pathology, etc.
Features
Built-in more than 20 plant index calculation formulas
NDVI、PRI、SR、SG、PSRI、NDVI 705、MSR 705、mNDVI 705、VOG1、VOG2、VOG3、REP、SIPI、RG、CRI1、CRI2、ARI1、ARI2、WBI、NDWI indices, etc
No chemicals are required
Spectral data were used to invert plant physiological, pathological and genetic characteristics
Handheld design
Easy to carry, one-key measurement, fast test of light source spectral distribution, reflectance coefficient, suitable for indoor or field use
Non-destructive testing
Non-destructive measurement of leaf multi-plant index
The measurement speed is fast
The measurement speed is fast, and spectral data can be recorded in different time and space
High measurement accuracy
A standard calibration plate is included for light source and sensor calibration
Powered by lithium batteries
There is no need to externally power the light source, Suitable for field measurements
Reliability analysis
USB data is transferred to a PC to provide reliable analysis data for plant research
Applications
Photosynthesis of plant leaves
Plant genetic characteristics
Plant stress physiology
Plant pathology
Technical Specifications
|
Item
|
Parameter
|
|
model
|
JY4095
|
|
Measurement parameters
|
NDVI、PRI、SR、SG、PSRI、NDVI 705、mSR 705、mNDVI 705、VOG1、VOG2、VOG3、REP、SIPI、RG、CRI1、CRI2、ARI1、ARI2、WBI、NDWI indices, etc
|
|
light source
|
tungsten-halogen lamp
|
|
Spectral response range
|
400-1000nm
|
|
Standard reflector
|
Better than 99% reflectance
|
|
Spectral Stray
|
-30 dB
|
|
Measurement method
|
Non-destructive measurement
|
|
Single scan speed
|
Better than 0.1s
|
|
Linear correction
|
>99.89%
|
|
system data
|
16 bit AD conversion
|
|
Communication method
|
USB
|
|
battery
|
lithium battery
|
|
endurance
|
48 hours (continuous work)
|
|
operation temperature
|
0 to +60 °C
|
|
storage temperature
|
-20 to +70 °C
|
Product Configuration Table
Spectral detector
Leaf clip
optical fiber
data line
instructions
charger
Portable instrument box
Professional plant spectral analysis software
