Mirror Reflectivity Tester JYRMC022

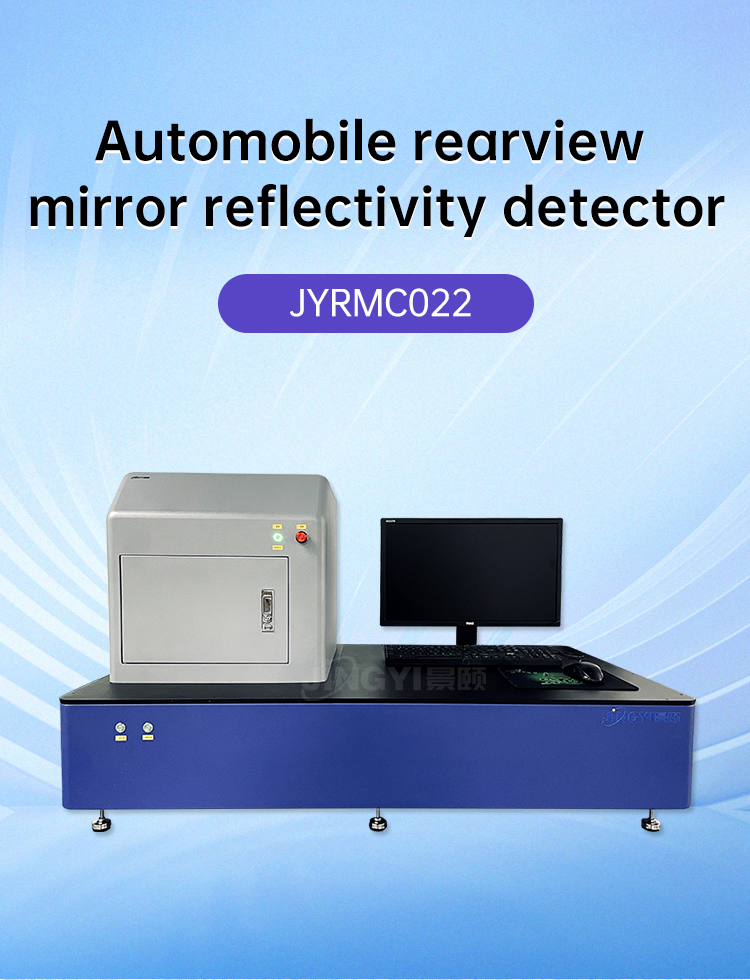

Product name：Automobile rearview mirror reflectivity detector
Model：JYRMC022
Brand logo：JINGYI 景颐

二、Product Introduction

The JYRMC022 automotive rearview mirror reflectance tester produced by Jingyi Optoelectronics is designed in accordance with the national standard GB 15084-2022 for rearview mirror reflectance detection requirements and supports testing in high and low temperature environments. It can measure the reflectance, reflectance stability, reflectance conversion time at working temperature, safety function test when power is off, reflectance response time test when reversing, and anti-glare characteristics at room temperature of the rearview mirror. This instrument fully complies with all kinds of automotive rearview mirror inspection standards.

三、Application Area

Ordinary anti glare interior rearview mirror
Automatic anti glare interior rearview mirror
Streaming media rearview mirror

四、Product Features

Features one：Fast measurement speed, single test time 1ms
Features two：Customize judgment criteria
Features three：Support high and low temperature environment testing
Features four：Easy to operate and flexible to use
Features five：Customizable online automatic detection solution

五、Product Parameters

Project	Parameter
model	JYRMC022
Wavelength Range	380-780nm
measurement accuracy	±0.01
Color temperature	2850±50K
Repeatability	The deviation of three measurements is less than 0.01
Zero offset	Not exceeding 0.001 within 5 minutes
stability	5 minutes not exceeding 0.005
Measure wavelength interval	1nm
Single test time	1ms
Reflectivity accuracy	Better than 1% (based on standard film)
Power Supply	Standard configuration
computer	Standard configuration
Working temperature range	-30℃ ~ 65℃
Measurable parameters	Reflectivity curve, reflectivity over time curve, reflectivity stability, measurement of reflectivity conversion time at operating temperature, safety function test during power outage, reflectivity response time test during reverse, glare elimination characteristics at room temperature, etc
