Integral Ball JY-FIOS100

Integral Ball JY-FIOS100













JY-FIOS100 通用光谱积分球产品介绍

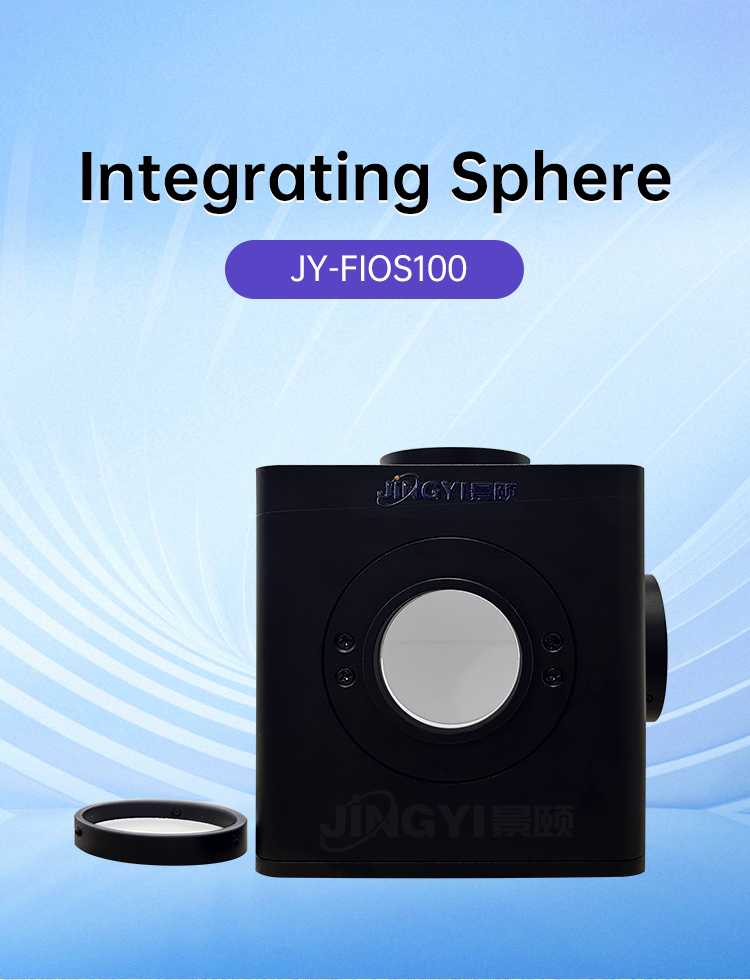

Integrating Sphere JY-FIOS100

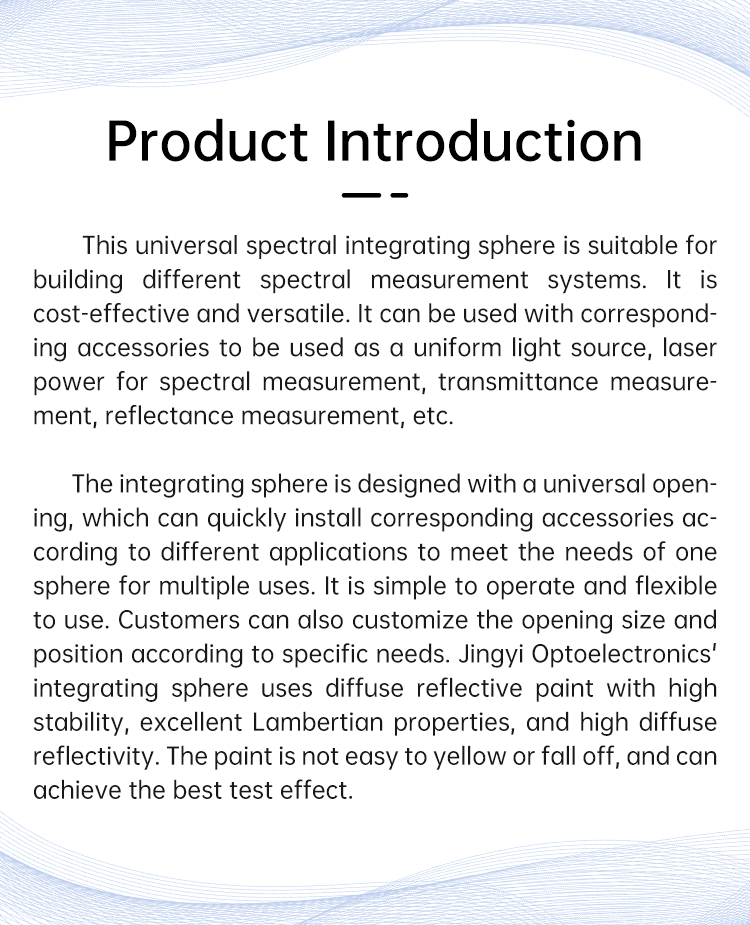

Product Introduction This universal spectral integrating sphere is suitable for building different spectral measurement systems. It is cost-effective and versatile. It can be used with corresponding accessories to be used as a uniform light source, laser power for spectral measurement, transmittance measurement, reflectance measurement, etc. The integrating sphere is designed with a universal opening, which can quickly install corresponding accessories according to different applications to meet the needs of one sphere for multiple uses. It is simple to operate and flexible to use. Customers can also customize the opening size and position according to specific needs. Jingyi Optoelectronics' integrating sphere uses diffuse reflective paint with high stability, excellent Lambertian properties, and high diffuse reflectivity. The paint is not easy to yellow or fall off, and can achieve the best test effect.

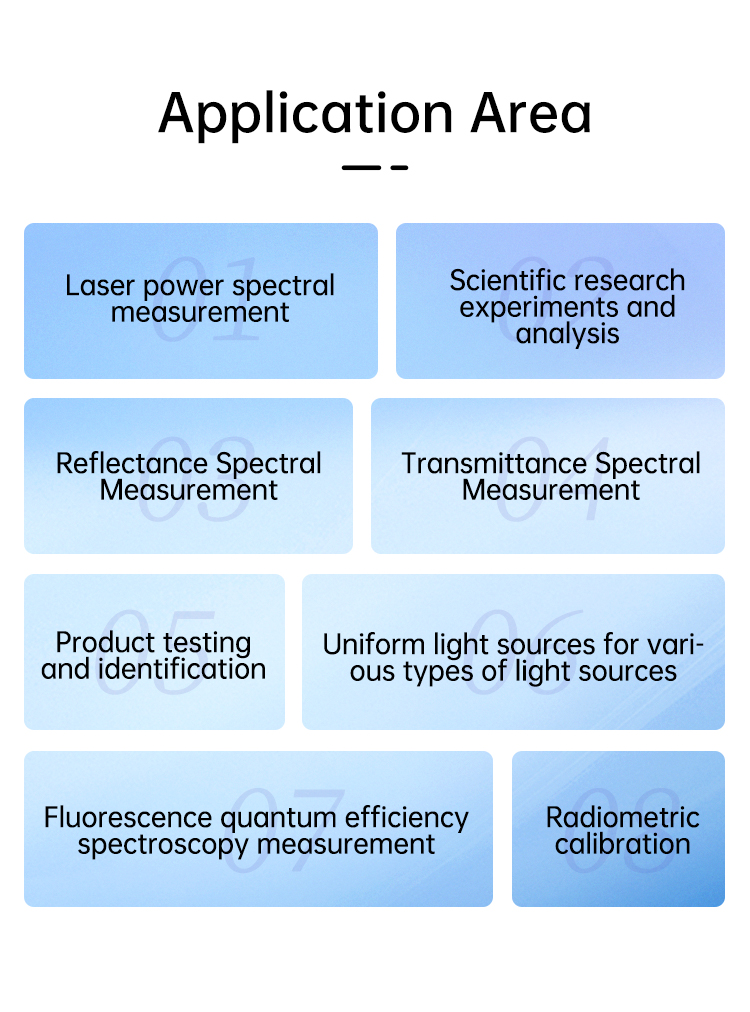

Application Area Laser power spectral measurement Scientific research experiments and analysis Reflectance Spectral Measurement Transmittance Spectral Measurement Product testing and identification Uniform light sources for various types of light sources Fluorescence quantum efficiency spectroscopy measurement Radiometric calibration

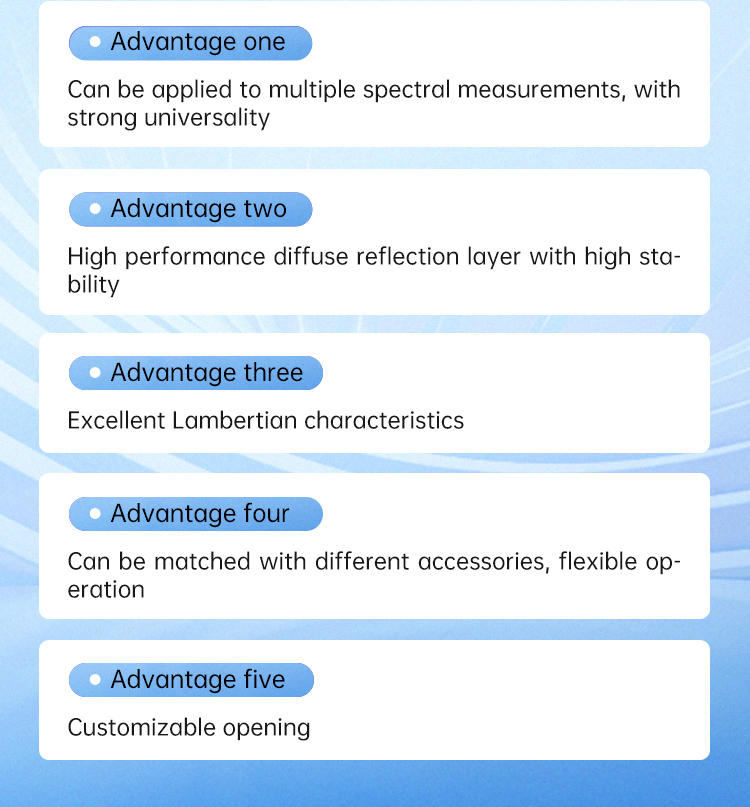

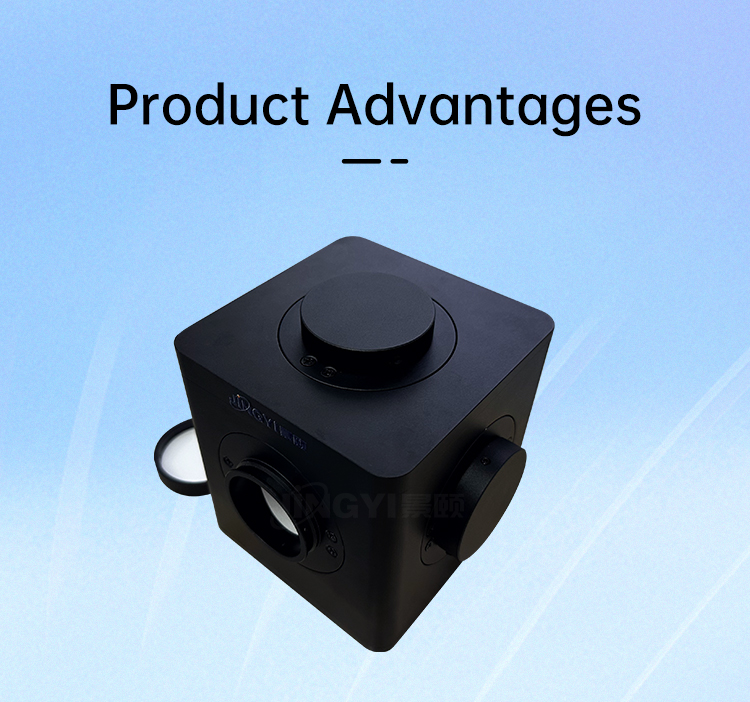

Product Advantages Can be applied to multiple spectral measurements, with strong universality High performance diffuse reflection layer with high stability Excellent Lambertian characteristics Can be matched with different accessories, flexible operation Customizable opening

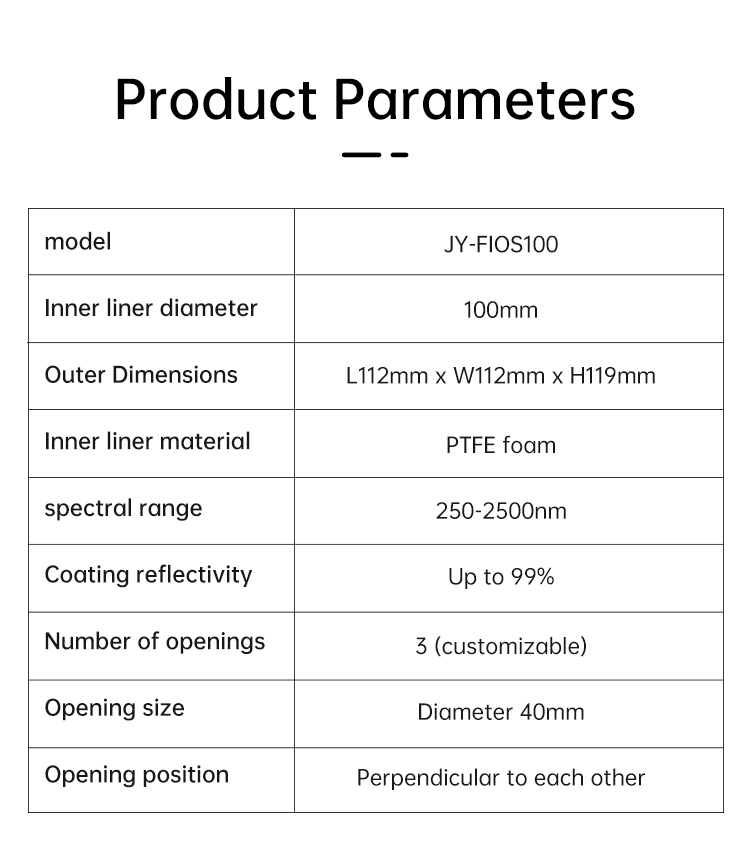

Product Parameters
model
JY-FIOS100
Inner liner diameter
100mm
Outer Dimensions
L112mm x W112mm x H119mm
Inner liner material
PTFE foam
spectral range
250-2500nm
Coating reflectivity
Up to 99%
Number of openings
3 (customizable)
Opening size
Diameter 40mm
Opening position
Perpendicular to each other
