JY-JF0IS-200-ZS 均匀光源产品介绍

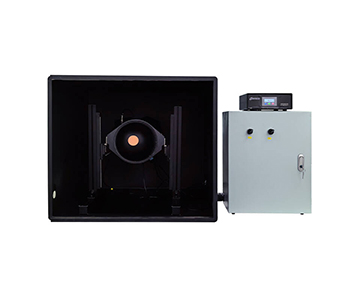

Adjustable illumination integrating sphere uniform light source JY-JF0IS-200-ZS
Product Introduction Based on high-precision fine calibration and spectral matching technology, the uniform light source product (spherical) can achieve free matching and control of illumination. The product can be used as radiation calibration/testing equipment for optoelectronic imaging systems or testing systems, mainly for relative/absolute radiation calibration and testing of optoelectronic imaging systems, optoelectronic testing systems, CCD/CMOS cameras, mobile phone cameras, CCD/CMOS imaging devices, etc. The spherical uniform light source benefits from its spherical structure and high anti reflective diffuse coating inside. The emitted light source has a surface uniformity and angle uniformity of better than 98%, which can meet the high-end professional level uniform light source requirements. And meet your requirement for a large and effective light output aperture. The uniform light source series products adopt high-quality diffuse reflection coatings and exclusive research and development processes. The emitted light source has the advantages of high uniformity, wide dynamic range, and ultra-high brightness. Electric adjustment of light source intensity output, with real-time monitoring of illumination and other functions. Standard A light source, D65 light source, LED and other light sources can be selected for installation.
Application Area Calibration of imaging systems and devices in the laboratory Film, digital camera, camera uniformity correction, spectral response characteristics Suitable for calibration of remote sensing instruments, CCD camera image arrays, and other detectors Biology, low light imaging, and quantitative measurement calibration, etc Uniform output for weak light, such as simulating starlight, moonlight, etc Used for calibrating low light measurement cameras, such as fluorescence measurement systems Uniformity correction of large and small aperture space remote sensing detection systems
Product Features Features one High uniformity of light output better than 98% Features two The area and position of the light outlet can be customized Features three Has excellent Lambertian characteristics Features four Electric adjustable brightness output Features five Real time illumination monitoring
Product Parameters
|
Model
|
JY-JF0IS-200-ZS
|
|
Sphere diameter
|
200mm
|
|
Light outlet diameter
|
50mm
|
|
Resolution
|
1(lx)
|
|
Measurement accuracy
|
Level 1
|
|
Light source
|
100W halogen lamp
|
|
Number of light sources
|
2 pcs
|
|
Adjustment method
|
Electric adjustment
|
|
Uniformity
|
>98%
|
|
Inner diffuse reflection material
|
PTFE
|
|
Coating process
|
Spraying
|
|
Coating spectrum range
|
200-2500nm
|
|
Coating reflectivity
|
Up to 98%
|
|
Standard
|
Double-leg support
|
|
Using temperature range
|
5℃~80℃
|
|
Warranty
|
One year (excluding consumables and man-made damage)
|
