Integral Sphere for Water Quality Analysis - JY-FIOS-X50

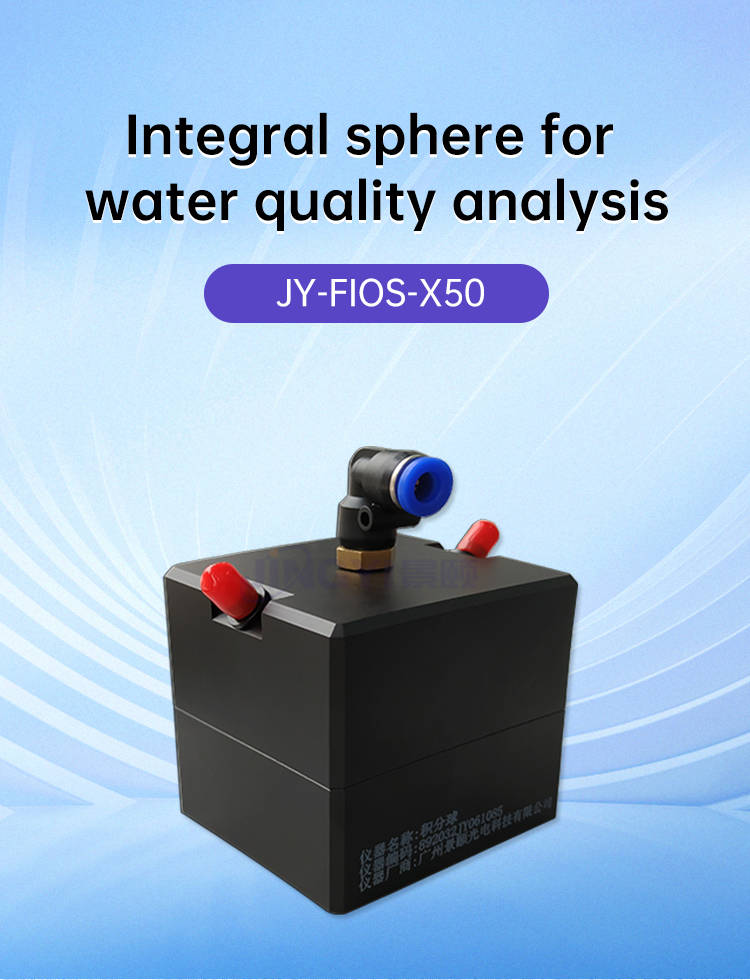

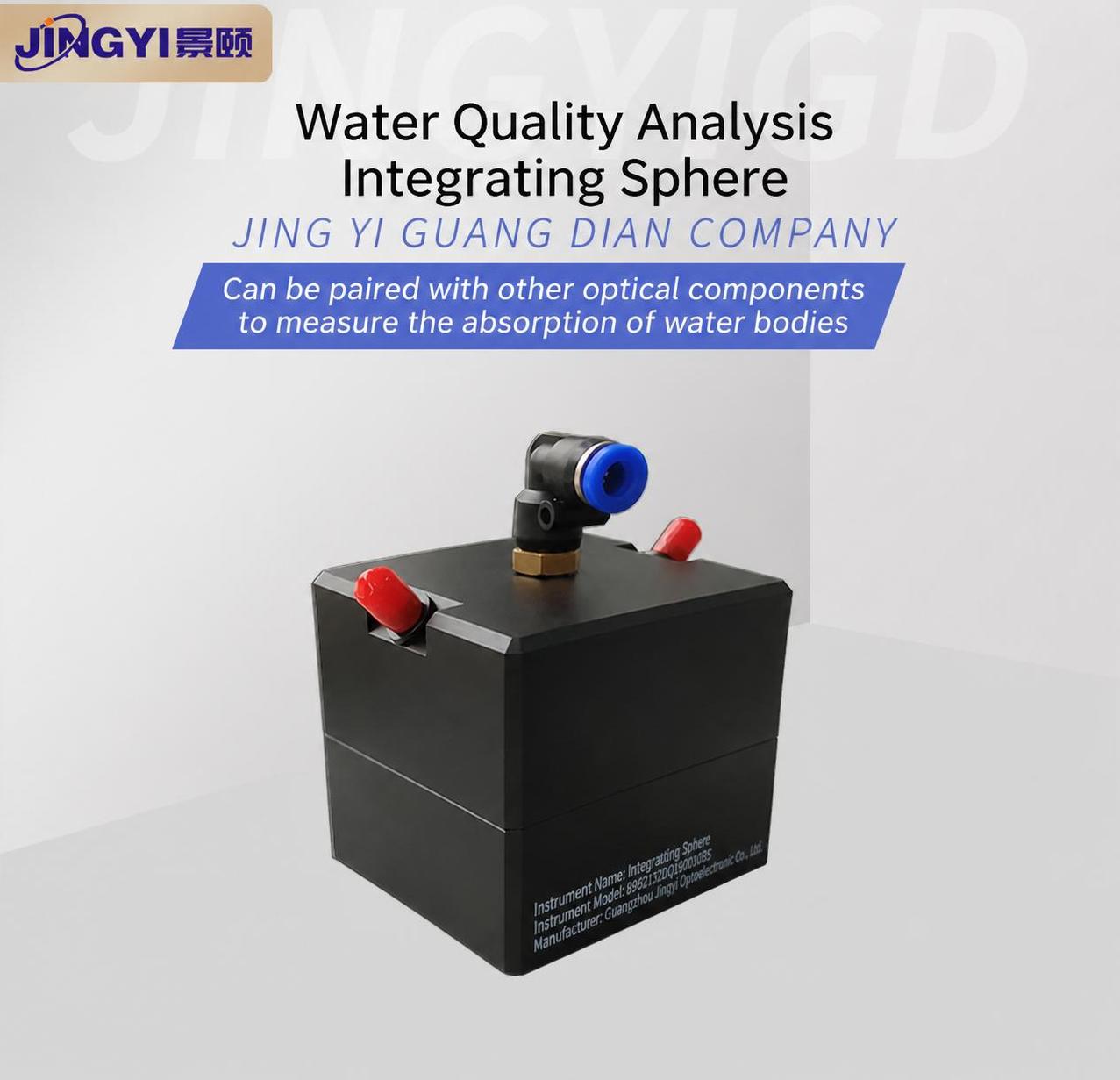

Integral sphere for water quality analysis JY-FIOS-X50

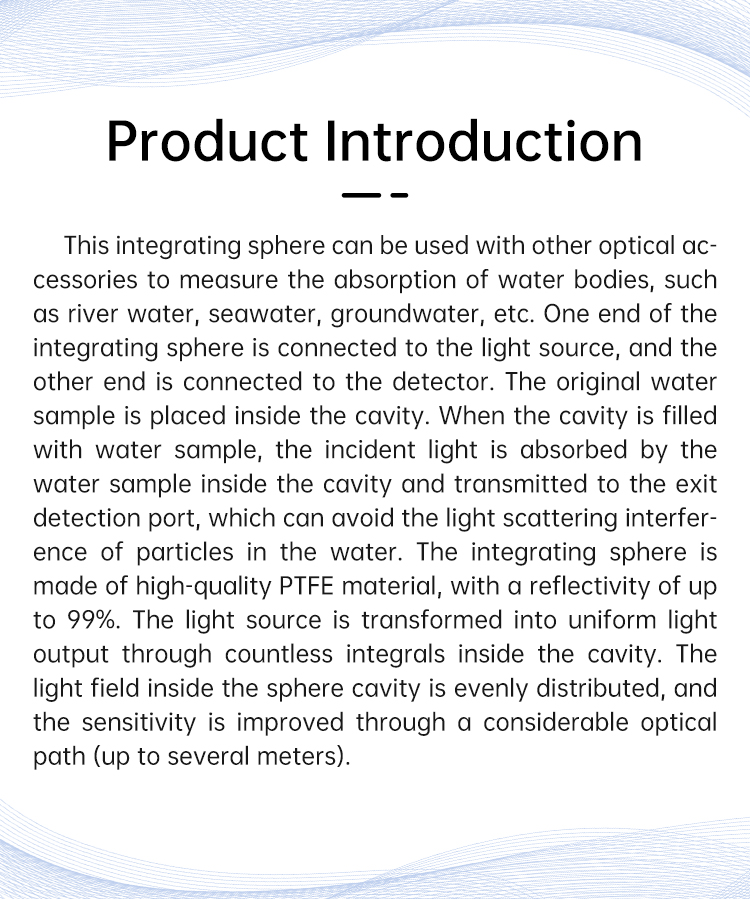

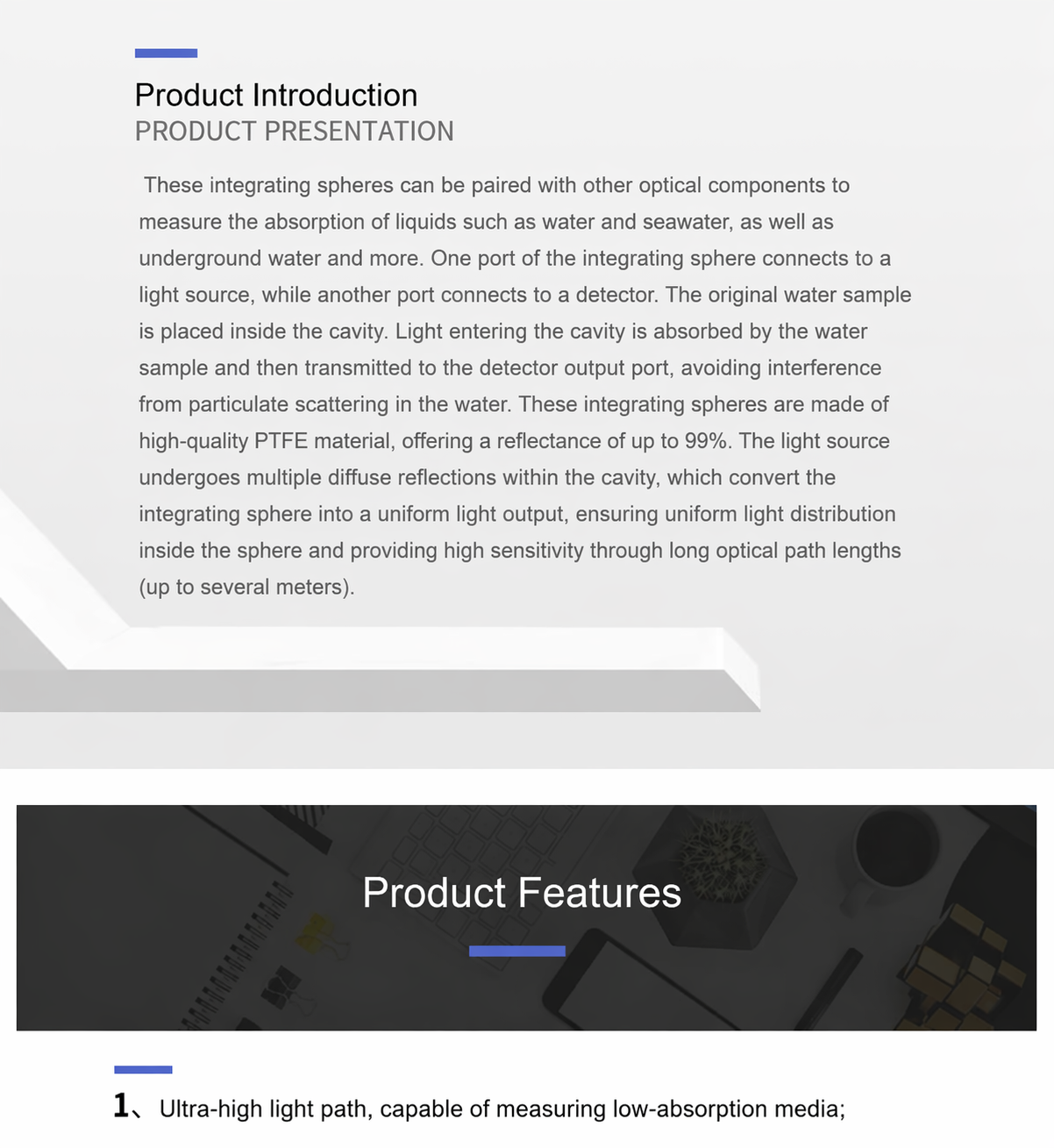

Product Introduction This integrating sphere can be used with other optical accessories to measure the absorption of water bodies, such as river water, seawater, groundwater, etc. One end of the integrating sphere is connected to the light source, and the other end is connected to the detector. The original water sample is placed inside the cavity. When the cavity is filled with water sample, the incident light is absorbed by the water sample inside the cavity and transmitted to the exit detection port, which can avoid the light scattering interference of particles in the water. The integrating sphere is made of high-quality PTFE material, with a reflectivity of up to 99%. The light source is transformed into uniform light output through countless integrals inside the cavity. The light field inside the sphere cavity is evenly distributed, and the sensitivity is improved through a considerable optical path (up to several meters).

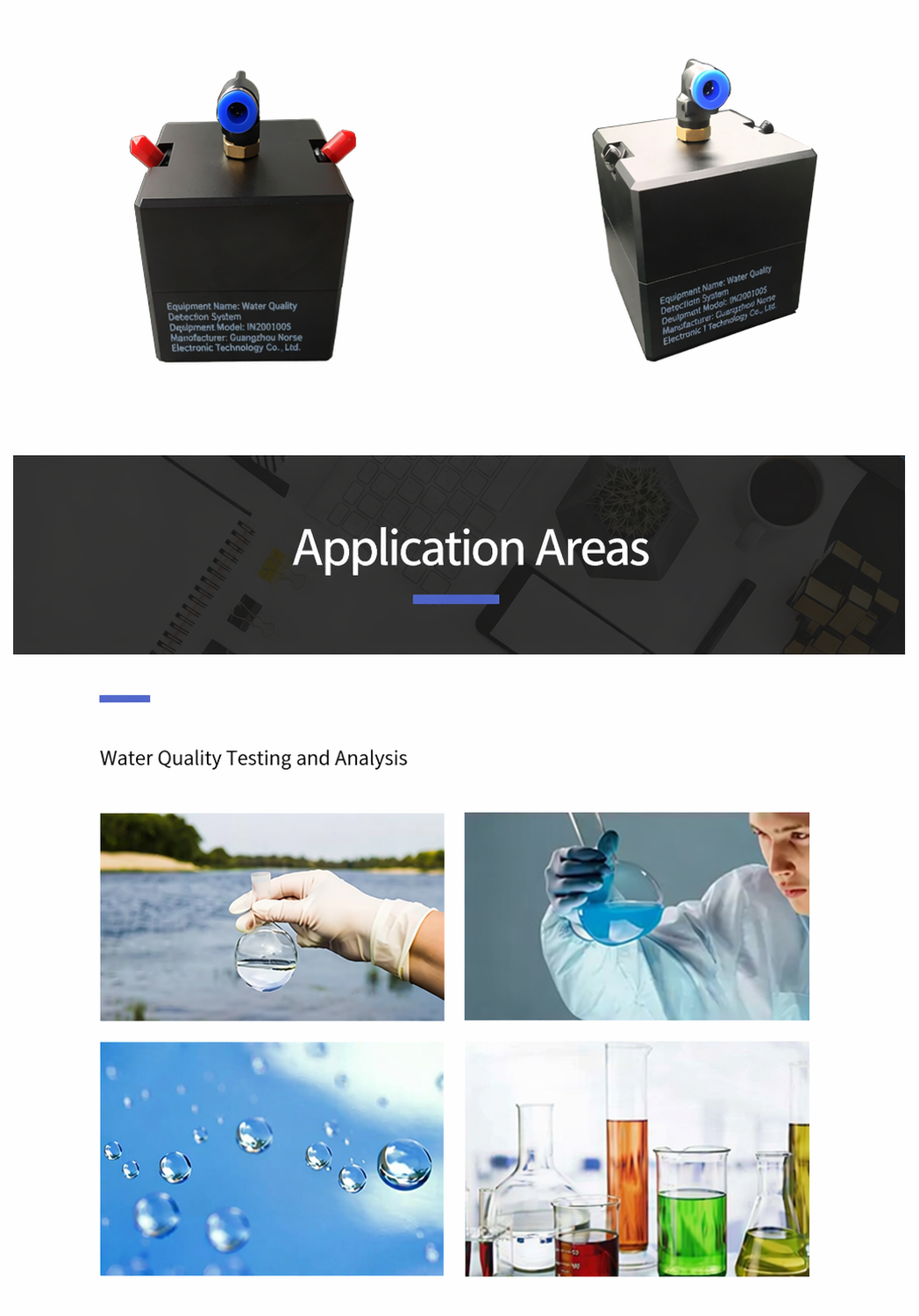

Application Area Water detection and analysis

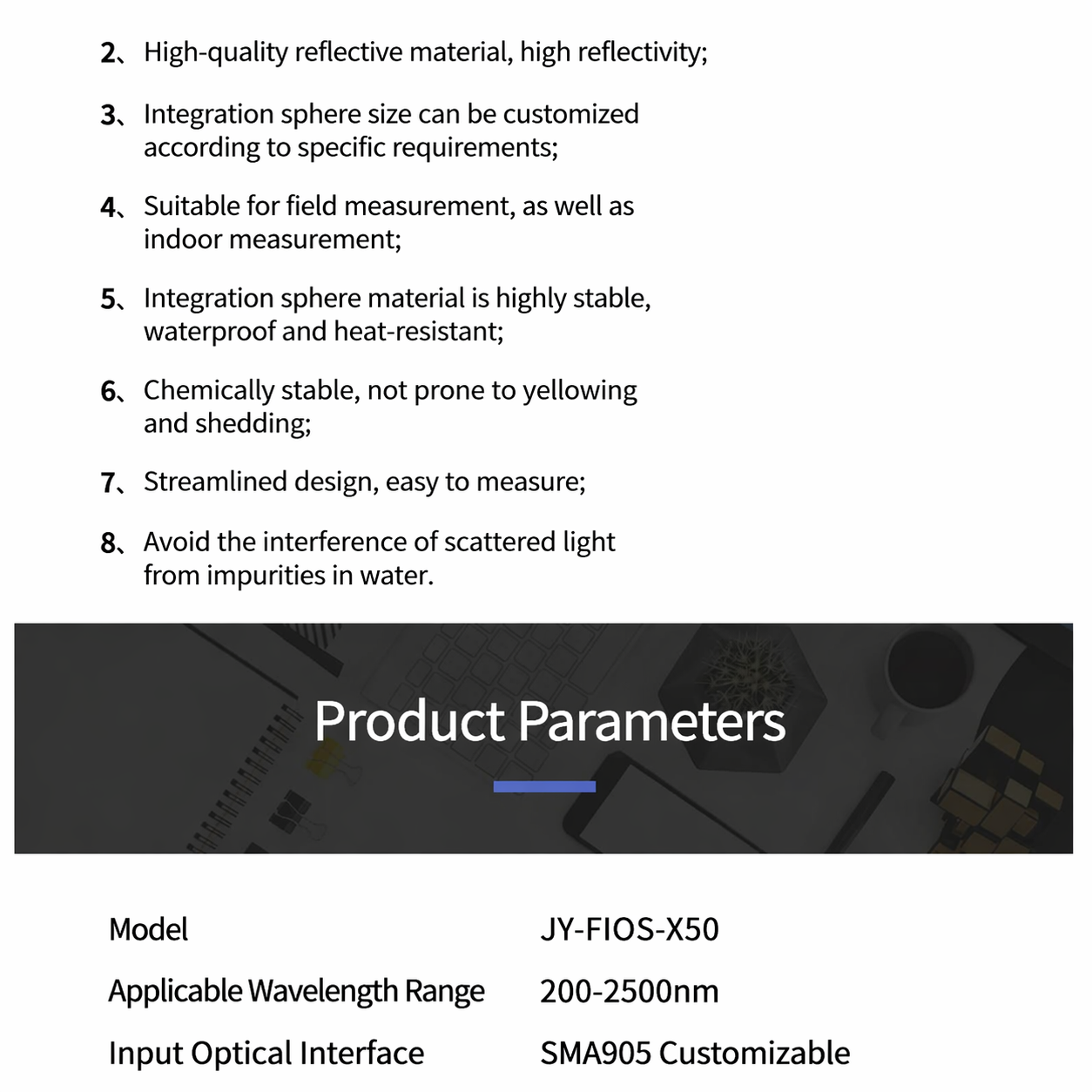

Product Features Features one High chemical stability, not easy to yellow or peel off Features two Ultra long optical path, capable of measuring low absorption water bodies Features three Made of high-quality diffuse reflection materials with high reflectivity Features four Flow design, easy to measure Features five Avoid light scattering interference from impurities in water bodies Features six The size of the integrating sphere can be customized according to specific needs Features seven Can be used for field measurements, not limited to indoor measurements Features eight Integral ball material has high stability, waterproof and heat-resistant

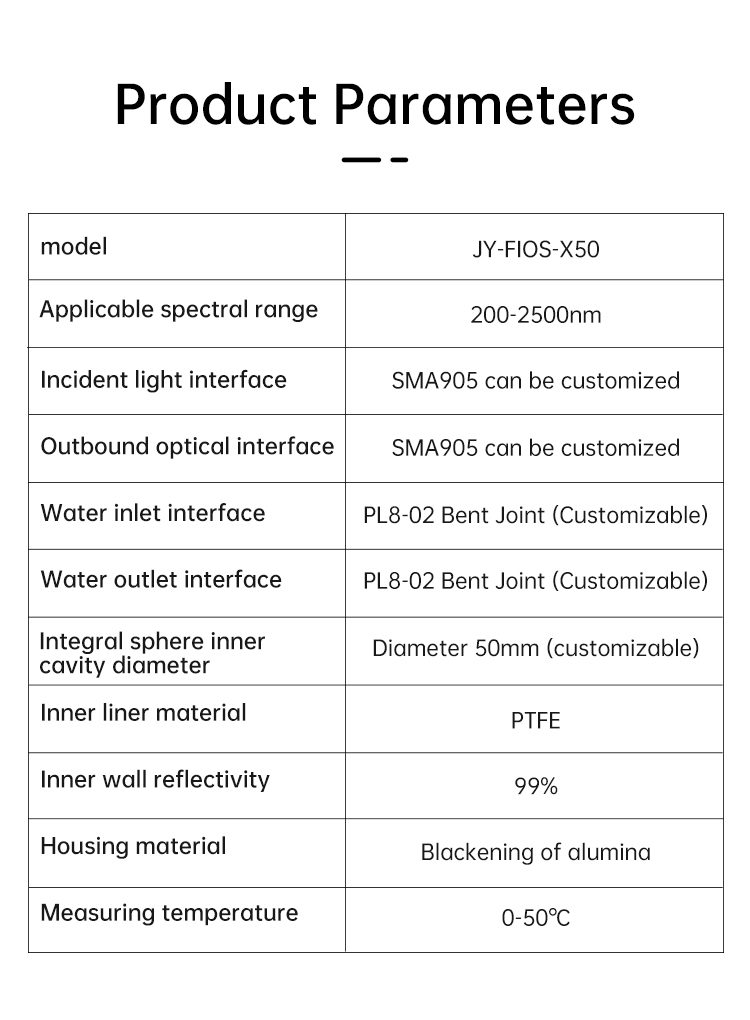

Product Parameters
model
JY-FIOS-X50
Applicable spectral range
200-2500nm
Incident light interface
SMA905 can be customized

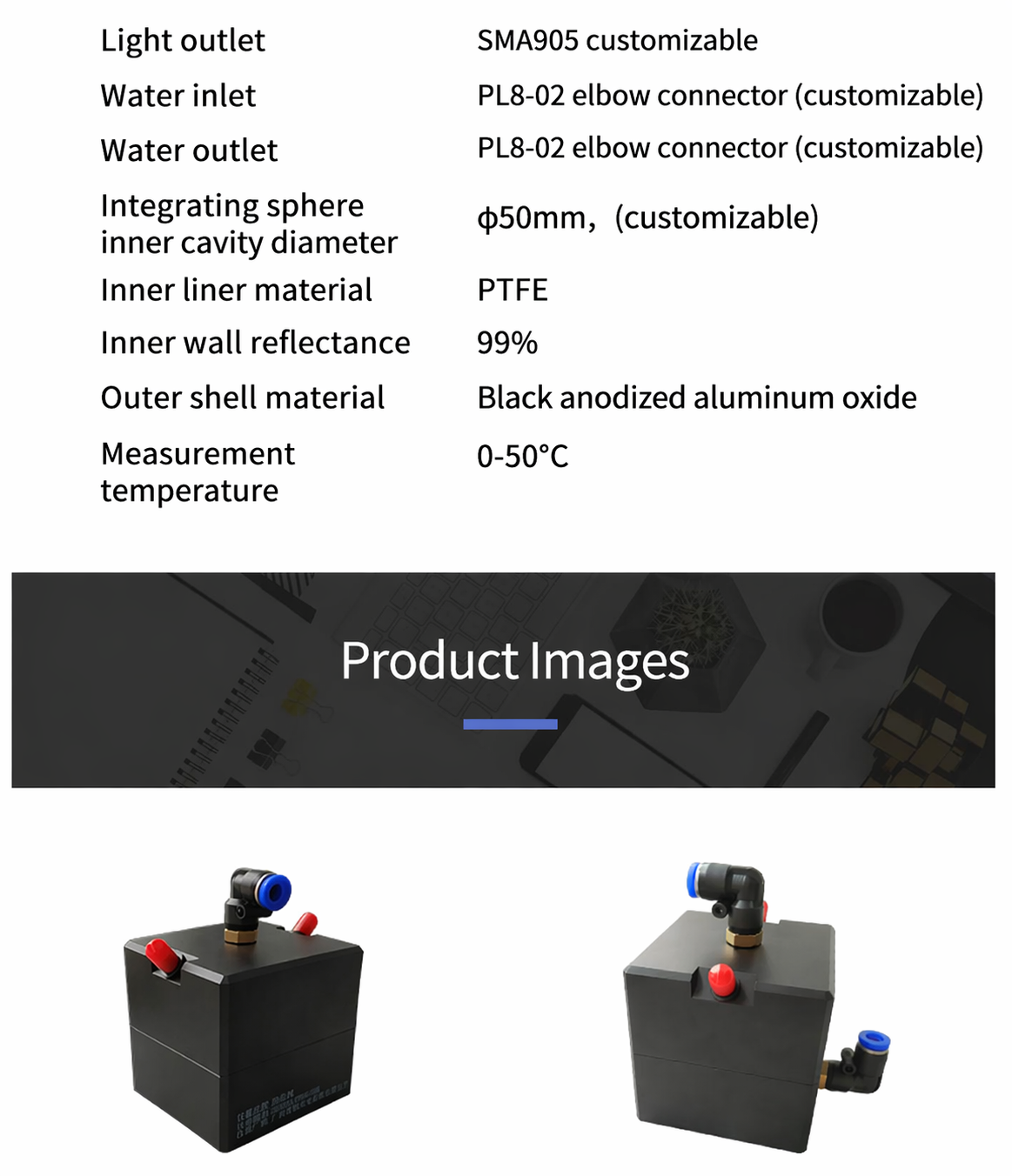

Outbound optical interface
SMA905 can be customized
Water inlet interface
PL8-02 Bent Joint (Customizable)
Water outlet interface
PL8-02 Bent Joint (Customizable)
Integral sphere inner cavity diameter
Diameter 50mm (customizable)
Inner liner material
PTFE
Inner wall reflectivity
99%
Housing material
Blackening of alumina
Measuring temperature
0-50℃
