JY-T03 透射率检测仪产品介绍
Transmittance detector
JY-T03
Product Introduction
This transmittance detector is a universal transmittance detector that uses advanced spectral measurement technology for rapid full spectrum transmittance measurement, meeting various measurement standards: EN ANSI AS/NZS、BS EN ISO 12312-1: 2013+AI: 2015、ANSI Z80.3-2015、AS/NZS1067.1: 2016、GB10810.3-2006、ISO8980-3 14889(2013)、AS/NZS1337,1:2010+A2012、CSA Z94.3-07(R2014)、QB 2457-99、QB/T 2506-2017、GB/T 11417.5 - 2012、EN166:2001-EN170:2002 EN166:2001-EN172:1994, ANSI Z87.1-2015, ASTM F659-10, etc., paired with professional and comprehensive analysis software.
Application Area
Suitable for detecting the transmittance of various optical components
Transmittance testing of flat glass, eyeglass lenses, films, and filters
Transparency detection of display screens, mobile phone screens, and touch panels, etc
Feature five
Professional testing software that can set, store, and print list data according to actual operational needs.
Feature six
The software is equipped with powerful measurement and analysis management software, which can customize measurement plans and spectral data processing according to customer requirements
Feature seven
Quality inspection function, CIE color measurement function, development database, printing report.
Feature eight
Compliant with measurement standards and specifications both domestically and internationally.
Product Advantages
Advantages one
The advantage of supplementary light is significant in compensating for the shortcomings of insufficient ultraviolet and near-infrared bands
Same integration time, stronger energy compared to similar products, faster testing time
The spectral range is wide, and the combination of complementary light paths forms a light source for measuring ultraviolet visible infrared spectra (360nm-1000nm), Higher energy and shorter detection time.
Advantages two
Advantages three
Third party organization certification
This product has authoritative certification, has been calibrated by a metrology institute, and can be accompanied by a calibration certificate.
This product can also perform CIE color detection on samples and calculate various CIE color parameters of the samples, such as: x、y、L、a、b、Main wavelength, etc
Advantages four
The quality tester can set the upper and lower limits of any wavelength range to quickly determine the product

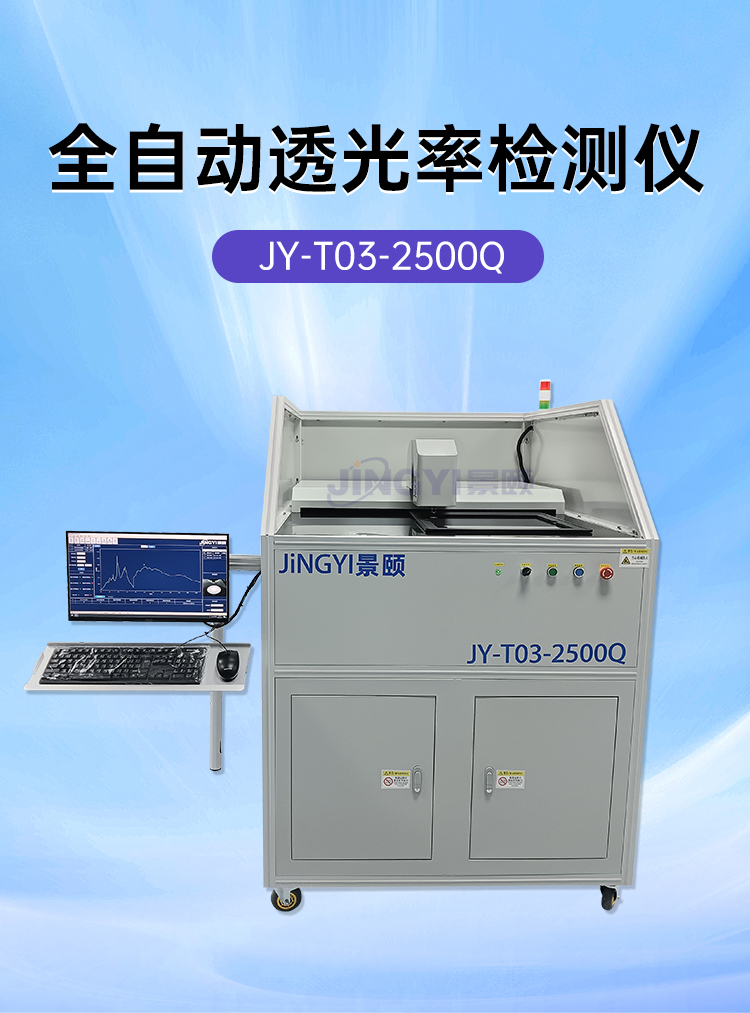

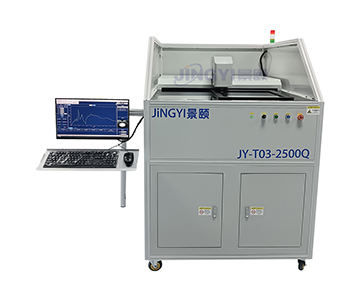

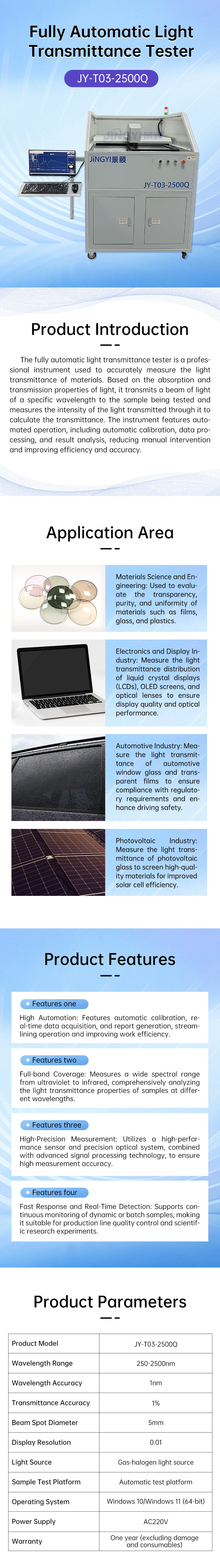

Product Introduction
The fully automatic transmittance measurement instrument is a professional device designed for precise measurement of material transmittance. Based on the absorption and transmission characteristics of light, it emits light beams of specific wavelengths to the sample under test and calculates transmittance by measuring the intensity of light passing through the sample. This instrument enables automated operation, including automatic calibration, data processing, and result analysis, minimizing human intervention and enhancing efficiency and accuracy.
Application Areas
01 Materials Science & Engineering
Used to evaluate transparency, purity, and uniformity of materials such as thin films, glass, and plastics.
02 Electronics & Display Industry
Designed for transmittance distribution testing of liquid crystal displays (LCDs), OLED screens, and optical lenses to ensure optimal display performance and optical properties.
03 Automotive Industry
Measures transmittance of car window glass and transparent films to ensure compliance with legal requirements and enhance driving safety.
04 Photovoltaic Industry
Measures transmittance of photovoltaic glass to select high-quality materials, thereby improving the power generation efficiency of solar cells.

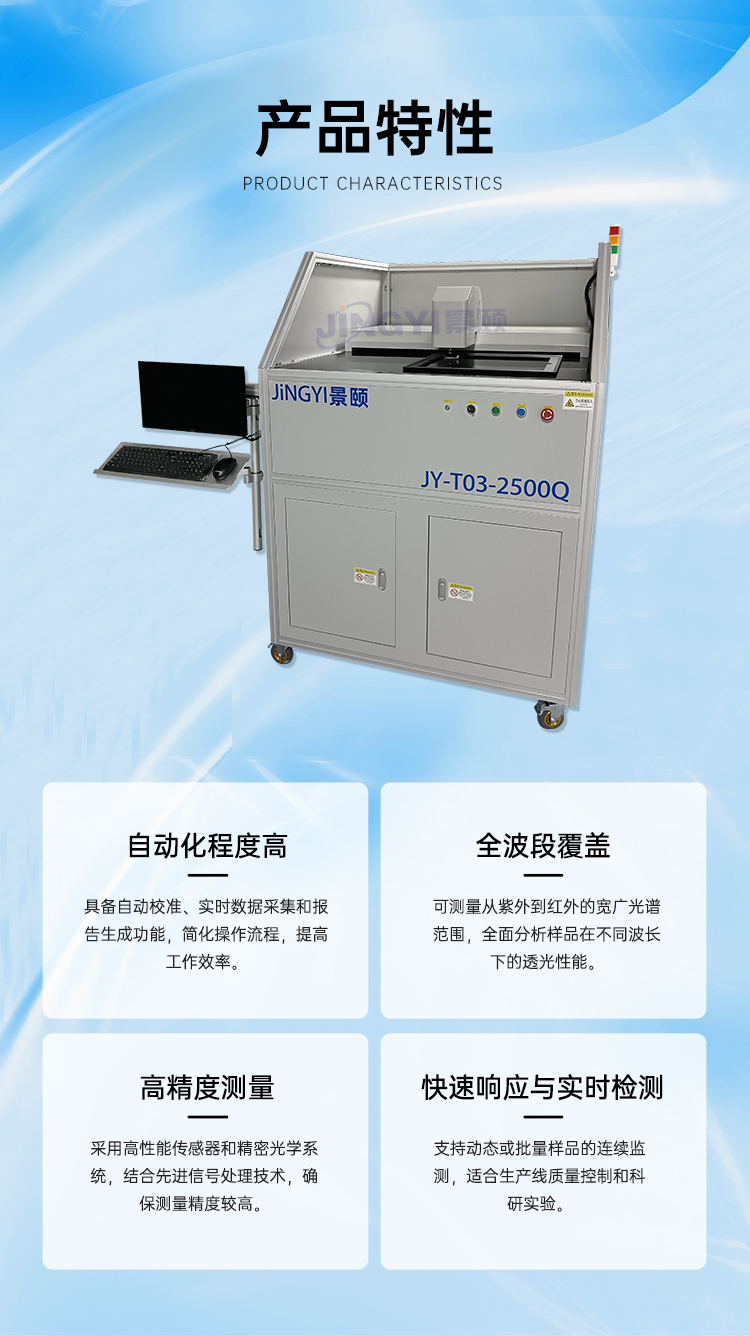

Product Characteristic
High Degree of Automation
Features automatic calibration, real-time data acquisition, and report generation, simplifying operational procedures and improving work efficiency.
Full Spectral Coverage
Capable of measuring across a broad spectral range from ultraviolet to infrared, providing comprehensive analysis of sample transmittance at different wavelengths.
High-Precision Measurement
Equipped with high-performance sensors and precision optical systems, combined with advanced signal processing technology, ensuring high measurement accuracy.
Fast Response & Real-Time Detection
Supports continuous monitoring of dynamic or batch samples, suitable for production line quality control and scientific research experiments.

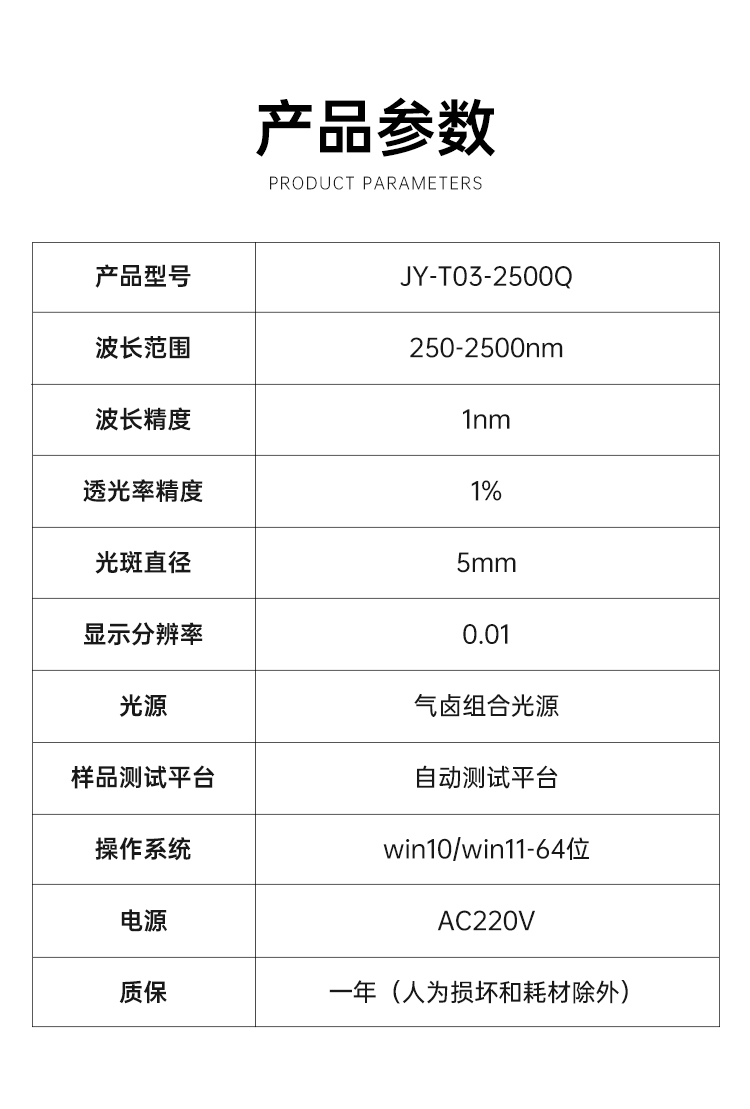

Product Parameters
| Parameter |
Specification |
| Model |
JY-T03-2500Q |
| Wavelength Range |
250–2500nm |
| Wavelength Accuracy |
1nm |
| Transmittance Accuracy |
1% |
| Spot Diameter |
5mm |
| Display Resolution |
0.01 |
| Light Source |
Xenon lamp combination source |
| Sample Testing Platform |
Automatic testing platform |
| Operating System |
Windows 10 / Windows 11 (64-bit) |
| Power Supply |
AC 220V |
| Warranty |
One year (excluding damage due to human error or consumables) |
