Gold Plated Integral Ball JY-DFIOS70

Gold Plated Integrating Sphere JY-DFIOS70 Product Introduction

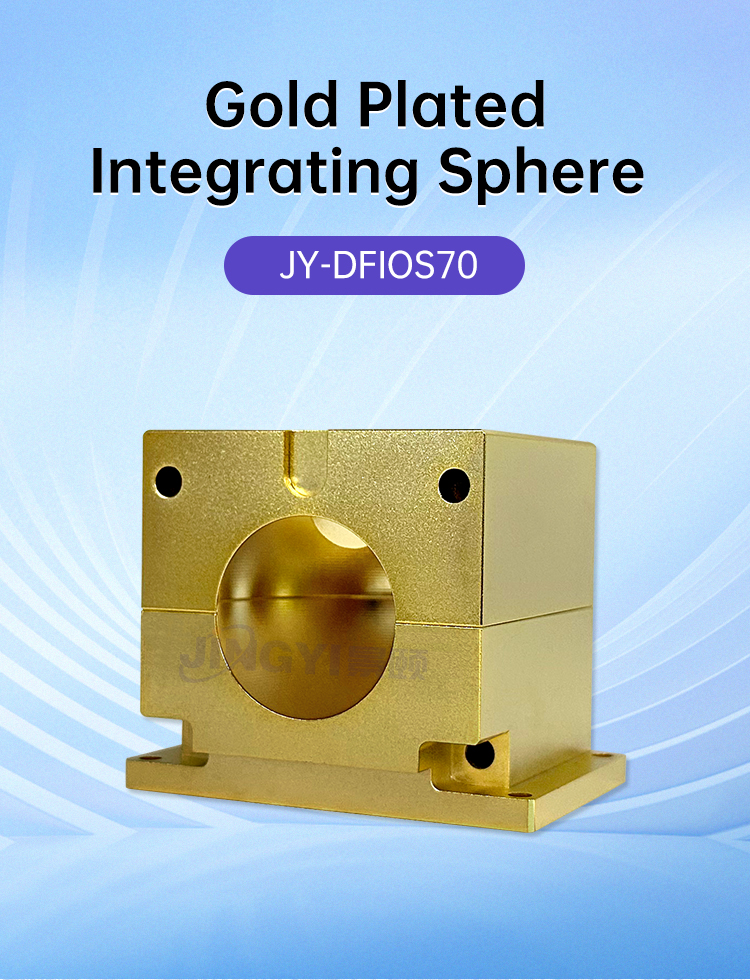

Gold Plated Integrating Sphere JY-DFIOS70

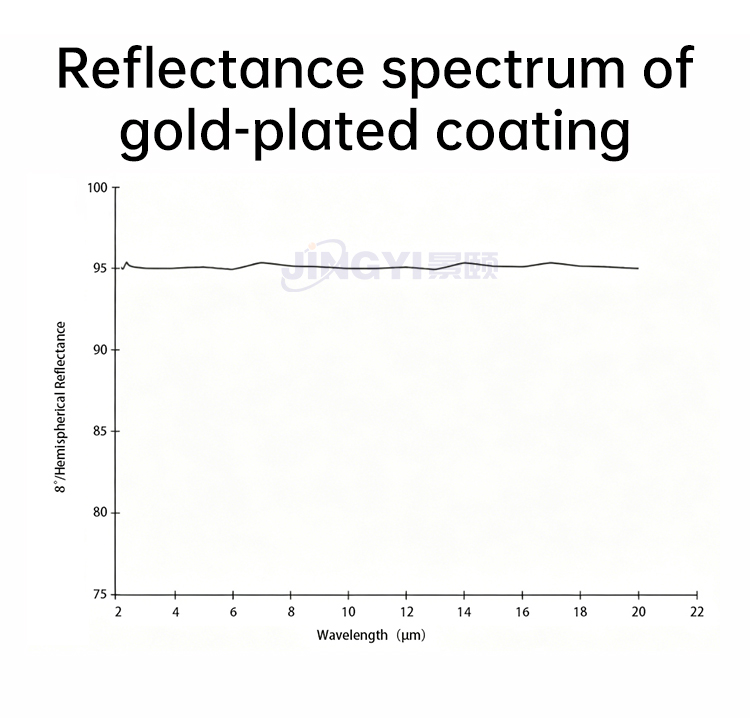

Product Introduction This gold-plated integrating sphere is coated with electroplating chemistry, which has high stability and can be cleaned. It is an ideal Lambertian body for testing, with a reflectivity of up to 94%. The diameter and opening can be customized according to specific needs.

Application Area Infrared laser power measurement Laser Spectral Performance Measurement Detection of laser and laser diode output characteristics Spectral response testing of photodetectors Measurement of Output Characteristics of CO2 Laser and Nd: YAG Laser High power laser diode measurement

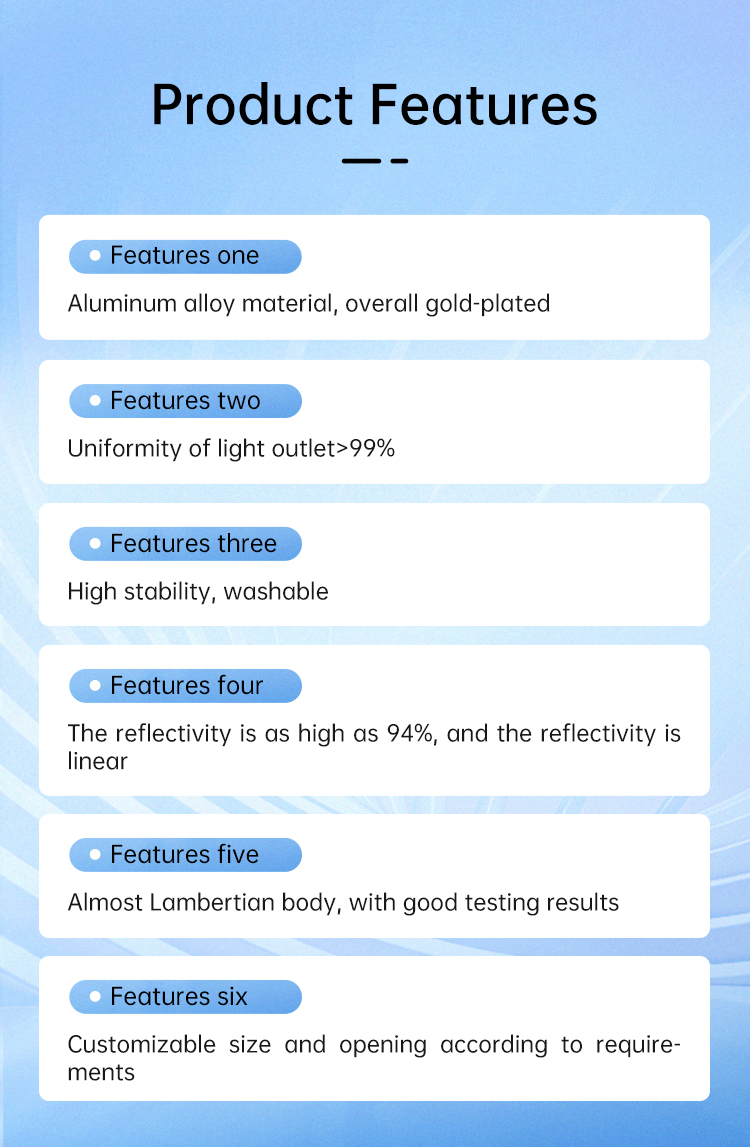

Product Features Aluminum alloy material, overall gold-plated Uniformity of light outlet>99% High stability, washable The reflectivity is as high as 94%, and the reflectivity is linear Almost Lambertian body, with good testing results Customizable size and opening according to requirements

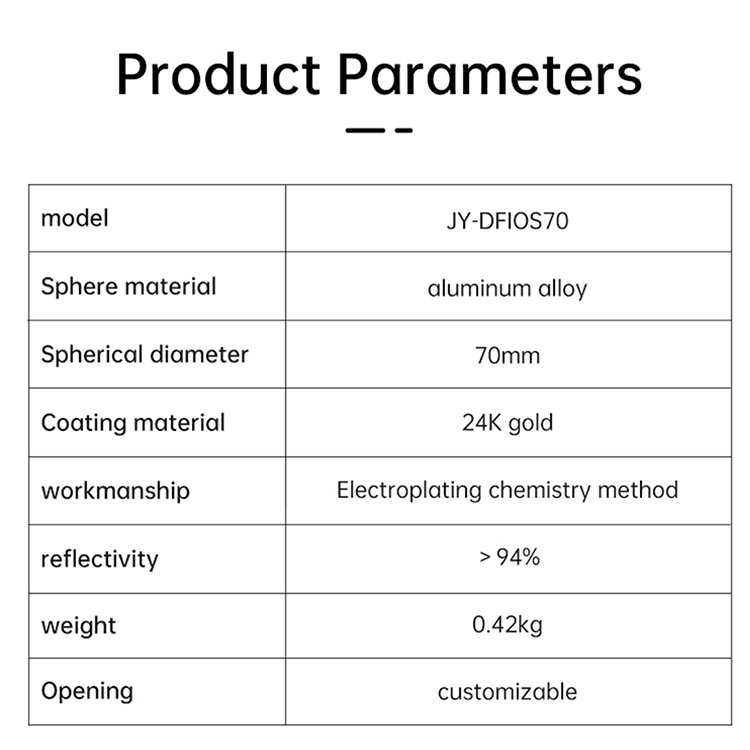

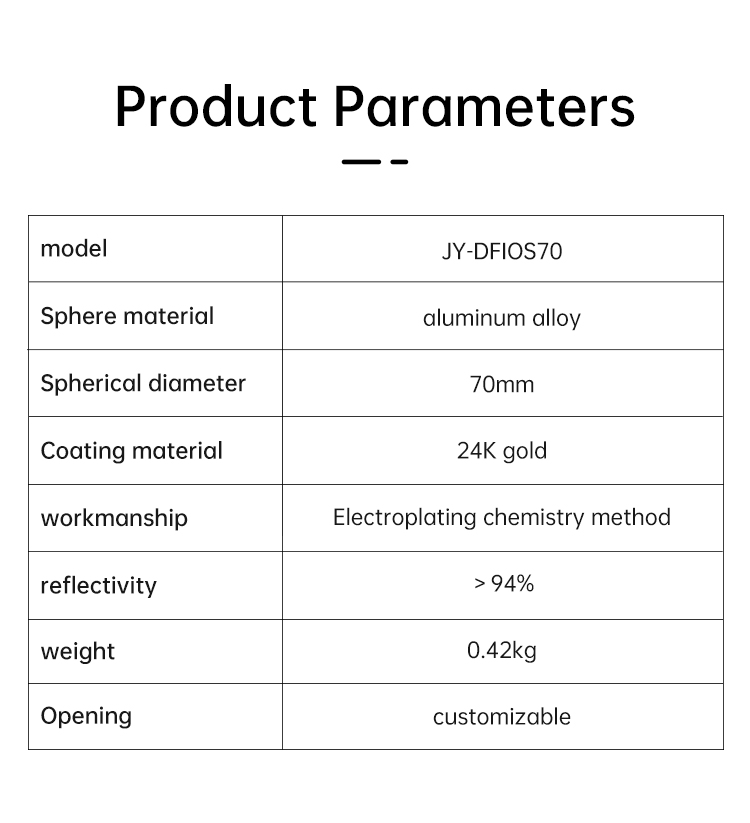

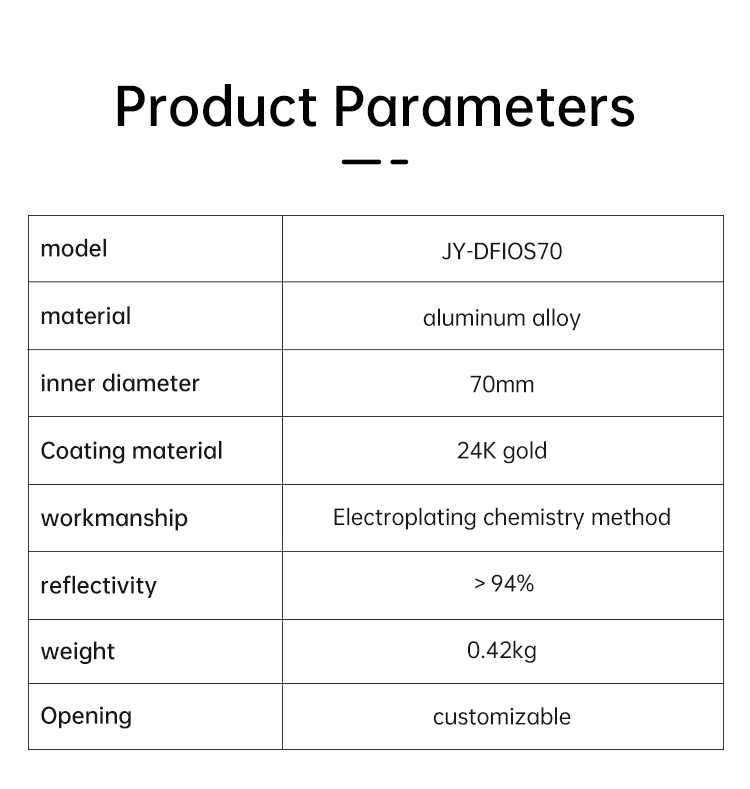

Product Parameters

model	JY-DFIOS70
Sphere material	aluminum alloy
Spherical diameter	70mm
Coating material	24K gold
workmanship	Electroplating chemistry method
reflectivity	>94%
weight	0.42kg
Opening	customizable
