Variable Optical Path Colorimetric Dish Holder
variable optical path colorimetric dish holder JY-CUV-VAR
Product Introduction There are two adjustable collimator lens holders on the left and right sides of the variable optical path colorimetric dish holder. One is used to fix the collimated light, and the other is used to receive the light signal after passing through the detected object, keeping the light path always on the same axis. The middle of the two collimator lens holders is a colorimetric dish holder, which is suitable for measuring transmittance, absorbance, and concentration. The adjustable optical path is 1-15cm and can accommodate 1-15cm flow cells.
Application Area Used for measuring liquid transmittance, absorbance, and concentration (adjustable optical path).
Product Features Adjustable optical path length and scale display. Easy to operate, sturdy chassis.

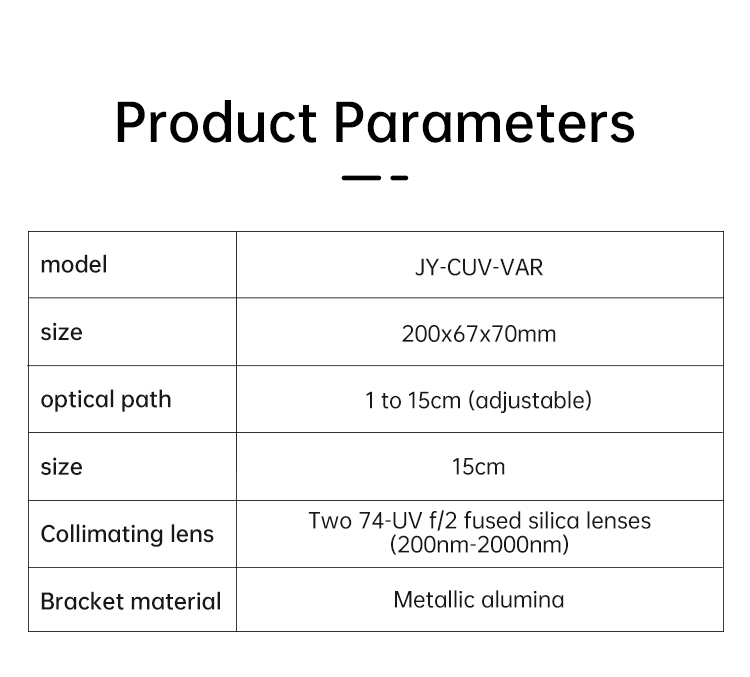

Product Parameters
|
|
|
|
model
|
JY-CUV-VAR
|
|
size
|
200x67x70mm
|
|
optical path
|
1 to 15cm (adjustable)
|
|
size
|
15cm
|
|
Collimating lens
|
Two 74-UV f/2 fused silica lenses (200nm-2000nm)
|
|
Bracket material
|
|
