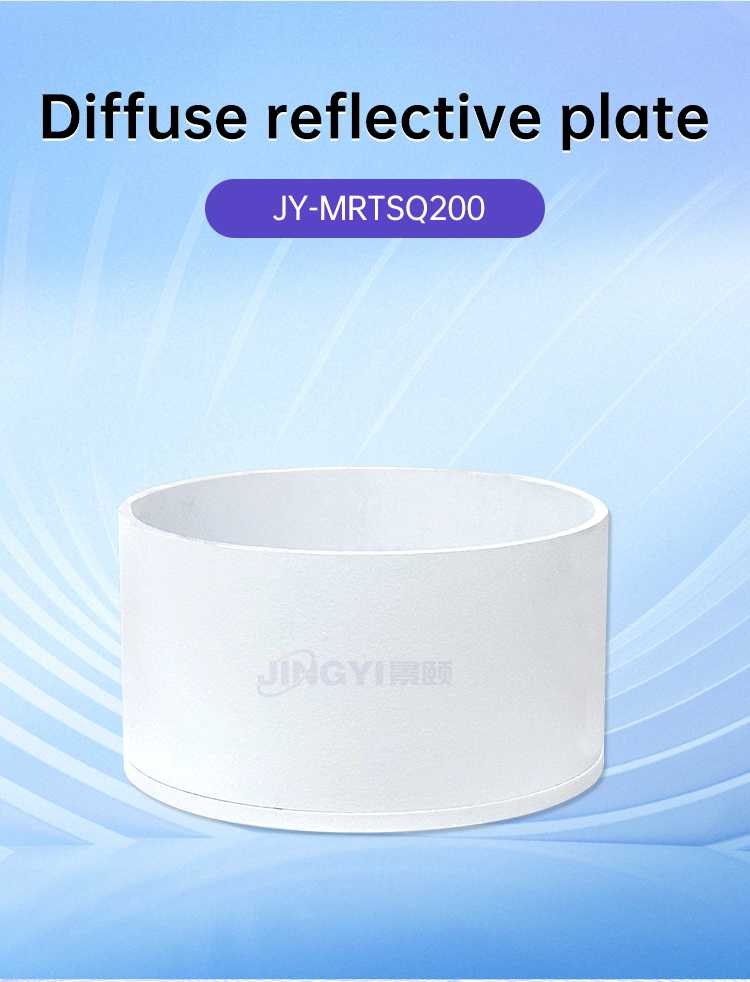

Diffuse reflector JY-MRTSQ200

Diffuse reflector JY-MRTSQ200











LiDAR 产品介绍:助力汽车自动驾驶

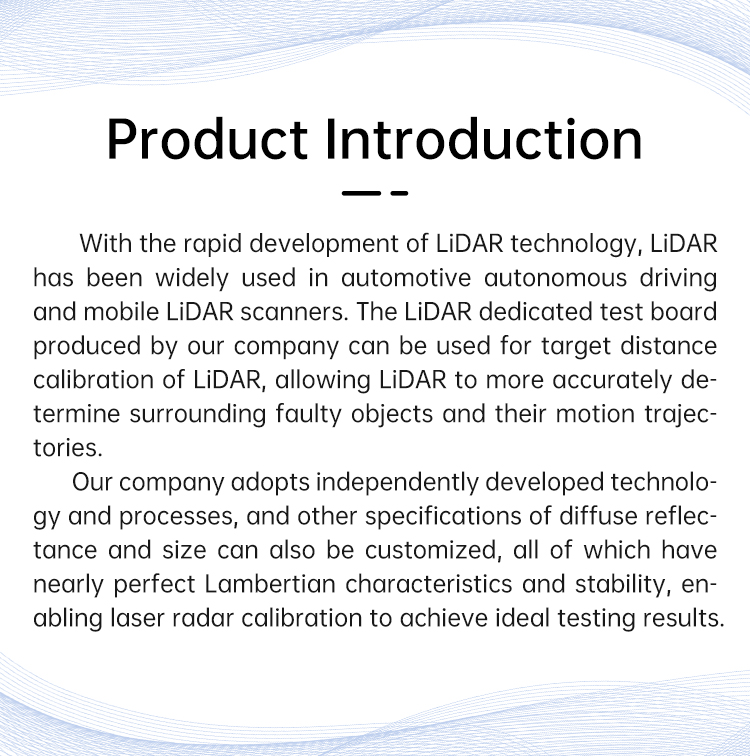

Product Introduction With the rapid development of LiDAR technology, LiDAR has been widely used in automotive autonomous driving and mobile LiDAR scanners. The LiDAR dedicated test board produced by our company can be used for target distance calibration of LiDAR, allowing LiDAR to more accurately determine surrounding faulty objects and their motion trajectories. Our company adopts independently developed technology and processes, and other specifications of diffuse reflectance and size can also be customized, all of which have nearly perfect Lambertian characteristics and stability, enabling laser radar calibration to achieve ideal testing results.
Application Area Laser radar system calibration Improve the clarity of LCD display images Distance recognition testing of autonomous driving systems Mobile LiDAR Scanner Testing System

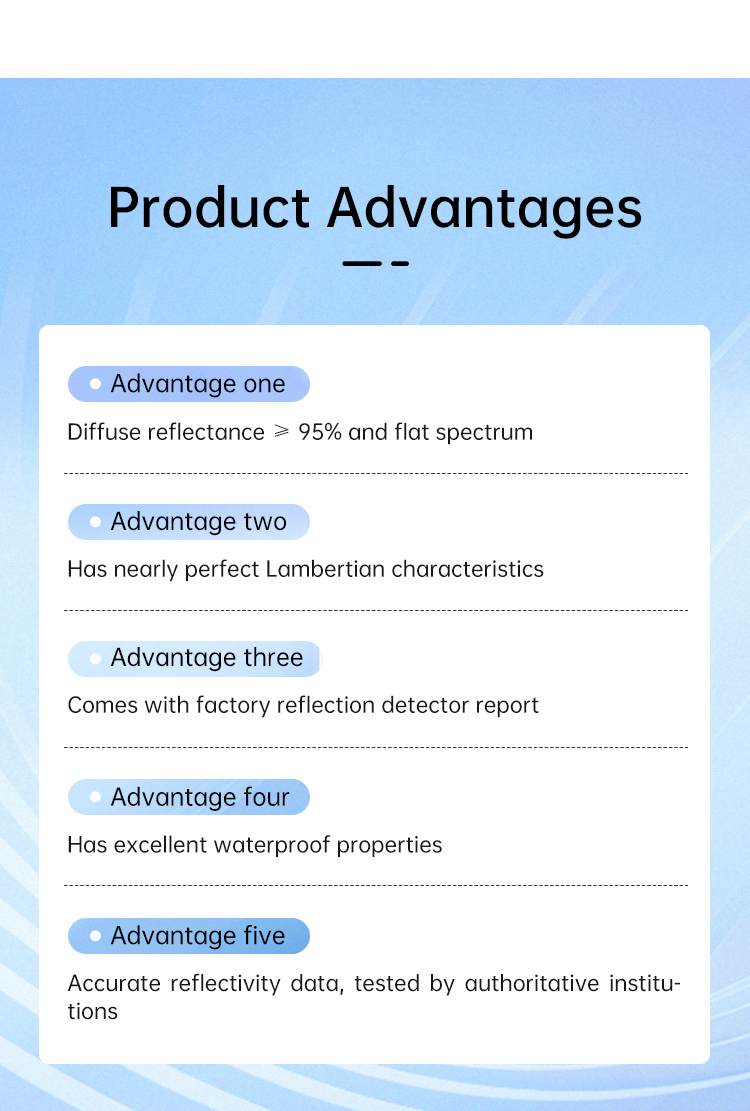

Product Advantages Diffuse reflectance ≥ 95% and flat spectrum Has nearly perfect Lambertian characteristics Comes with factory reflection detector report Has excellent waterproof properties Accurate reflectivity data, tested by authoritative institutions

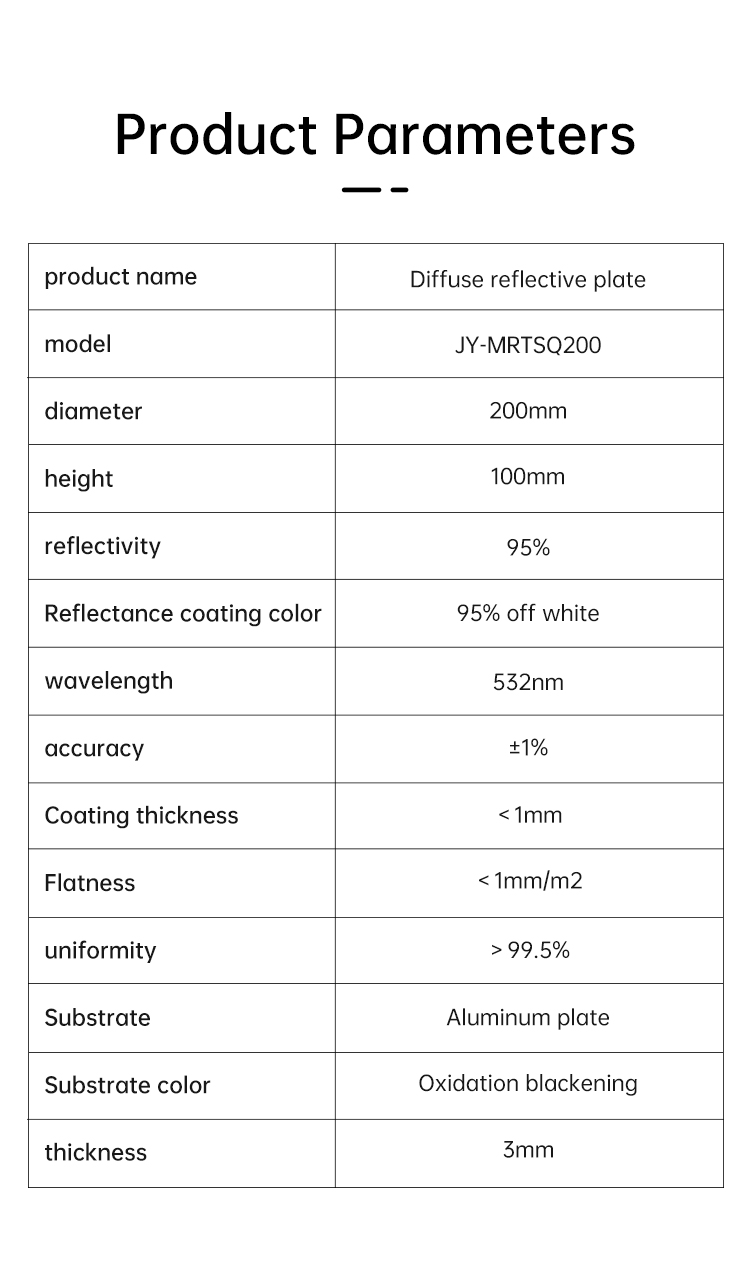

Product Parameters
Item
Parameter
product name
Diffuse reflective plate
model
JY-MRTSQ200
diameter
200mm
height
100mm
reflectivity
95%
Reflectance coating color
95% off white
wavelength
532nm
accuracy
±1%
Coating thickness
<1mm
Flatness
<1mm/m2
uniformity
>99.5%
Substrate
Aluminum plate
Substrate color
Oxidation blackening
thickness
3mm
