Car rearview mirror reflectance tester

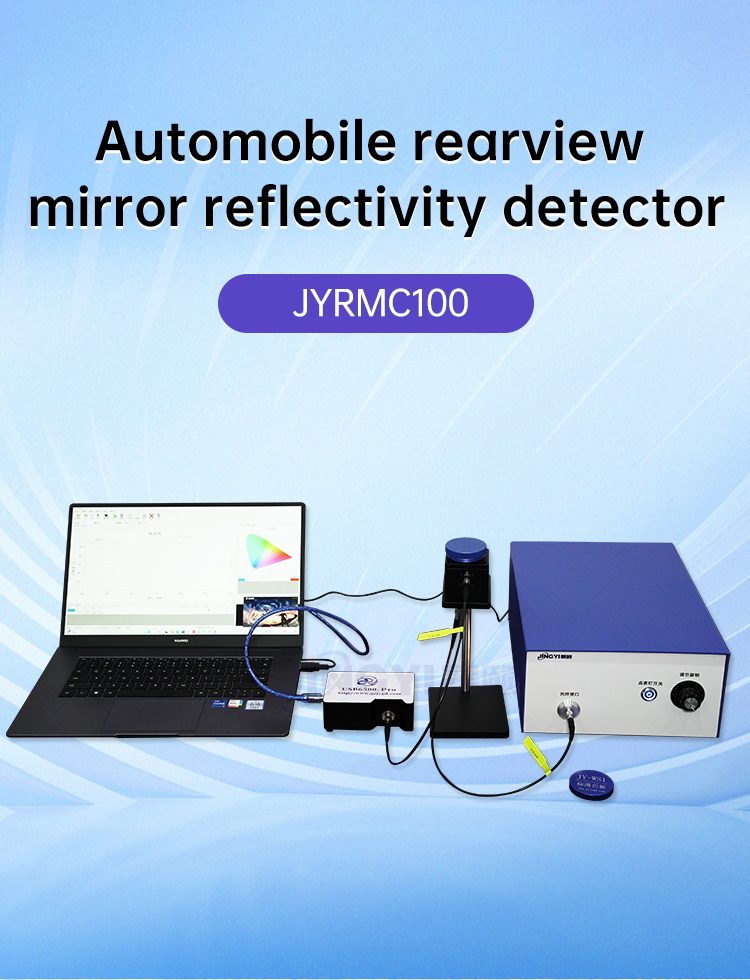

Automobile rearview mirror reflectivity detector

JYRMC100

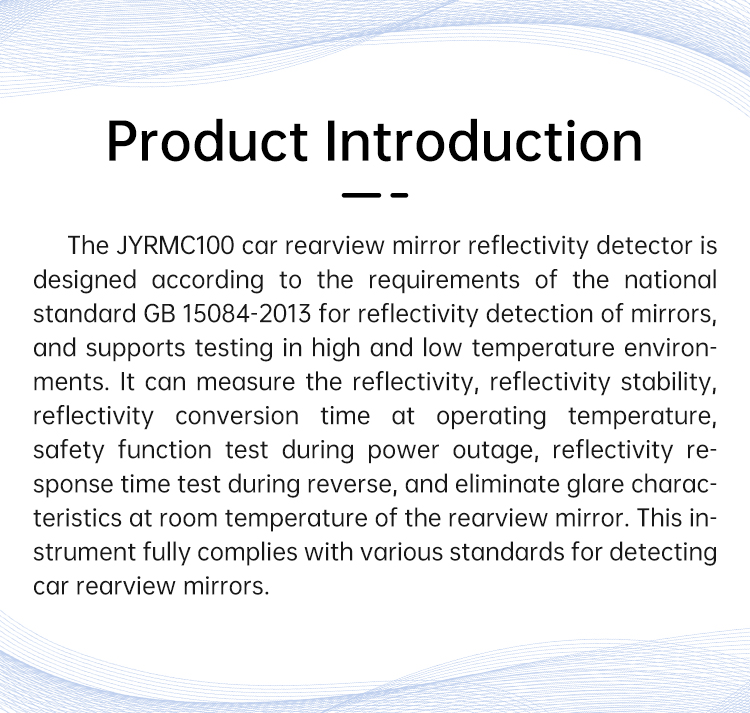

Product Introduction

The JYRMC100 car rearview mirror reflectivity detector is designed according to the requirements of the national standard GB 15084-2013 for reflectivity detection of mirrors, and supports testing in high and low temperature environments. It can measure the reflectivity, reflectivity stability, reflectivity conversion time at operating temperature, safety function test during power outage, reflectivity response time test during reverse, and eliminate glare characteristics at room temperature of the rearview mirror. This instrument fully complies with various standards for detecting car rearview mirrors.

Application Area

Ordinary anti glare interior rearview mirror
Automatic anti glare interior rearview mirror
Streaming media rearview mirror

Product Features

Features one: Fast measurement speed, single test time 1ms
Features two: Customize judgment criteria
Features three: Support high and low temperature environment testing
Features four: Easy to operate and flexible to use
Features five: Customizable online automatic detection solution

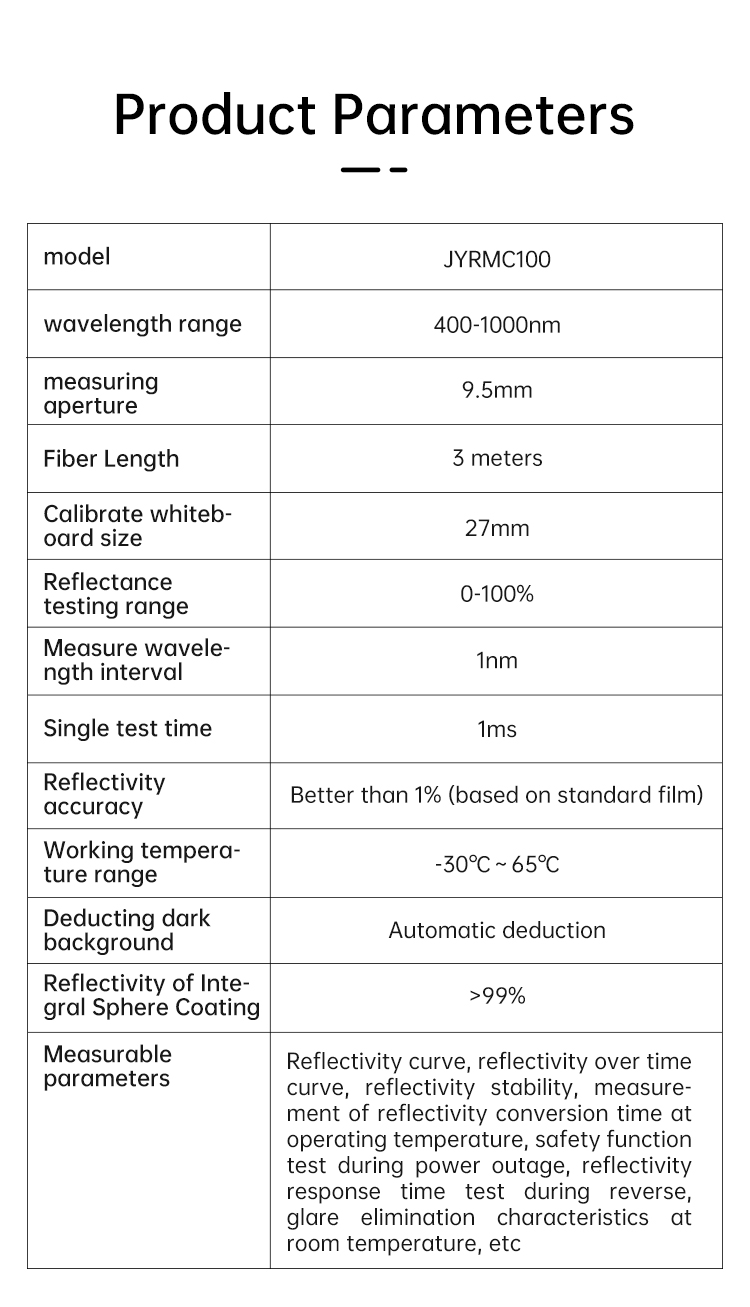

Product Parameters

Parameter	Value
model	JYRMC100
wavelength range	400-1000nm
measuring aperture	9.5mm
Fiber Length	3 meters
Calibrate whiteboard size	27mm
Reflectance testing range	0-100%
Measure wavelength interval	1nm
Single test time	1ms
Reflectivity accuracy	Better than 1% (based on standard film)
Working temperature range	-30°C ~ 65°C
Deducting dark background	Automatic deduction
Reflectivity of Integral Sphere Coating	>99%
Measurable parameters	Reflectivity curve, reflectivity over time curve, reflectivity stability, measurement of reflectivity conversion time at operating temperature, safety function test during power outage, reflectivity response time test during reverse, glare elimination characteristics at room temperature, etc
