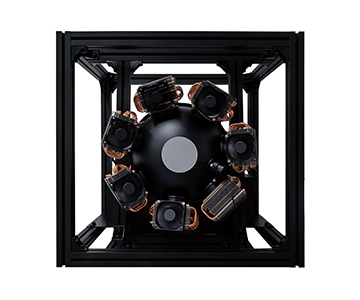

Integral sphere uniform light source JY-JFIOS-D300-TS

Integral sphere uniform light source JY-JFIOS-D300-TS



JY-JFIOS200 一体化均匀光源产品介绍

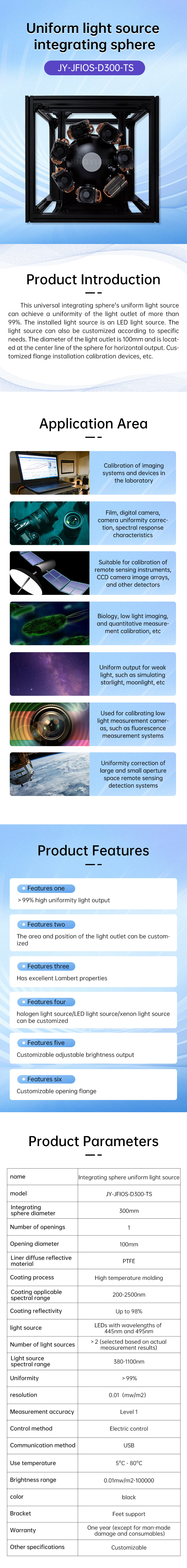

Uniform light source integrating sphere JY-JFIOS200
Product Introduction This universal integrating sphere uniform light source has a uniform light outlet that can reach over 98%. The installed light sources are LED lights and halogen lights, and the light source can also be customized according to specific needs. The diameter of the light outlet is 45mm, located horizontally at the center line of the sphere, and flange installation calibration devices can be customized.
Application Area Calibration of imaging systems and devices in the laboratory Film, digital camera, camera uniformity correction, spectral response characteristics Suitable for calibration of remote sensing instruments, CCD camera image arrays, and other detectors Biology, low light imaging, and quantitative measurement calibration, etc Uniform output for weak light, such as simulating starlight, moonlight, etc Used for calibrating low light measurement cameras, such as fluorescence measurement systems Uniformity correction of large and small aperture space remote sensing detection systems
Product Features Features one: High uniformity light output of ≥ 98% Features two: The area and position of the light outlet can be customized Features three: Has excellent Lambertian characteristics Features four: Halogen lamp light source/LED light source/Xenon lamp light source can be customized Features five: Customizable and adjustable brightness output Features six: Customizable open flange
Product Parameters
name
Integral sphere uniform light source
model
JY-JFIOS200
Integral sphere diameter
200mm
Number of openings
2
opening size
45mm
coating
PTFE
workmanship
spray
Coating applicable spectral range
250-2500nm
light source
LED lamp; halogen lamp
Number of light sources
2 of them
Light source power
LED light: 3000K; halogen light: 55W
Spectral range of light source
380-2500nm
uniformity
≥98%
colour
black
base
Black aluminum alloy cubic frame
power supply
Adjustable power supply
warranty
1 year (excluding self damage and consumables)
Other specifications
customizable



JY-FJDH-2000 均匀光源积分球
Uniform light source integrating sphere JY-FJDH-2000
Product Features Uniformity >99% Coating material PTFE Deuterium lamp power 25W Halogen lamp power 5W
Product Parameters
model
JY-FJDH-2000
Integral sphere inner diameter
25mm
Integral sphere coating material
PTFE
Coating process
foaming
light source
Deuterium halogen lamp light source
optical filter
have
Deuterium lamp characteristic peak
With elimination
Deuterium lamp power
25W
Halogen lamp power
5W
spectrum
200-2500nm
uniformity
> 99%
Light outlet
SMA905 fiber optic interface
Power box voltage
220V
