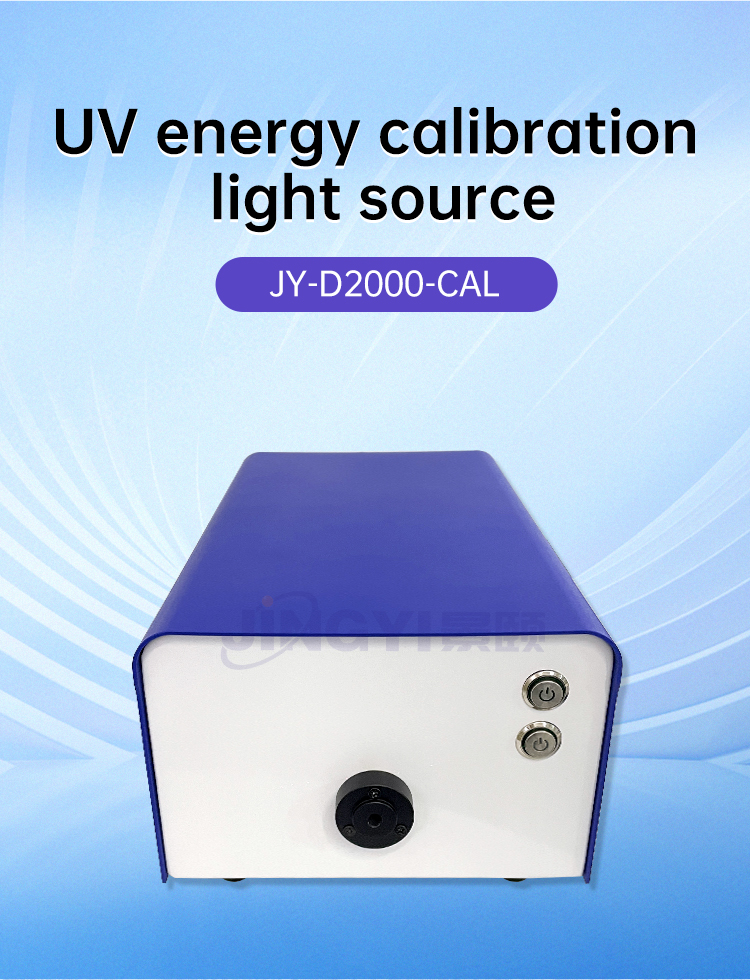

JY-D2000-CAL UV Energy Calibration Light Source Product Introduction
UV energy calibration light source JY-D2000-CAL

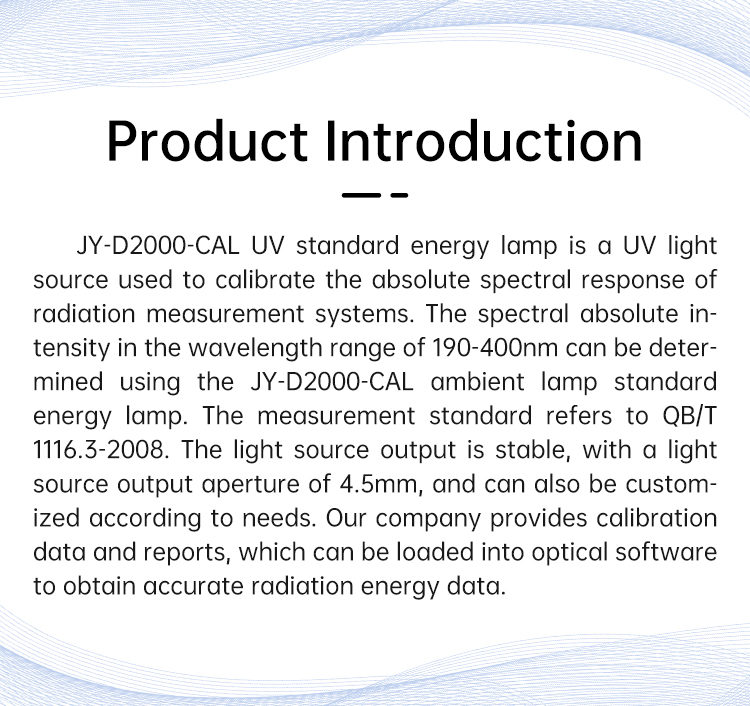

Product Introduction JY-D2000-CAL UV standard energy lamp is a UV light source used to calibrate the absolute spectral response of radiation measurement systems. The spectral absolute intensity in the wavelength range of 190-400nm can be determined using the JY-D2000-CAL ambient lamp standard energy lamp. The measurement standard refers to QB/T 1116.3-2008. The light source output is stable, with a light source output aperture of 4.5mm, and can also be customized according to needs. Our company provides calibration data and reports, which can be loaded into optical software to obtain accurate radiation energy data.

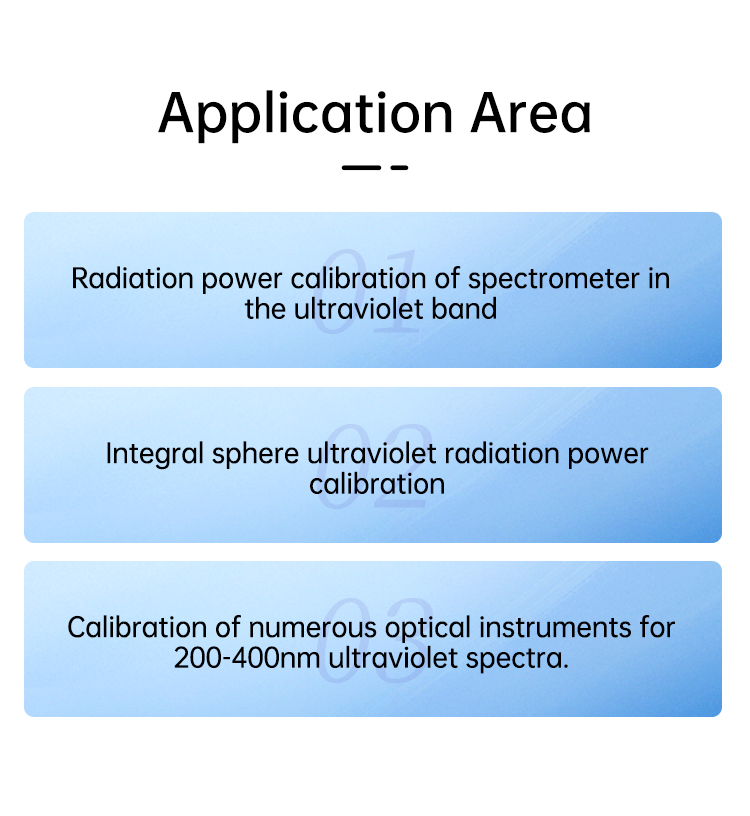

Application Area Radiation power calibration of spectrometer in the ultraviolet band Integral sphere ultraviolet radiation power calibration Calibration of numerous optical instruments for 200-400nm ultraviolet spectra.

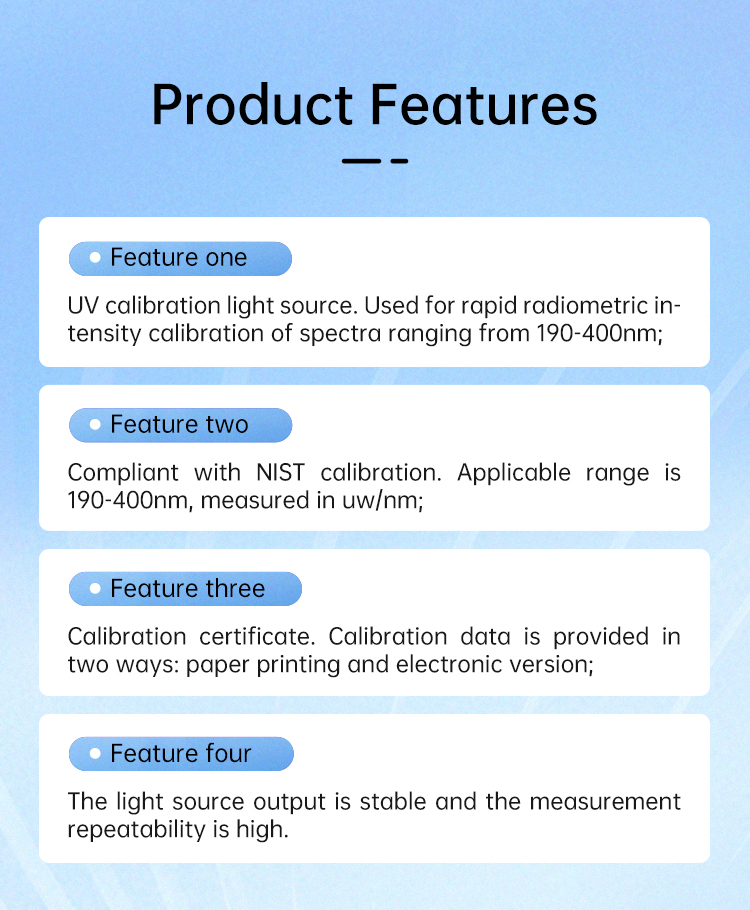

Product Features UV calibration light source. Used for rapid radiometric intensity calibration of spectra ranging from 190-400nm; Compliant with NIST calibration. Applicable range is 190-400nm, measured in uw/nm; Calibration certificate. Calibration data is provided in two ways: paper printing and electronic version; The light source output is stable and the measurement repeatability is high.

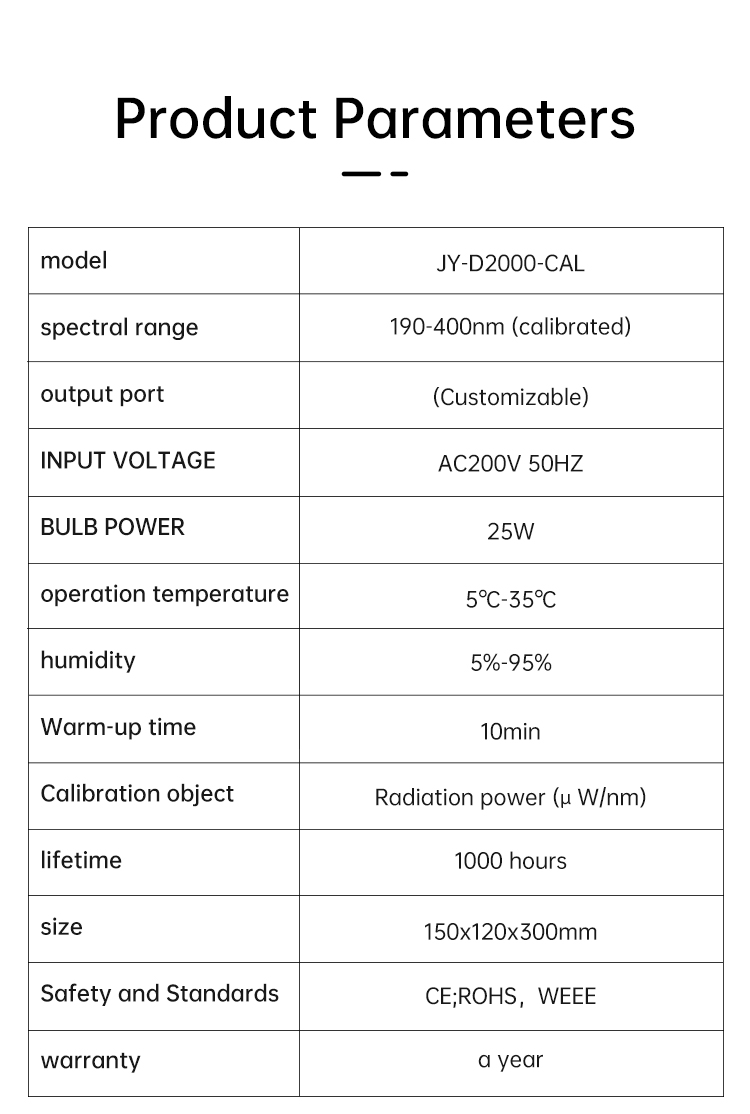

Product Parameters
|
|
|
|
model
|
JY-D2000-CAL
|
|
spectral range
|
190-400nm (calibrated)
|
|
output port
|
(Customizable)
|
|
INPUT VOLTAGE
|
AC200V 50HZ
|
|
BULB POWER
|
25W
|
|
operation temperature
|
5℃-35℃
|
|
humidity
|
5%-95%
|
|
Warm-up time
|
10min
|
|
Calibration object
|
Radiation power (μ W/nm)
|
|
lifetime
|
1000 hours
|
|
size
|
150x120x300mm
|
|
Safety and Standards
|
CE;ROHS, WEEE
|
|
warranty
|
a year
|

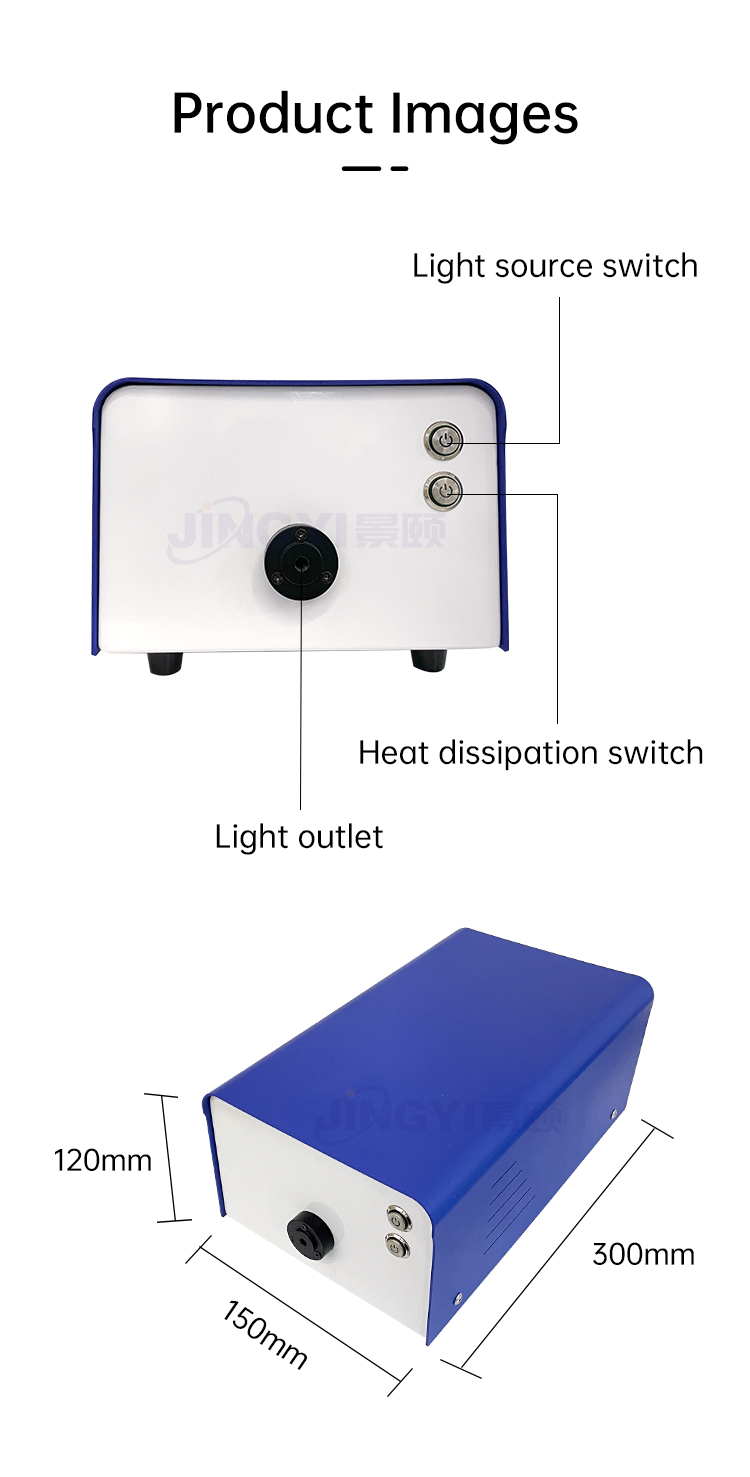

Product Images Light source switch Heat dissipation switch Light outlet
