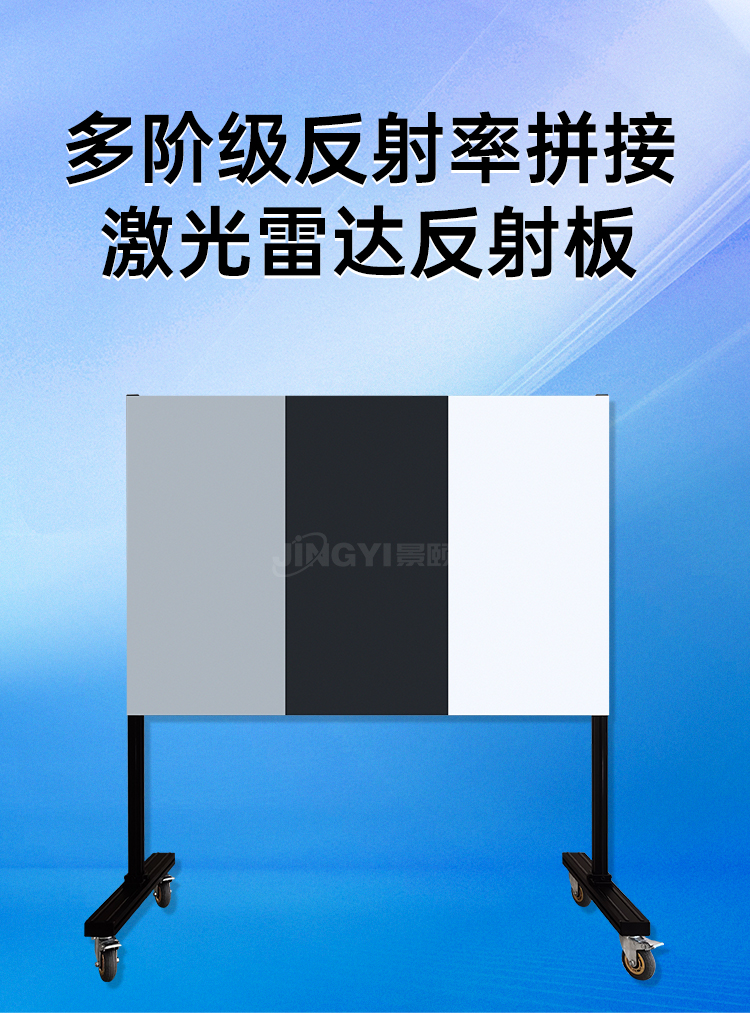

Multi-class Reflectance Spliced LiDAR Reflective Panel

Multi-Level LiDAR Reflector Product Introduction

Multi-level Reflectivity Stitched LiDAR Reflector

Reflectivity 50%+10%+90%

Product Introduction

This high-precision, multi-functional reflector is used for LiDAR system calibration. It simulates different target reflectivity characteristics using varying reflectivity regions, helping LiDAR systems improve measurement accuracy and recognition capabilities. It is primarily used in autonomous driving, robotic navigation, remote sensing, and other fields to ensure LiDAR systems can accurately measure and identify targets.

Application Area

Robotic Navigation:

In robotic navigation systems, this product can be used to calibrate the LiDAR system, improving navigation accuracy and stability.

Autonomous Driving:

In autonomous vehicles, this product can be used to calibrate the LiDAR system, ensuring it can accurately measure and identify obstacles.

Remote Sensing:

In remote sensing, this product can be used to calibrate the LiDAR system, ensuring the accuracy of data such as the height and shape of the target being measured.

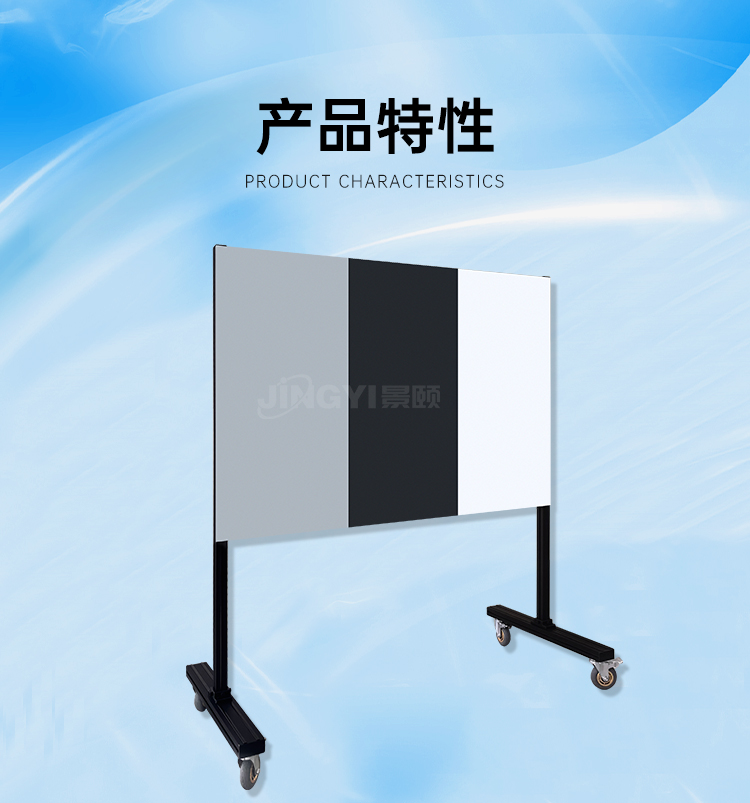

Product Features

Features one

Multi-Level Reflectivity: Features multiple areas of varying reflectivity, precisely calculated and manufactured.

Features two

Seamless Design: Designed to be seamless, this product can be combined into various sizes and shapes as needed.

Features three

Lambertian Reflectivity: Features near-perfect Lambertian reflectivity, with reflectivity characteristics very close to those of an ideal diffuse reflector.

Features four

Customization Supported: Customization is available for reflectivity, size, and shape.

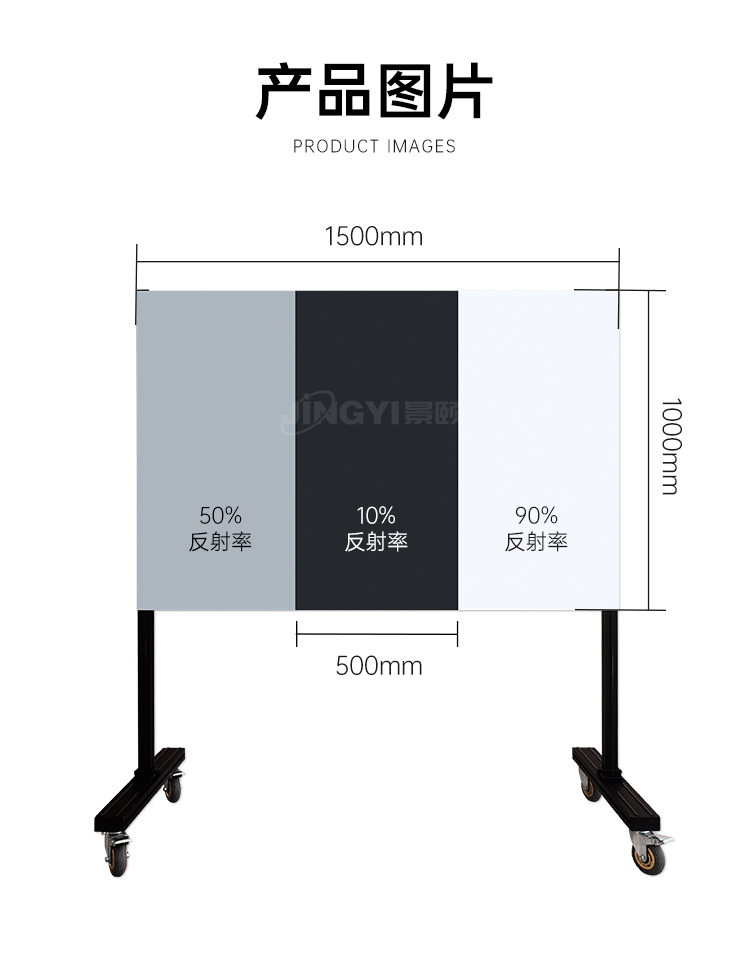

Product Parameters

Model	JYMRT
Reflectivity	50%+10%+90%
Wavelength	905nm
Substrate	Aluminum Plate
Substrate Dimensions	1500*1000mm
Substrate Thickness	3mm
Accuracy	±1%
Flatness	Better than 1mm/m²
Bracket	With rollers
Other Specifications	Customizable
Warranty	One year (excluding man-made damage and consumables)
