JY-BRT200 diffuse reflectance standard whiteboard: an efficient tool for measuring reflectance

Suitable for measurement
Reflectance of various samples

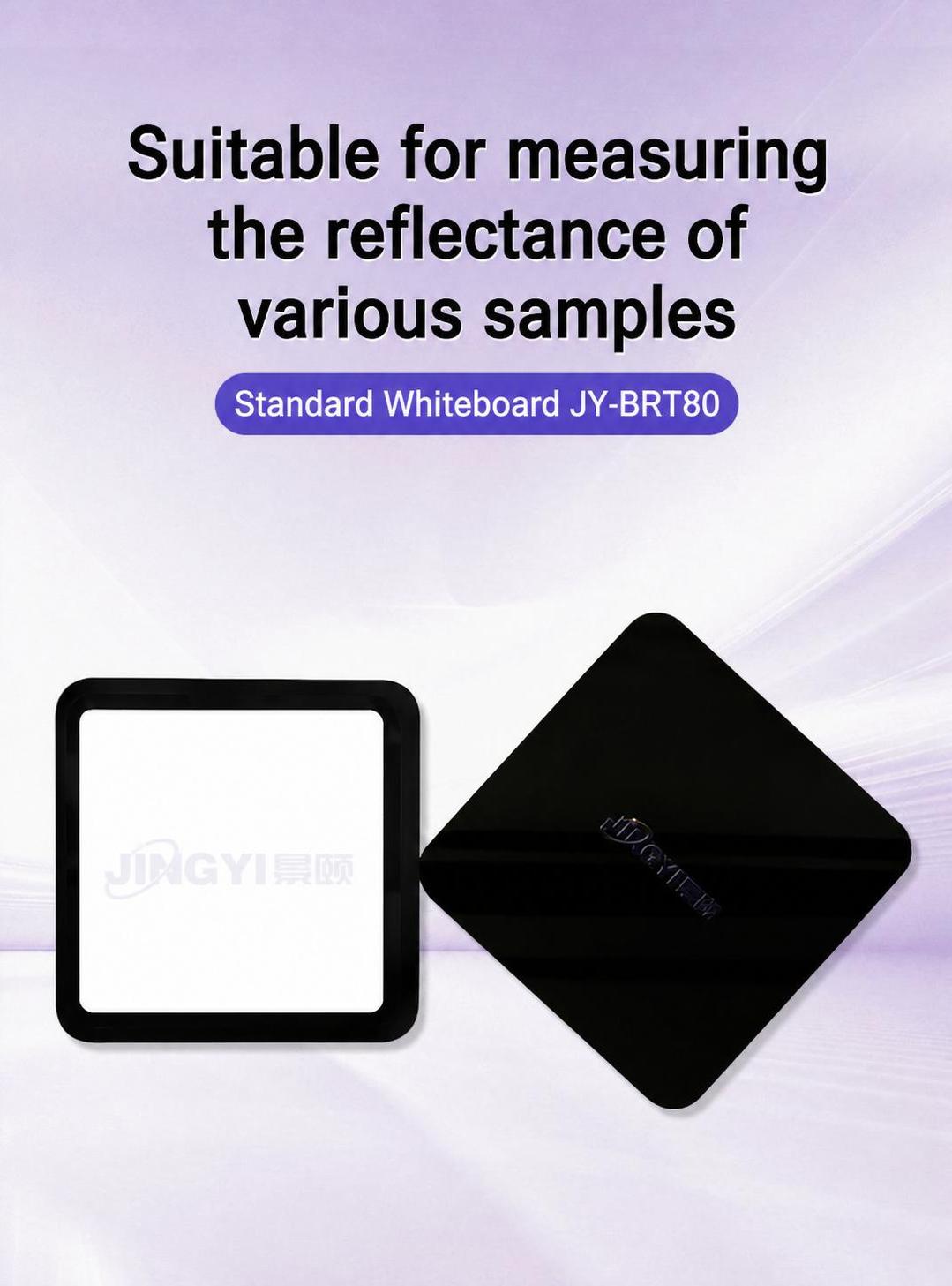

Standard whiteboard jy-brt200
Product Introduction
Compared to other standard boards, the diffuse reflection standard whiteboard has high stability and is suitable for a wide spectral range of ultraviolet visible near infrared (250-2500nm). The reflectance ratio can reach up to 99%. The size of the diffuse reflection standard whiteboard is 200x200mm, and users can customize the size according to their needs. It is made of imported PTFE material processed at high temperature, which has waterproof function and will not lose powder or turn yellow over time. It is a commonly used Lambertian reflector in the wavelength range of 250-2500nm. This diffuse reflectance standard whiteboard can be combined with a spectrometer and a light source to form a diffuse reflectance testing system, suitable for measuring the reflectance of various samples, such as silicon wafers, ceramics, frosted glass, plastics, etc.
Application Fields
01 Optical Density Meter
02 Imaging equipment
03 Integral Ball System
04 Spectrometer System
05 Optical experimental equipment
06 Remote sensing instruments
07 Reflectance Instrument Calibration

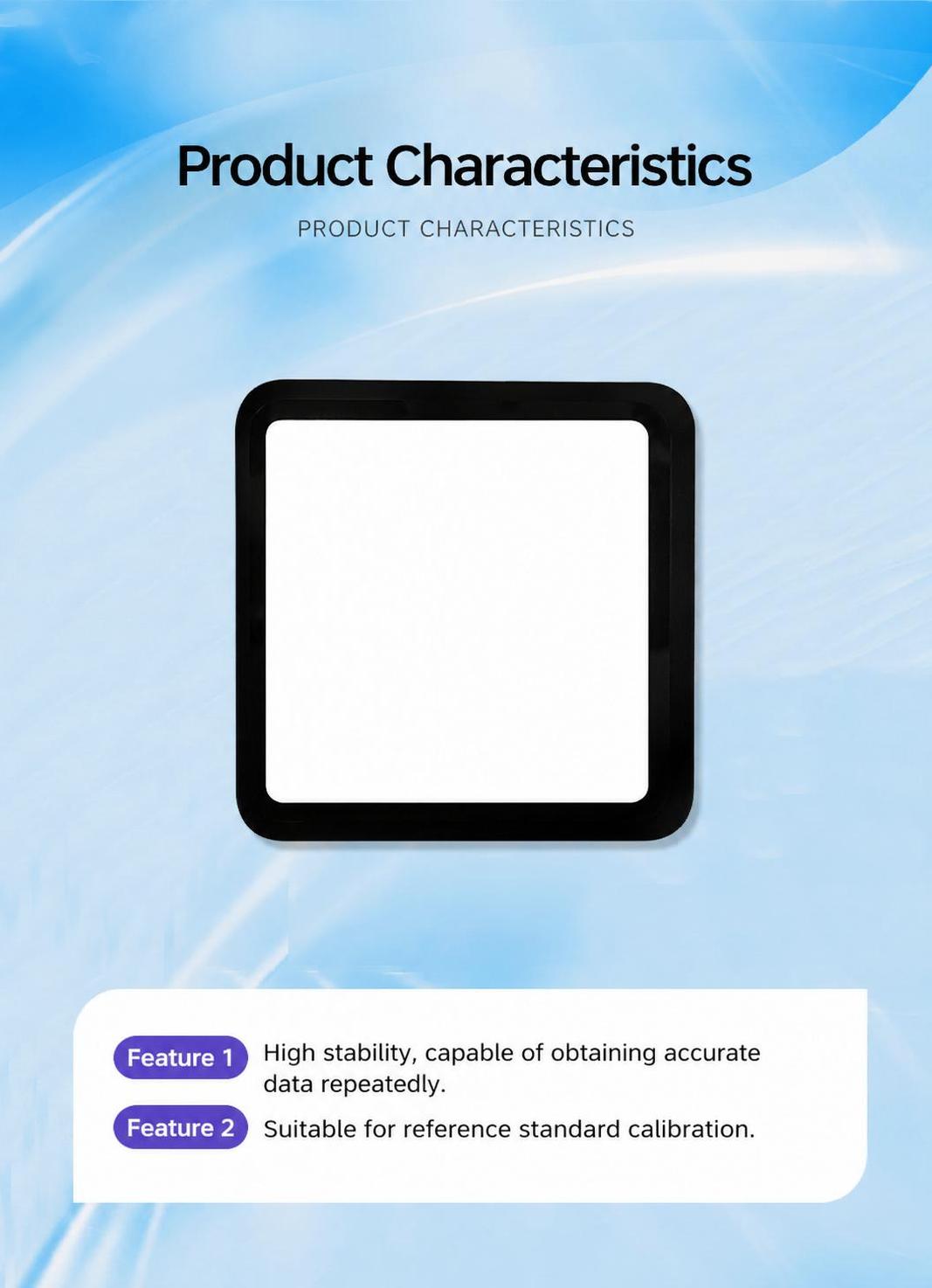

Product Features
High stability and the ability to obtain accurate and repeated data.
Suitable for calibration and calibration

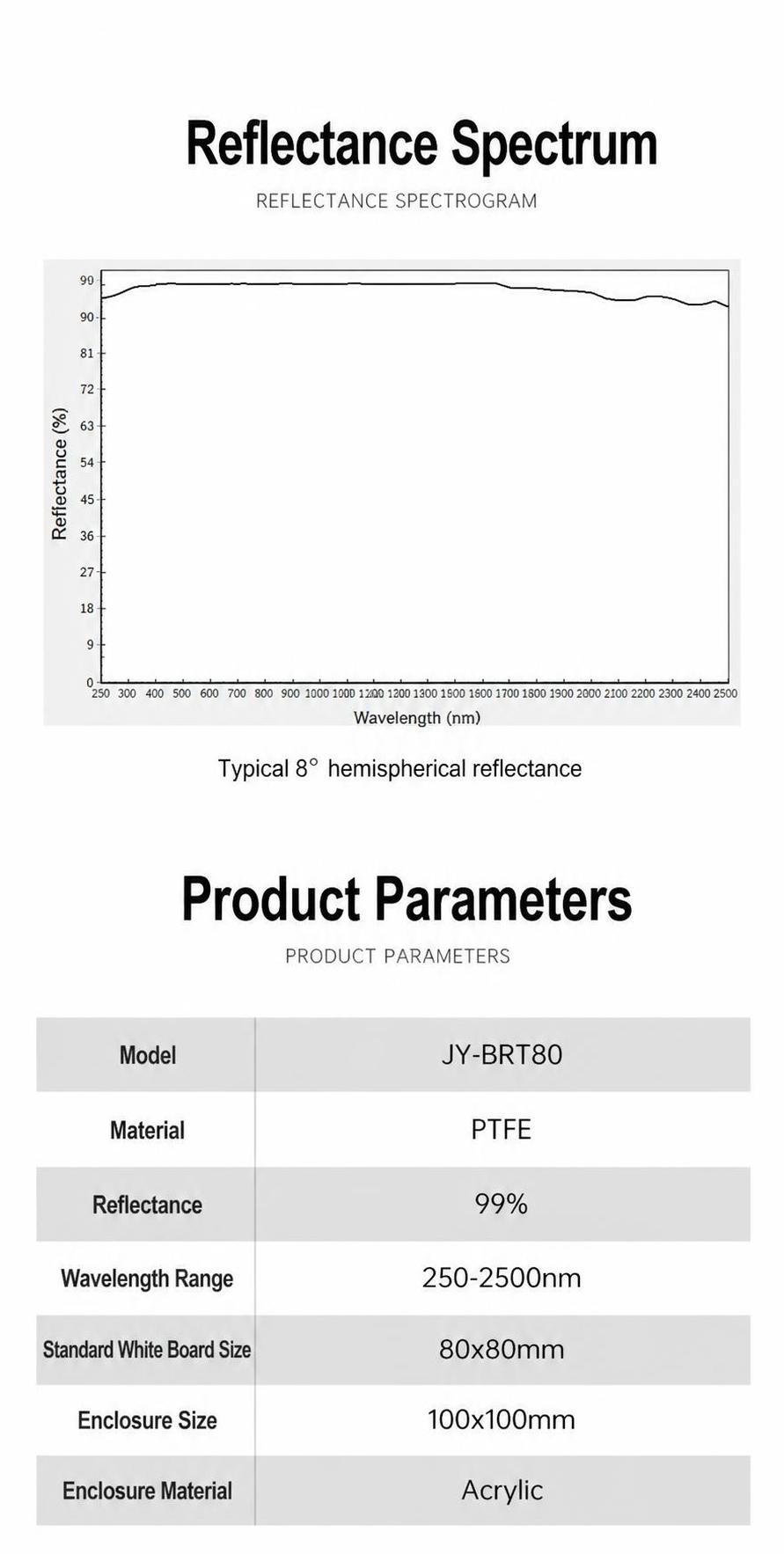

Reflectance spectrum
Typical 8 ° hemispherical spectral reflectance
Product Specifications
