Jingyi Optoelectronics UAV Calibration Board Product Presentation

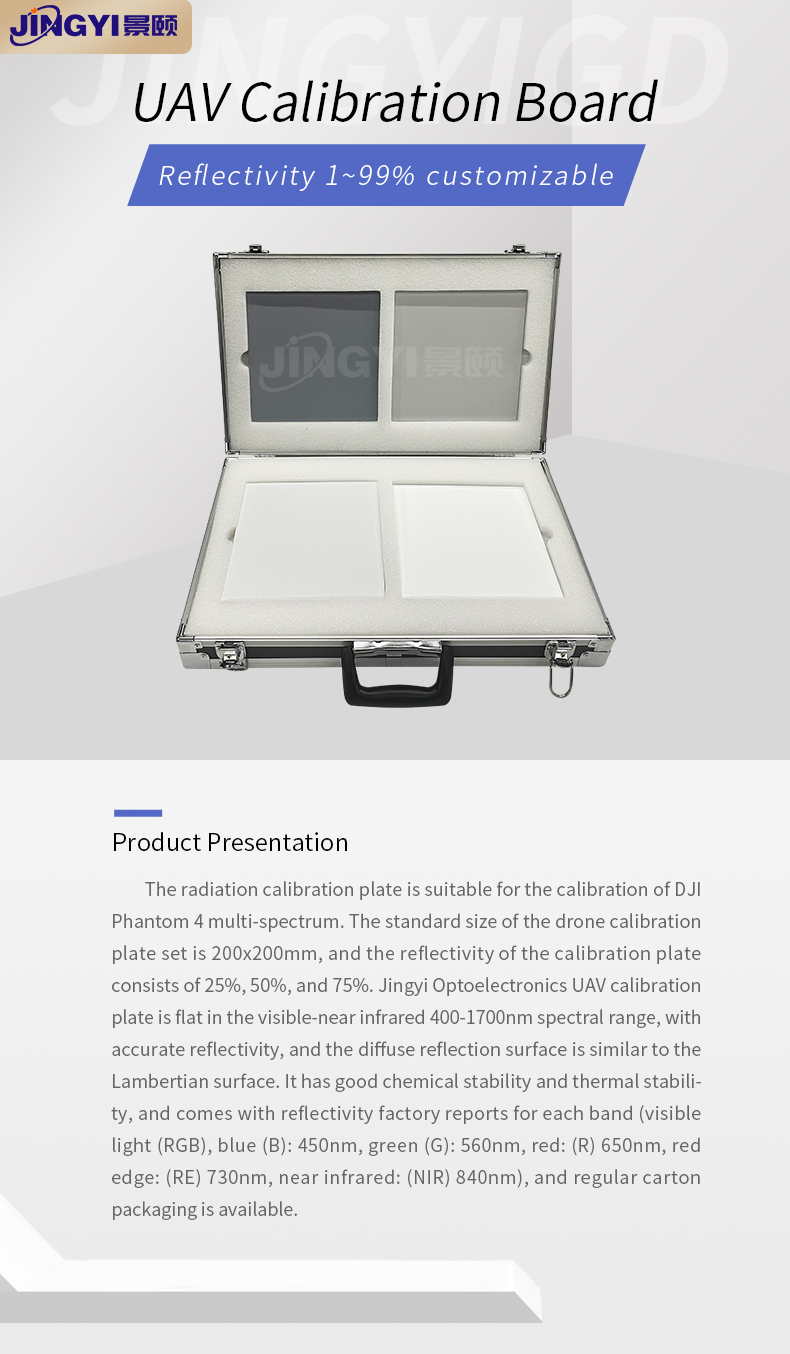

UAV Calibration Board
Reflectivity 1~99% customizable
Product Presentation
The radiation calibration plate is suitable for the calibration of DJI Phantom 4 multi-spectrum. The standard size of the drone calibration plate set is 200x200mm, and the reflectivity of the calibration plate consists of 25%, 50%, and 75%. Jingyi Optoelectronics UAV calibration plate is flat in the visible-near infrared 400-1700nm spectral range, with accurate reflectivity, and the diffuse reflection surface is similar to the Lambertian surface. It has good chemical stability and thermal stability, and comes with reflectivity factory reports for each band (visible light (RGB), blue (B): 450nm, green (G): 560nm, red (R): 650nm, red edge (RE): 730nm, near infrared: (NIR) 840nm), and regular carton packaging is available.

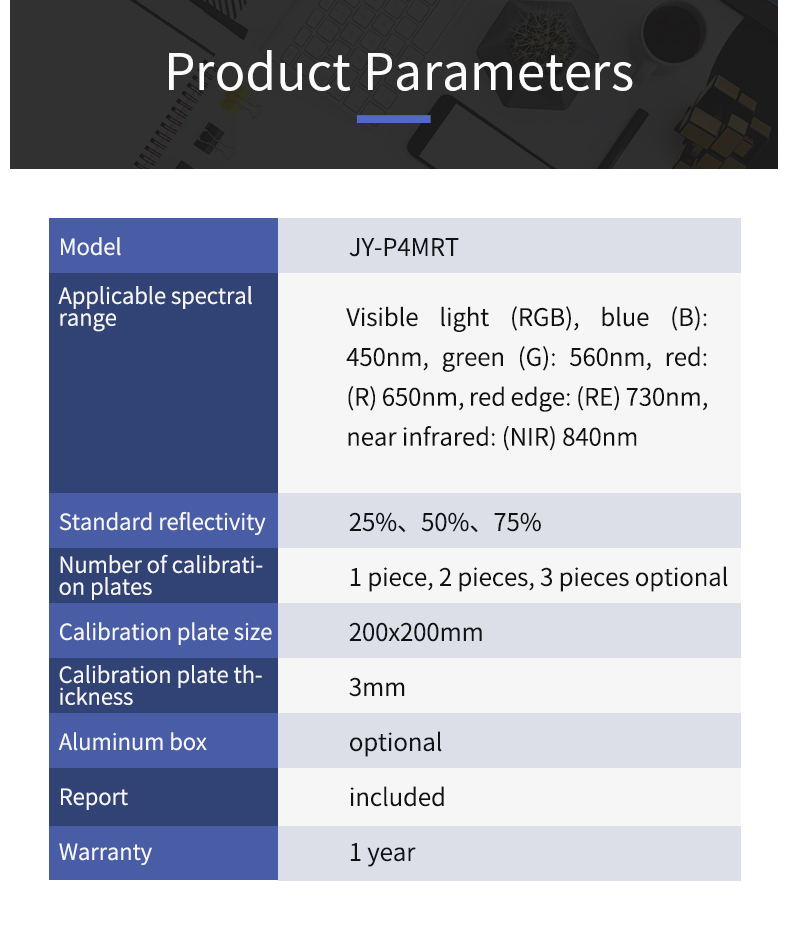

Product Parameters
|
Parameter
|
Details
|
|
Model
|
JY-P4MRT
|
|
Applicable spectral range
|
Visible light (RGB), blue (B): 450nm, green (G): 560nm, red: (R) 650nm, red edge: (RE) 730nm, near infrared: (NIR) 840nm
|
|
Standard reflectivity
|
25%、50%、75%
|
|
Number of calibration plates
|
1 piece, 2 pieces, 3 pieces optional
|
|
Calibration plate size
|
200x200mm
|
|
Calibration plate thickness
|
3mm
|
|
Aluminum box
|
optional
|
|
Report
|
included
|
|
Warranty
|
1 year
|

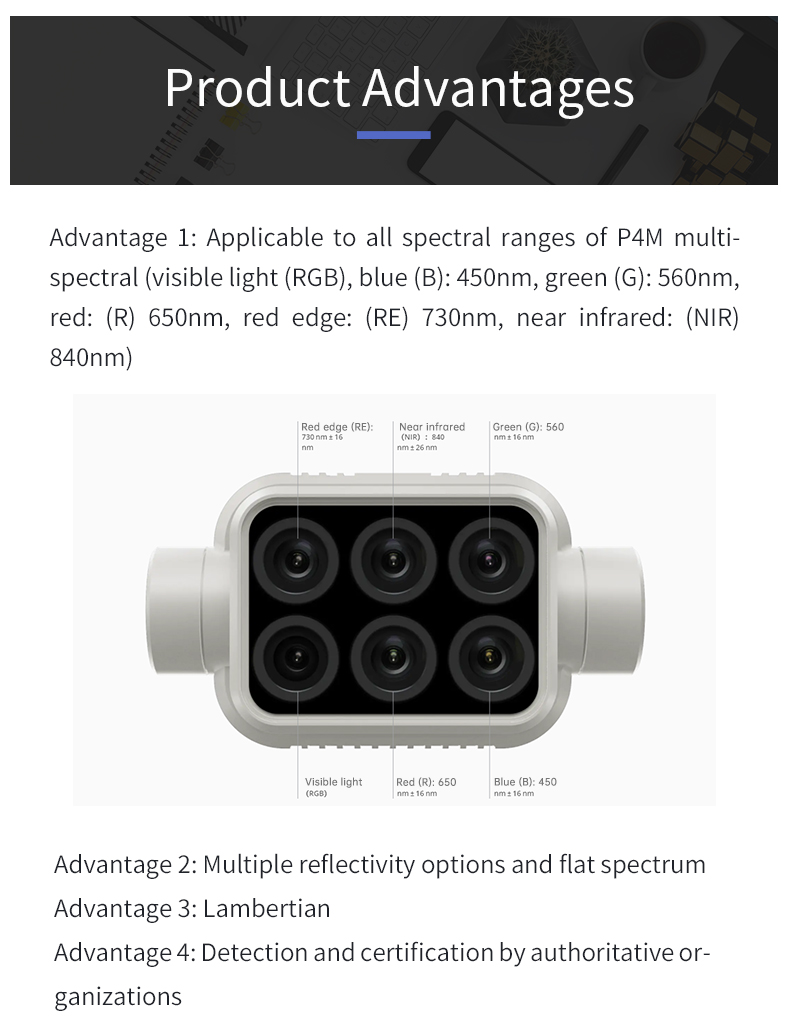

Product Advantages
Advantage 1: Applicable to all spectral ranges of P4M multi-spectral (visible light (RGB), blue (B): 450nm, green (G): 560nm, red: (R) 650nm, red edge: (RE) 730nm, near infrared: (NIR) 840nm)
Advantage 2: Multiple reflectivity options and flat spectrum
Advantage 3: Lambertian
Advantage 4: Detection and certification by authoritative organizations
Application Areas

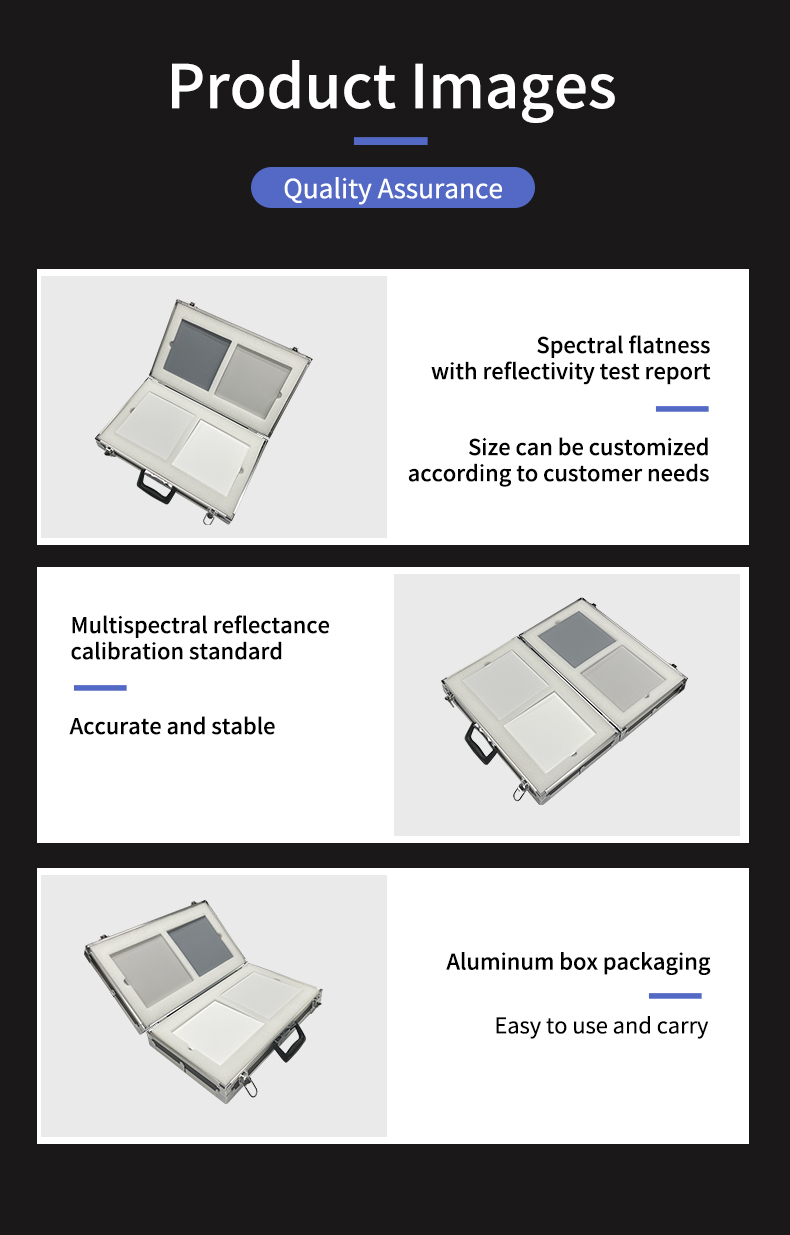

Product Images
Quality Assurance
Spectral flatness with reflectivity test report
Size can be customized according to customer needs
Multispectral reflectance calibration standard
Accurate and stable
Aluminum box packaging
Easy to use and carry
