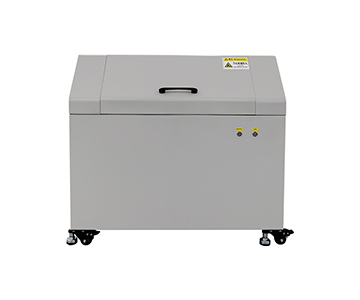

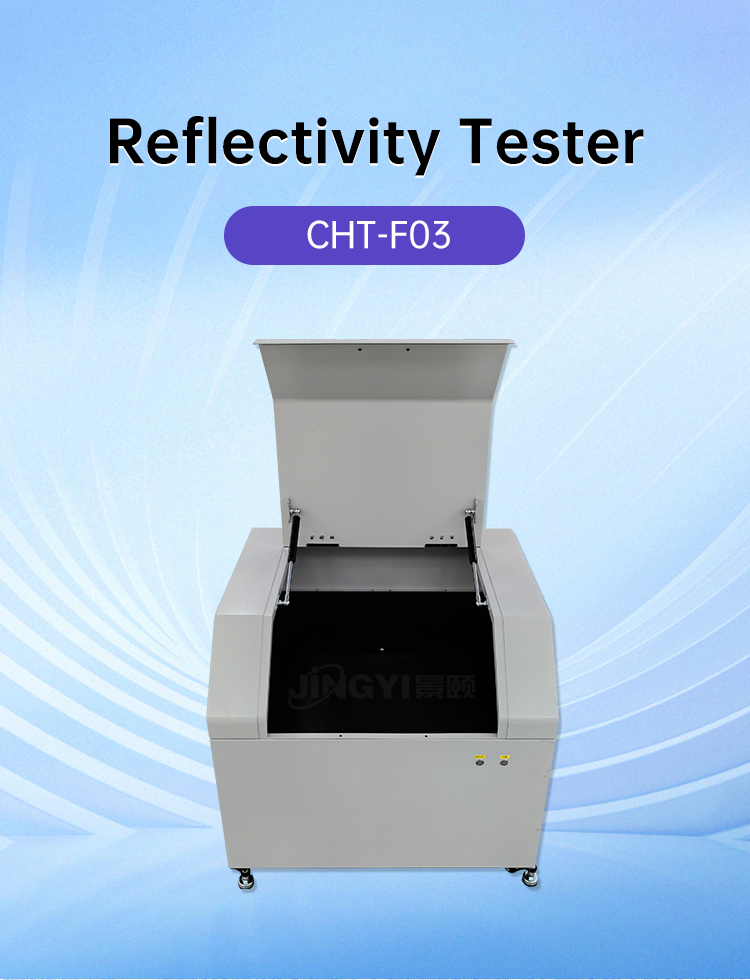

Reflectivity Tester
CHT-F03
Brand logo：JINGYI 景颐
二、Product Introduction
CHT-F03 Reflectivity Tester can measure the reflectance and reflectivity curve of various objects, analyze the color characteristics of the material, and realize the simultaneous and rapid detection of full-spectrum reflectivity. It meets various national standards. It adopts the integrating sphere measurement method, the measurement angle can be customized according to the needs, the light source output is highly stable, the measurement speed is fast, and real-time measurement operation is realized.
三、 Application Area
- Measurement of reflectance spectra and color sorting of coatings, pigments, inks, plastics, etc
- Spectral measurement of reflectance of ore powder and solid
- Measurement of reflectivity of non reflective thin films
- Reflectivity detection of solar silicon wafers and optical components
- Identification and fabric measurement of jewelry, jade, and diamonds
- Spectral measurement of reflectivity of metal objects such as copper sheets
- Reflectivity detection of mobile phone cover, tablet back cover, etc
- Reflectance detection of lampshades, reflective cups, car rearview mirrors, etc
四、Product Features
- Wide spectrum detection 380-1000nm
- Stable measurement data, high accuracy
- Extremely fast measurement speed, data can be obtained within milliseconds
- Third-party authoritative certification, can issue measurement certificate
- Independent research and development, patented product
- Support XY chromaticity diagram, L·a·b measurement, can measure the color of objects by spectral reflectance based on spectrophotometry
- Customizable industrial online automatic detection solution
- Customizable solution according to specific needs

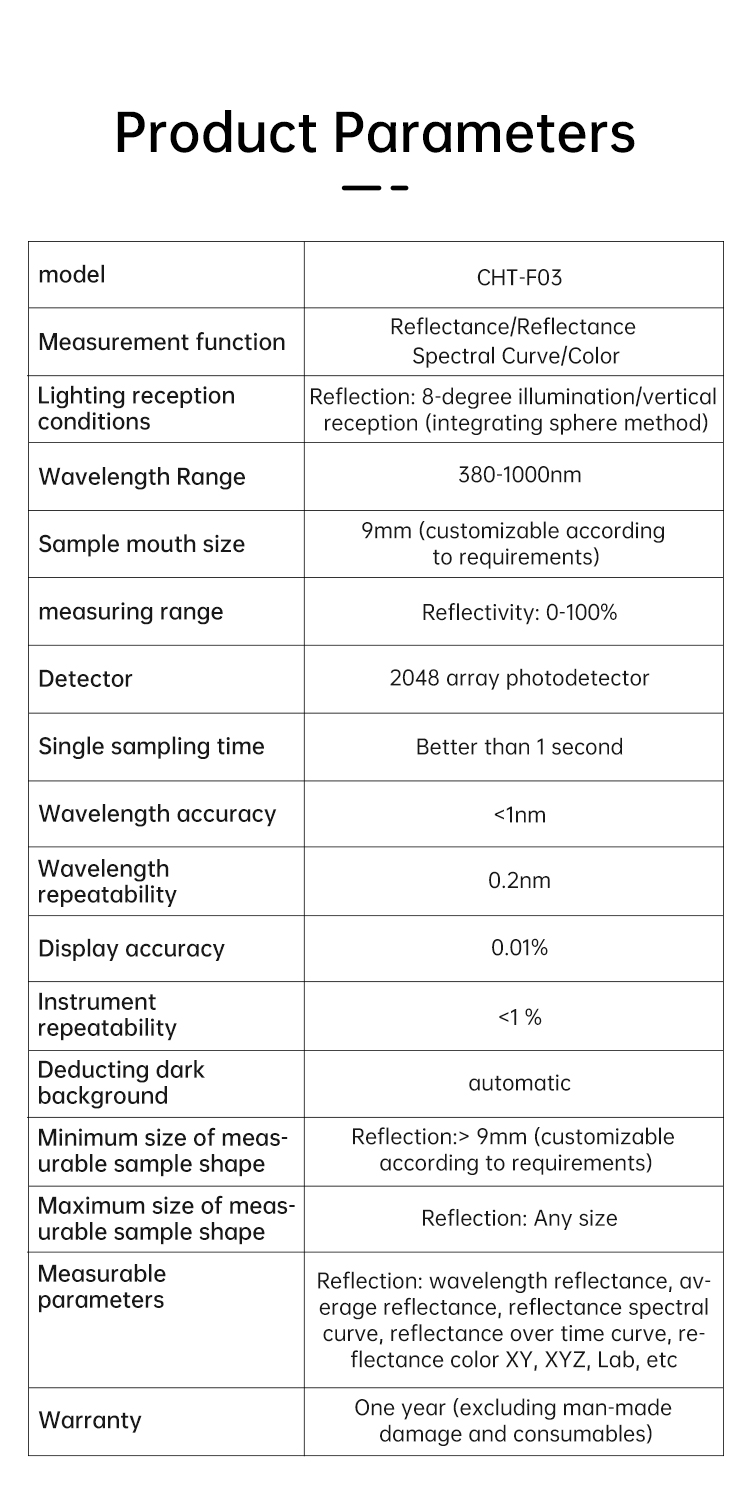

五、Product Parameters
| Project |
Parameter |
| model |
CHT-F03 |
| Measurement function |
Reflectance/Reflectance Spectral Curve/Color |
| Lighting reception conditions |
Reflection: 8-degree illumination/vertical reception (integrating sphere method) |
| Wavelength Range |
380-1000nm |
| Sample mouth size |
9mm (customizable according to requirements) |
| measuring range |
Reflectivity: 0-100% |
| Detector |
2048 array photodetector |
| Single sampling time |
Better than 1 second |
| Wavelength accuracy |
<1nm |
| Wavelength repeatability |
0.2nm |
| Display accuracy |
0.01% |
| Instrument repeatability |
<1 % |
| Deducting dark background |
automatic |
| Minimum size of measurable sample shape |
Reflection:> 9mm (customizable according to requirements) |
| Maximum size of measurable sample shape |
Reflection: Any size |
| Measurable parameters |
Reflection: wavelength reflectance, average reflectance, reflectance spectral curve, reflectance over time curve, reflectance color XY, XYZ, Lab, etc |
| Warranty |
One year (excluding man-made damage and consumables) |
