Large aperture spot quality analyzer

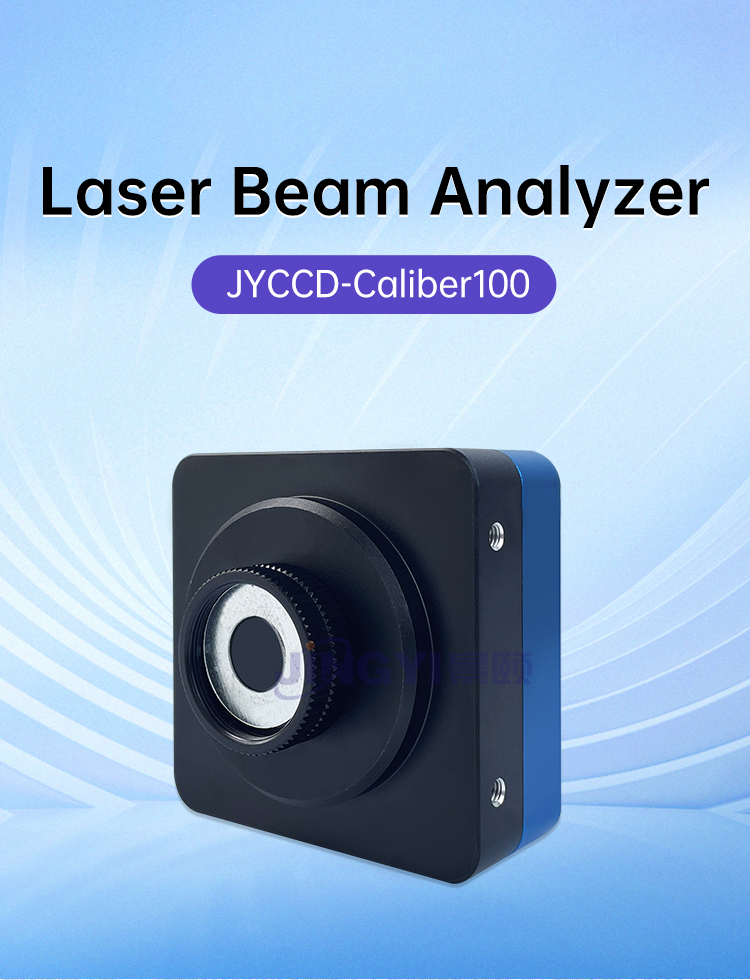

Laser Beam Analyzer

JYCCD-Caliber100

Product Introduction

The independently developed large aperture beam quality analyzer uses a large aperture COMS sensor, with a camera aperture of up to 23mm. It is an essential tool for measuring various large spot lasers, linear laser beams, and far-field lasers with large divergence angles. It can be used for real-time monitoring of laser beams, measuring laser spot size, centroid position, ellipticity, relative power measurement (normalized data), two-dimensional/three-dimensional energy distribution (light intensity distribution), beam pointing stability (centroid jitter), power stability (drawing power fluctuation curves), etc. It supports exporting measurement data and test reports in PDF format to meet daily laser parameter measurement needs.

Application Area

Laser spot measurement
Laser spot pattern defect detection
Collimator spot detection
Fiber Alignment Coupling Analysis
External light path collimation
Quality inspection of optical components

Product Advantages

Advantage one: The chip size is large, up to 22.5mm * 22.5mm. The pixel size of this product is 11x11μm.
Advantage two: High precision, single pixel size can reach 11μm.
Advantage three: Spot detection diameter range 110μm~22.5mm.
Advantage four: Equipped with attenuation pads as standard, easy to operate, optional higher power attenuation configuration, with a power range of up to 1000W.
Advantage five: Support manual and automatic real-time exposure and gain adjustment.

Product Parameters

Parameter	Value
model	JYCCD-Lcaliber100
Caliber specification	2"
Wavelength range	200-1100nm
Optical aperture	22.5mm*22.5mm
Pixel size	11x11μm
external trigger	support
resolution	2048*2048
Measurable spot range	110um~22.5mm
chip type	CMOS
Bit depth	12bit
attenuator	Standard configuration includes 4 attenuation pads
Power supply interface	USB
