Basic Spot Quality Analyzer JYCCD-VIS1000 Product Introduction
Basic Spot Quality Analyzer
JYCCD-VIS1000
Product Introduction
The beam quality analyzer independently developed by Jingyi Optoelectronics can achieve laser spot detection and testing applications, comprehensively testing and analyzing parameters such as the size, shape, and energy distribution of laser beams, providing customers with customized integrated design solutions for beam quality analysis, and supporting multi application development. Modular customization can be carried out according to different customer needs. Suitable for semiconductor lasers, solid-state lasers, fiber lasers, ultrafast lasers, laser ranging, and other fields.
Application Area
Laser spot measurement
Laser spot pattern defect detection
Collimator spot detection
Fiber Alignment Coupling Analysis
External light path collimation
Quality inspection of optical components
Product Advantages
一、Product title and brand

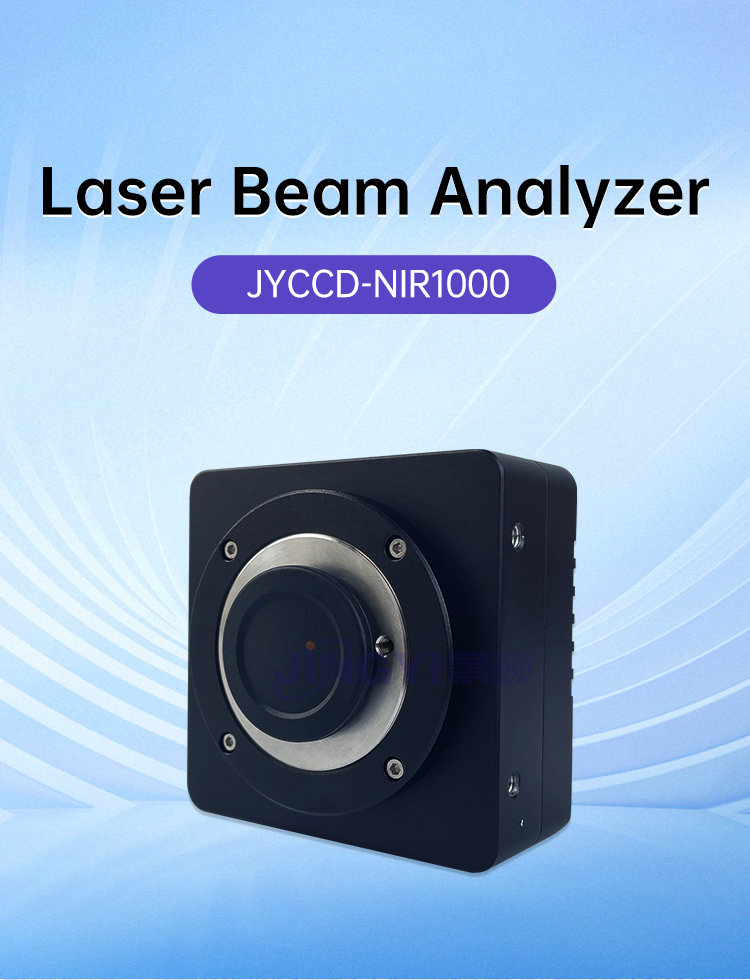

Laser Beam Analyzer
JYCCD-NIR1000
JINGYI 景颐
二、Product Introduction

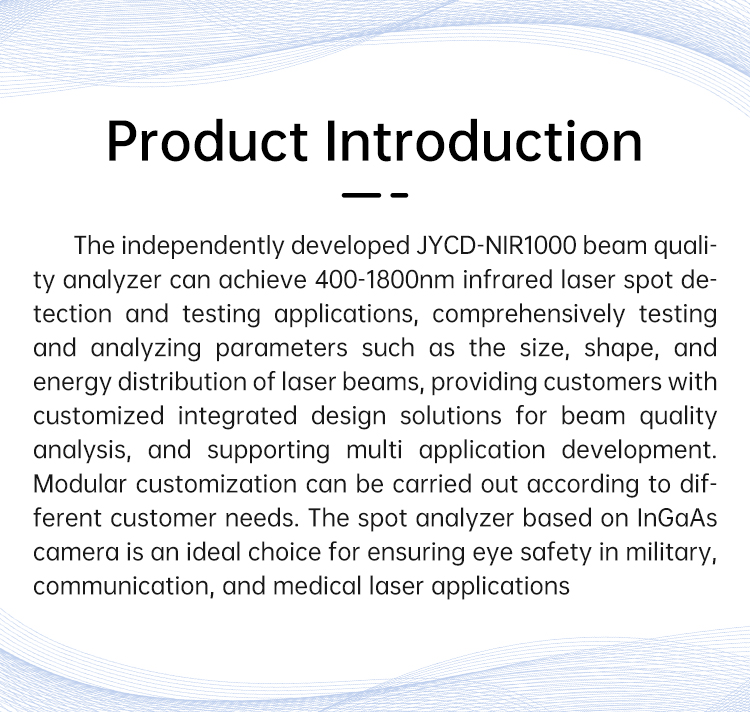

The independently developed JYCCD-NIR1000 beam quality analyzer can achieve 400-1800nm infrared laser spot detection and testing applications, comprehensively testing and analyzing parameters such as the size, shape, and energy distribution of laser beams, providing customers with customized integrated design solutions for beam quality analysis, and supporting multi application development. Modular customization can be carried out according to different customer needs. The spot analyzer based on InGaAs camera is an ideal choice for ensuring eye safety in military, communication, and medical laser applications.
三、Application Area
- Laser spot measurement
- Laser spot pattern defect detection
- Collimator spot detection
- Fiber Alignment Coupling Analysis
- External light path collimation
- Quality inspection of optical components

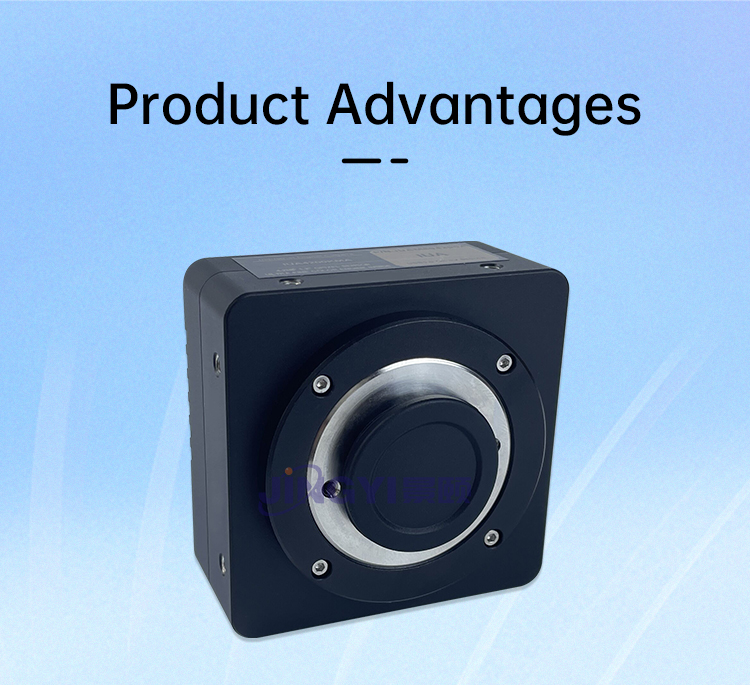

四、Product Advantages

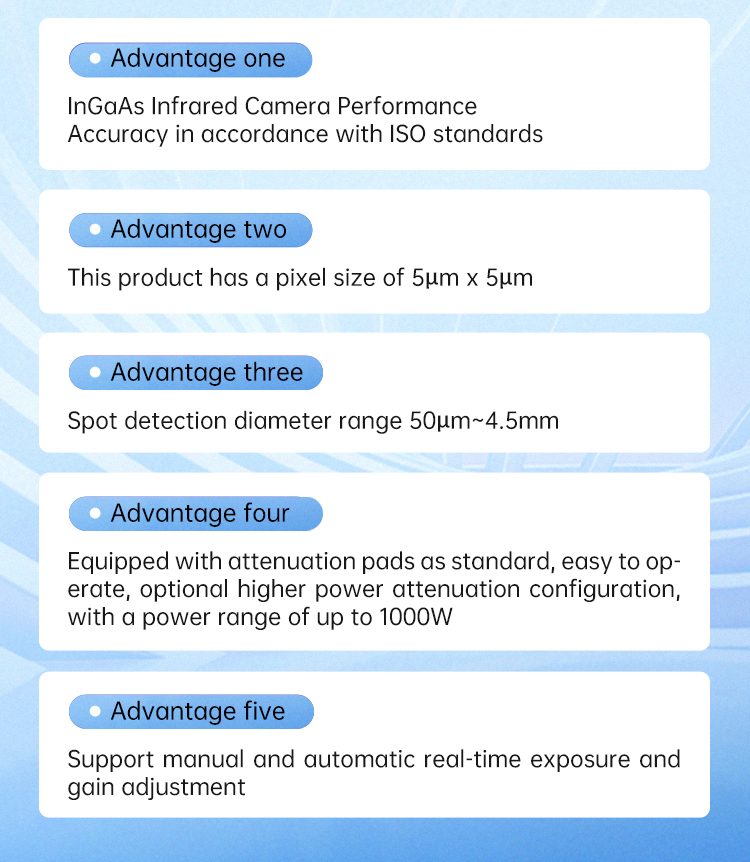

- Advantage one：InGaAs Infrared Camera Performance, Accuracy in accordance with ISO standards
- Advantage two：This product has a pixel size of 5μm x 5μm
- Advantage three：Spot detection diameter range 50μm~4.5mm
- Advantage four：Equipped with attenuation pads as standard, easy to operate, optional higher power attenuation configuration, with a power range of up to 1000W
- Advantage five：Support manual and automatic real-time exposure and gain adjustment
五、Product Parameters
| Project |
Parameter |
| model |
JYCCD-NIR1000 |
| chip type |
InGaAs |
| Caliber specifications |
1/2" |
| wavelength range |
400-1800nm |
| Optical aperture |
6x4.5mm |
| pixel size |
5x5μm |
| external trigger |
support |
| resolution |
1280*1024 |
| Measurable spot range |
50um~4.5mm |
| Exposure time range |
15us-60s |
| Gain range |
1x-15x |

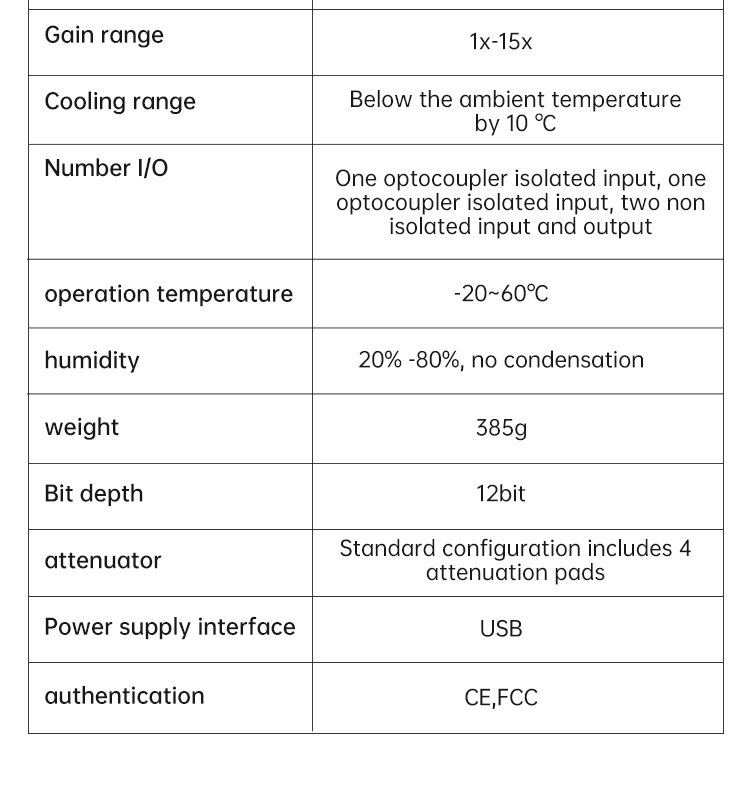

| Cooling range |
Below the ambient temperature by 10 °C |
| Number I/O |
One optocoupler isolated input, one optocoupler isolated input, two non isolated input and output |
| operation temperature |
-20~60°C |
| humidity |
20% -80%, no condensation |
| weight |
385g |
| Bit depth |
12bit |
| attenuator |
Standard configuration includes 4 attenuation pads |
| Power supply interface |
USB |
| authentication |
CE,FCC |
