Integral sphere uniform light source JY-JFIOS300

Integral sphere uniform light source JY-JFIOS300













JY-JFIOS300 均匀光源积分球产品介绍

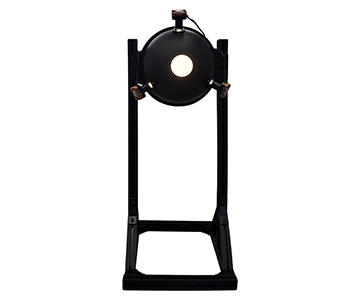

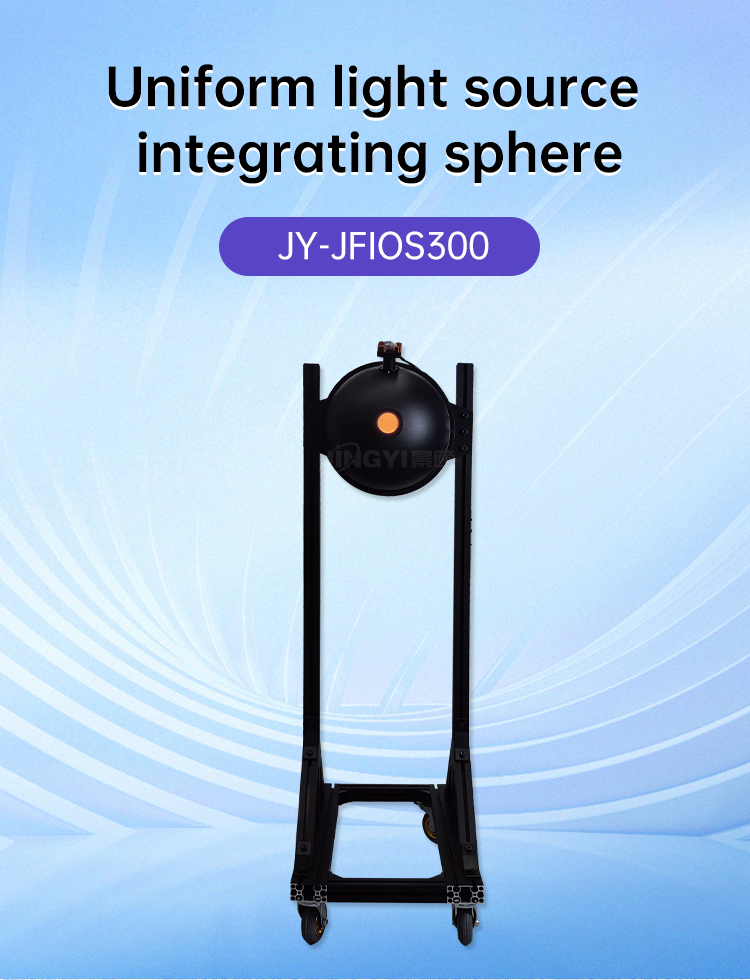

Uniform light source integrating sphere JY-JFIOS300

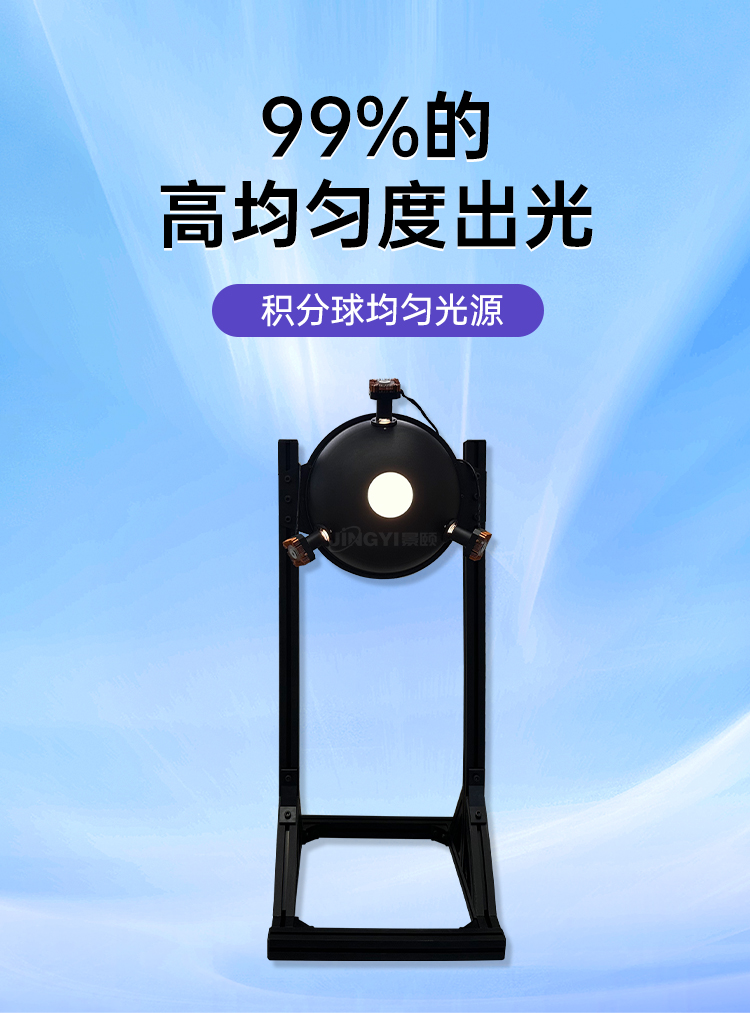

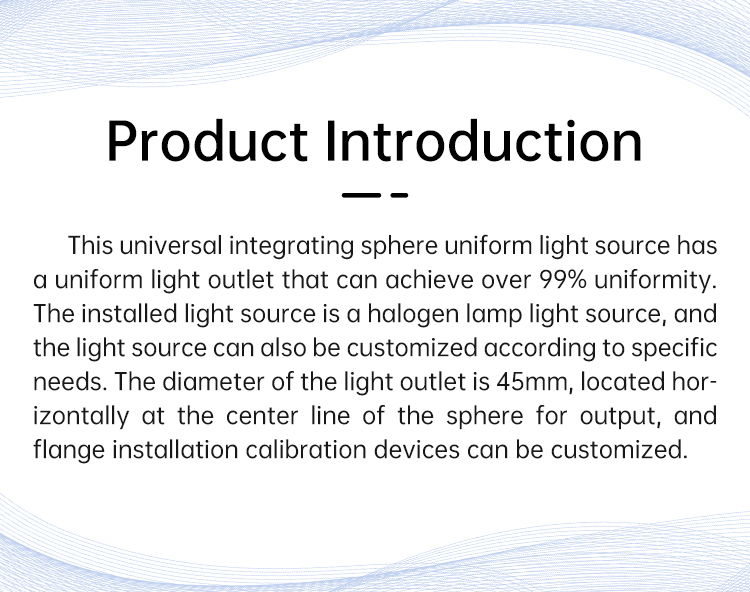

Product Introduction This universal integrating sphere uniform light source has a uniform light outlet that can achieve over 99% uniformity. The installed light source is a halogen lamp light source, and the light source can also be customized according to specific needs. The diameter of the light outlet is 45mm, located horizontally at the center line of the sphere for output, and flange installation calibration devices can be customized.

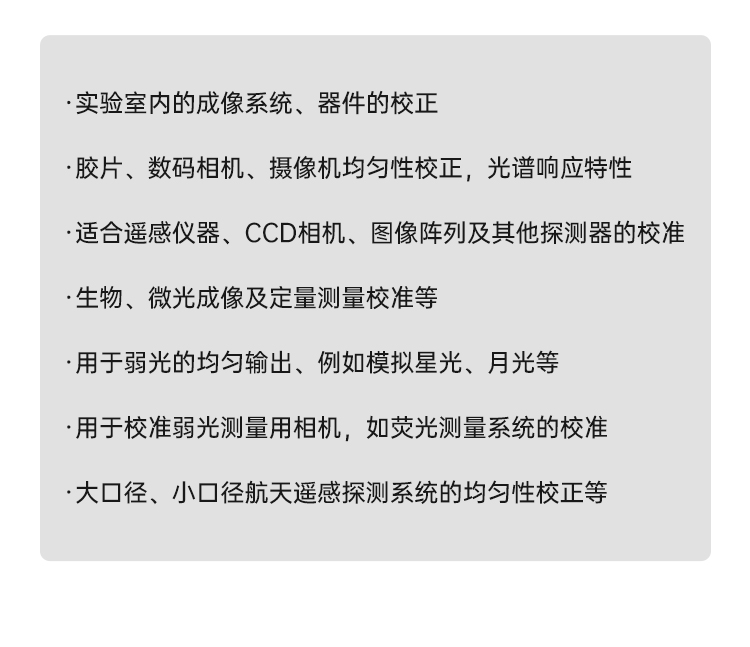

Application Area Calibration of imaging systems and devices in the laboratory Film, digital camera, camera uniformity correction, spectral response characteristics Suitable for calibration of remote sensing instruments, CCD camera image arrays, and other detectors Biology, low light imaging, and quantitative measurement calibration, etc Uniform output for weak light, such as simulating starlight, moonlight, etc Used for calibrating low light measurement cameras, such as fluorescence measurement systems Uniformity correction of large and small aperture space remote sensing detection systems

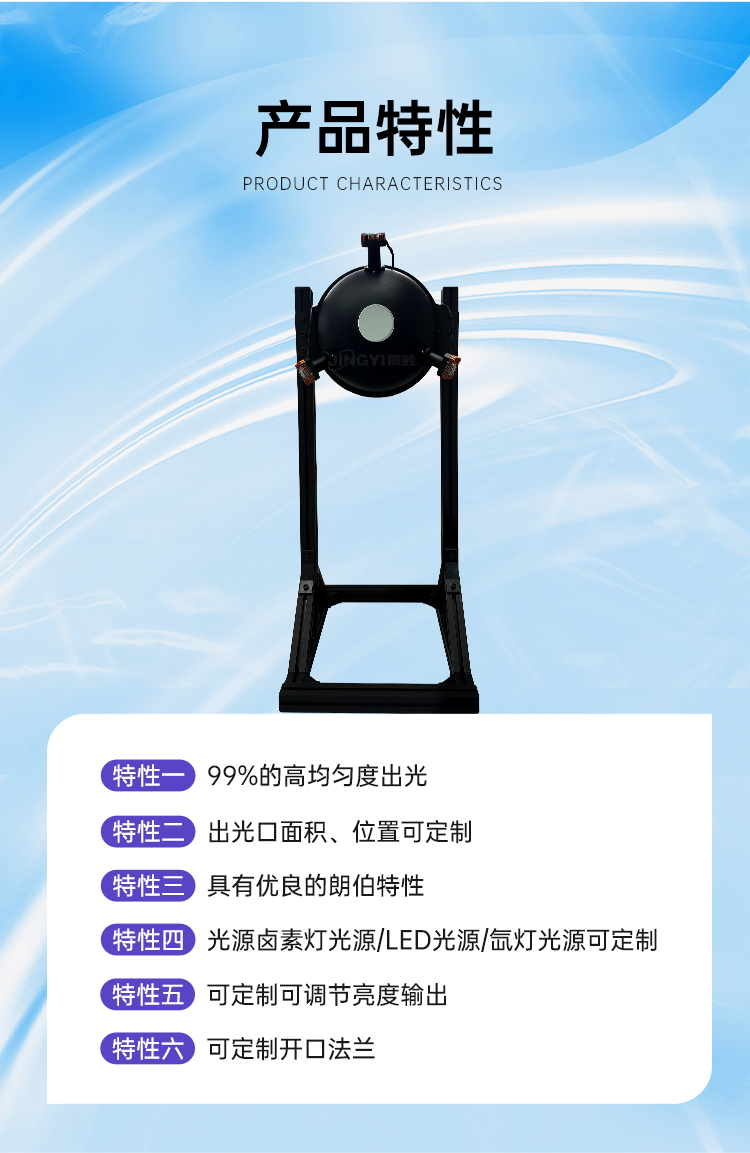

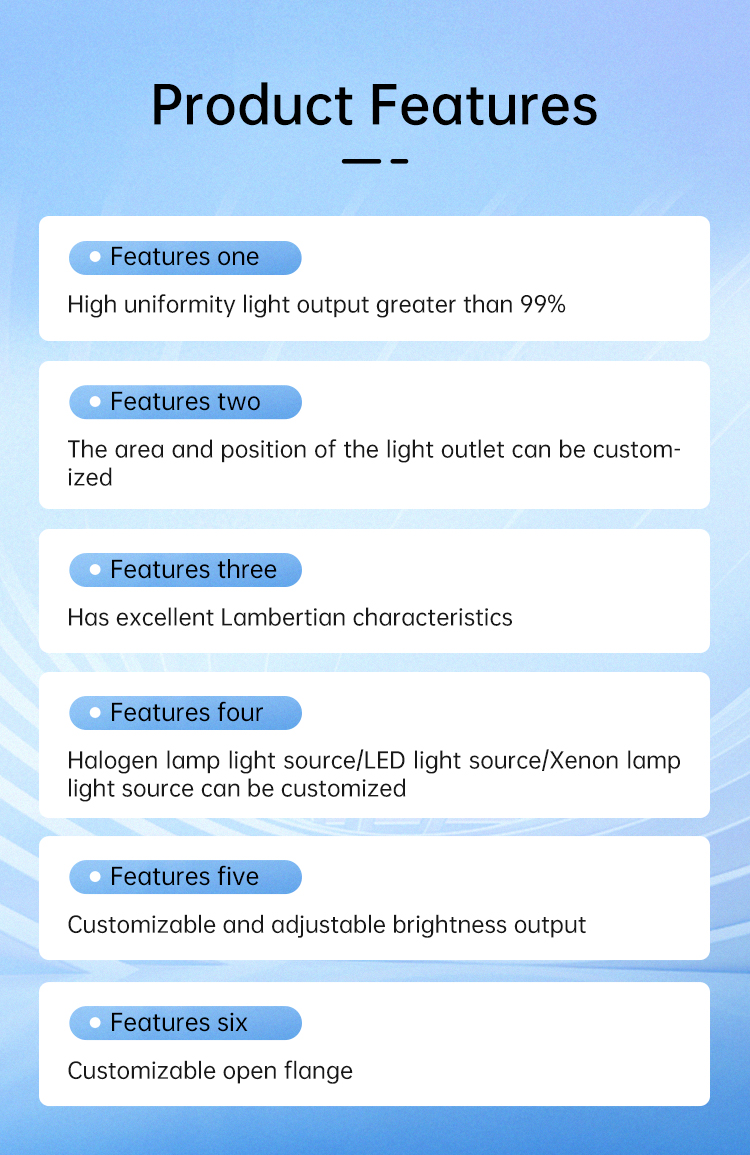

Product Features Features one: High uniformity light output greater than 99% Features two: The area and position of the light outlet can be customized Features three: Has excellent Lambertian characteristics Features four: Halogen lamp light source/LED light source/Xenon lamp light source can be customized Features five: Customizable and adjustable brightness output Features six: Customizable open flange

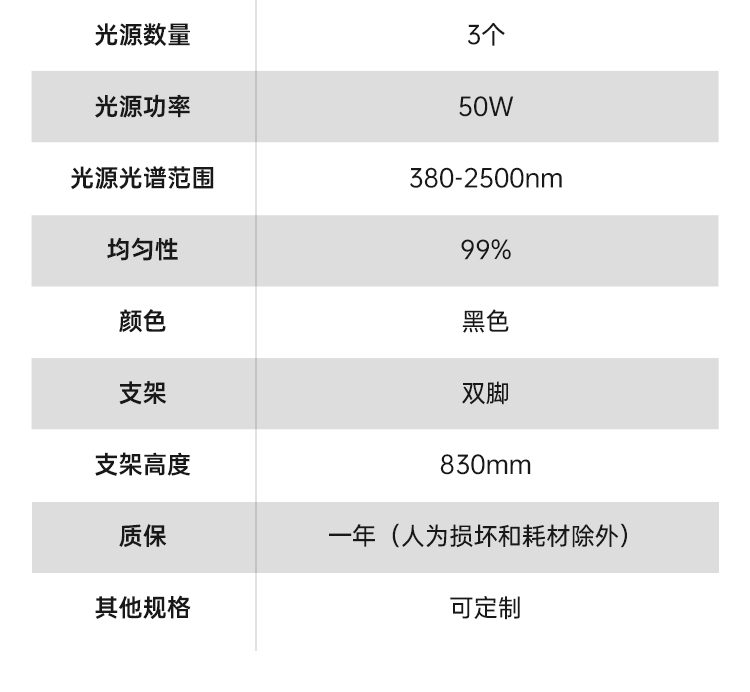

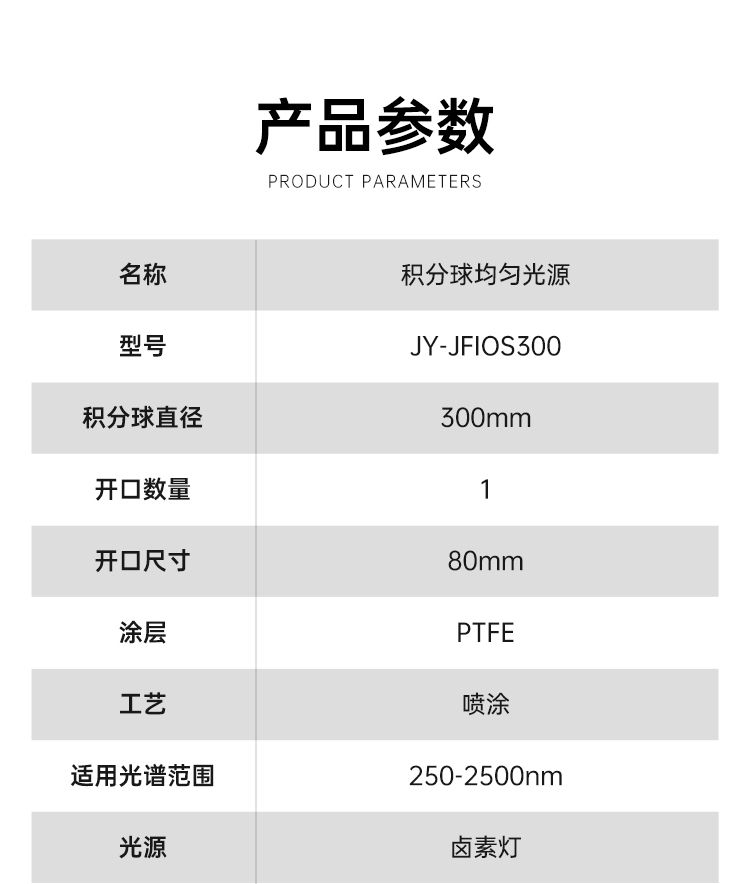

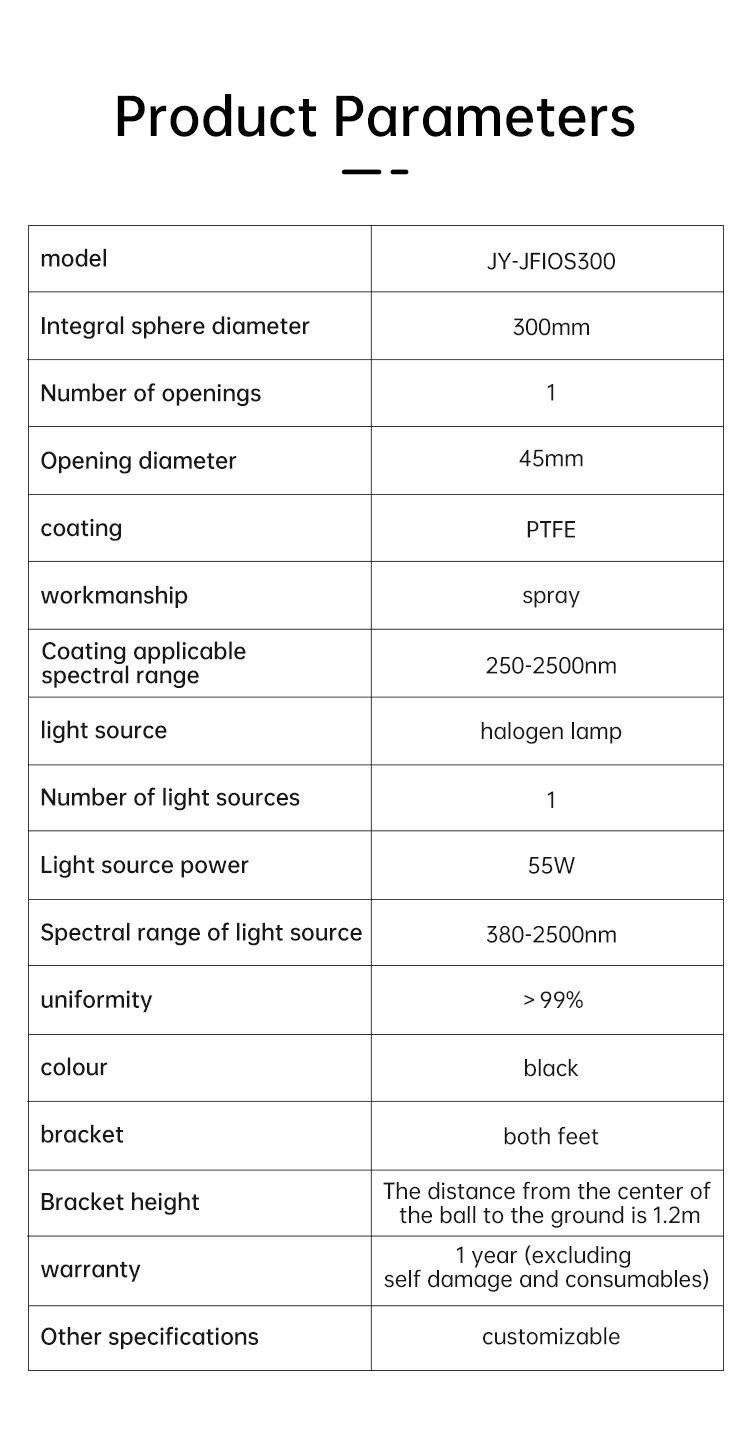

Product Parameters
model
JY-JFIOS300
Integral sphere diameter
300mm
Number of openings
1
Opening diameter
45mm
coating
PTFE
workmanship
spray
Coating applicable spectral range
250-2500nm
light source
halogen lamp
Number of light sources
1
Light source power
55W
Spectral range of light source
380-2500nm
uniformity
>99%
colour
black
bracket
both feet
Bracket height
The distance from the center of the ball to the ground is 1.2m
warranty
1 year (excluding self damage and consumables)
Other specifications
customizable
