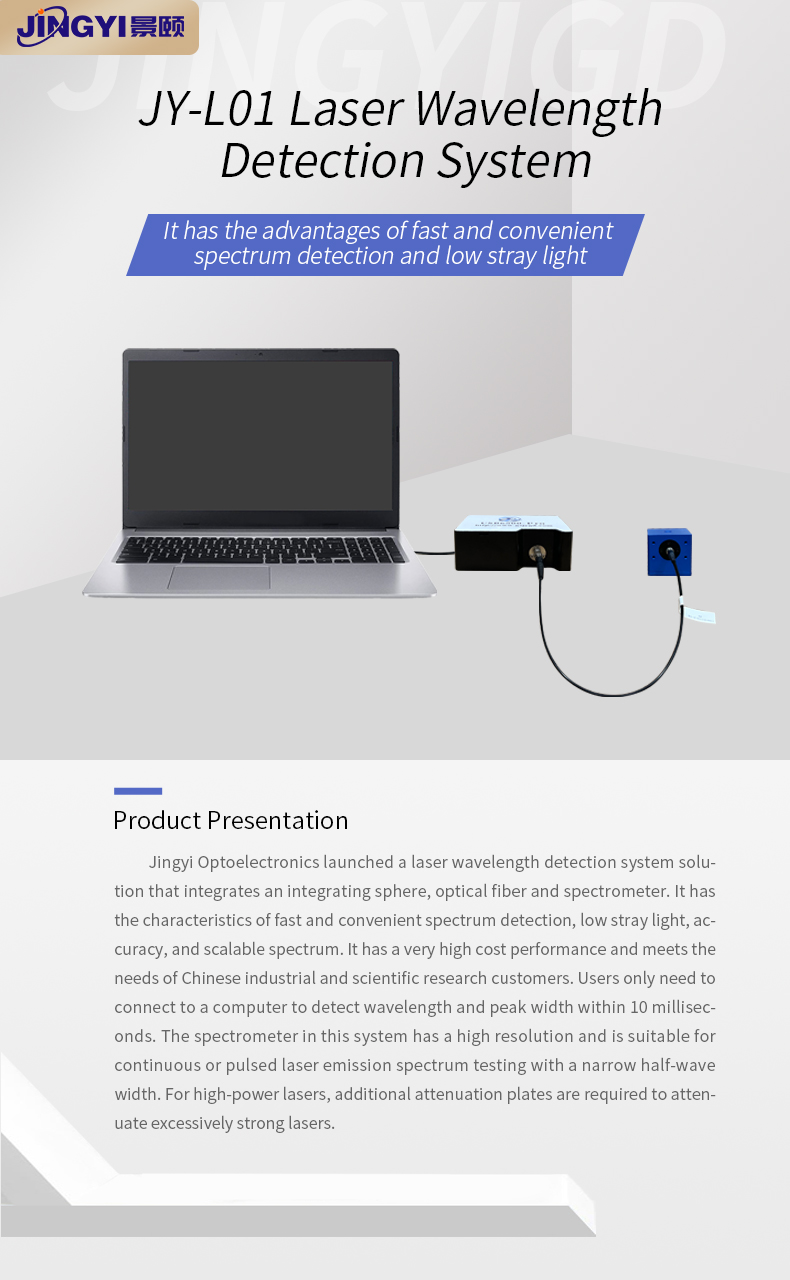

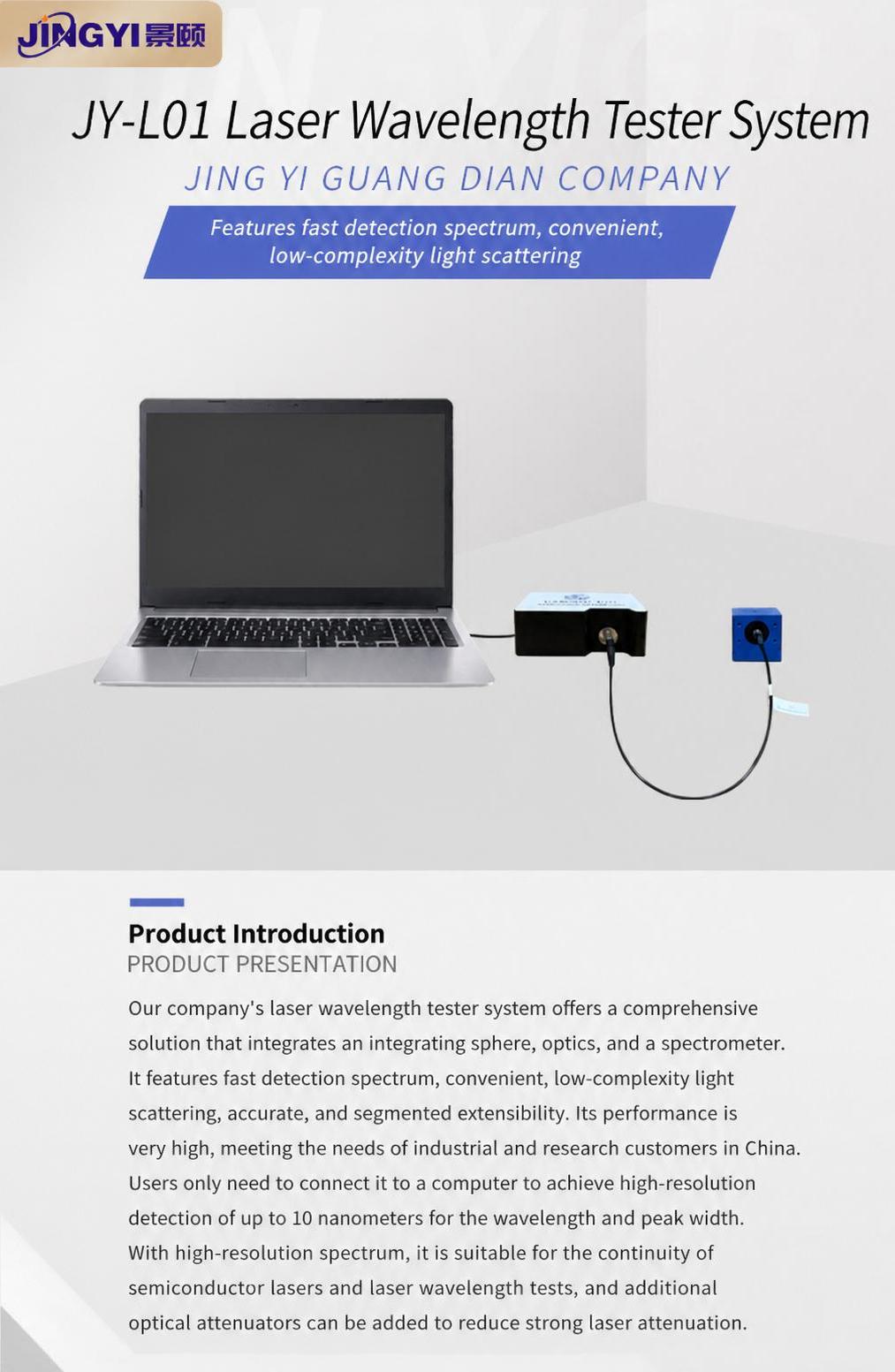

Product Introduction

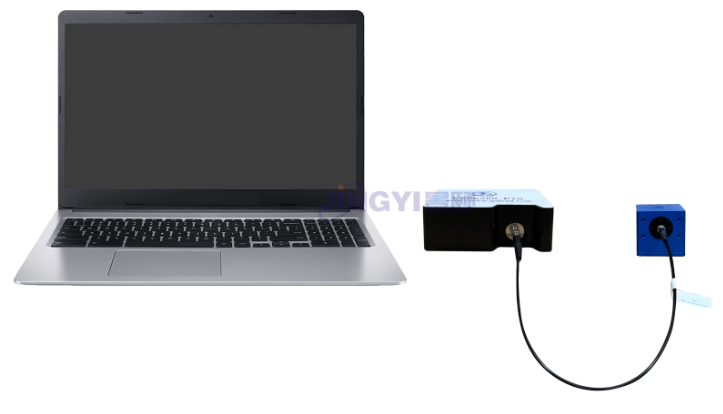

The company has launched a laser wavelength detection system solution that integrates integrating spheres, fibers, and spectrometers. It has the characteristics of fast, convenient, low stray light, accurate, and scalable spectral bands for detecting spectra. Its cost-effectiveness is very high, which meets the needs of Chinese industrial and scientific research customers. Users only need to connect to a computer to detect characteristics such as wavelength and peak width within 10 milliseconds. The spectrometer in this system has high resolution and is suitable for continuous or pulsed laser emission spectroscopy testing with narrow half wave width. For high-power lasers, additional attenuation plates need to be added to attenuate excessively strong lasers.

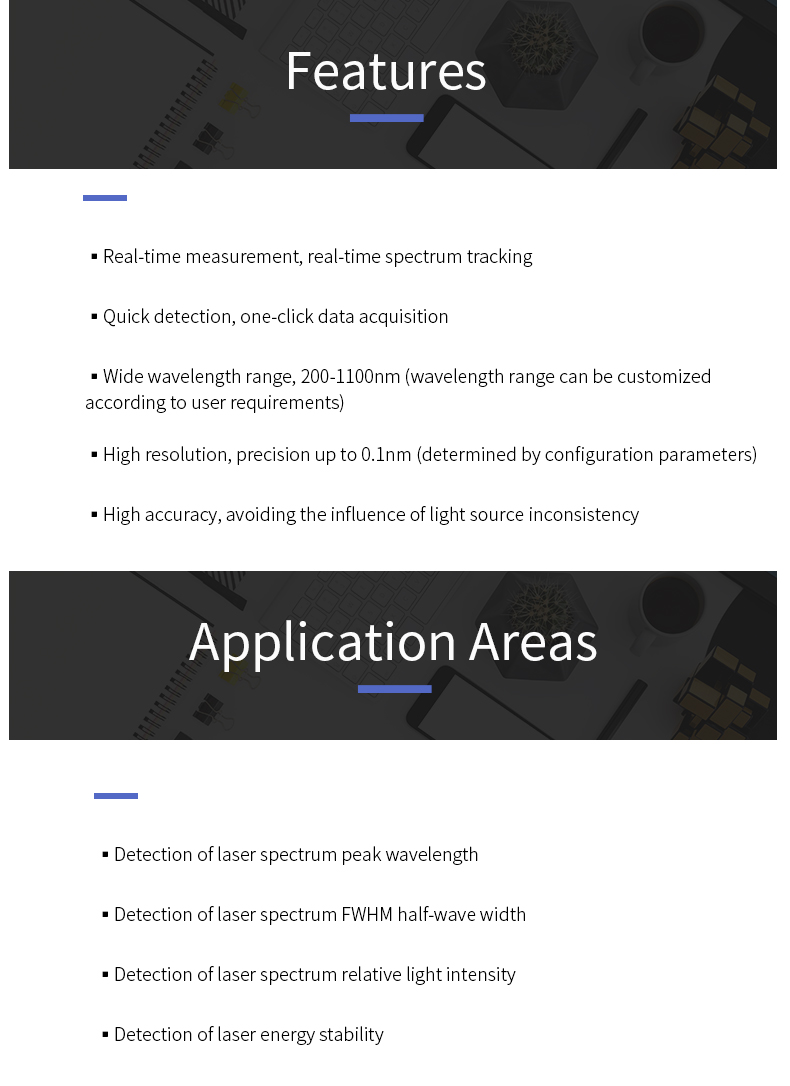

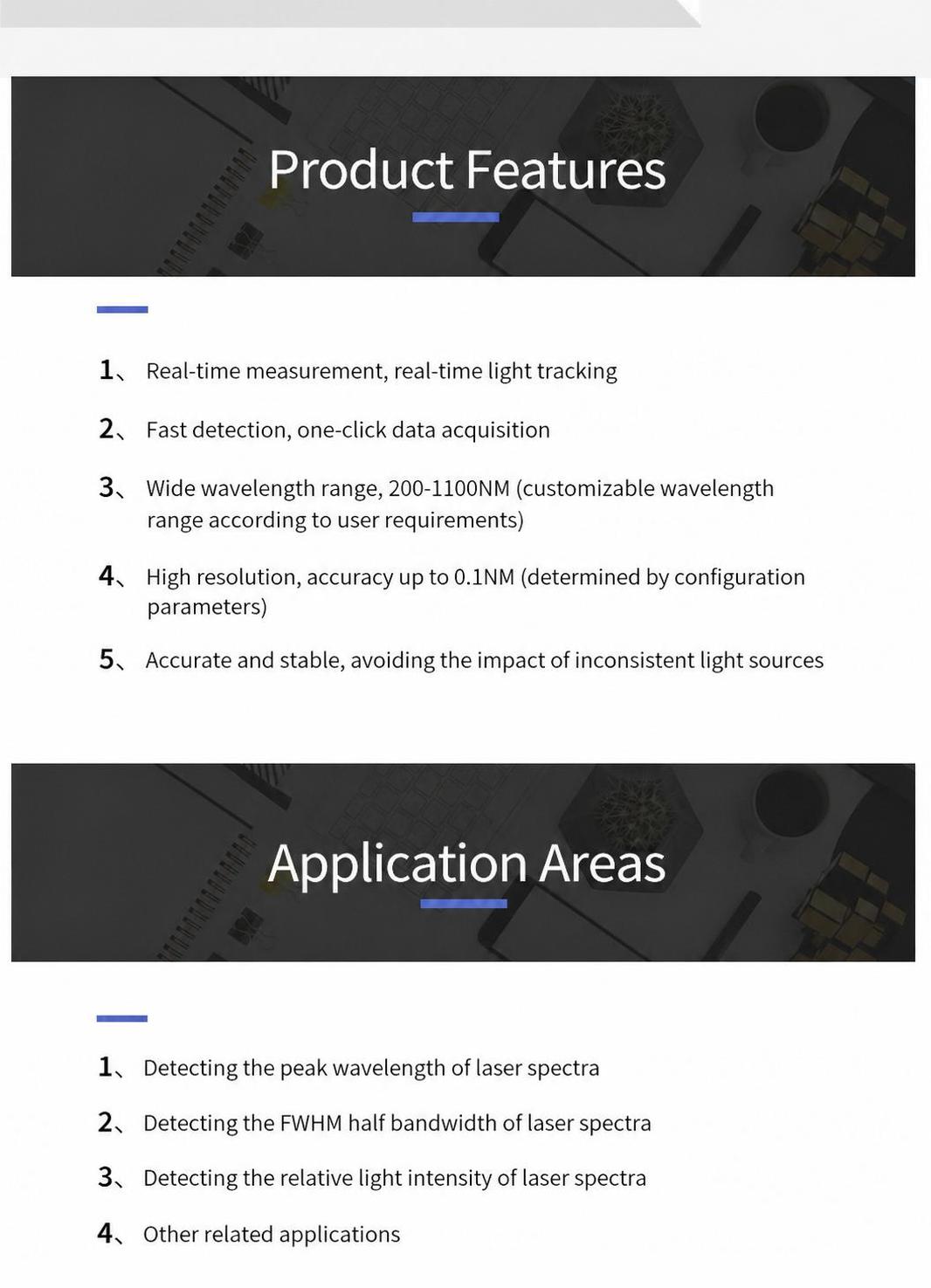

Product Features
Real time measurement, real-time spectral tracking
Quick detection, one click data retrieval
Wide wavelength range, 200-1100NM (customizable wavelength range according to user requirements)
High resolution, accurate to 0.1NM (determined by configuration parameters)
Accurately determine the height to avoid the impact of inconsistent light sources
Application Fields
Detecting peak wavelength of laser spectrum
Detecting the full width at half maximum (FWHM) of laser spectra
Detecting the relative light intensity of laser spectra
Detecting laser energy stability

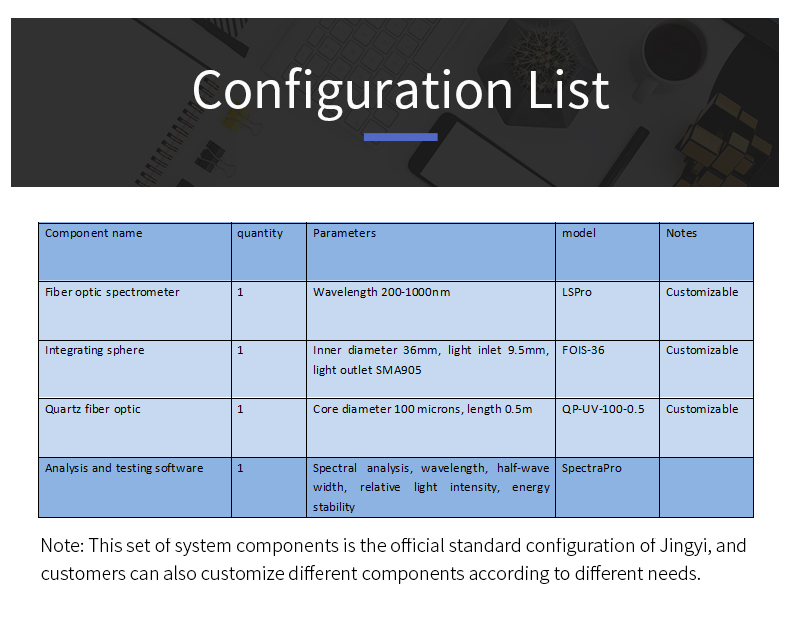

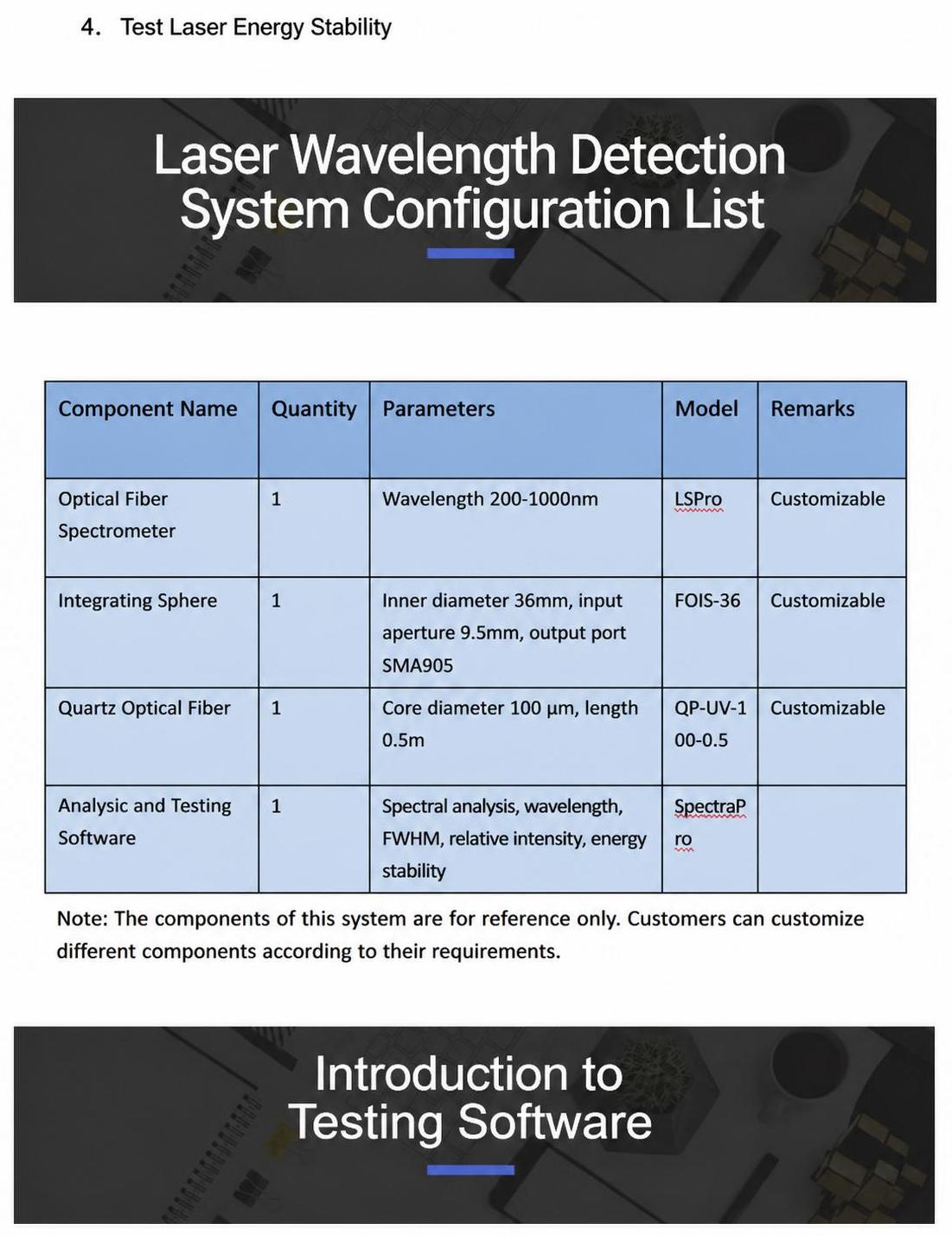

Configuration List of Laser Wavelength Detection System
|
Component name
|
quantity
|
Parameters
|
model
|
Notes
|
|
Fiber optic spectrometer
|
1
|
Wavelength 200-1000nm
|
LSPro
|
Customizable
|
|
Integrating sphere
|
1
|
Inner diameter 36mm, light inlet 9.5mm, light outlet SMA905
|
FOIS-36
|
Customizable
|
|
Quartz fiber optic
|
1
|
Core diameter 100 microns, length 0.5m
|
QP-UV-100-0.5
|
Customizable
|
|

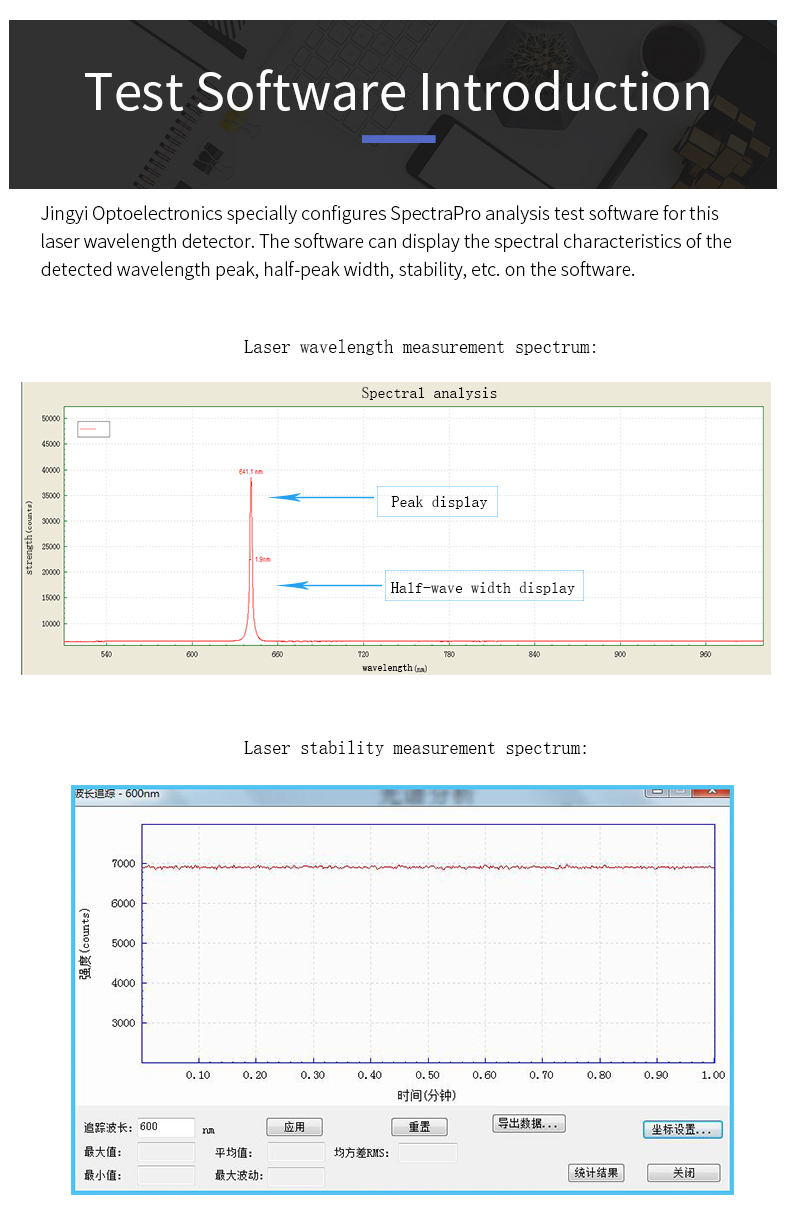

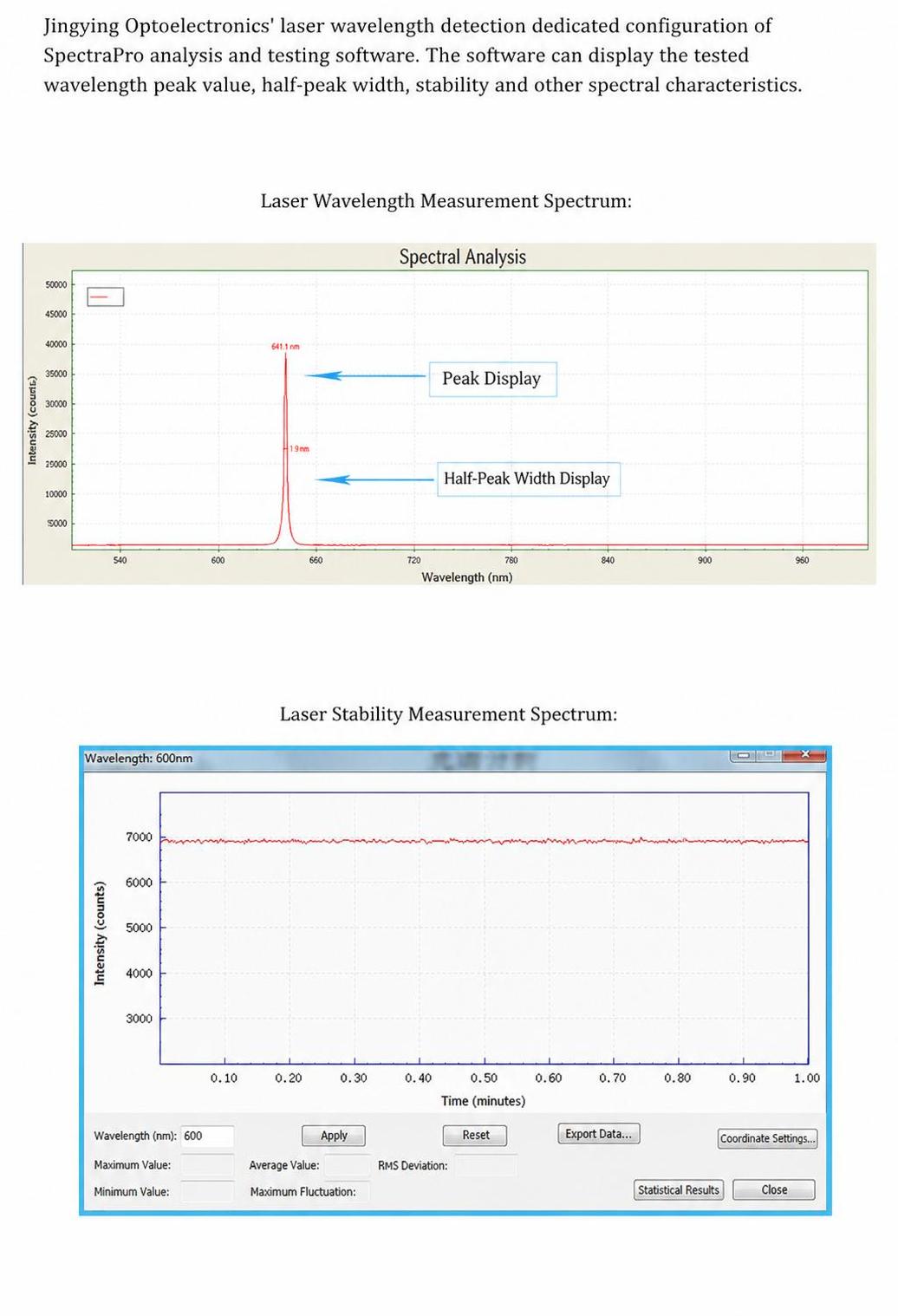

Analysis and testing software
|
1
|
Spectral analysis, wavelength, half-wave width, relative light intensity, energy stability
|
SpectraPro
|
|
Consult customer service to obtain detailed materials and exclusive solutions.
Tel: 400-1800-685
Email:info@gzjygd.com
