Spray-Coated Integrating Sphere Product Introduction
Spray-coated integrating sphere

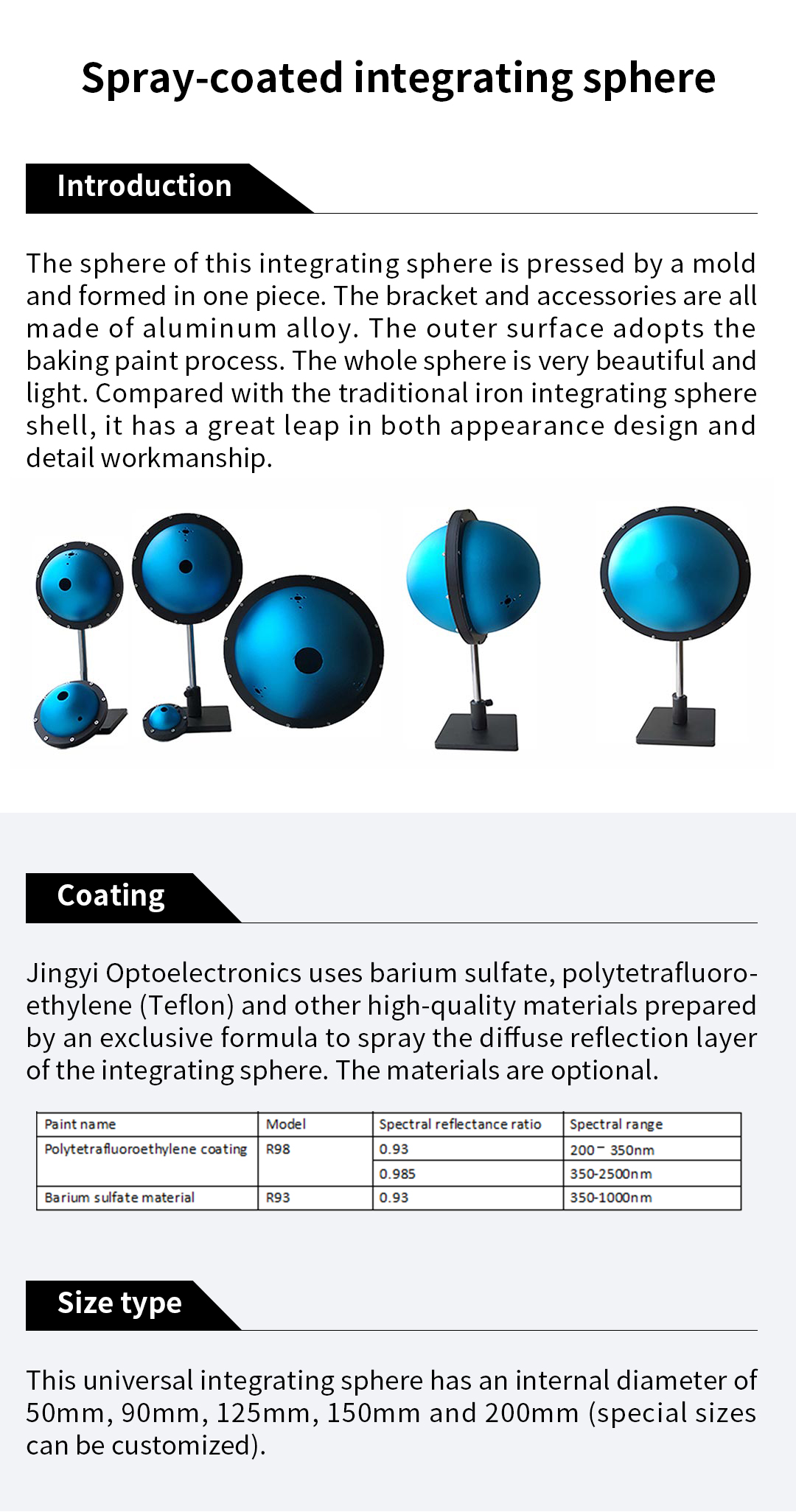

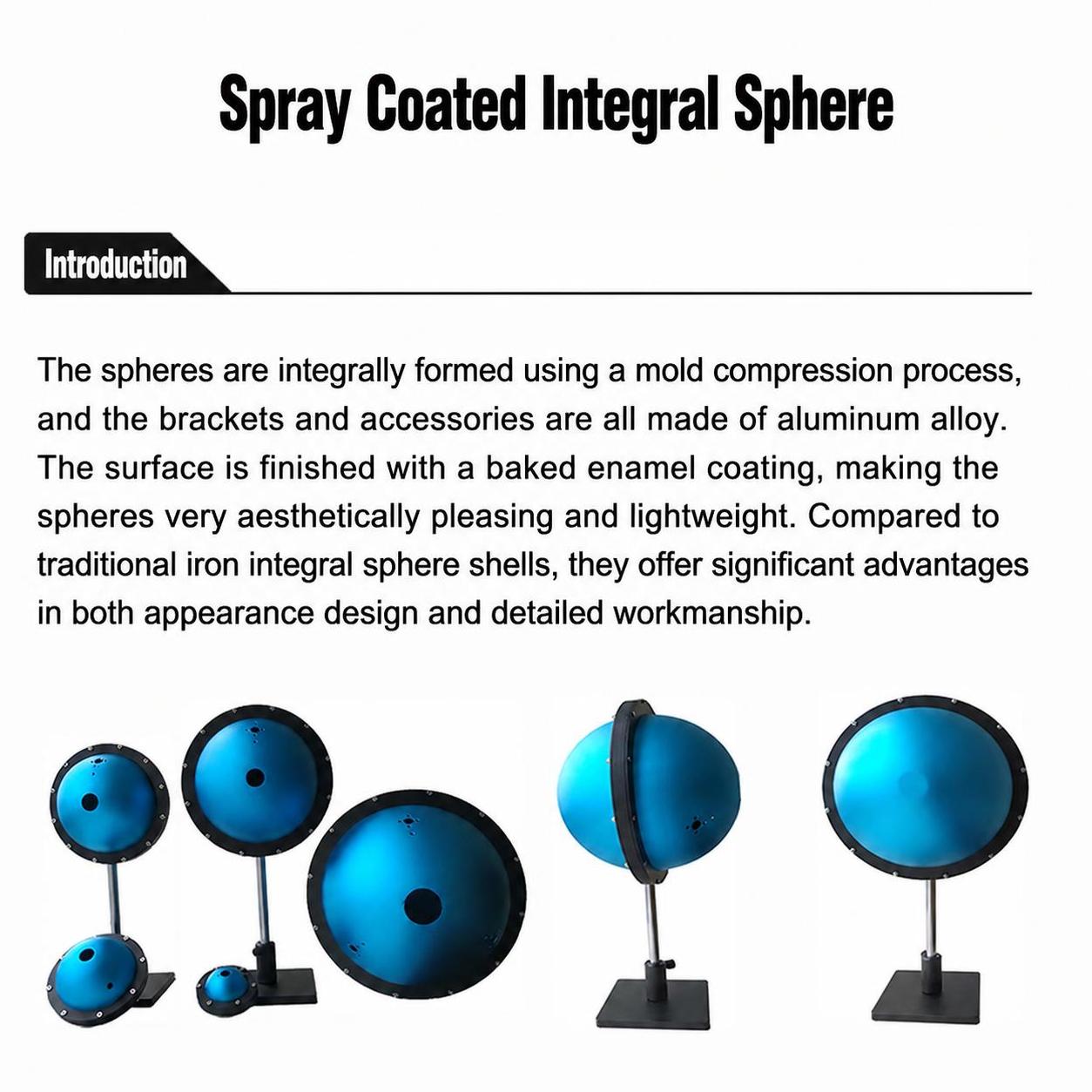

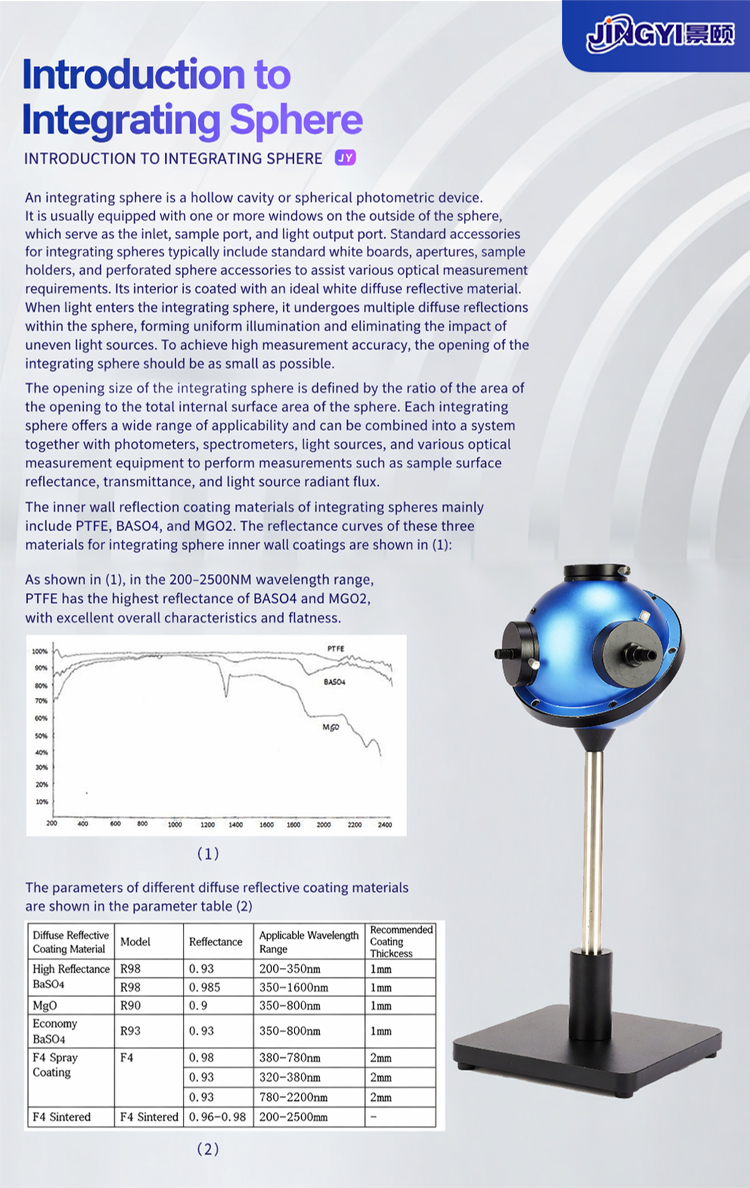

Introduction The sphere of this integrating sphere is pressed by a mold and formed in one piece. The bracket and accessories are all made of aluminum alloy. The outer surface adopts the baking paint process. The whole sphere is very beautiful and light. Compared with the traditional iron integrating sphere shell, it has a great leap in both appearance design and detail workmanship.

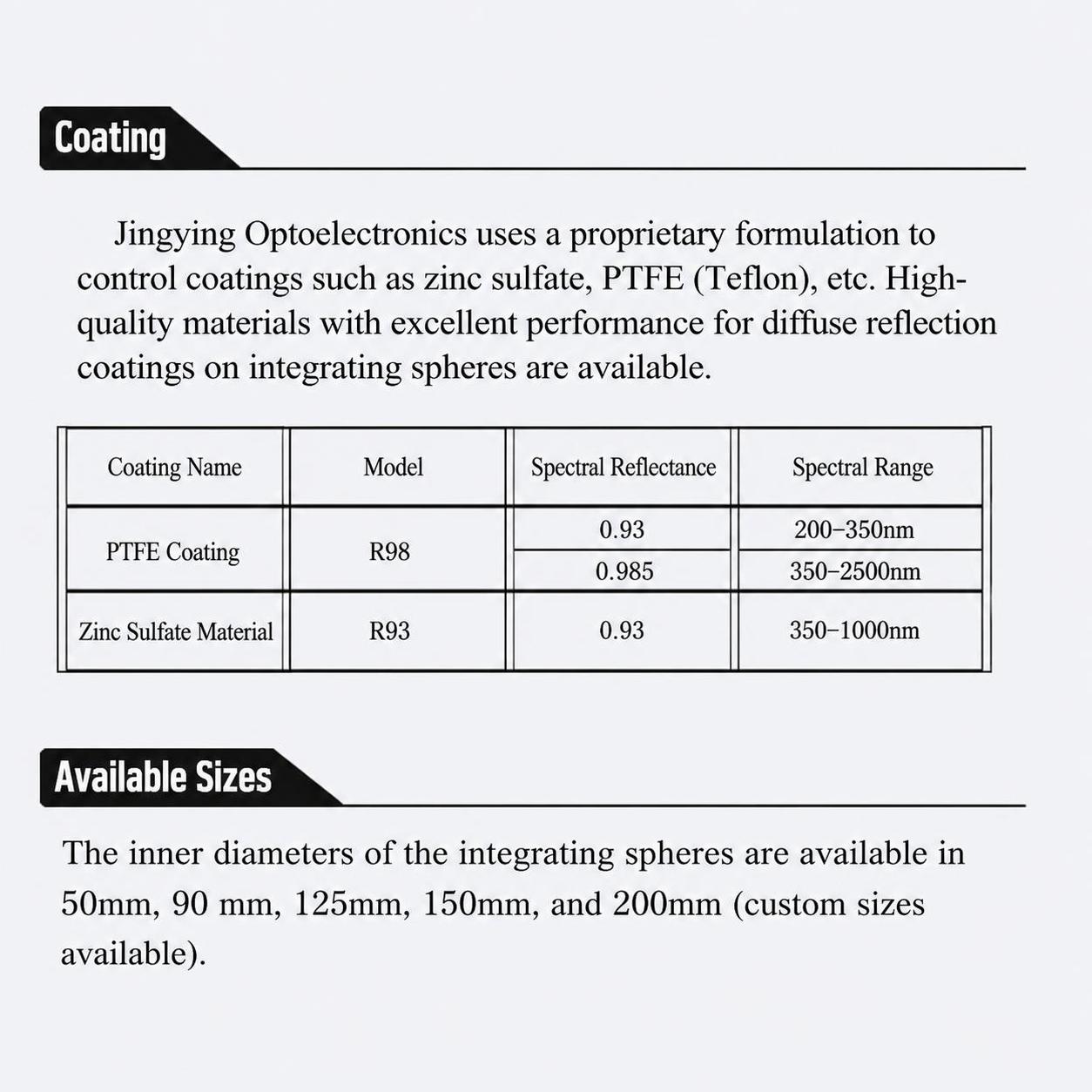

Coating Jingyi Optoelectronics uses barium sulfate, polytetrafluoroethylene (Teflon) and other high-quality materials prepared by an exclusive formula to spray the diffuse reflection layer of the integrating sphere. The materials are optional.
|
Paint name
|
Model
|
Spectral reflectance ratio
|
Spectral range
|
|
Polytetrafluoroethylene coating
|
R98
|
0.93
|
200-350nm
|
|
|
|
0.985
|
350-2500nm
|
|
Barium sulfate material
|
R93
|
0.93
|
350-1000nm
|
Size type This universal integrating sphere has an internal diameter of 50mm, 90mm, 125mm, 150mm and 200mm (special sizes can be customized).

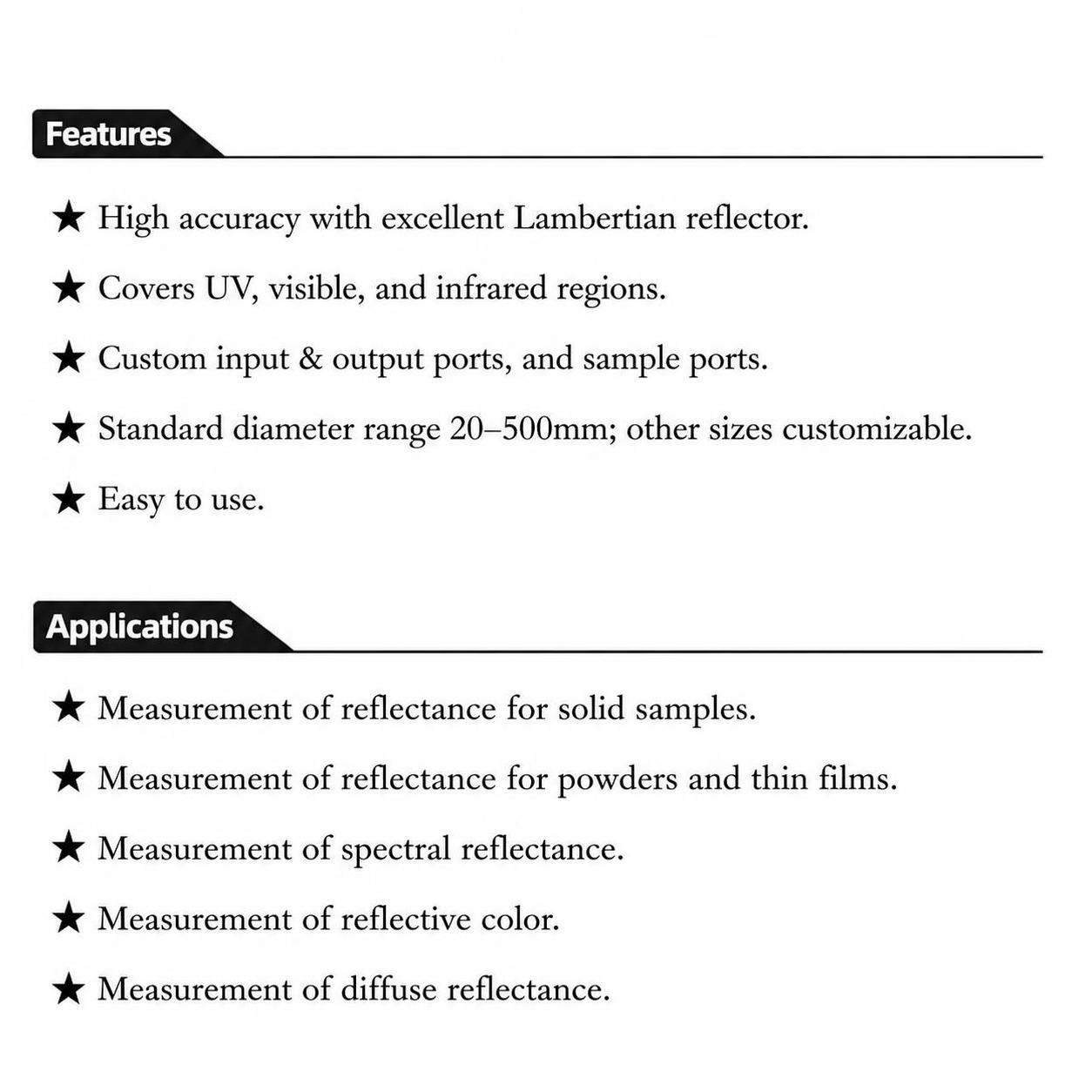

Features ★ High accuracy, with excellent Lambertian reflectors. ★ Covers UV, visible and infrared regions. ★ Input & output interfaces, sample port customization. ★ Diameter range 20-500mm, other sizes can be customized. ★ Lightweight to use.
Application areas ★ Solid sample reflectivity measurement. ★ Powder and film sample reflectivity measurement. ★ Spectral reflectivity measurement. ★ Reflection color determination. ★ Diffuse reflectivity measurement.

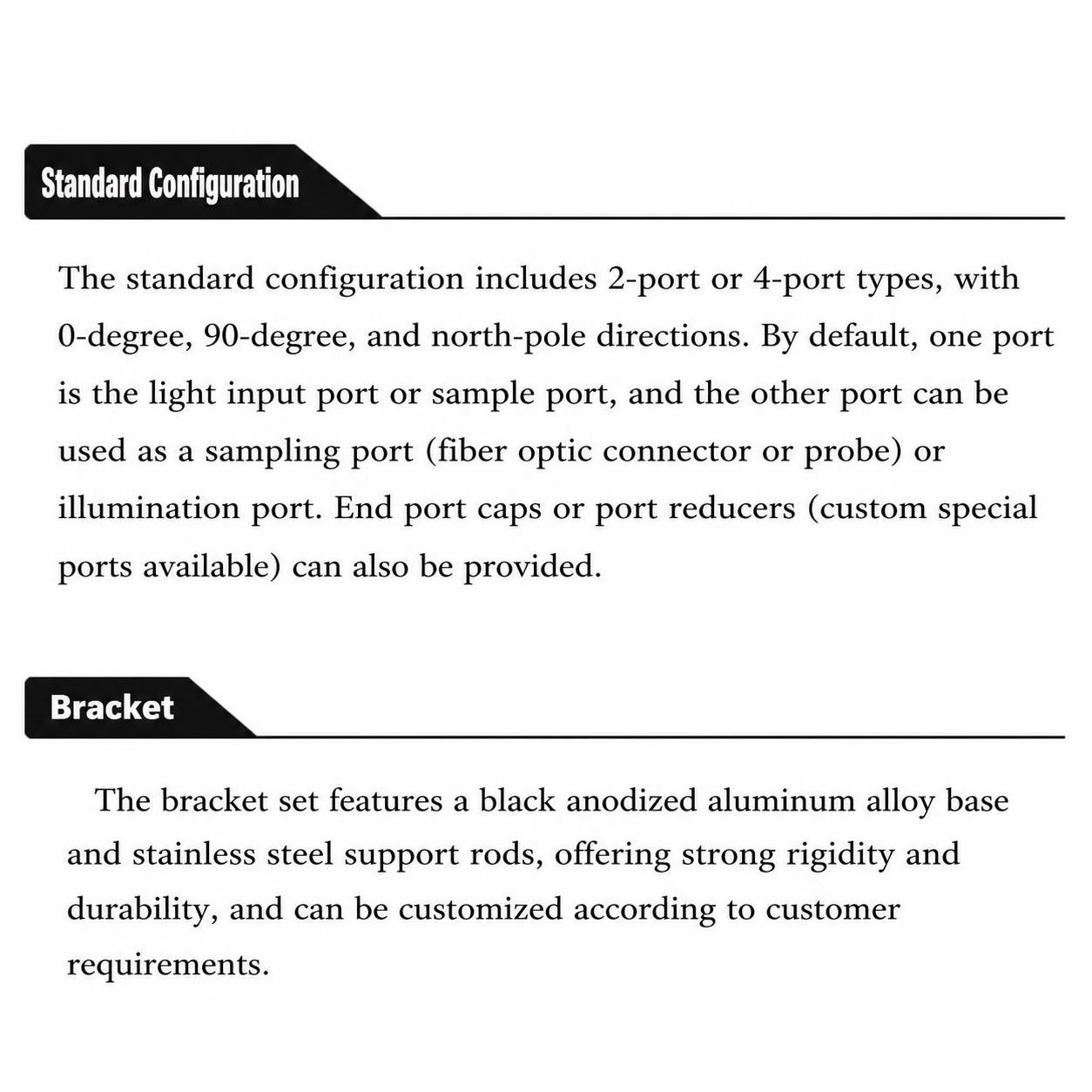

Standard opening The standard configuration includes 2 ports or 4 port types, 0 degrees, 90 degrees and North Pole directions. One port is the default light inlet or sample port, and the other port can be used as a sampling port (connected to a fiber connector or detector) or an illumination port. Port plugs or port reductions can also be provided (special ports can be customized).
Bracket The matching bracket is a black anodized aluminum metal base and a stainless steel support rod, which is strong and can be customized according to customer needs.

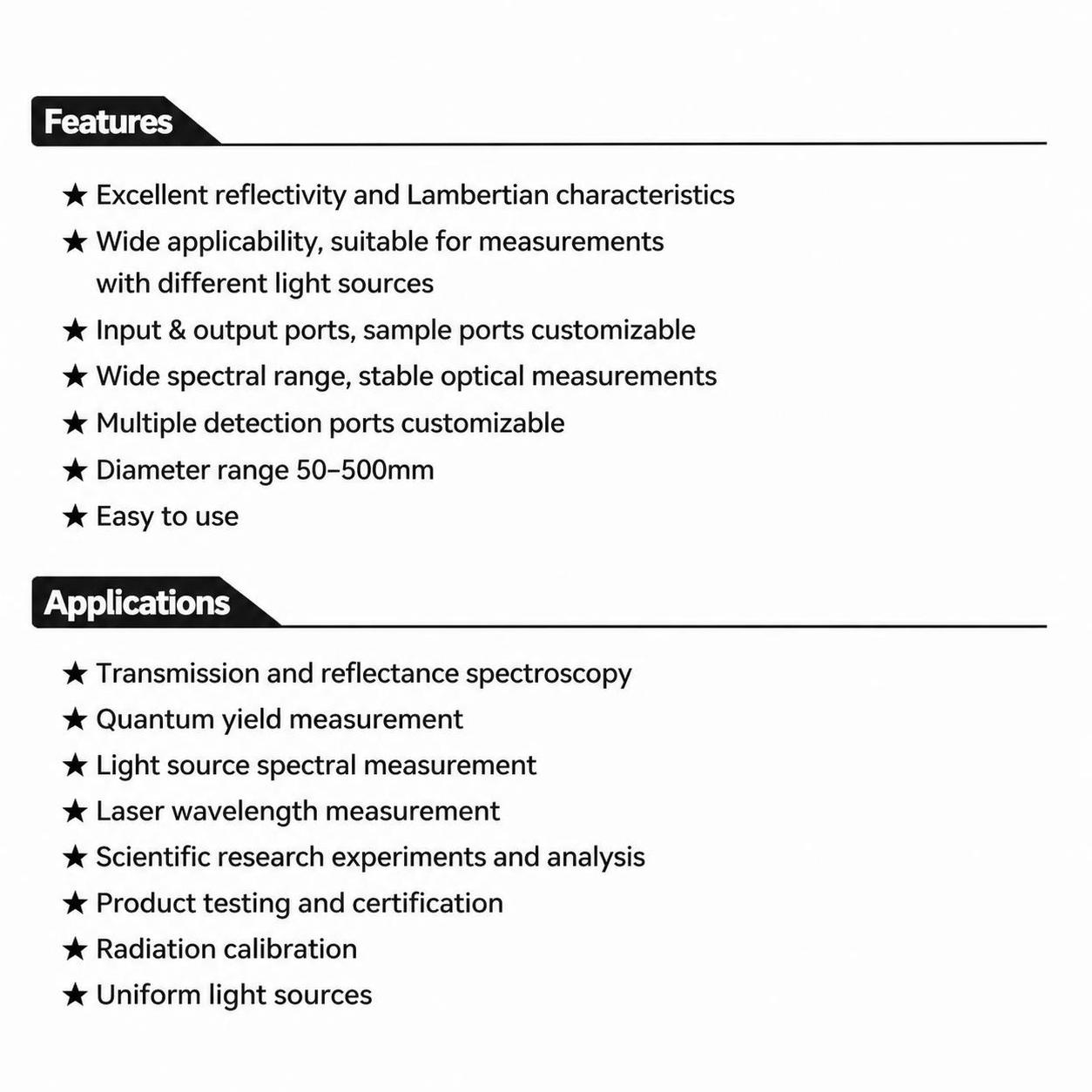

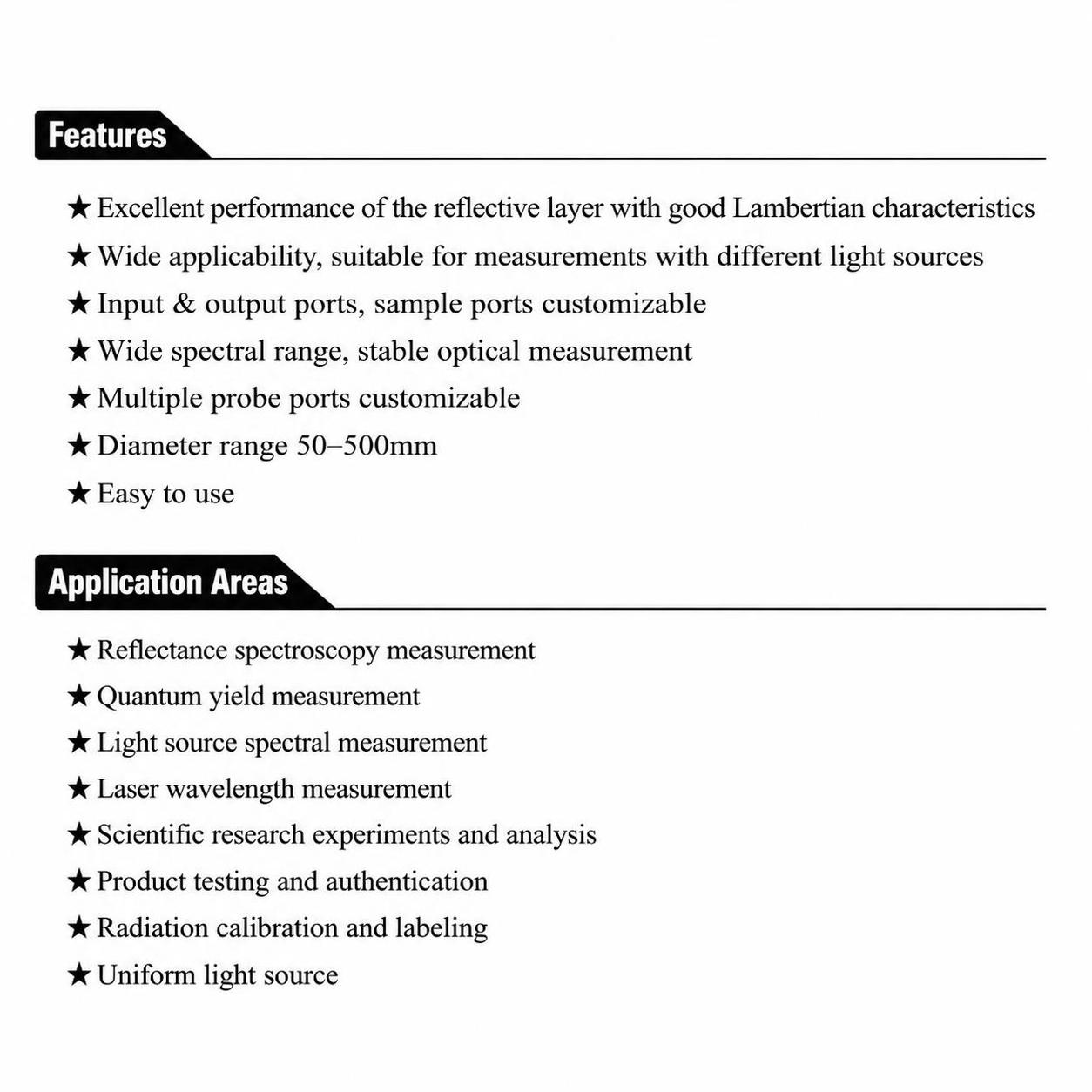

Features ★ Good Lambertian properties of high-quality and high-performance diffuse reflection layer ★ Wide application range, suitable for measurement of different light sources ★ Input & output interface, sample interface can be customized ★ Wide spectral range, stable optical measurement ★ Multiple detection interfaces can be customized ★ Diameter range 50-500mm ★ Easy to use
Application areas ★ Transmittance and reflection spectrum measurement ★ Fluorescence quantum yield measurement ★ Light source spectrum measurement ★ Laser wavelength measurement ★ Scientific research experiments and analysis ★ Product testing and identification ★ Radiation calibration ★ Uniform light source

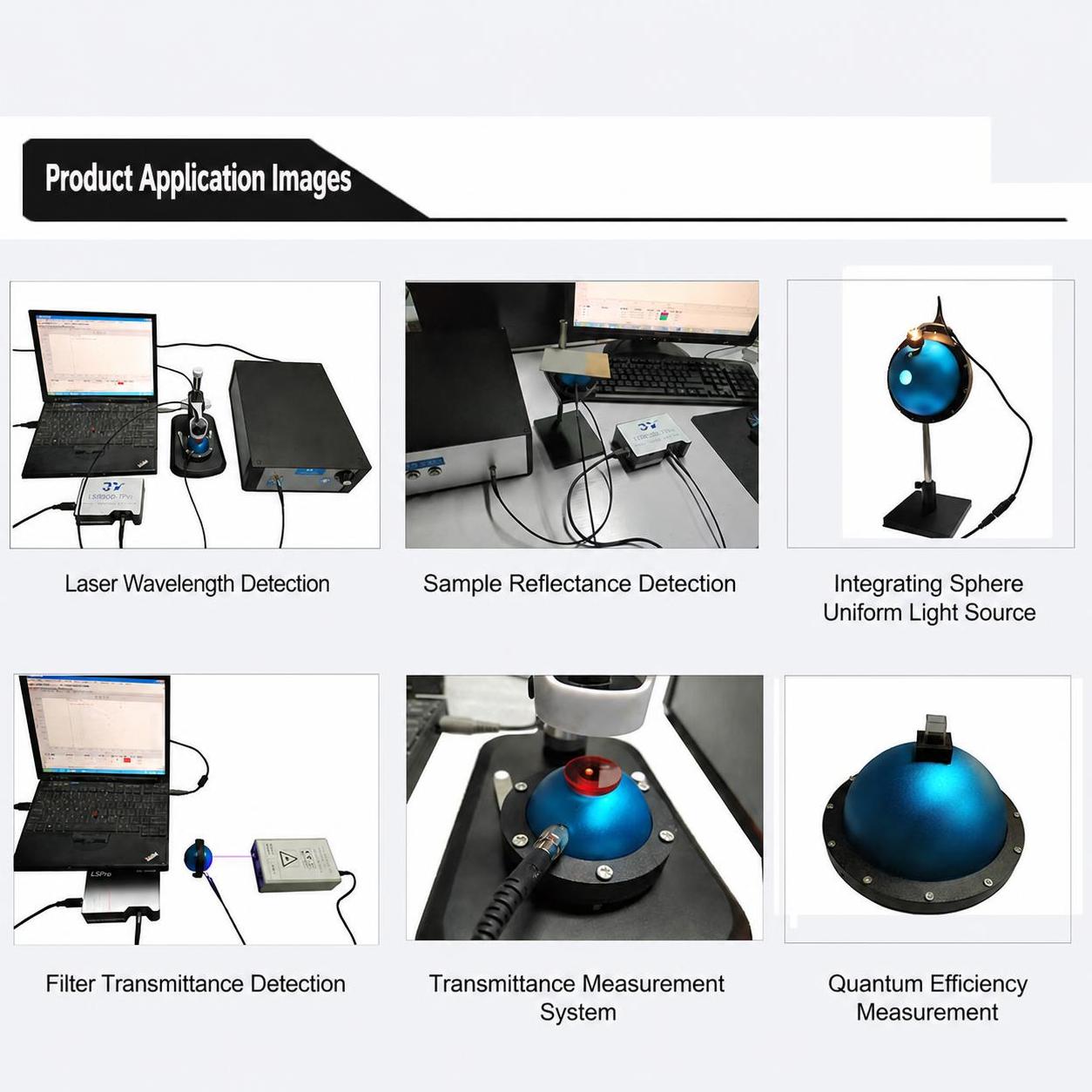

Product application pictures Laser wavelength detection Sample reflectivity detection Integrating sphere uniform light source Filter transmittance detection Transmittance measurement system Quantum efficiency measurement

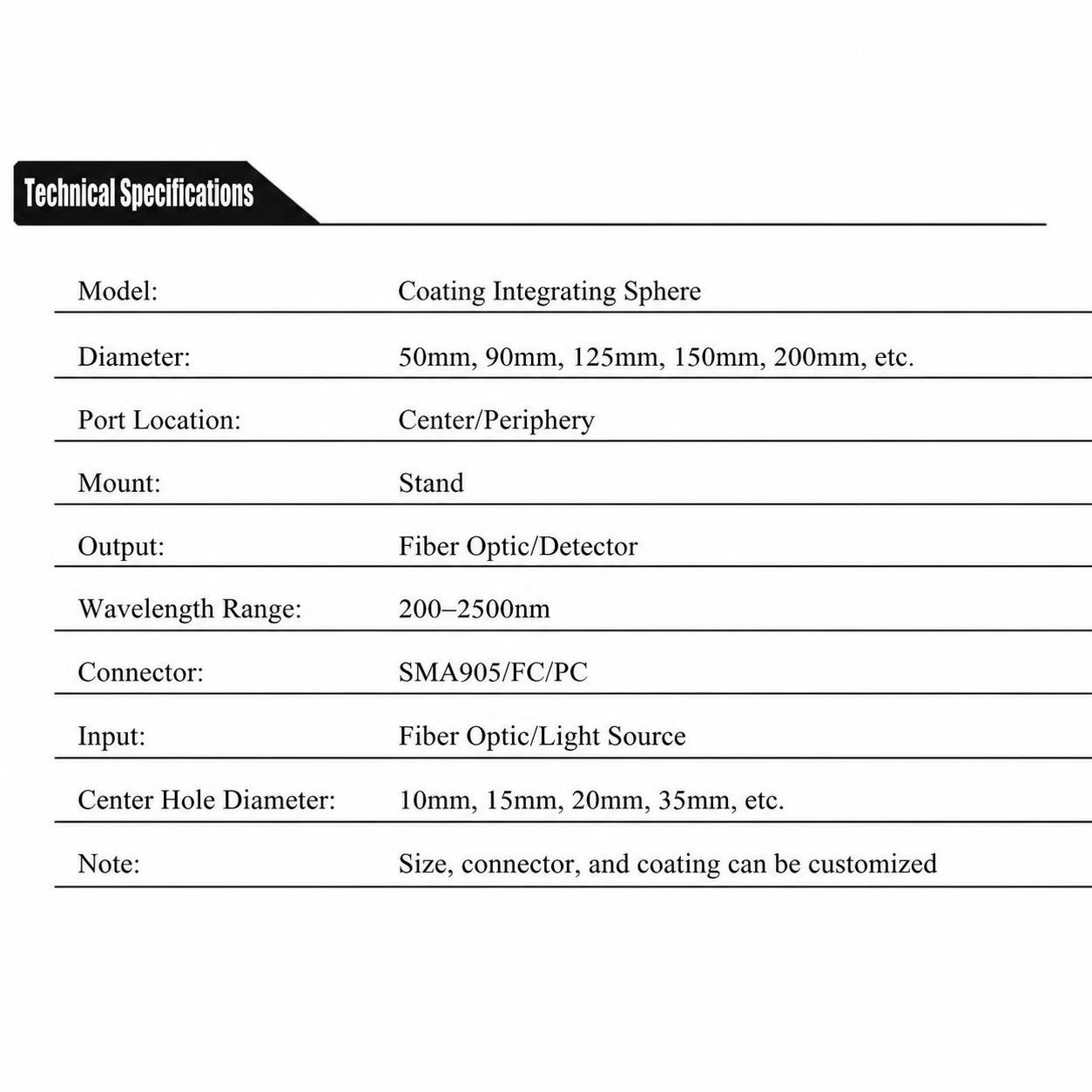

Technical Parameters
|
Model
|
Spraying integrating sphere
|
|
Diameter
|
50mm, 90mm, 125mm, 150mm, 200mm, etc.
|
|
Opening Position
|
Center/surrounding
|
|
Bracket
|
Pedestal
|
|
Output
|
Fiber/detector
|
|
Spectral Range
|
200-2500nm
|
|
Port
|
SMA905/FC/PC
|
|
Input
|
Fiber/light source
|
|
Center Hole Diameter
|
10mm, 15mm, 20mm, 35mm, etc.
|
Note: Size, port and coating can be customized
