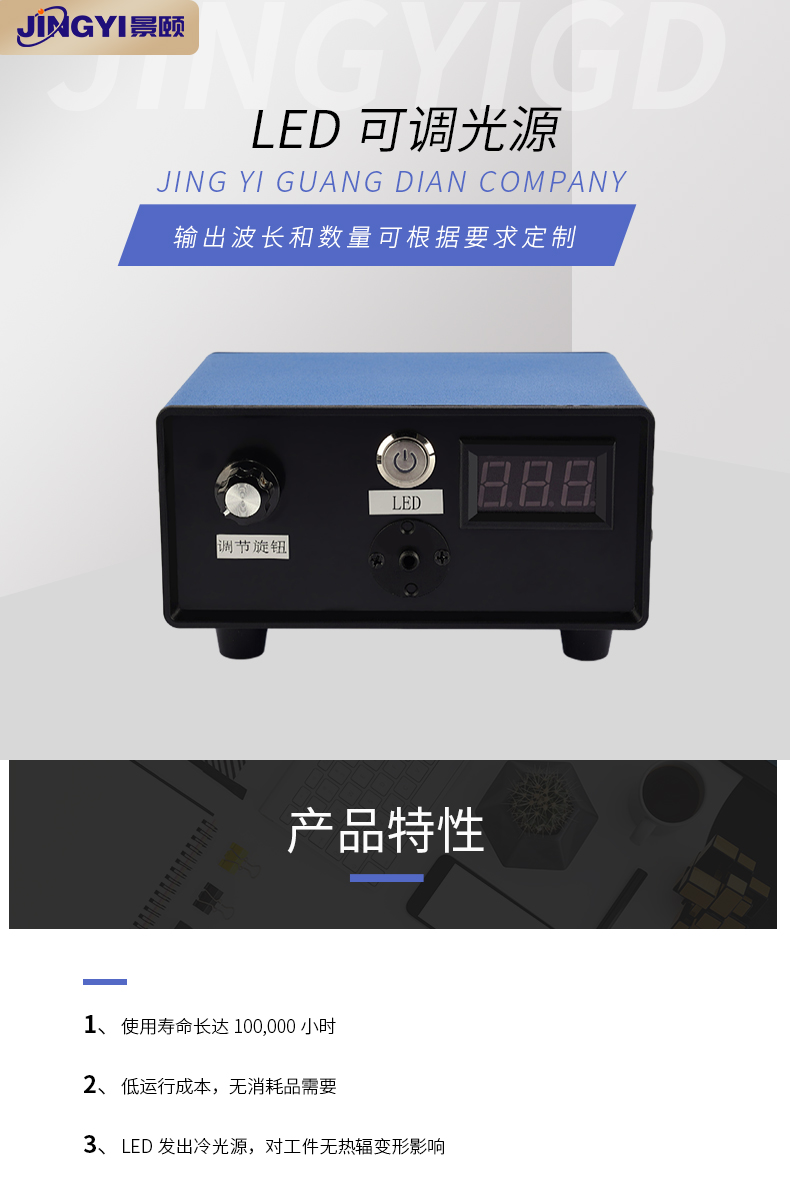

LED 可调光源产品介绍

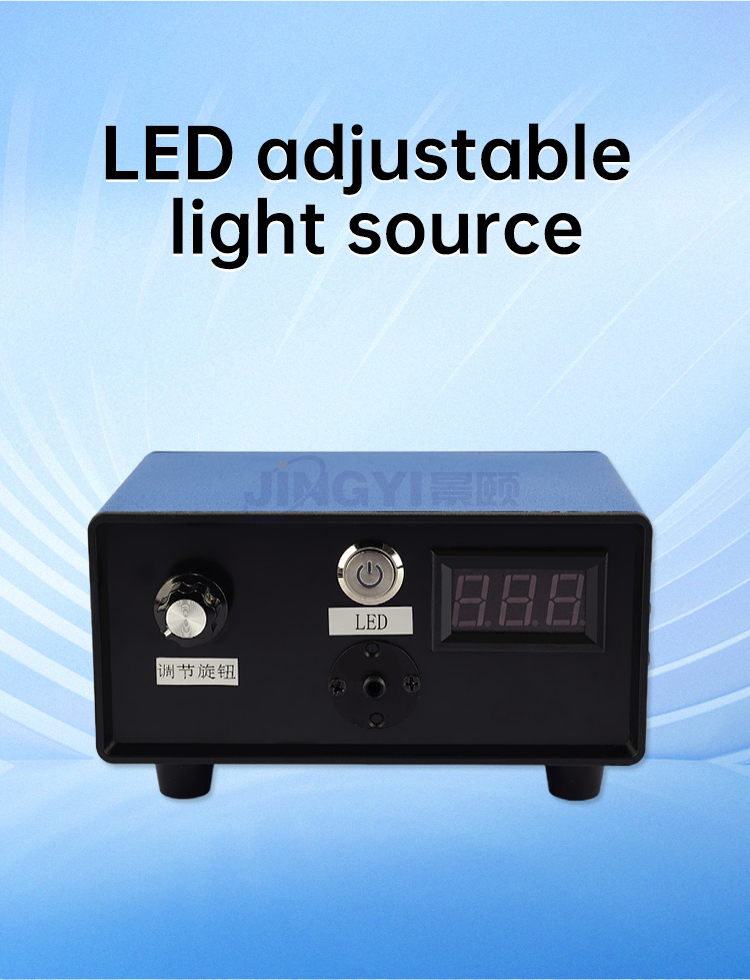

LED adjustable light source

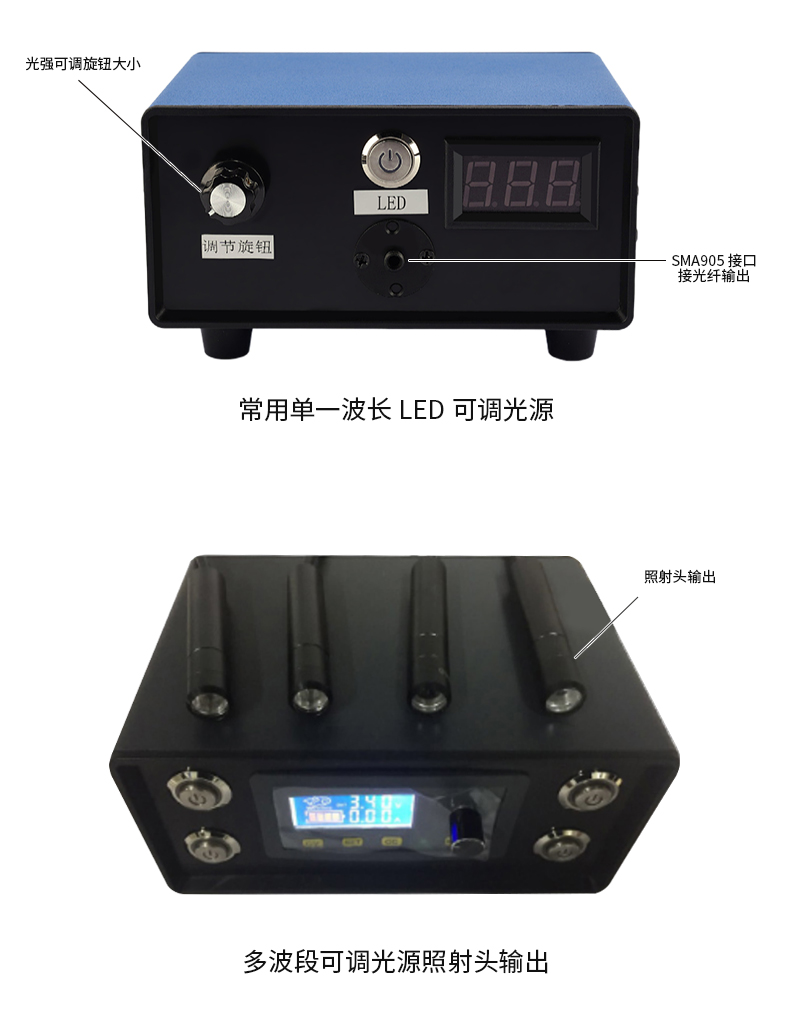

Product Introduction LED is an ideal choice for fluorescence excitation, spectroscopy, and fiber optic lighting applications. It can be output through optical fiber, with output ports of SMA905 or FC interface, which can be customized according to specific situations. The output wavelength and quantity can be customized according to requirements. It can be output through the irradiation head, and the output wavelength and quantity can be customized according to requirements.

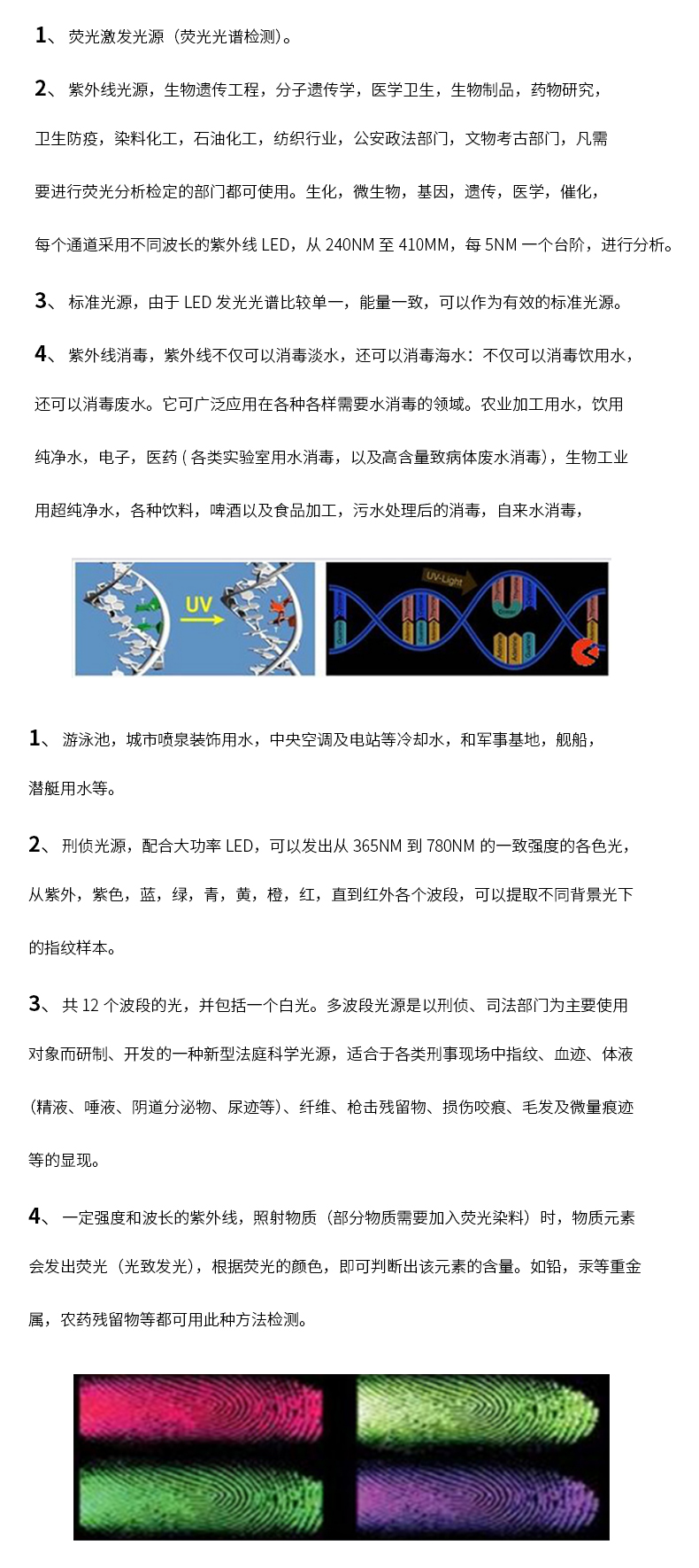

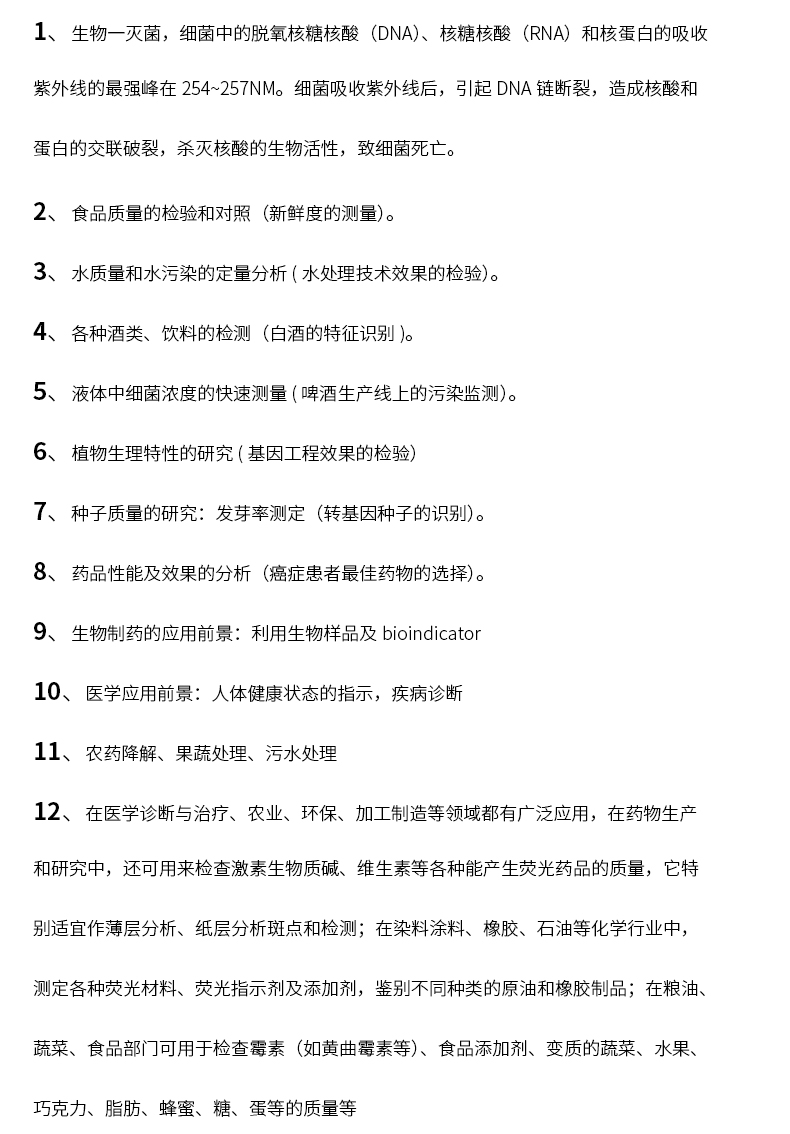

Application Area Inspection and comparison of food quality (measurement of freshness) Quantitative analysis of water quality and water pollution (testing of water treatment technology effectiveness) Detection of various liquors and beverages (feature recognition of Baijiu) Rapid measurement of bacterial concentration in liquids (pollution monitoring on beer production lines) Research on Plant Physiological Characteristics (Testing of Genetic Engineering Effects) Research on Seed Quality: Determination of Germination Rate (Identification of Transgenic Seeds) Analysis of drug performance and efficacy (selection of the best drug for cancer patients) The application prospects of biopharmaceuticals: utilizing biological samples and bioindicators Medical application prospects: indication of human health status, disease diagnosis Pesticide degradation, fruit and vegetable treatment, sewage treatment

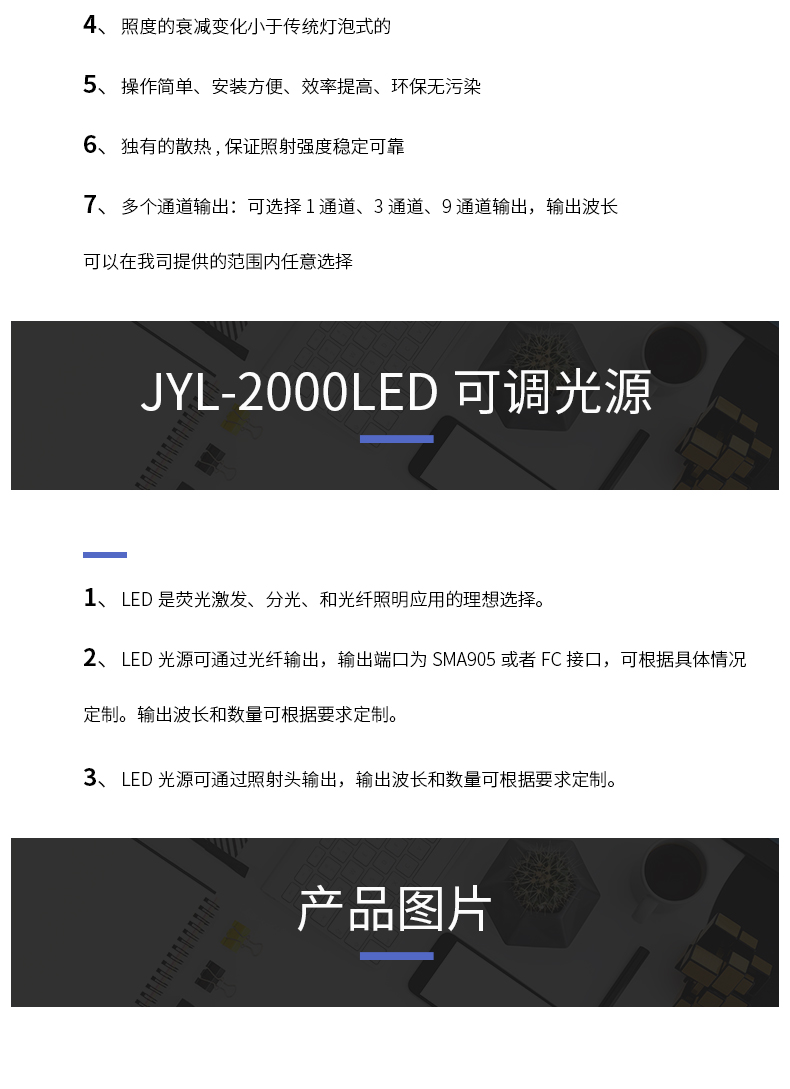

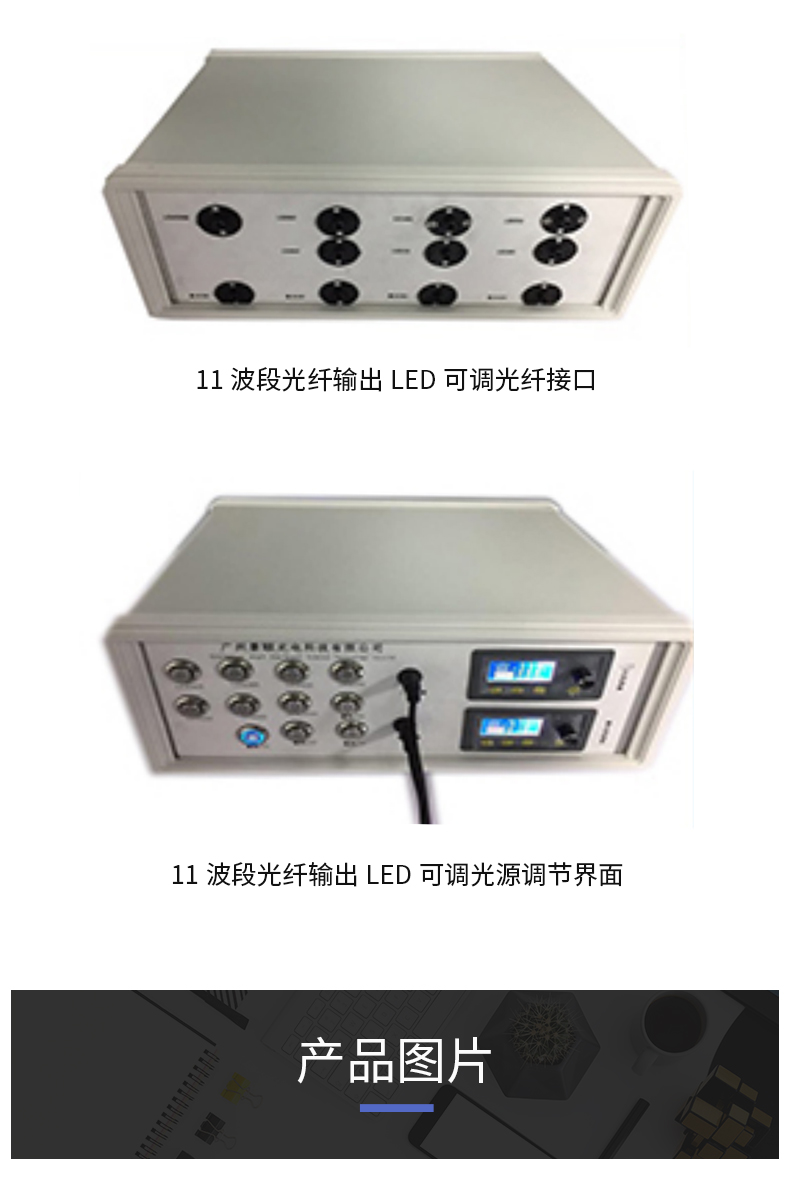

Product Features Low operating costs, no need for consumables The LED emits a cold light source, which has no thermal radiation deformation effect on the workpiece The attenuation change of illumination is smaller than that of traditional bulb type Simple operation, easy installation, improved efficiency, environmentally friendly and pollution-free Unique heat dissipation ensures stable and reliable illumination intensity Multiple channel outputs: 1 channel, 3 channels, and 9 channels can be selected for output, and the output wavelength can be freely selected within the range provided by our company

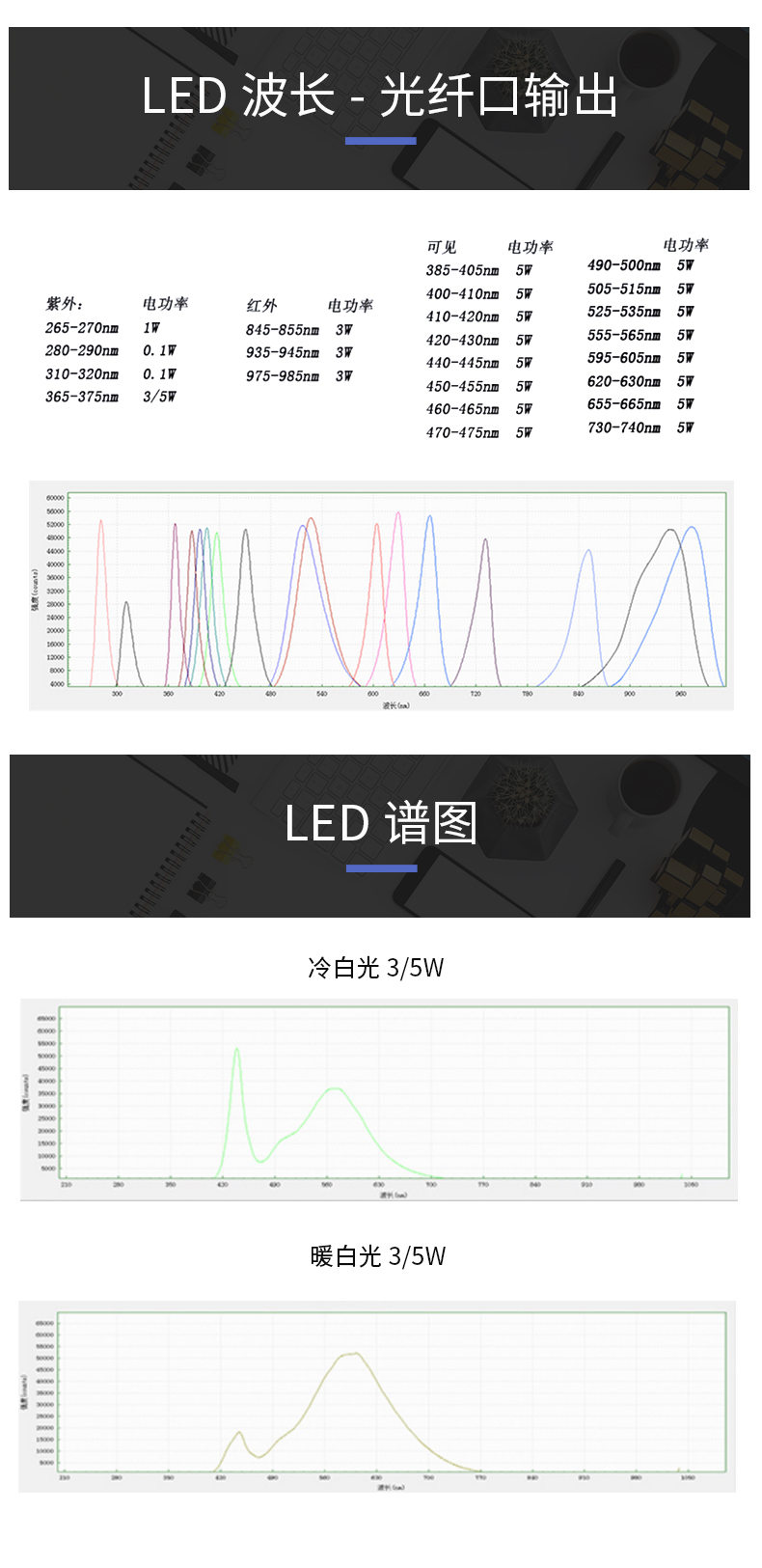

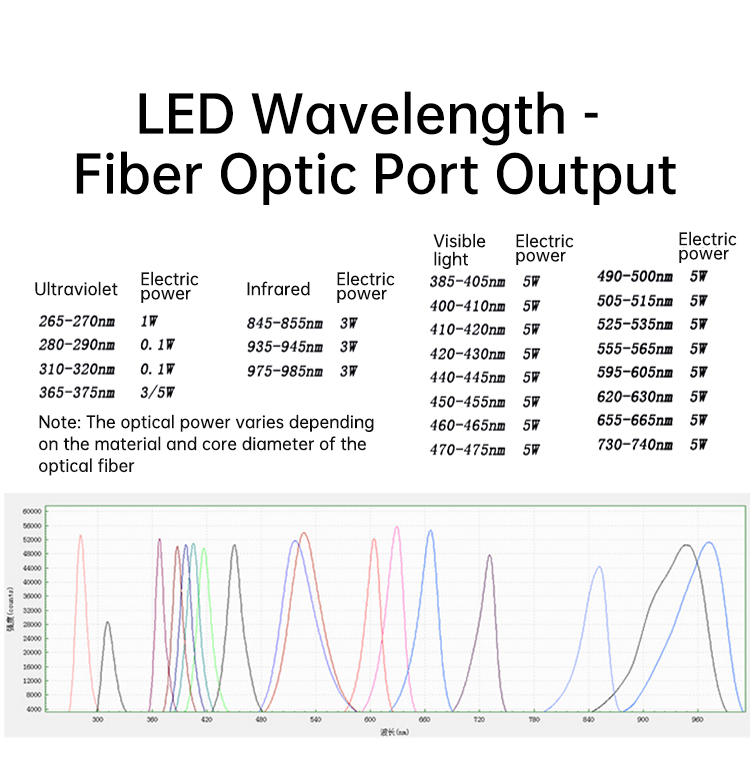

LED Wavelength - Fiber Optic Port Output
|
Ultraviolet
|
Electric power
|
Infrared
|
Electric power
|
Visible light
|
Electric power
|
Visible light
|
Electric power
|
|
265-270nm
|
1W
|
845-855nm
|
3W
|
385-405nm
|
5W
|
490-500nm
|
5W
|
|
280-290nm
|
0.1W
|
935-945nm
|
3W
|
400-410nm
|
5W
|
505-515nm
|
5W
|
|
310-320nm
|
0.1W
|
975-985nm
|
3W
|
410-420nm
|
5W
|
525-535nm
|
5W
|
|
365-375nm
|
3/5W
|
|
|
420-430nm
|
5W
|
555-565nm
|
5W
|
|
|
|
|
|
440-445nm
|
5W
|
595-605nm
|
5W
|
|
|
|
|
|
450-455nm
|
5W
|
620-630nm
|
5W
|
|
|
|
|
|
460-465nm
|
5W
|
655-665nm
|
5W
|
|
|
|
|
|
470-475nm
|
5W
|
730-740nm
|
5W
|
|
Note: The optical power varies depending on the material and core diameter of the optical fiber
|
|
|
|
|
|
|
|

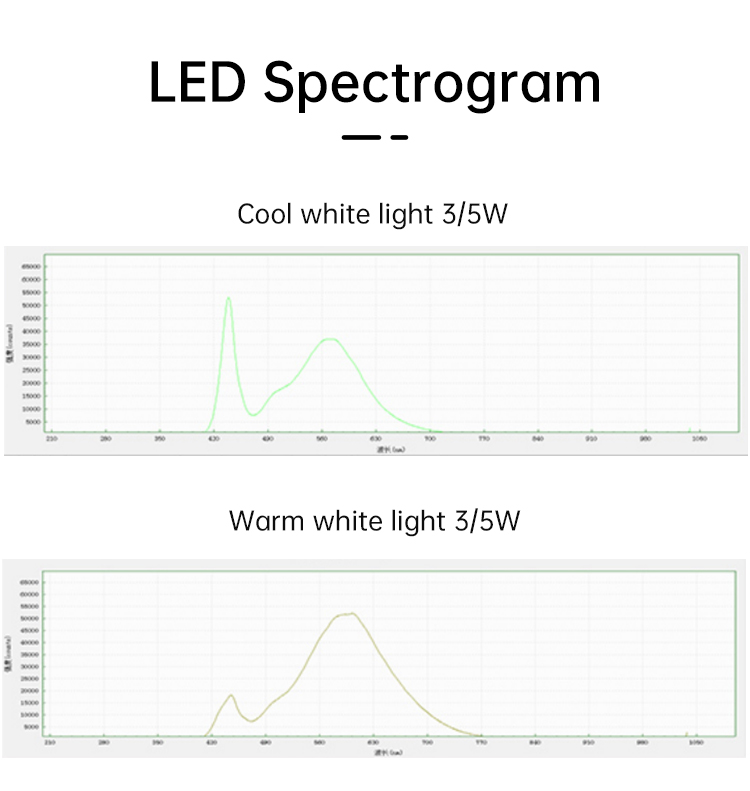

LED Spectrogram Cool white light 3/5W Warm white light 3/5W
