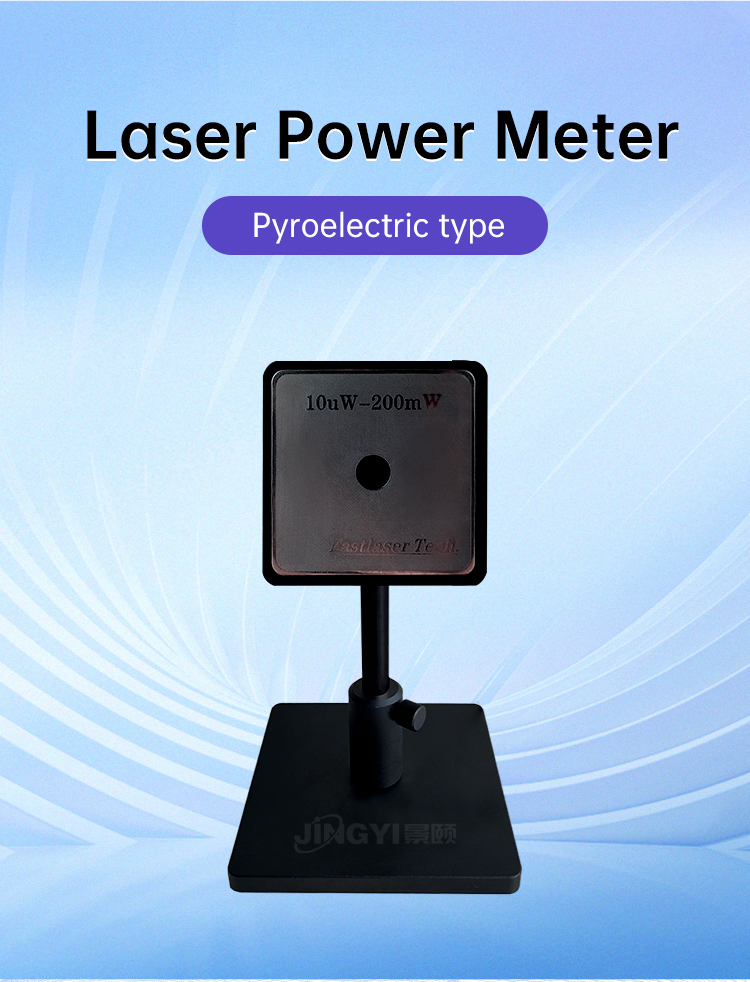

Laser Power Meter with Pyroelectric Probe Introduction
Laser Power Meter
Pyroelectric type
Product Introduction
A laser power meter is an instrument used to measure the power of continuous laser or the average power of pulsed laser over a period of time. Suitable for measuring carbon dioxide laser, YAG laser, semiconductor laser, solid-state laser, medical laser, fiber optic output, pulse laser, quasi continuous laser, etc. Small errors and high accuracy make it an indispensable measurement tool in laser technology applications, which is crucial for ensuring the performance of laser systems.

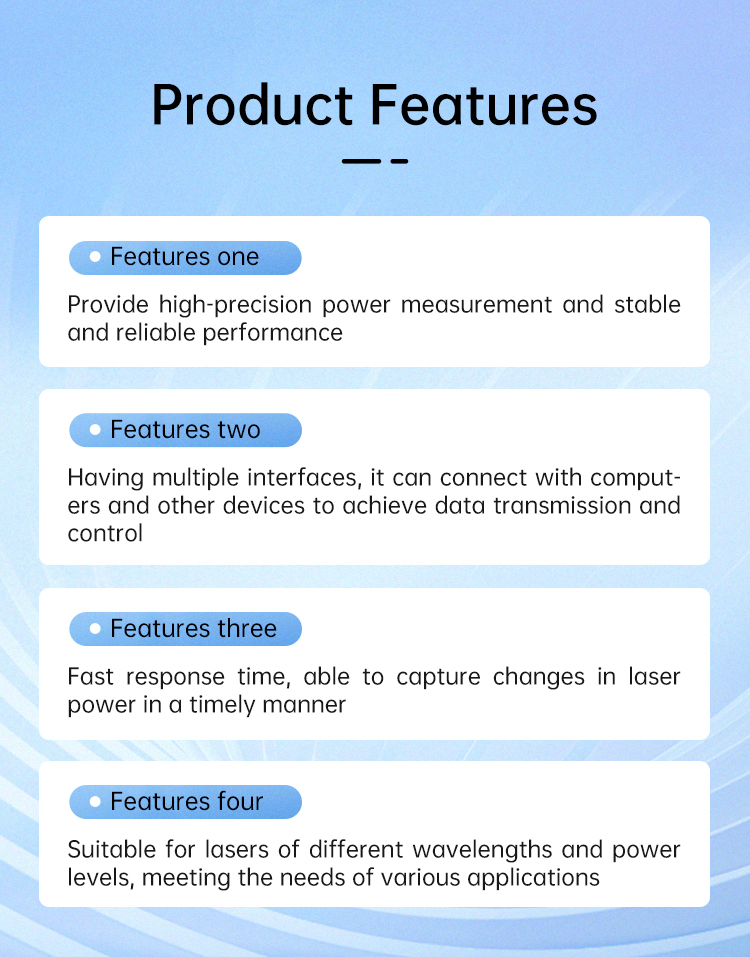

Product Features
Features one
Provide high-precision power measurement and stable and reliable performance
Features two
Having multiple interfaces, it can connect with computers and other devices to achieve data transmission and control
Features three
Fast response time, able to capture changes in laser power in a timely manner
Features four
Suitable for lasers of different wavelengths and power levels, meeting the needs of various applications

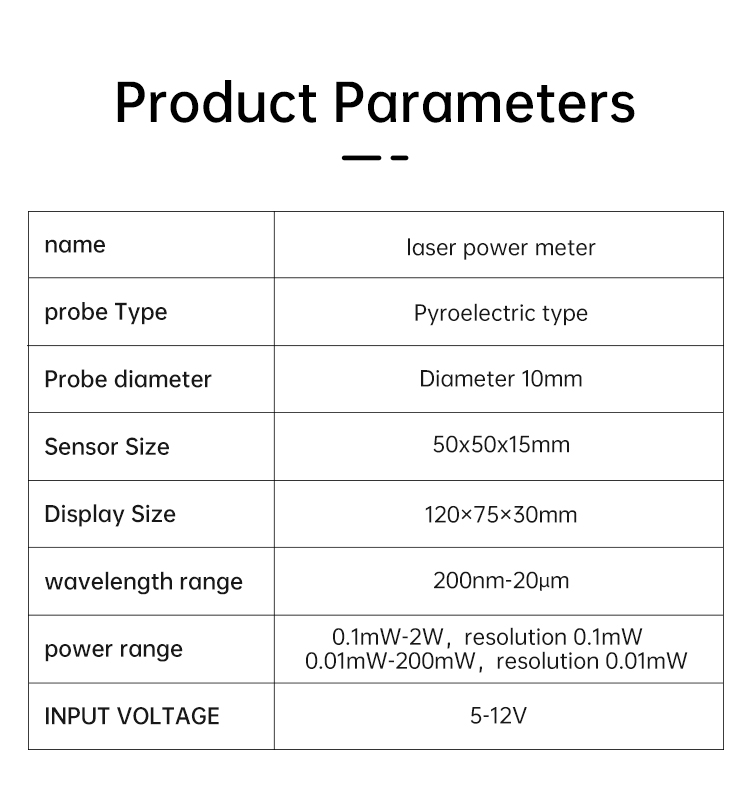

Product Parameters
|
name
|
laser power meter
|
|
probe Type
|
Pyroelectric type
|
|
Probe diameter
|
Diameter 10mm
|
|
Sensor Size
|
50x50x15mm
|
|
Display Size
|
120×75×30mm
|
|
wavelength range
|
200nm-20μm
|
|
power range
|
0.1mW-2W, resolution 0.1mW<br>0.01mW-200mW, resolution 0.01mW
|
|
INPUT VOLTAGE
|
5-12V
|
