Introduction to Parameters and Applications of Drone Calibration Board

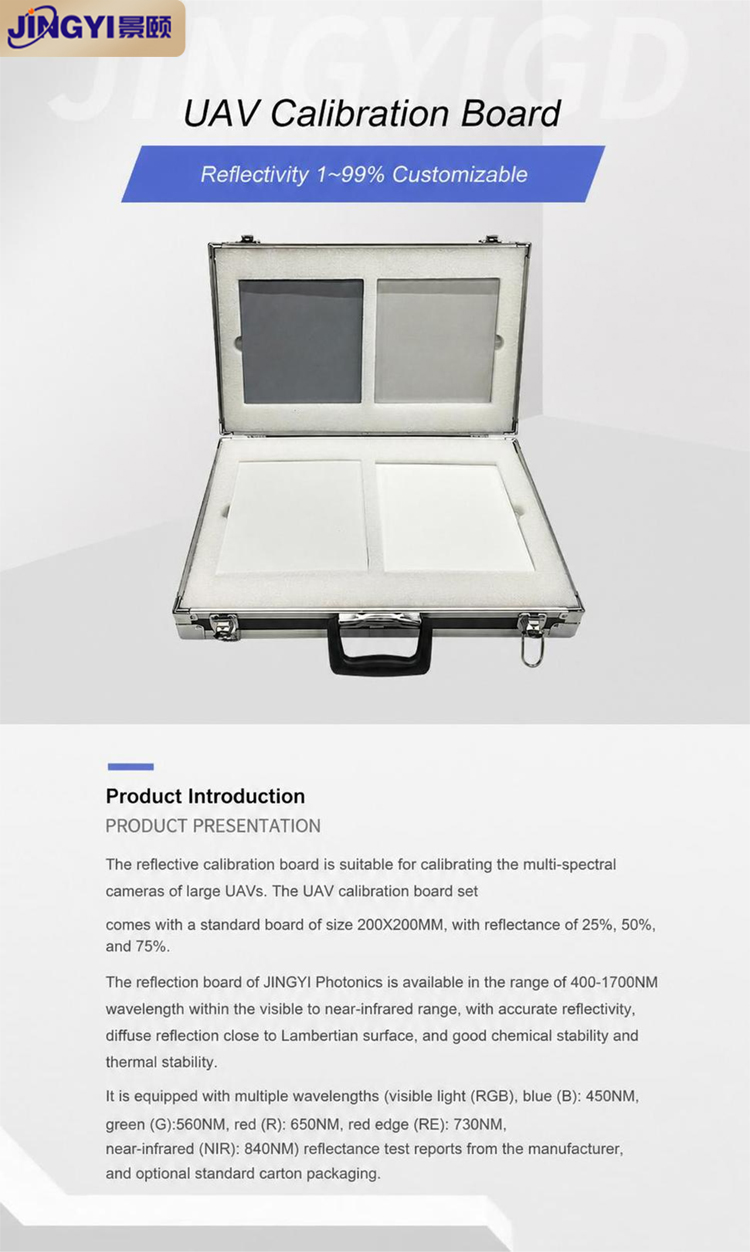

Drone calibration board
Reflectance 1~99% customizable
Product Introduction
The radiation calibration board is suitable for the calibration of DJI drone Elf 4 multispectral. The standard size of the drone calibration board set is 200X200MM, and the reflectivity of the calibration board is composed of 25%, 50%, and 75%. Jingyi Optoelectronics' drone calibration board is flat in the visible near infrared spectral range of 400-1700NM, with accurate reflectivity and a diffuse reflection surface similar to a Lambertian surface. It has good chemical and thermal stability and comes with factory reports of reflectivity for various bands (visible light, blue, green, red, red edge, near-infrared). It can be packaged in regular cardboard boxes.

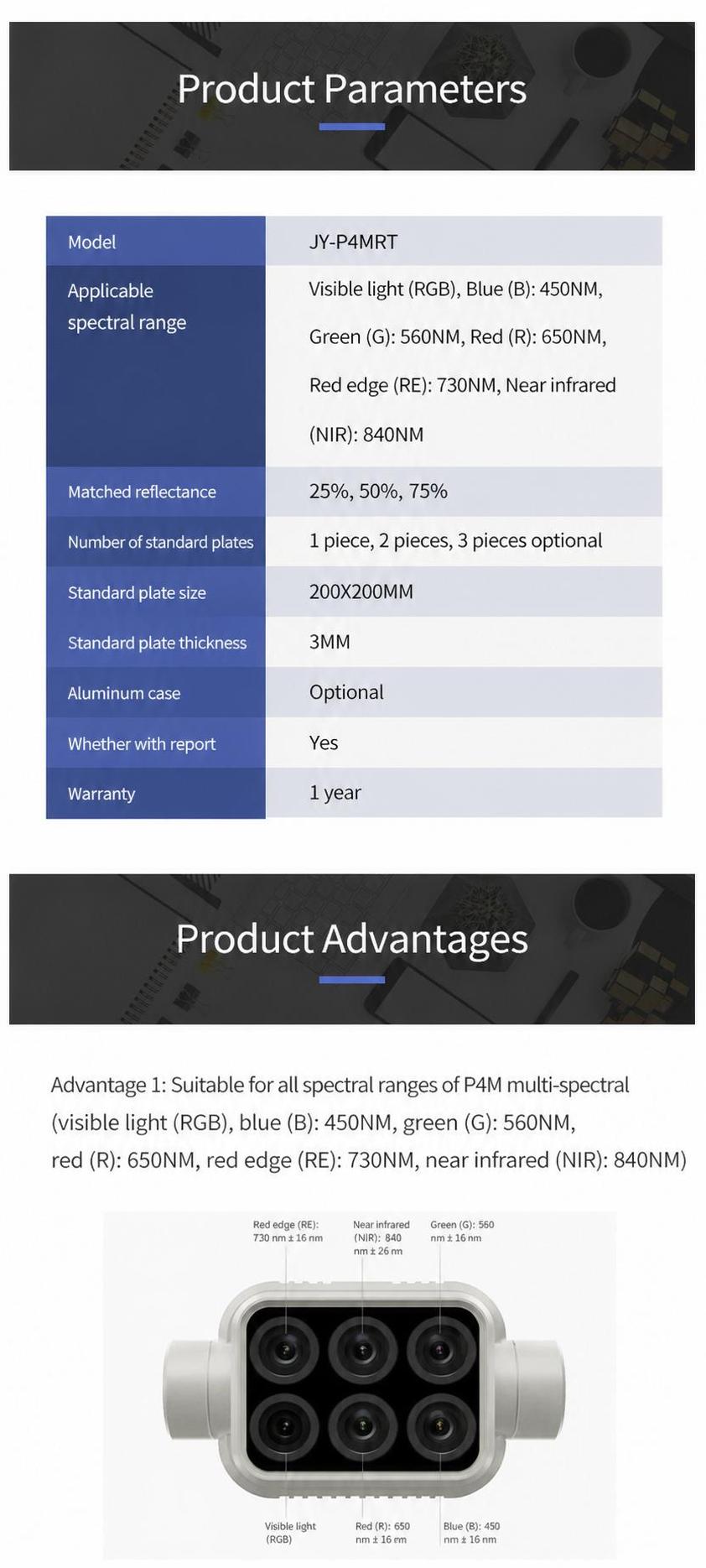

Product Specifications
|
project
|
parameter
|
|
model
|
jy-p4mrt
|
|
Enable the applicable spectral range
|
Visible light, blue: 450nm, green: 560nm, red: 650nm, red edge: 730nm, near-infrared: 840nm
|
|
Standard reflectivity
|
25%、50%、75%
|
|
Number of calibration boards
|
1 piece, 2 pieces, 3 pieces are optional
|
|
Calibration board size
|
200x200mm
|
|
Calibration plate thickness
|
3mm
|
|
Aluminum box
|
Optional
|
|
Is there a report attached
|
is
|
|
warranty
|
1 year
|
Product advantages
Applicable to all spectral ranges of p4m multispectral
Multiple reflectivity options are available, and the spectrum is flat
Having Lambertian characteristics
Authoritative organization testing and certification
Application Fields
Suitable for calibration testing related to unmanned aerial vehicle multispectral agricultural mapping, etc

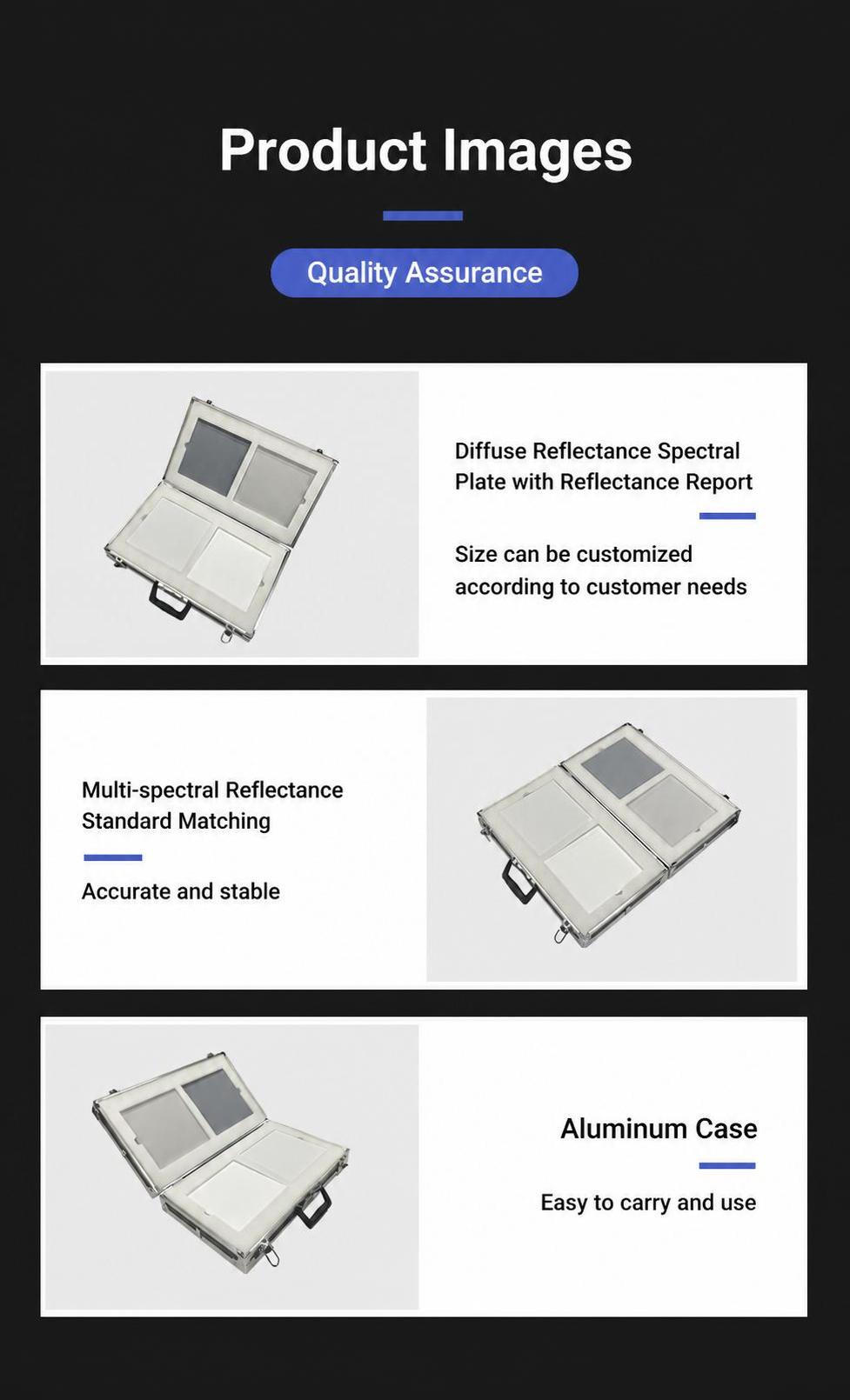

product image
Spectral flatness with reflectance detection report
The size can be customized according to customer needs
Multi spectral reflectance calibration standard
Precise and Stable
Aluminum box packaging
Easy to carry and use
