Xenon Lamp Aging Tester for Glasses Testing

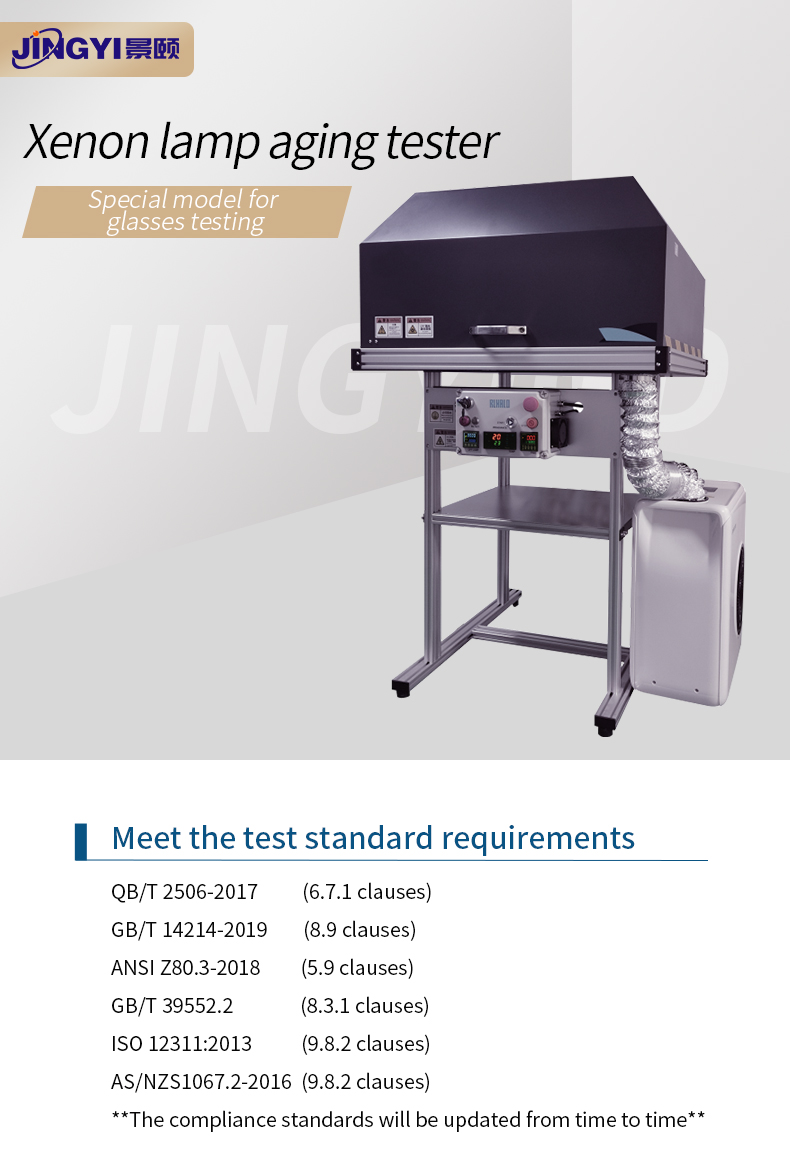

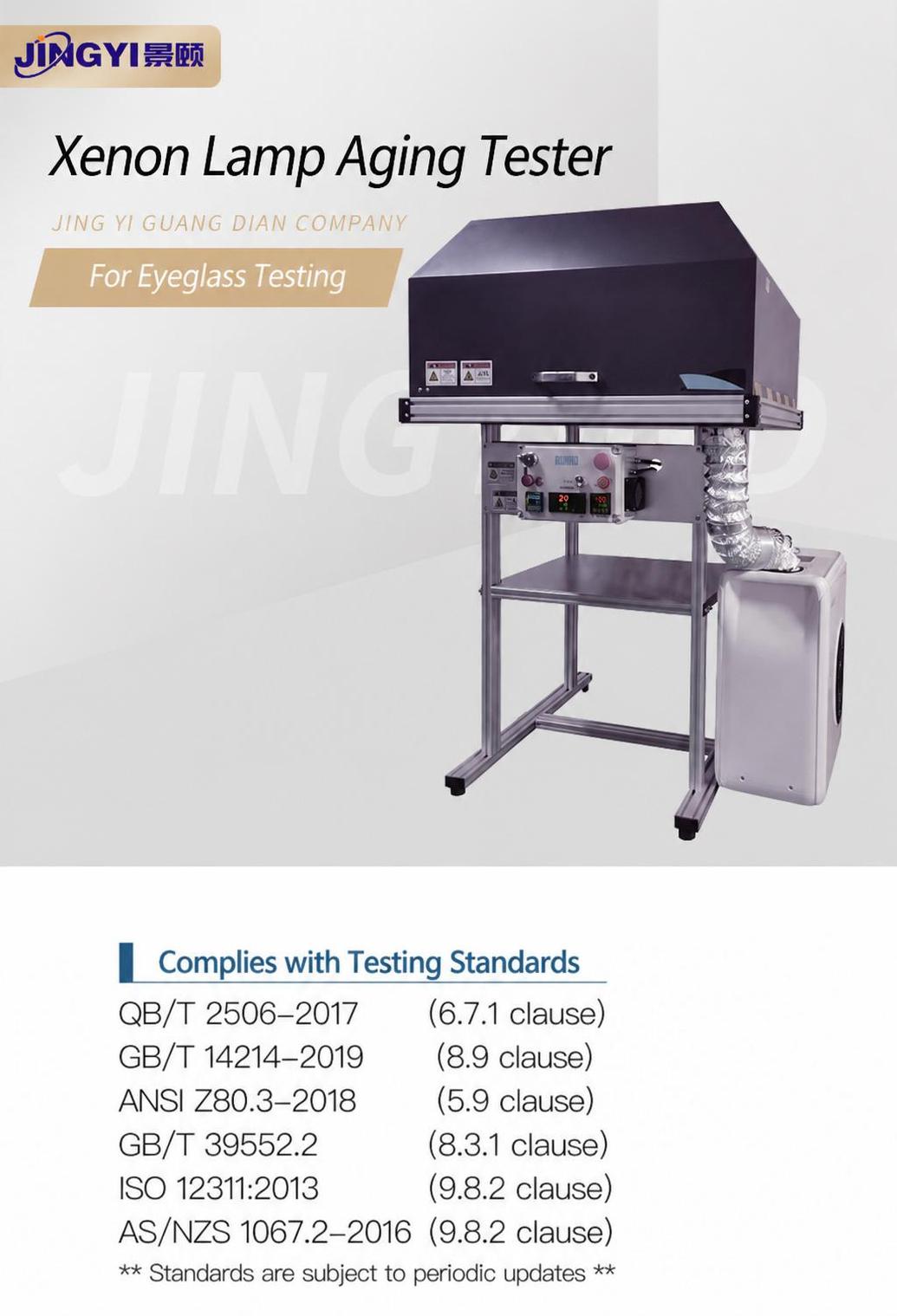

Xenon lamp aging tester

Special model for glasses testing

Meet the test standard requirements

QB/T 2506-2017 (6.7.1 clauses)

GB/T 14214-2019 (8.9 clauses)

ANSI Z80.3-2018 (5.9 clauses)

GB/T 39552.2 (8.3.1 clauses)

ISO 12311:2013 (9.8.2 clauses)

AS/NZS1067.2-2016 (9.8.2 clauses)

The compliance standards will be updated from time to time

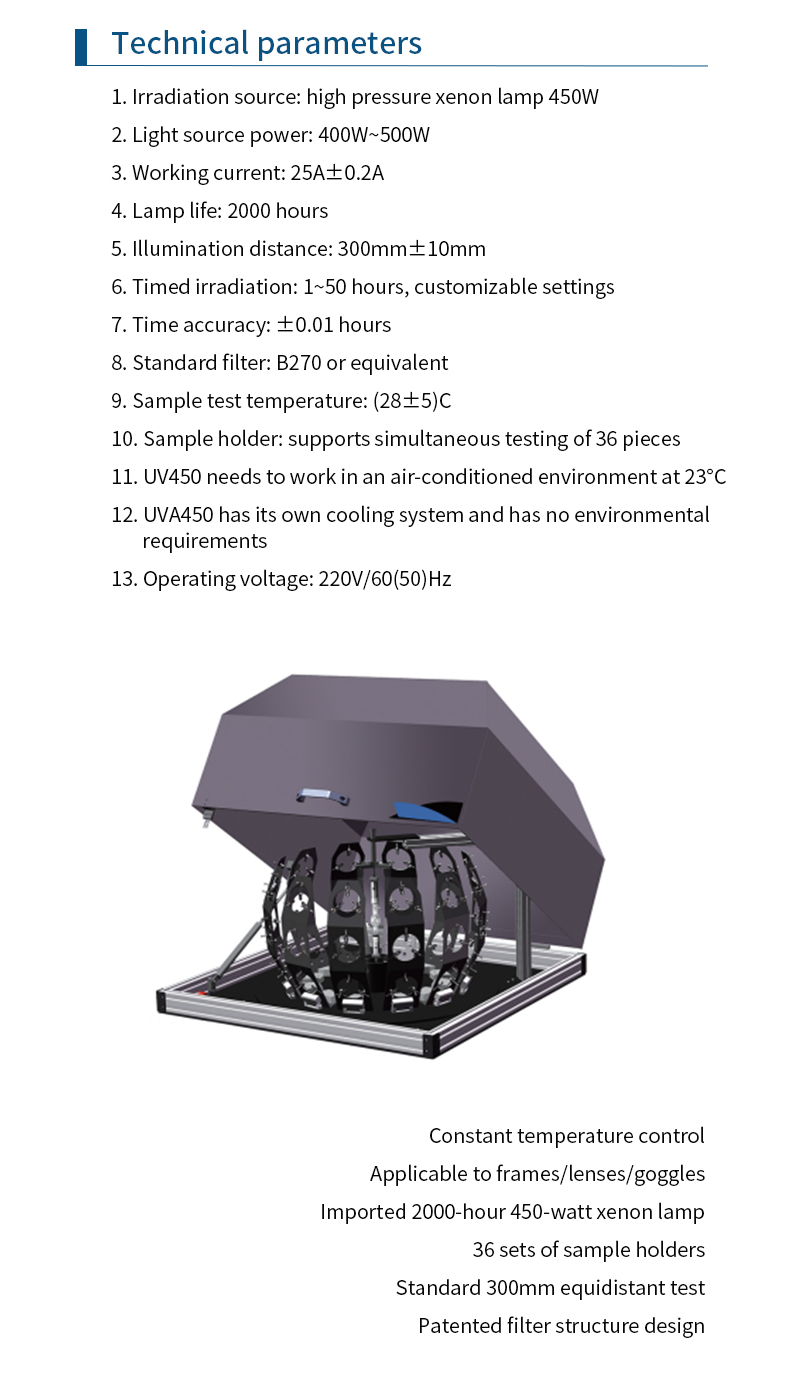

Technical parameters

Item	Parameter
Irradiation source	high pressure xenon lamp 450W
Light source power	400W~500W
Working current	25A±0.2A
Lamp life	2000 hours
Illumination distance	300mm±10mm
Timed irradiation	1~50 hours, customizable settings
Time accuracy	±0.01 hours
Standard filter	B270 or equivalent
Sample test temperature	(28±5)C
Sample holder	supports simultaneous testing of 36 pieces
UV450 working condition	needs to work in an air-conditioned environment at 23°C
UVA450 working condition	has its own cooling system and has no environmental requirements
Operating voltage	220V/60(50)Hz

Constant temperature control

Applicable to frames/lenses/goggles

Imported 2000-hour 450-watt xenon lamp

36 sets of sample holders

Standard 300mm equidistant test

Patented filter structure design
