Jingyi Integral Sphere Uniform Light Source Product Introduction
Integral sphere uniform light source

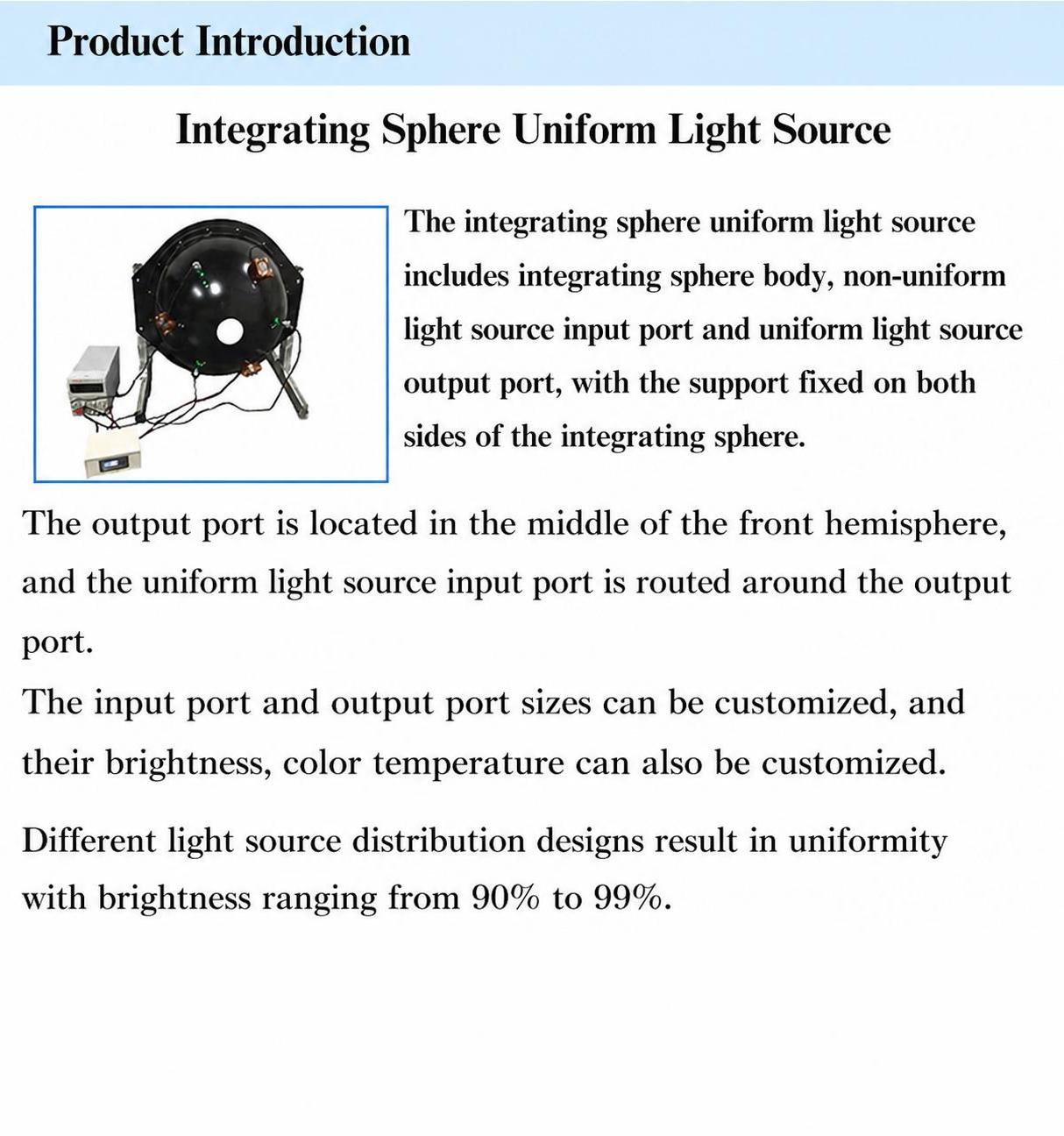

Product Introduction: Jingyi's integrating sphere uniform light source sphere includes non-uniform light source inlet and uniform light source outlet, and the bracket is fixed on both sides of the integrating sphere. The light outlet is located in the middle of the front hemisphere, and the non-uniform light source inlet is designed around the light outlet. The size of the inlet and outlet can be customized, and the brightness and color temperature can be adjusted or customized. Different light source distribution designs can achieve brightness uniformity of 90% to 99%.

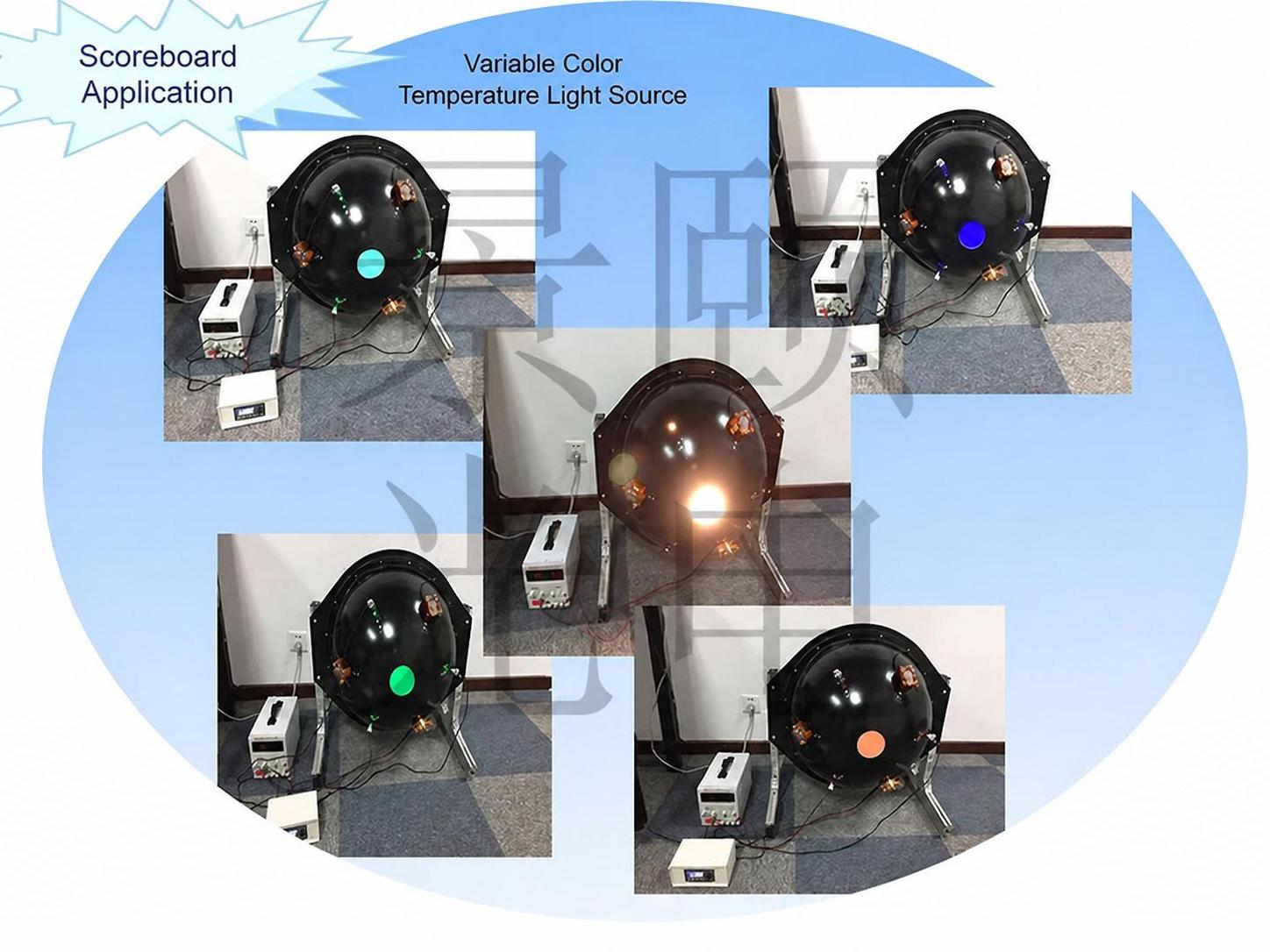

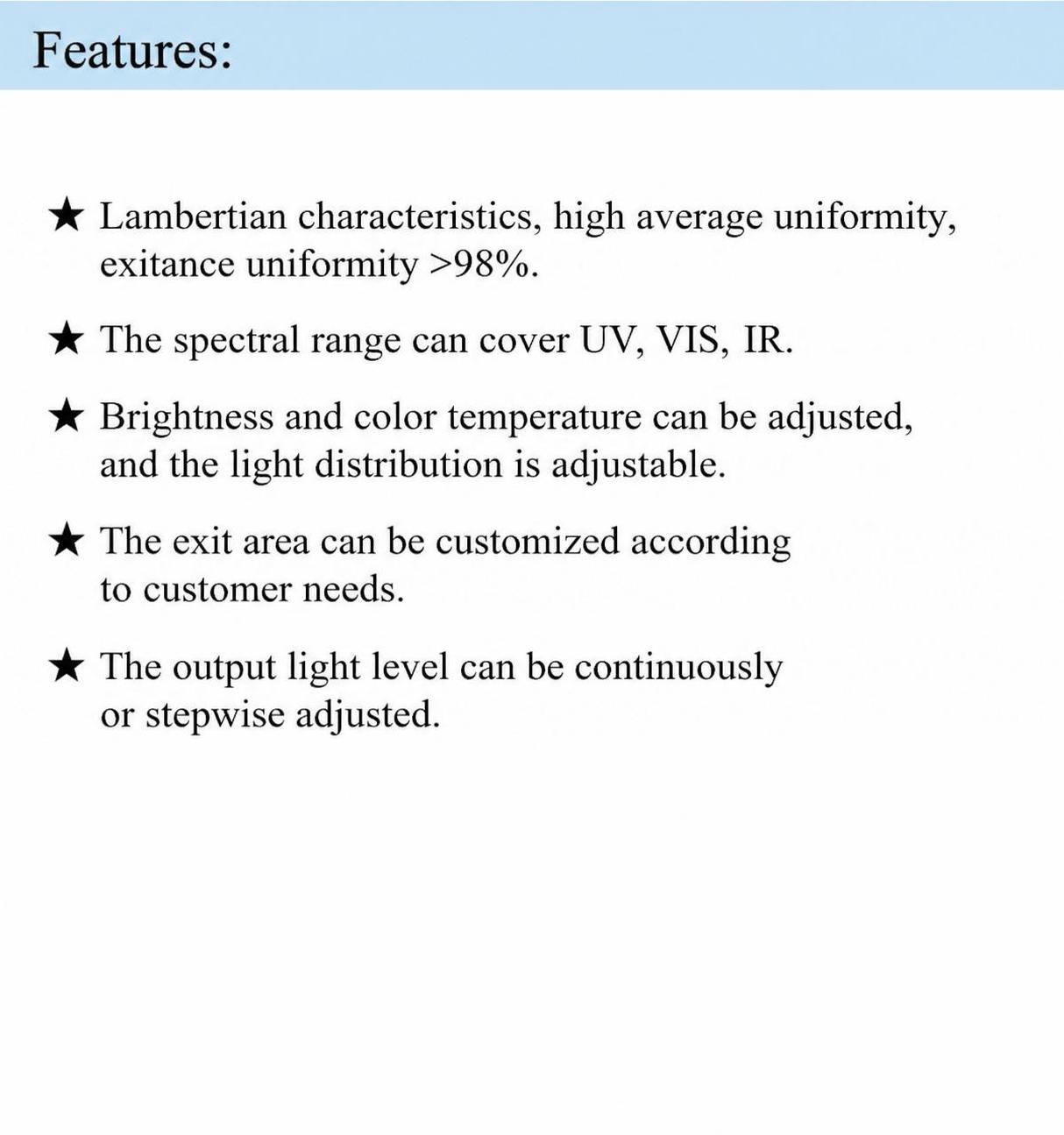

Features: ★ Lambertian characteristics, high uniformity, outlet light uniformity>98%. The spectral range can cover UV, VIS, IR. ★ Brightness and color temperature can be adjusted, and spectral distribution can be adjusted. The export area can be customized according to customer needs. The output brightness level can be continuously or stepwise adjusted.

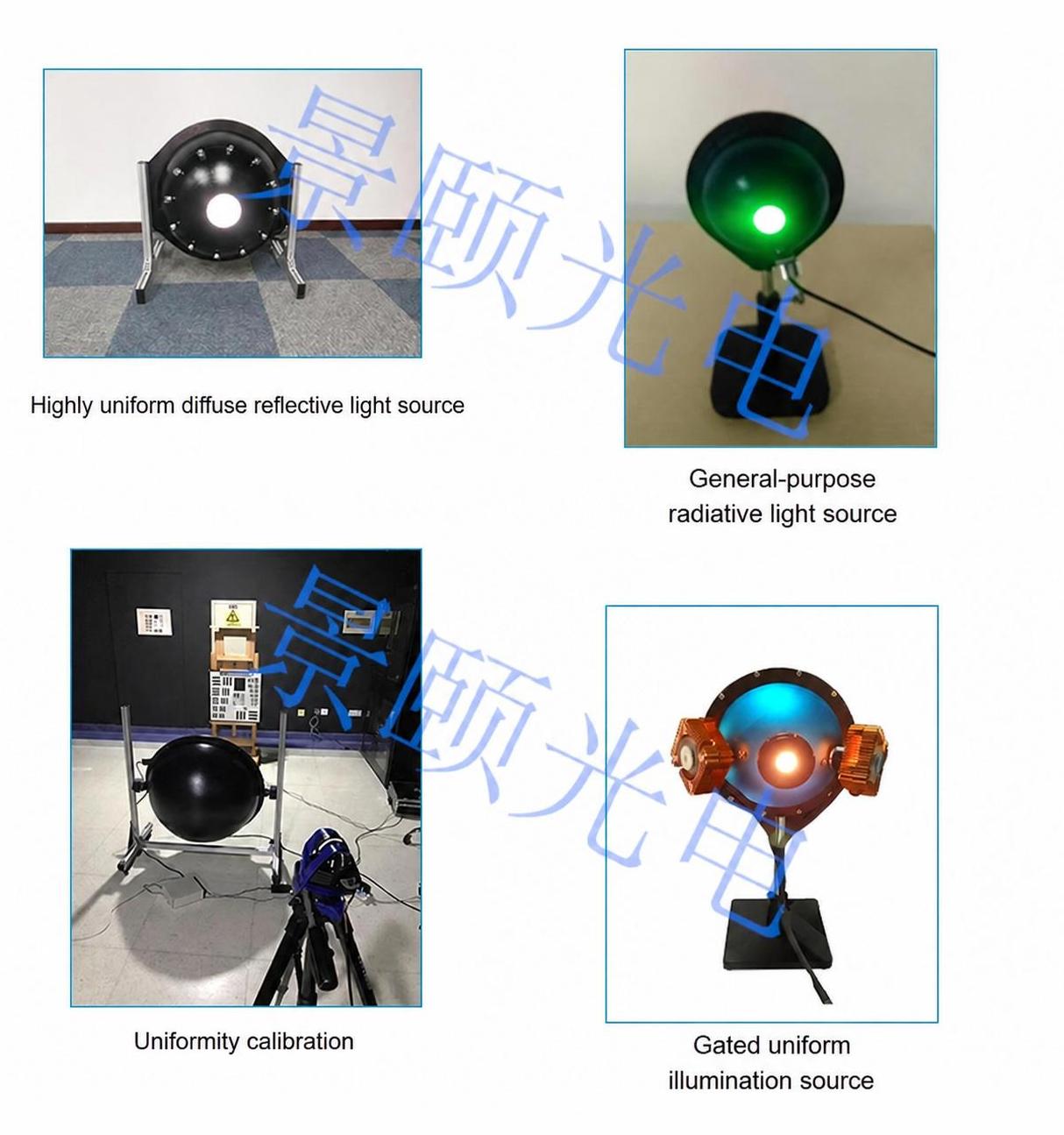

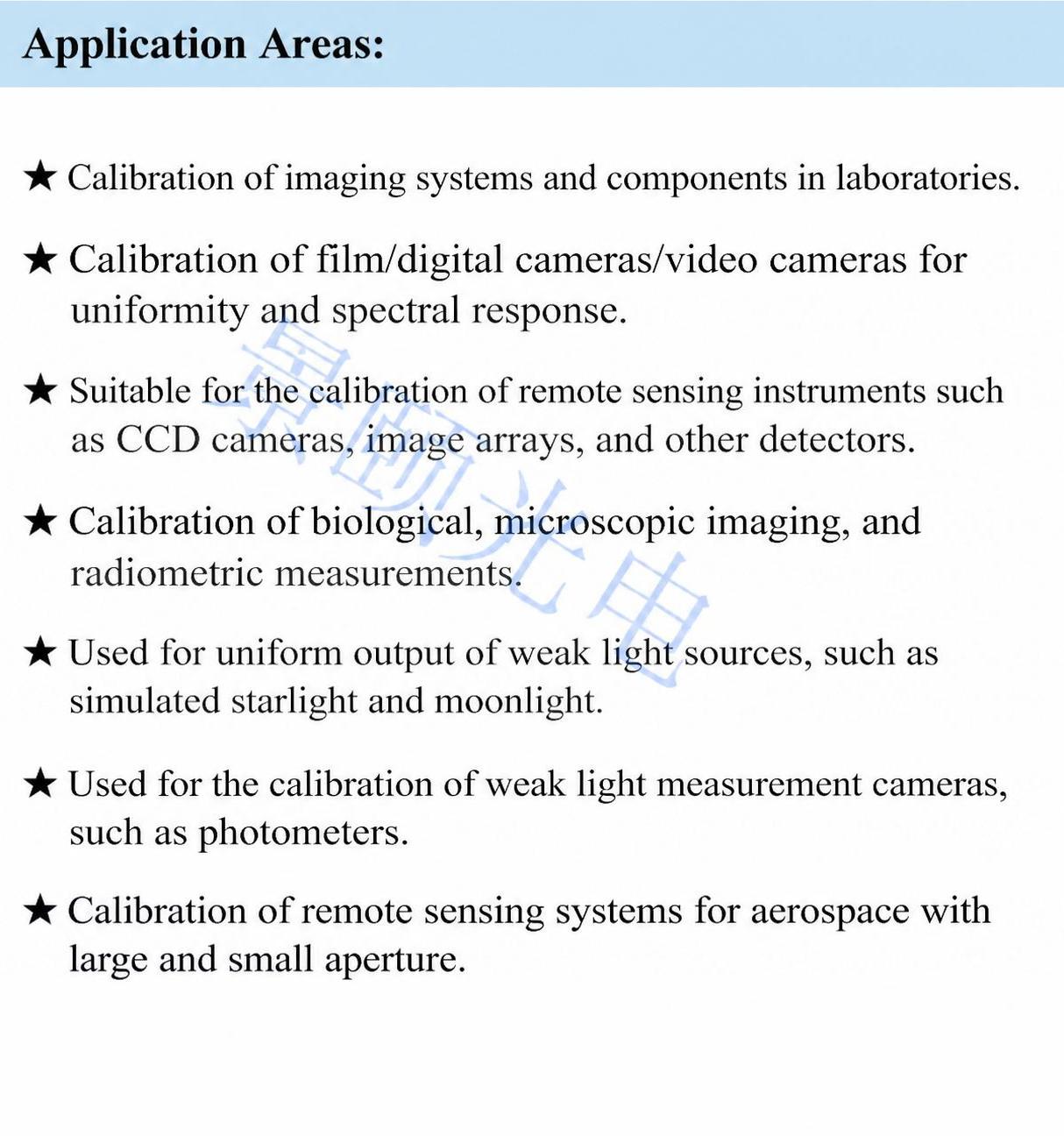

Application areas: Calibration of imaging systems and devices in the laboratory. ★ Uniformity correction of film/digital camera/camcorder, corresponding spectral characteristics. ★ Suitable for calibration of remote sensing instruments, CCD cameras, image arrays, and other detectors. ★ Biological, low light imaging, and quantitative measurement calibration, etc. ★ Used to generate uniform output of weak light, such as simulating starlight, moonlight, etc. ★ Used for calibrating low light measurement cameras, such as fluorescence measurement systems. Uniformity correction of large and small aperture space remote sensing telemetry detection systems.

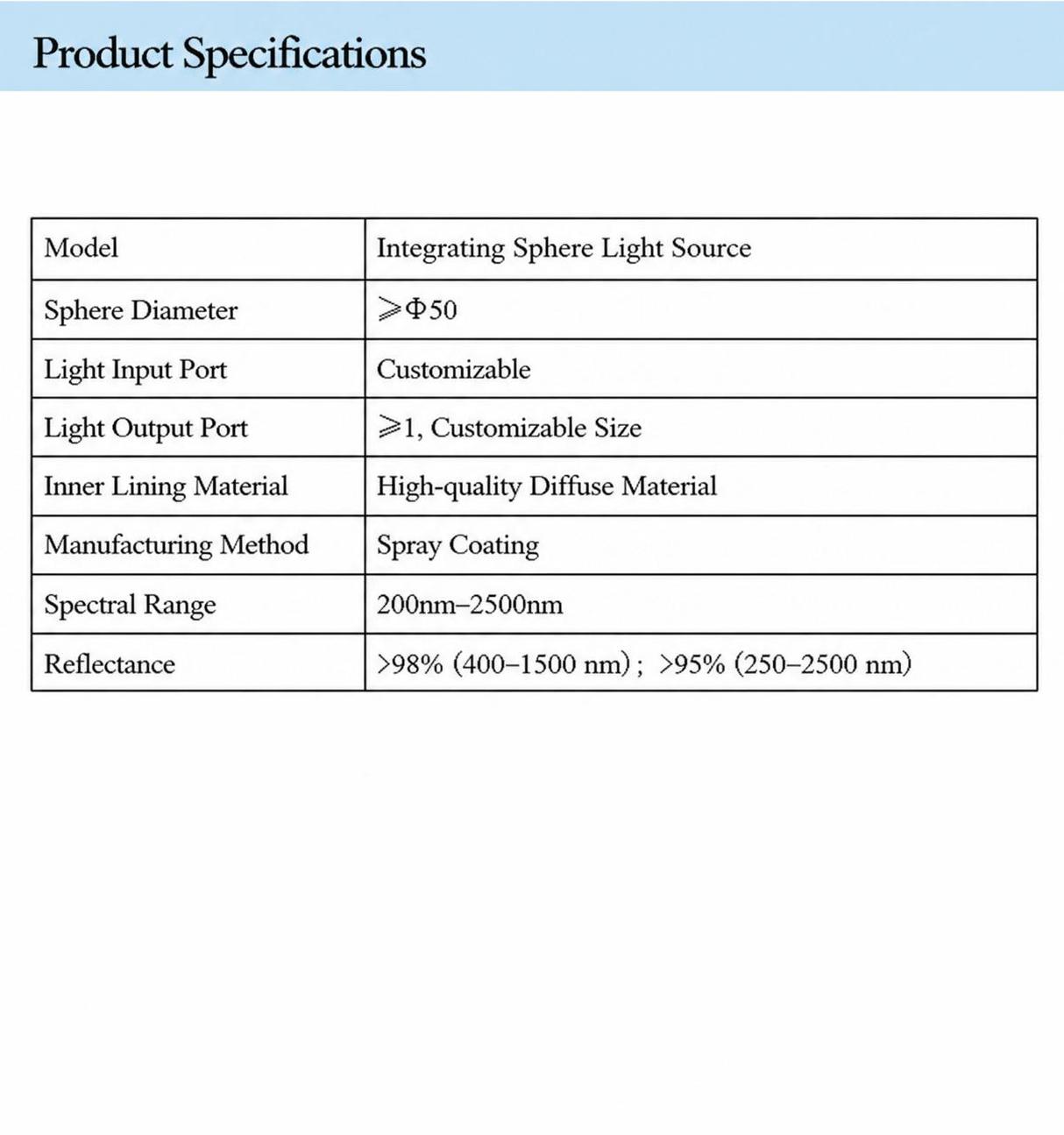

Product Specifications

model	Integral sphere light source
sphere	≥Φ50
Optical input port	customizable
Optical export	≥ 1, size can be customized
Inner liner material	High quality barium sulfate
Production method	spraying
spectral range	200nm-2500nm
reflectance	>98%（400-1500 nm）；>95%（250-2500 nm）

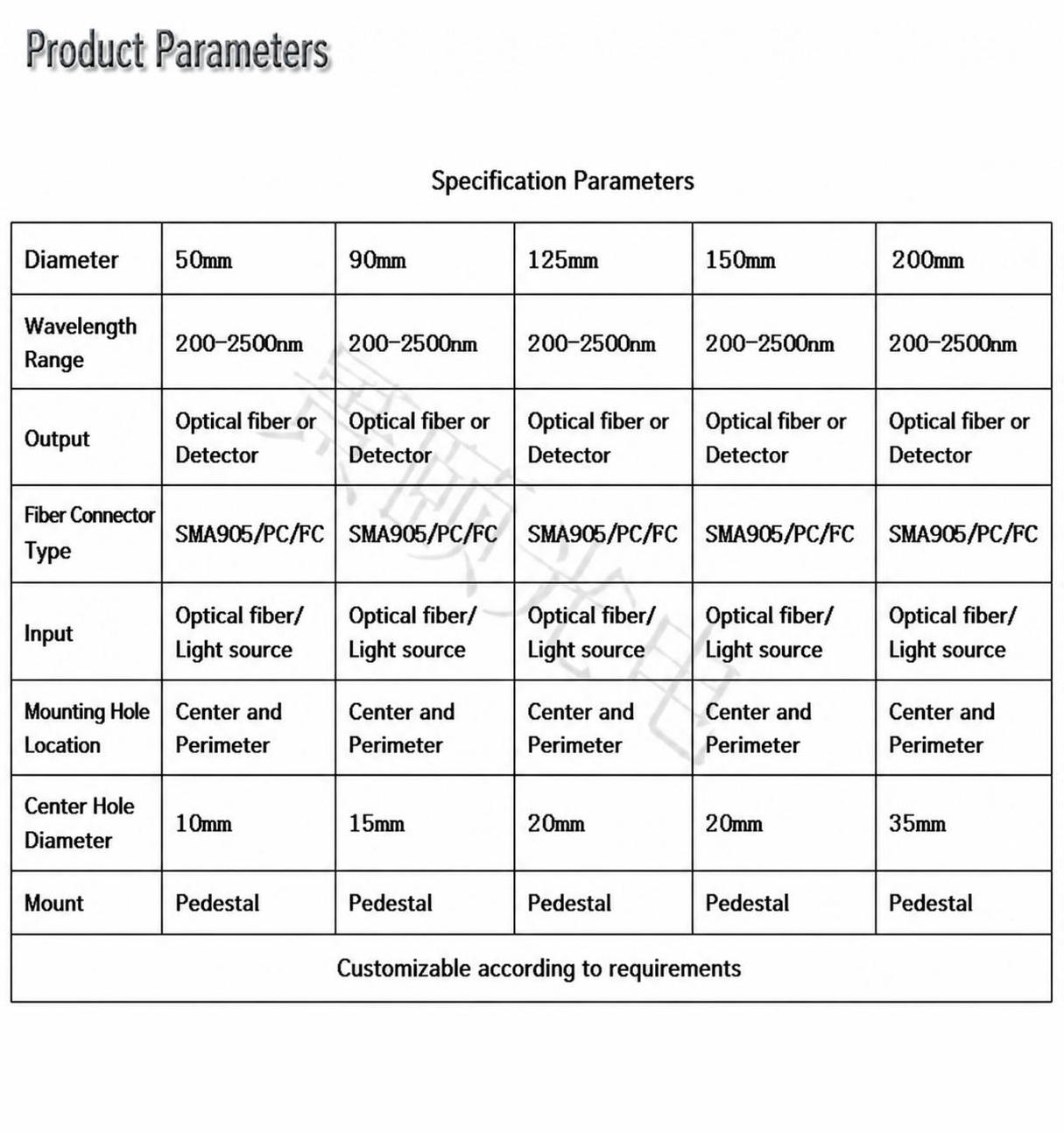

diameter	50mm	90mm	125mm	150mm	200mm
spectral range	200-2500nm	200-2500nm	200-2500nm	200-2500nm	200-2500nm
Output	Fiber optic or detector	Fiber optic or detector	Fiber optic or detector	Fiber optic or detector	Fiber optic or detector
fiber optic connector	SMA905/PC/FC	SMA905/PC/FC	SMA905/PC/FC	SMA905/PC/FC	SMA905/PC/FC
Type
Input	Fiber optic/light source	Fiber optic/light source	Fiber optic/light source	Fiber optic/light source	Fiber optic/light source
Opening position	Center and surroundings	Center and surroundings	Center and surroundings	Center and surroundings	Center and surroundings
Center hole diameter	10mm	15mm	20mm	20mm	35mm
Bracket	pedestal	pedestal	pedestal	pedestal	pedestal
