QR Code Calibration Board Product Introduction

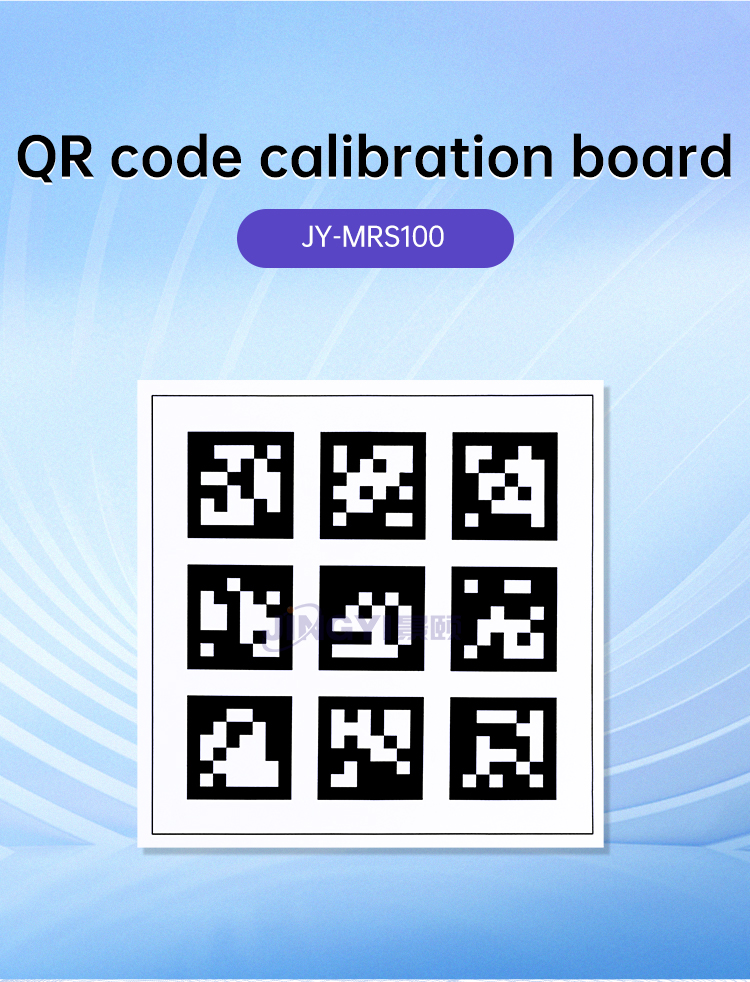

QR code calibration board JY-MRS100

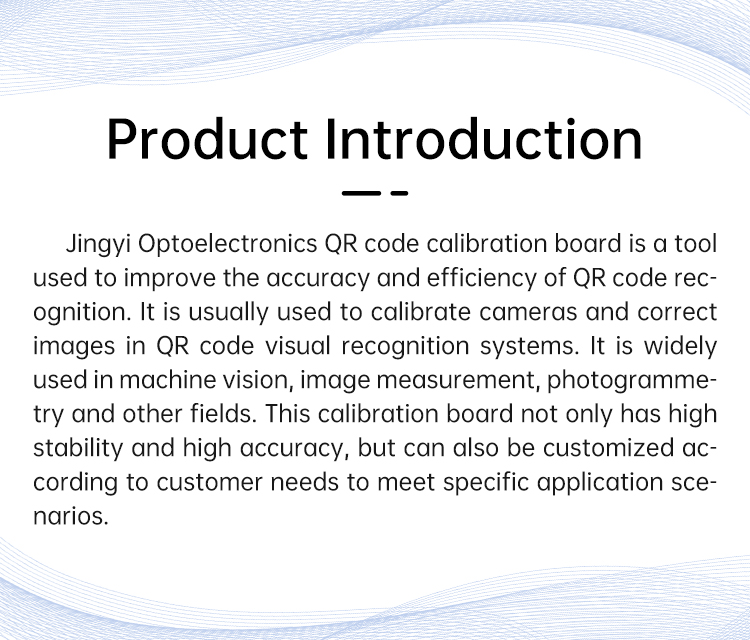

Product Introduction Jingyi Optoelectronics QR code calibration board is a tool used to improve the accuracy and efficiency of QR code recognition. It is usually used to calibrate cameras and correct images in QR code visual recognition systems. It is widely used in machine vision, image measurement, photogrammetry and other fields. This calibration board not only has high stability and high accuracy, but can also be customized according to customer needs to meet specific application scenarios.

Application Area In the industrial automation industry Used for machine vision system to identify and track products In the automotive industry Used to calibrate the on-board camera to accurately identify road conditions and surrounding environment In the medical industry Used to calibrate microscopes and imaging therapy equipment

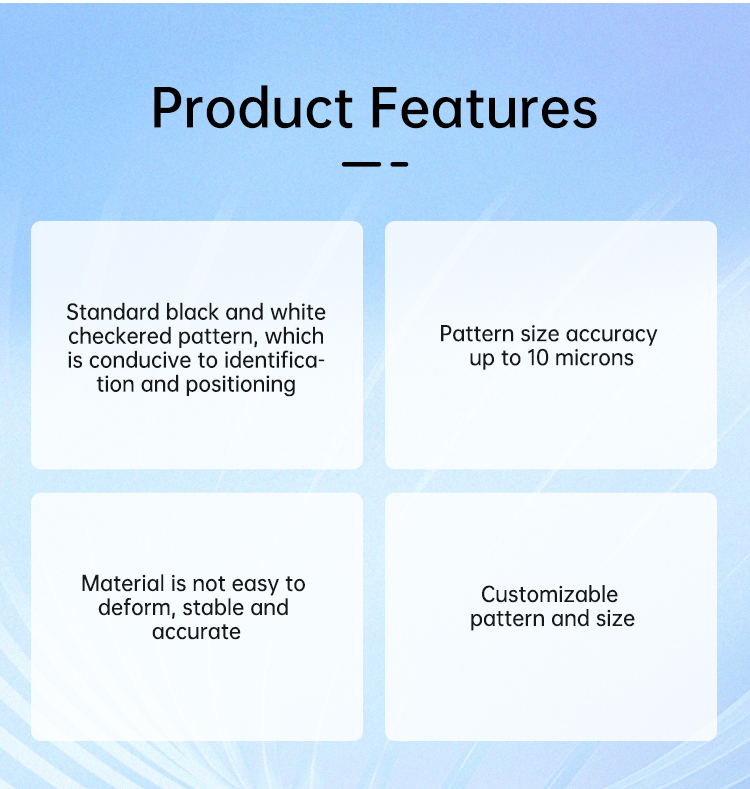

Product Features Standard black and white checkered pattern, which is conducive to identification and positioning Pattern size accuracy up to 10 microns Material is not easy to deform, stable and accurate Customizable pattern and size

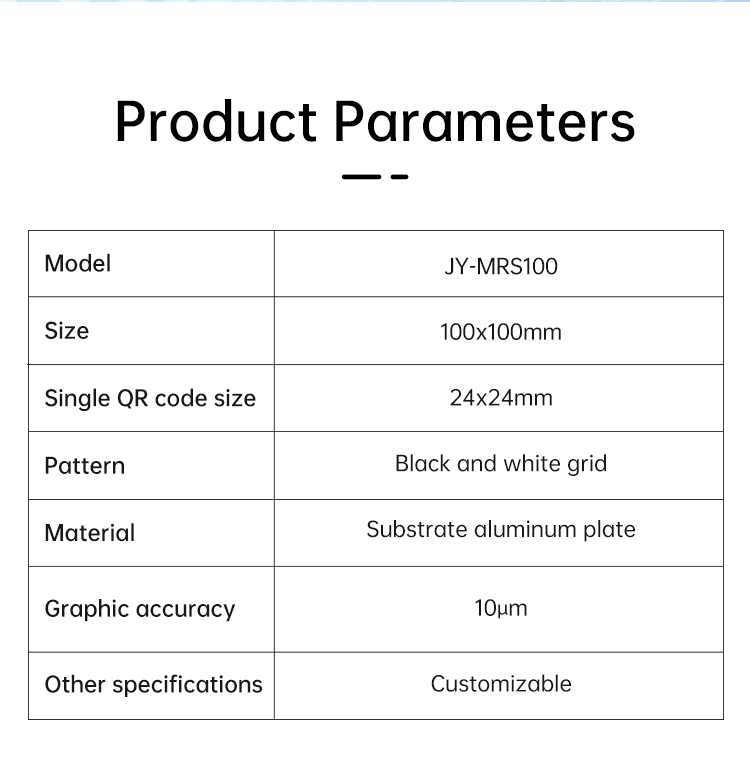

Product Parameters

Model	JY-MRS100

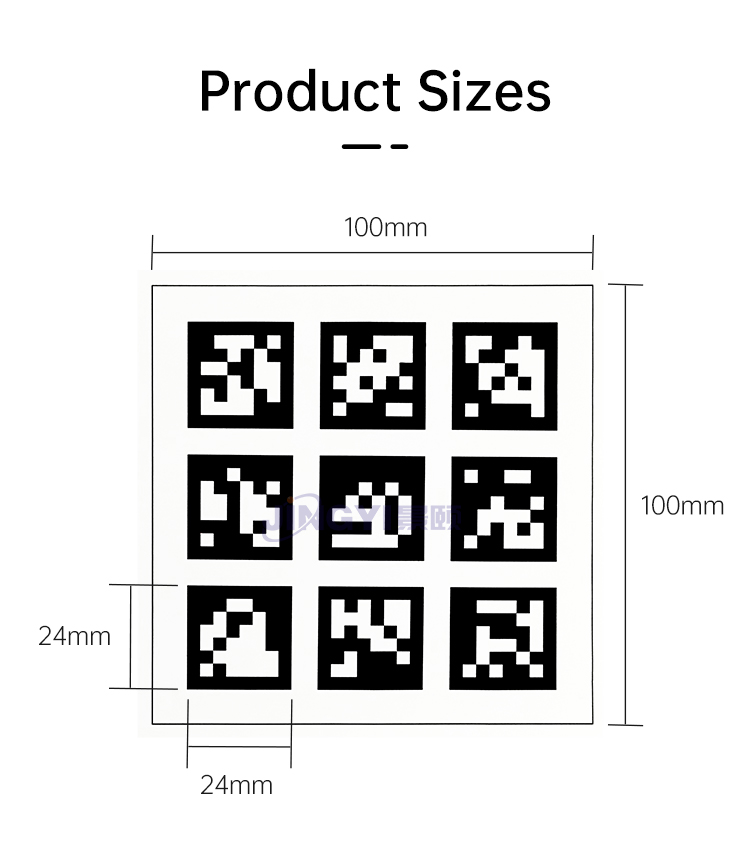

Size	100x100mm
Single QR code size	24x24mm
Pattern	Black and white grid
Material	Substrate aluminum plate
Graphic accuracy	10µm
Other specifications	Customizable
