Photovoltaic Glass Transmittance Detector JY-T03D Product Introduction
Photovoltaic glass transmittance detector
JY-T03D
Product Introduction
The photovoltaic glass transmittance detector can measure the transmittance of large-sized tempered glass up to 2mx3m, and can measure any position of the sample. Using a gas floating platform, non-destructive and rapid measurement of samples can be achieved. Users can customize the average value or judgment conditions of the display band, and calculate CIE color parameters such as xy, Lab/main wavelength, saturation, color purity, etc. This device can quickly calculate parameters such as the difference in transmittance values of individual points, achieving monitoring of glass quality testing.
Application Area
Measurement of transmittance of photovoltaic glass and photovoltaic glass
Product Features
Feature one
Display test data within milliseconds
Feature two
Real time display of transmittance data and spectral curves for various bands of 380-1100nm
Feature three
Users can customize measurement schemes, set average transmittance and judgment criteria
Feature four
Can calculate various CIE color parameters of the sample
Feature five
Customized solutions can be provided according to user requirements
Product Parameters
|
Item
|
Parameter
|
|
model
|
JY-T03D
|
|
spectral range
|
380-1100nm
|
|
Spot diameter
|
Diameter 0.3-5mm (customizable)
|
|
resolution
|
1nm
|
|
Data storage interval
|
1nm
|
|
Spectral measurement interval
|
1 nm
|
|
Measurement conditions
|
vertical illumination, integrating sphere reception
|
|
measuring range
|
0-100%
|
|
lamp life
|
10000 hours
|
|
Display Accuracy
|
0.01%
|
|
relative error
|
<1%
|
|
Single speed
|
<300ms
|
|
configuration
|
Host, software
|
|
platform
|
Floating platform
|
|
Platform size
|
1.3*2.6m
|
|
relative humidity
|
<85%
|
|
input voltage
|
220V
|
|
Measurement Object
|
Various types of glass used in Photo-voltaic modules EVA, POE
|
|
Spectral half width
|
3-5nm
|
|
wavelength accuracy
|
<0.3nm
|
|
Spectral measurement interval
|
1nm, data storage interval 1nm
|
|
Time
|
Measurement speed per point ≤800ms (related to integration time)
|
|
Measurement stability
|
<0.1%
|
|
Measurement repeatability
|
<0.1%
|
|
Size
|
Maximum 2600mm × 1300mm, minimum 50mm × 50mm
|
|
Integral sphere diameter
|
100mm
|
|
Light source lifespan
|
10000 hours able to work continuously for more than 3 years
|
|
Measure the diameter of the light beam
|
10±2mm
|
|
Dual light source specifications
|
12V 50W (dedicated enhanced infrared light source customized, with unique spectral design, getting good infrared spectral design and detection sensitivity, performance and temperature compensation)
|
|
Output result
|
Continuous spectral transmittance of 380nm~1100nm, effective integrated transmittance of visible light (AM1.5)/s-photovoltaic ce ll visible light (AdM1.5/s-mittance L * a * b * color coordinates.
|
|
light source
|
AM1.5 standard data, other light source curves to be selected according to the situation
|
|
table size
|
L×W=2600mm×1300mm
|
|
ambient temperature
|
0℃ ~ 45℃
|
|
ambient humidity
|
<98 % (40℃)
|
|
Preheating time of light source
|
10 minutes
|
Instrument Components
1 standard transmittance testing host
1 set of transmittance workbench and control software
Transmittance standard board and certificate set 1

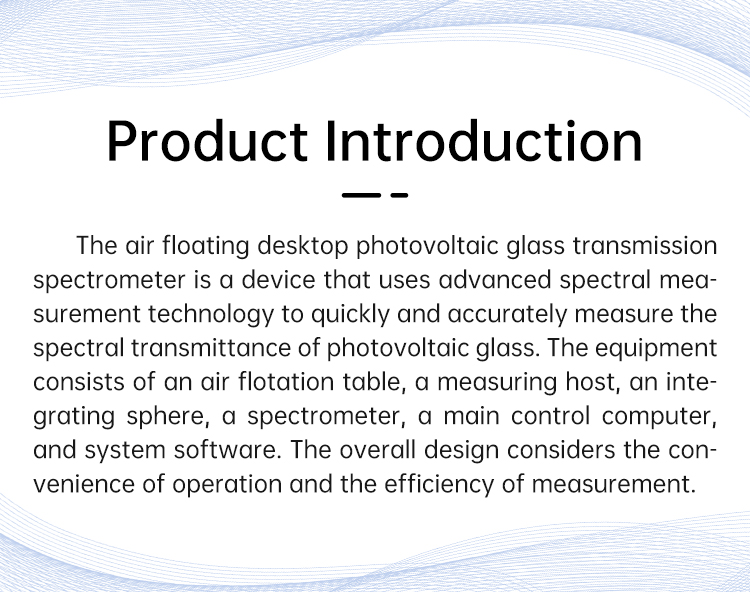

Product Introduction

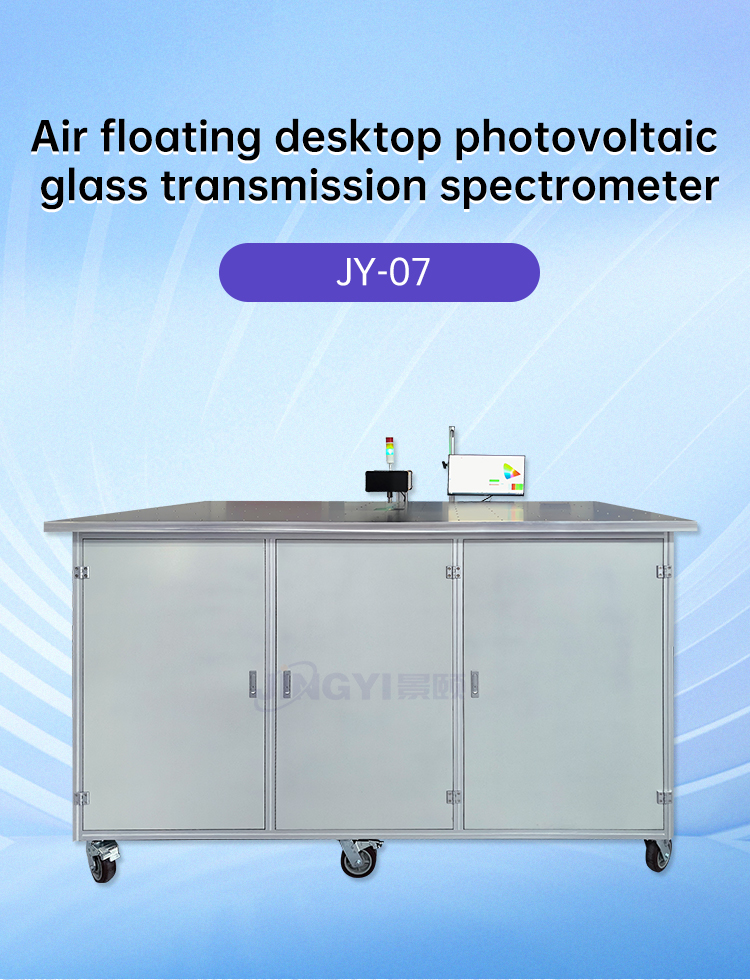

The air floating desktop photovoltaic glass transmission spectrometer is a device that uses advanced spectral measurement technology to quickly and accurately measure the spectral transmittance of photovoltaic glass. The equipment consists of an air flotation table, a measuring host, an integrating sphere, a spectrometer, a main control computer, and system software. The overall design considers the convenience of operation and the efficiency of measurement.
