JY-PDT series
一、Product Appearance

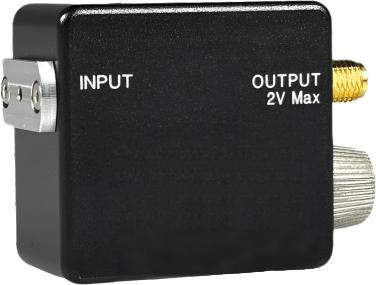

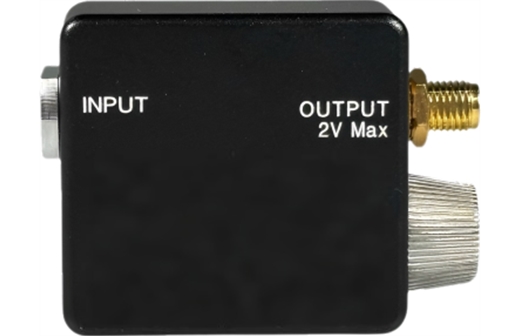

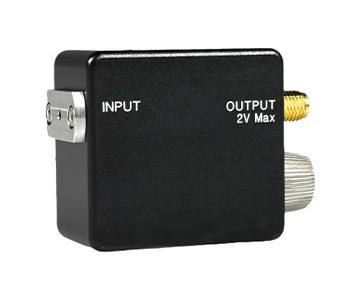

Reference image of the appearance of JY-PDT series high-speed bias voltage silicon photodetector equipment
二、Product Overview
The JY-PDT series high-speed bias voltage silicon photodetectors are high-performance optical detection products independently developed by Guangzhou Jingyi Optoelectronic Technology Co., Ltd. These detectors utilize high-quality silicon materials as the photosensitive components, with a light sensing range spanning from 400nm to 1100nm, encompassing the visible to near-infrared wavelength bands. They are widely used in high-speed laser pulse measurements, fiber optic communication system testing, scientific research experiments, and other fields.
This series of products adopts a bias voltage design, featuring extremely low noise and fast response. They can achieve high-precision optoelectronic signal conversion without the need for additional gain. The products offer a variety of coupling options, supporting interfaces such as window plates, spherical lenses, FC/PC fiber optic holders, SMA, and more, providing flexibility for adapting to different application scenarios.
三、Technical Parameters
|
Technical indicators
|
Parameter values
|
|
Models
|
JY-PDT250A / JY-PDT250AL / JY-PDT250AFC / JY-PDT250ASMA
|
|
Photosensitive range
|
400~1100nm，peak wavelength 730nm
|
|
Peak responsivity
|
0.46 A/W
|
|
Photosensitive size
|
Φ250μm
|
|
3dB bandwidth (@50Ω) JY-PDT250 series
|
JY-PDT250 series：2GHz
|
|
Rise/fall time JY-PDT250 series
|
JY-PDT250 series：150ps
|
|
NEP
|
9.29×10⁻¹⁵ W/Hz¹/²
|
|
Dark current
|
35pA
|
|
Maximum output voltage
|
2V
|
|
Capacitance
|
1.73pF
|
|
Bias voltage
|
12V
|
|
Operating impedance
|
50Ω
|
|
Overall dimensions
|
49.8mm × 35.6mm × 20.3mm
|
|
Net weight
|
0.18 kg
|
|
Operating temperature
|
0~40℃
|
|
Power supply battery
|
A23, 12VDC, 40mAh
|
|
Signal interface
|
SMA（DC coupling）
|
|
Installation interface
|
M4×1
|
Characteristics of photosensitive surfaces of various models
|
Model
|
Input coupling method
|
Photosensitive surface characteristics
|
|
JY-PDT250A
|
window pane
|
planar antireflection coating
|
|
JY-PDT250AL
|
ball lens
|
ball lens Φ1.50mm
|
|
JY-PDT250AFC
|
FC/PC fiber optic socket
|
Embedded coupling lens Φ1.50mm
|
|
JY-PDT250ASMA
|
SMA
|
Embedded coupling lens Φ1.50mm
|
四、Technical Features
4.1 Wide spectral response

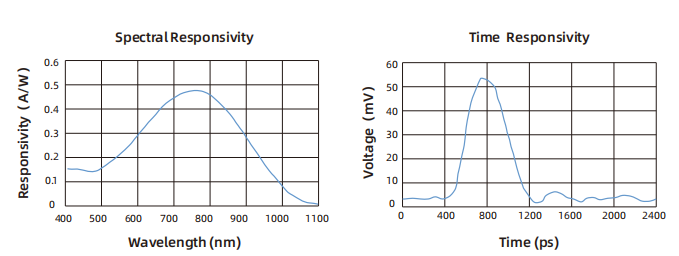

The photosensitive range spans from 400nm to 1100nm, with a peak response wavelength of 730nm, perfectly fitting the optoelectronic measurement needs of visible and near-infrared wavelengths. The spectral response curve is flat, and the peak responsivity reaches 0.46 A/W.
4.2 High speed and low noise
• JY-PDT250 series: With a rise time of only 150ps, a 3dB bandwidth of up to 2GHz, and a NEP as low as 9.29×10⁻¹⁵ W/Hz¹/², it is suitable for ultrafast optical pulse measurements
4.3 Flexible coupling method
Four input coupling methods are provided to meet the docking requirements of different optical systems：
• Window type: suitable for direct incidence of free-space light, with a planar anti-reflective coating to reduce reflection loss
• Spherical lens type: Integrated spherical lens coupling to enhance light collection efficiency
• FC/PC fiber optic connector type: standard fiber optic interface, suitable for fiber optic transmission systems
• SMA type: RF standard interface, suitable for high-frequency signal transmission scenarios
4.4 Plug-and-play design
• Built-in 12V bias power supply (powered by A23 battery), no external bias voltage required
• SMA signal output interface, with a standard impedance of 50Ω, allowing direct connection to an oscilloscope
• M4 rod interface, facilitating the installation and fixation of the optical platform
4.5 High reliability guarantee
• Operating temperature range: 0~40℃, suitable for conventional laboratory environment
• All-metal casing, effectively shielding electromagnetic interference
• Low dark current design (as low as 35pA) ensures measurement accuracy
• Compatible with interfaces of international mainstream brands (same model as Thorlabs, seamless compatibility)
五、Product structure design
5.1 Detector body

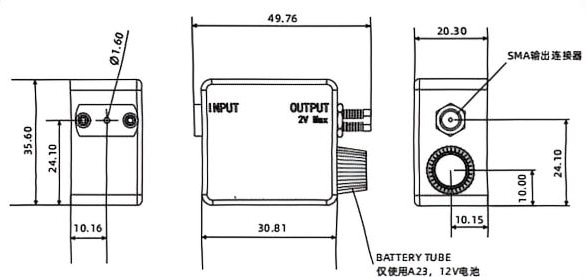

• Dimensions：49.8mm × 35.6mm × 20.3mm
• Net weight：0.18kg
• Full metal shell design, effectively shielding electromagnetic interference

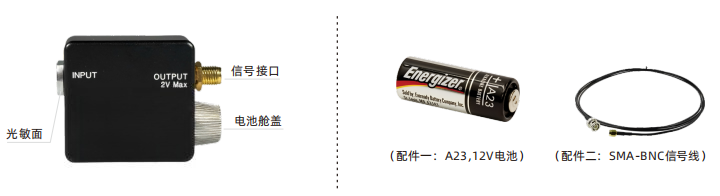

5.2 Product configuration
六、Typical application scenarios
|
Application field
|
Practical Application
|
|
Scientific research experiment
|
Ultrafast laser pulse measurement, femtosecond/picosecond laser performance characterization, and nonlinear optical experimental optical signal detection
|
|
Optical fiber communication
|
Bit error rate testing of optical fiber communication systems, output power monitoring of optical transmitters, loss measurement of optical fiber links, and eye diagram analysis of optical signals
|
|
Industrial inspection
|
Laser processing process monitoring, photoelectric sensor calibration, industrial automation optical signal detection, LED/LD device performance testing
|
|
Biomedical
|
Laser medical equipment optical power monitoring, optical coherence tomography (OCT), flow cytometer optical signal detection, and biofluorescence detection system
|
