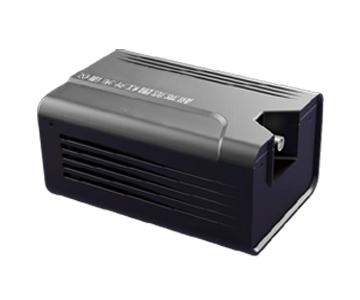

Jingyi Optoelectronics' JY7810 spectrometer features a wide wavelength range and high resolution. The JY7810 uses software-controlled rotating grating for wavelength scanning, resulting in highly accurate spectral measurements.
The JY7810 system utilizes a simulation-optimized optical system to ensure high resolution. The JY7810 series offers a variety of input and output options, providing researchers with endless possibilities, expandability, and versatility. It can be used with single-point detectors or various array cameras.
The JY7810 is available in several models with different wavelength ranges: 0.8~2.5μm, 1.0~5.0μm, 1.0~12.0μm, 1.0~15.0μm, and 1.0~26.0μm, covering the near-infrared to mid-far-infrared range. By selecting a suitable grating, researchers can have greater freedom in choosing wavelength and resolution.
The JY7810 can receive SMA905 fiber optic input light or free-space light, and output the measured spectral data via USB 2.0 or UART ports. The JY7810 requires only a +12V DC power supply, making it very easy to use. All controls can be electrically operated via software.

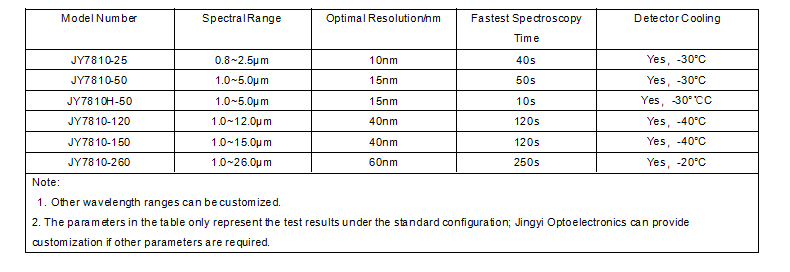

Model Number	Description
JY7810	Standard Version
JY7810H	High-Speed ​​Version, shortens the spectrum generation time
