Reflectivity Integrating Sphere Bracket 74-FCH Product Introduction

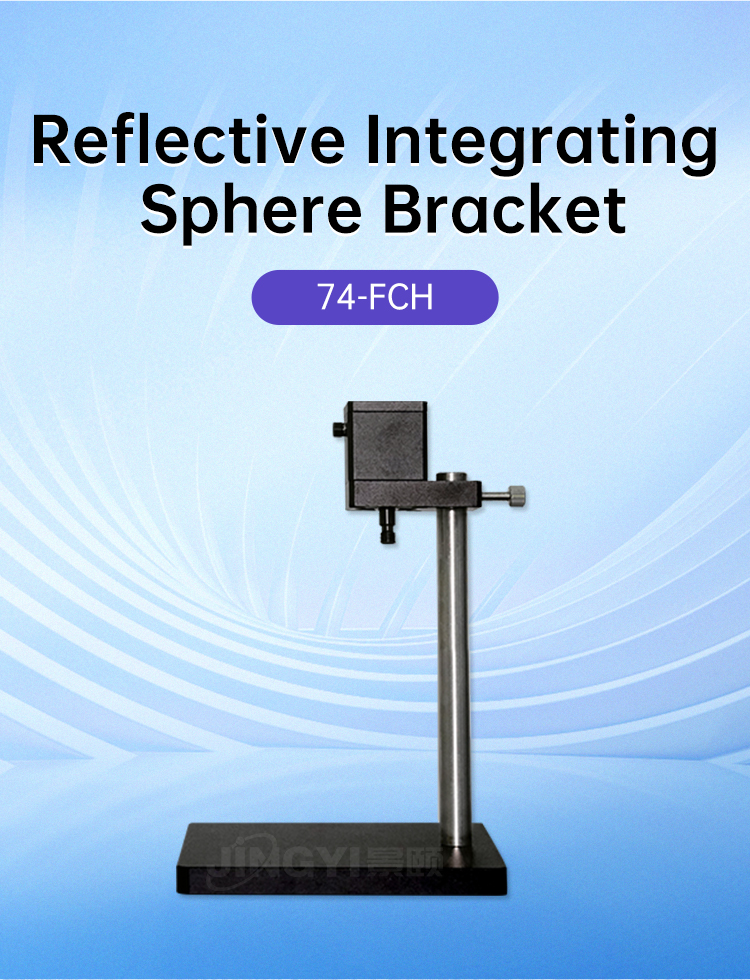

Reflective Integrating Sphere Bracket 74-FCH

Product Introduction The reflectivity integrating sphere bracket is a commonly used optical measurement accessory. The bracket base is firm and sturdy, and there is a fixed seat on the support rod to fix the reflectivity integrating sphere. The fixed seat is fixed to the four bottom corners of the integrating sphere with screws, and the middle is a hollow circle for connecting the collimating lens to the optical fiber. The fixed seat of the reflectivity integrating sphere can be adjusted up and down.

Application Area Used to measure the diffuse reflectance of solids and powders (D8 degree angle integrating sphere measurement method, can be used as a light trap to eliminate specular reflection).

Product Features Easy to use, easy to operate, stable bracket, metal base, strong fixation, not easy to shake. The height of the bracket can be adjusted, and the reflectivity integrating sphere fixed seat can be horizontally adjusted 360 °.

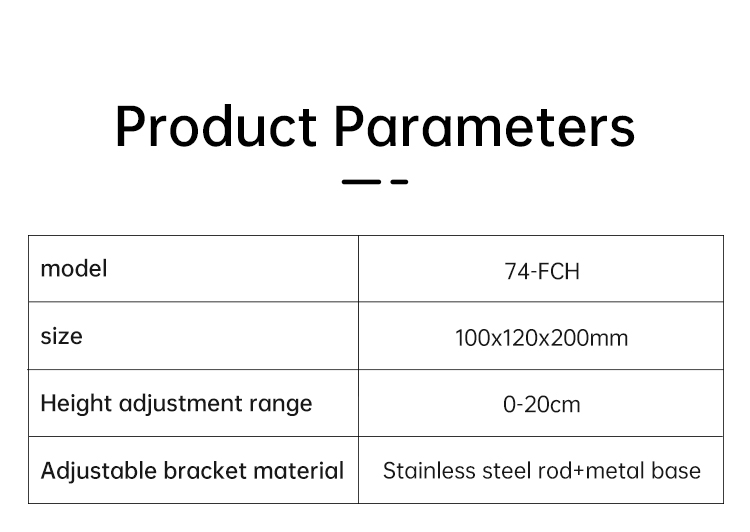

Product Parameters

model	74-FCH
size	100x120x200mm
Height adjustment range	0-20cm
Adjustable bracket material	Stainless steel rod+metal base
