Diffuse reflection calibration plate

Diffuse reflection calibration plate









Diffuse Reflection Calibration Plate with PTFE
Diffuse reflection calibration plate PTFE material with high reflectivity can be customized

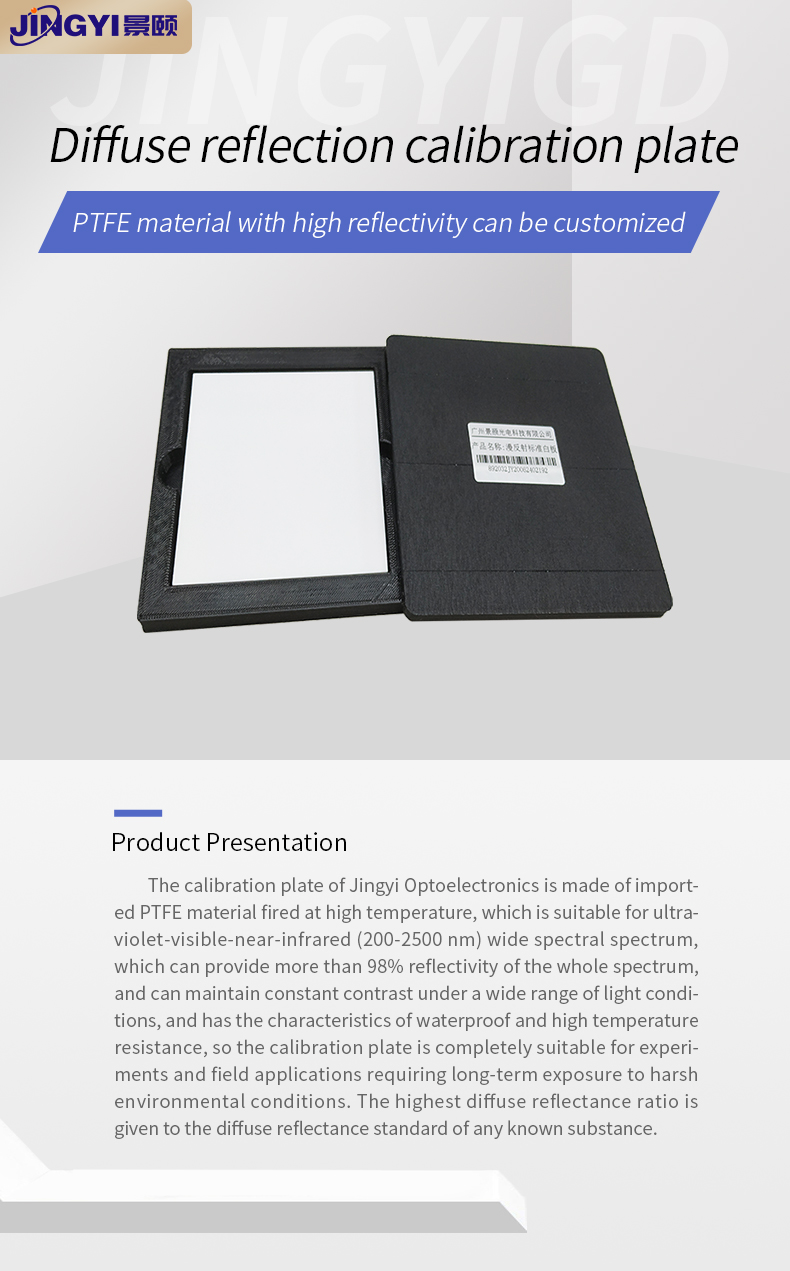

Product Presentation The calibration plate of Jingyi Optoelectronics is made of imported PTFE material fired at high temperature, which is suitable for ultraviolet-visible-near-infrared (200-2500 nm) wide spectral spectrum, which can provide more than 98% reflectivity of the whole spectrum, and can maintain constant contrast under a wide range of light conditions, and has the characteristics of waterproof and high temperature resistance, so the calibration plate is completely suitable for experiments and field applications requiring long-term exposure to harsh environmental conditions. The highest diffuse reflectance ratio is given to the diffuse reflectance standard of any known substance.

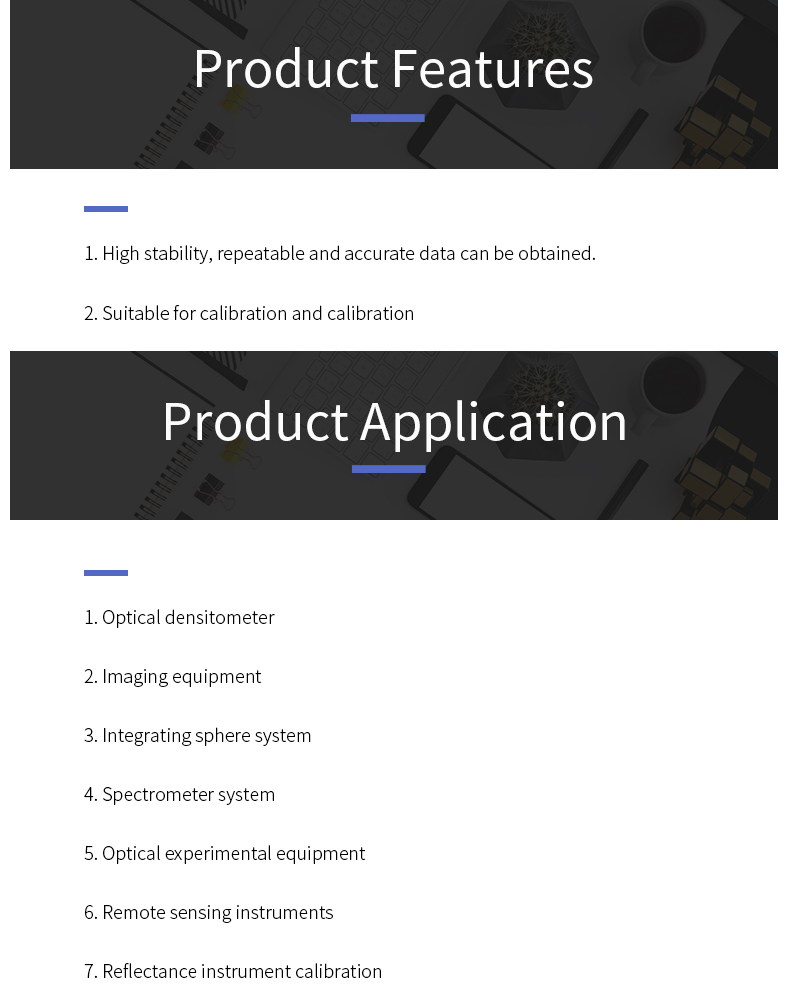

Product Features
  1. High stability, repeatable and accurate data can be obtained.
  2. Suitable for calibration and calibration
Product Application
  1. Optical densitometer
  2. Imaging equipment
  3. Integrating sphere system
  4. Spectrometer system
  5. Optical experimental equipment
  6. Remote sensing instruments
  7. Reflectance instrument calibration

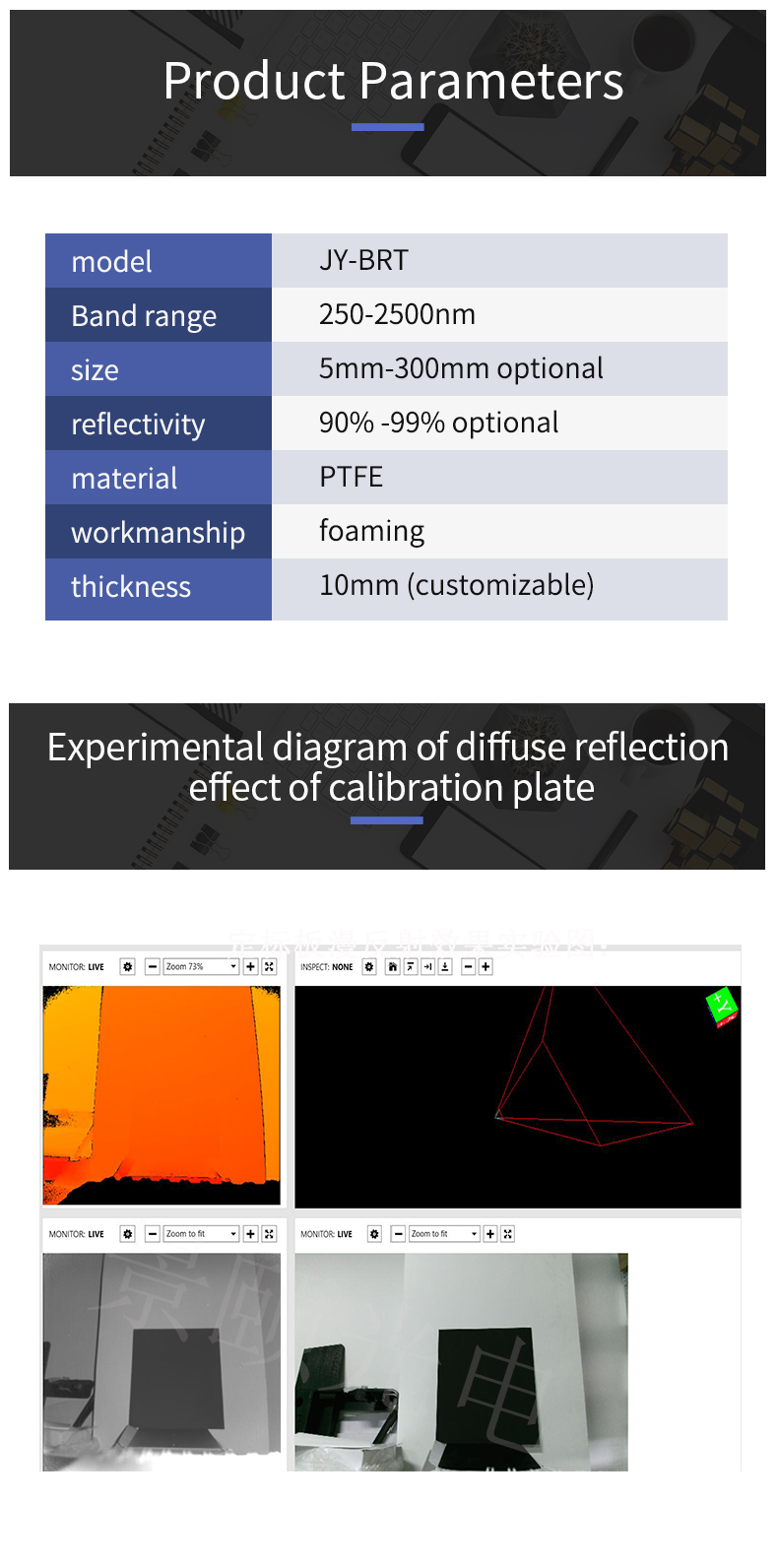

Product Parameters
Item
Parameter
model
JY-BRT
Band range
250-2500nm
size
5mm-300mm optional
reflectivity
90% -99% optional
material
PTFE
workmanship
foaming
thickness
10mm (customizable)
Experimental diagram of diffuse reflection effect of calibration plate

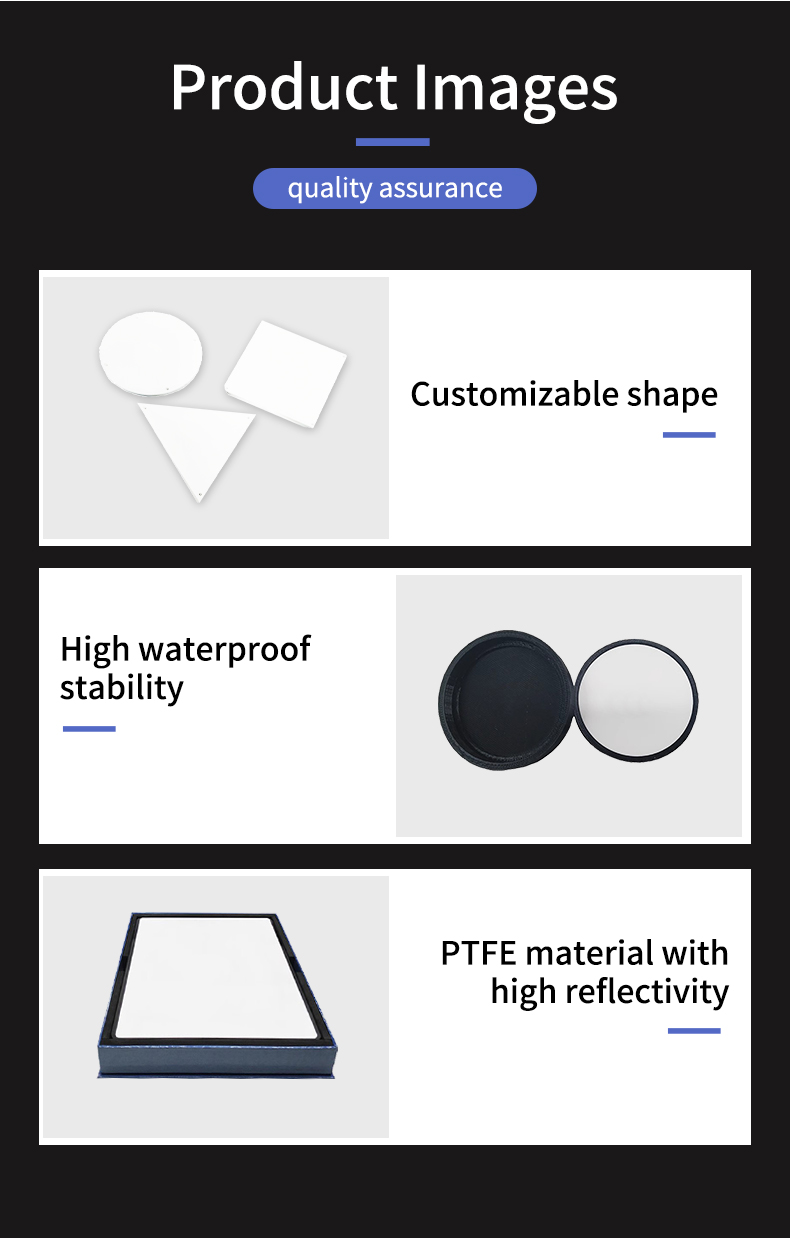

Product Images quality assurance Customizable shape High waterproof stability PTFE material with high reflectivity
