Diffuse reflection standard whiteboard

Diffuse reflection standard whiteboard







Diffuse Reflection Standard White Board with High Stability Product Presentation
Diffuse reflection standard white board High stability, can obtain repeated and accurate data
Product Presentation The diffuse reflection standard white board has higher stability than other standard boards. It is suitable for the wide spectrum of ultraviolet-visible-near infrared (250-2500nm) with a reflectance ratio of up to 99%. The diameter of the diffuse reflection standard white board is 38mm and 27mm, and the size can be customized according to the needs. It is made of imported PTFE material and processed at high temperature. It has waterproof function and will not fall powder or turn yellow over time. It is the most commonly used Lambertian reflector in the wavelength range of 250-2500nm. The diffuse reflection standard white board can be combined with a spectrometer and a light source to form a diffuse reflection test system, which is suitable for measuring the reflectivity of various samples, such as silicon wafers, ceramics, frosted glass, plastics, etc.

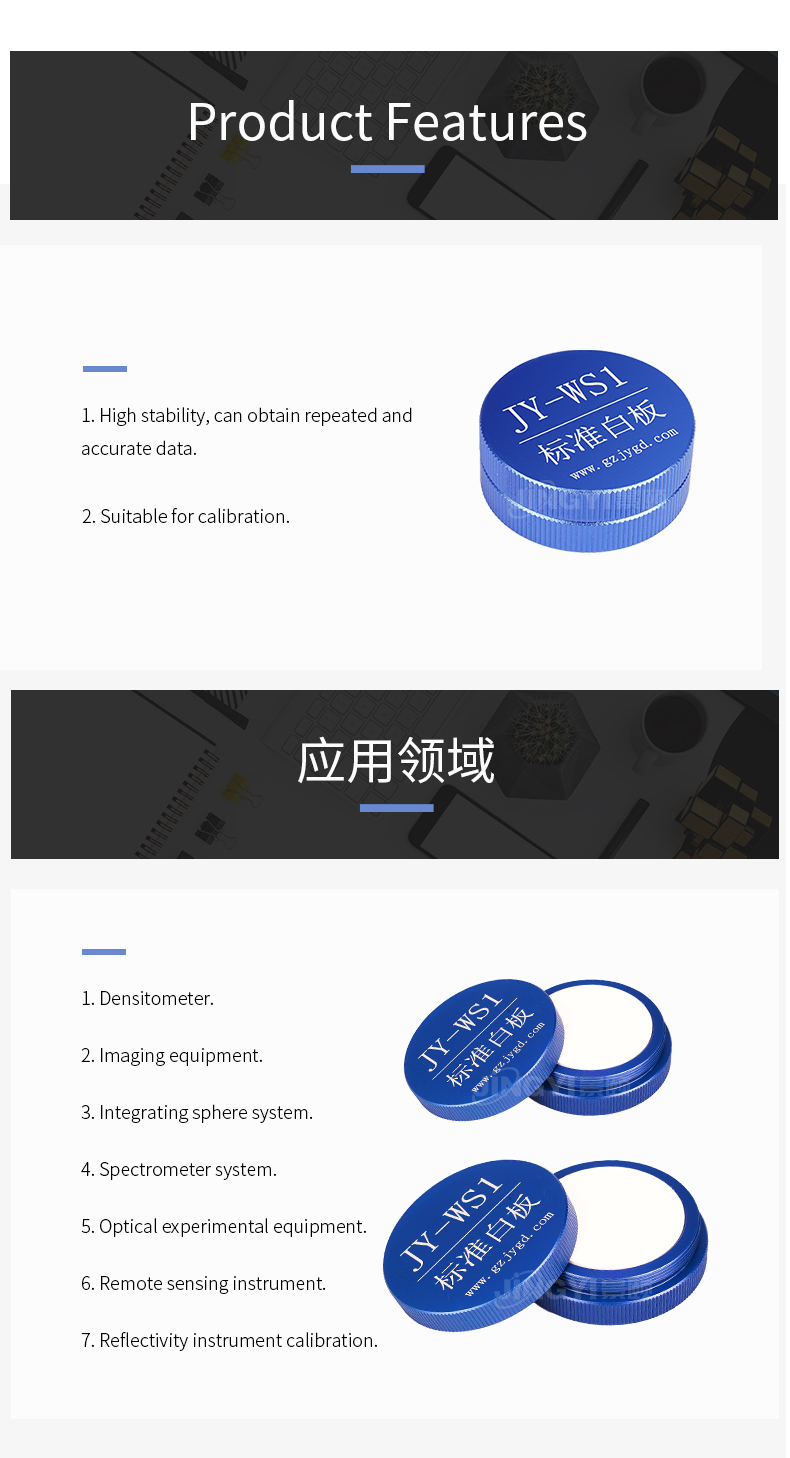

Product Features
  1. High stability, can obtain repeated and accurate data.
  2. Suitable for calibration.
Application Fields
  1. Densitometer.
  2. Imaging equipment.
  3. Integrating sphere system.
  4. Spectrometer system.
  5. Optical experimental equipment.
  6. Remote sensing instrument.
  7. Reflectivity instrument calibration.

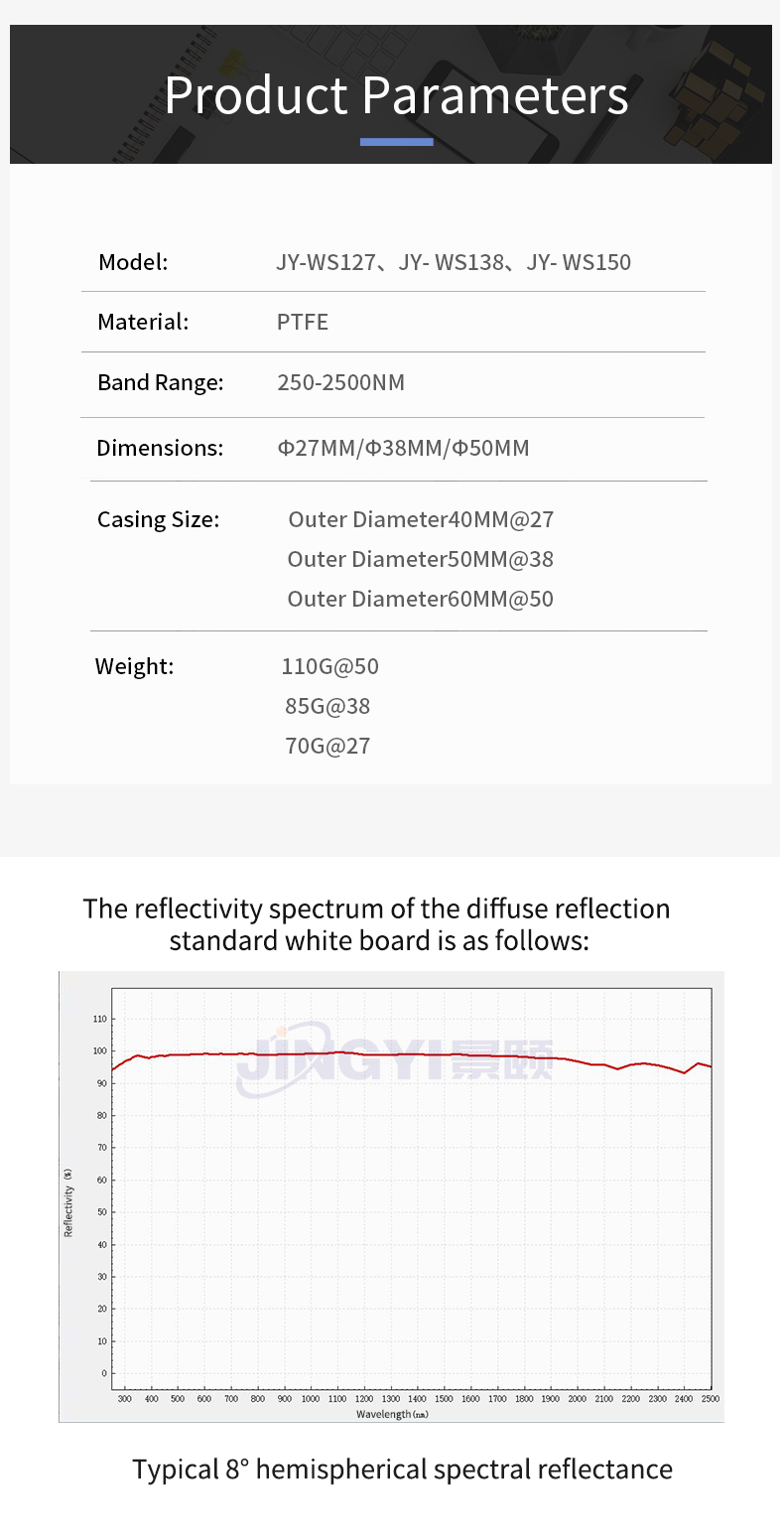

Product Parameters
Item
Parameter
Model
JY-WS127、JY-WS138、JY-WS150
Material
PTFE
Band Range
250-2500NM
Dimensions
Φ27MM/Φ38MM/Φ50MM
Casing Size
Outer Diameter40MM@27 Outer Diameter50MM@38 Outer Diameter60MM@50
Weight
110G@50 85G@38 70G@27
The reflectivity spectrum of the diffuse reflection standard white board is as follows: Typical 8° hemispherical spectral reflectance
