Diffuse reflection standard cloth

Diffuse reflection standard cloth

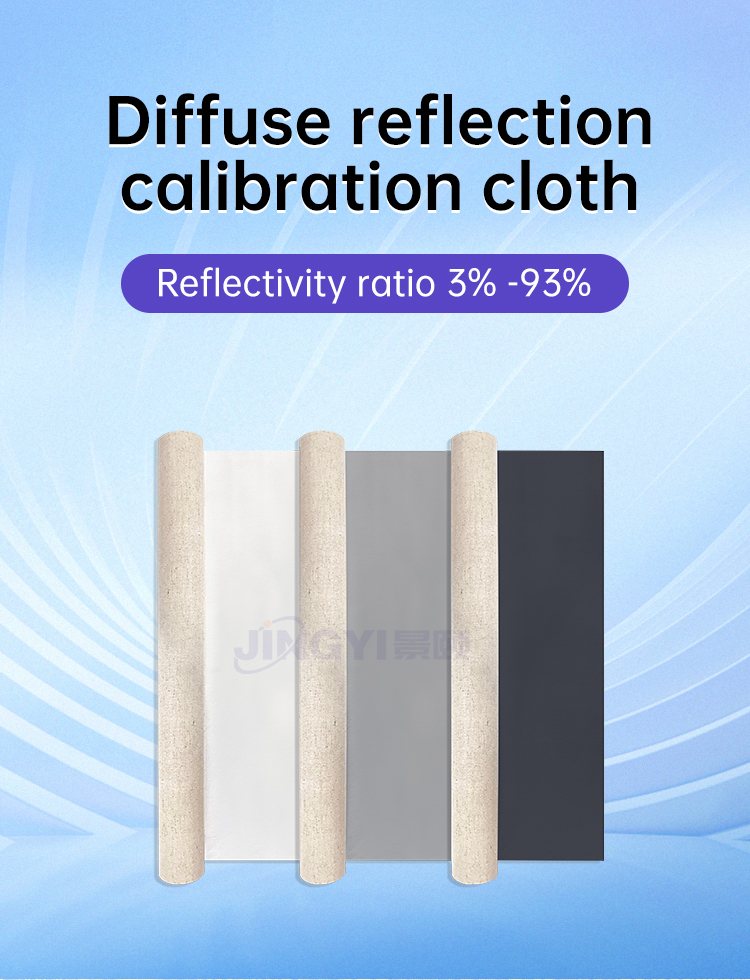

Diffuse Reflection Calibration Cloth Product Introduction
Diffuse reflection calibration cloth Reflectivity ratio 3% -93%
Product Introduction The diffuse reflection standard cloth is coated with high diffuse reflection materials and a highly stable color matching system, which can be used for laser ranging and traditional remote sensing radiation calibration. The typical reflection ratio of this target plate ranges from 3% to 93%, and it is the most common Lambert reflector in the wavelength range of 250-2500nm. Due to the use of spray coating technology, large-area targets can be provided, such as 1mX-2.5m large-area targets. It can also be assembled in larger sizes. The price economy of this method of production technology. If the coating is damaged, it can be re sprayed, and the cost of re spraying is very low.
Application Area Autonomous driving distance and identification testing Uniformity distribution test of ring light source Camera uniformity test Laser target positioning Laser target board Backlighting Environmental testing target board
Product Features Lightweight to use and flexible to fold Good stability and the ability to obtain accurate and repeated data Spectral flatness in the UV-VIS-NIR spectral region Brightness and color temperature can be customized Has excellent Lambeitian characteristics Reflectivity ranges from 3% to 93%

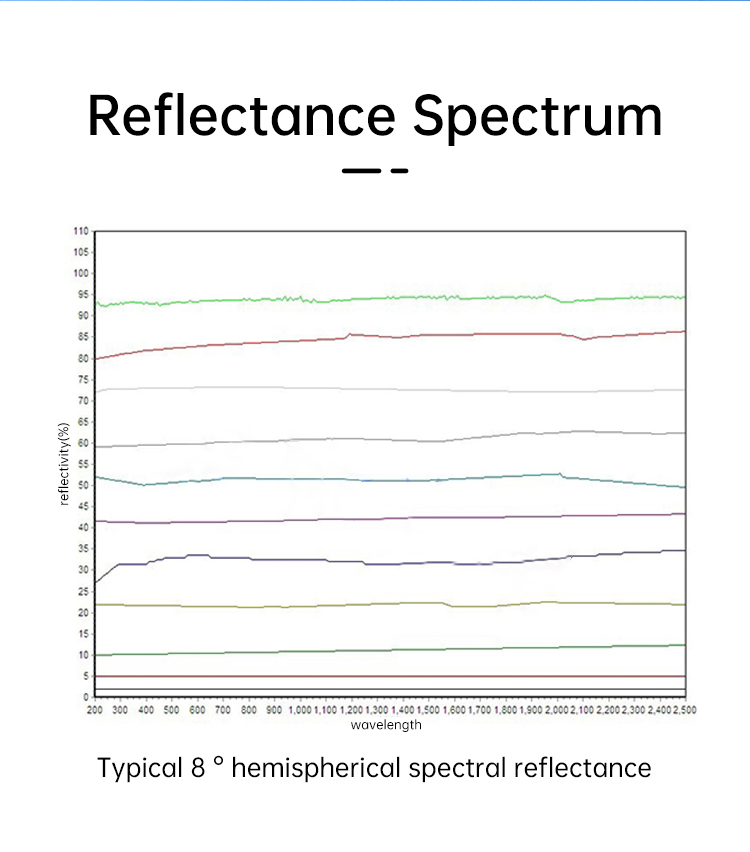

Reflectance Spectrum Typical 8° hemispherical spectral reflectance
Parameter
Details
reflectivity ratio
3% -93%
wavelength range
250-2500nm
typical spectral reflectance
8° hemispherical spectral reflectance
