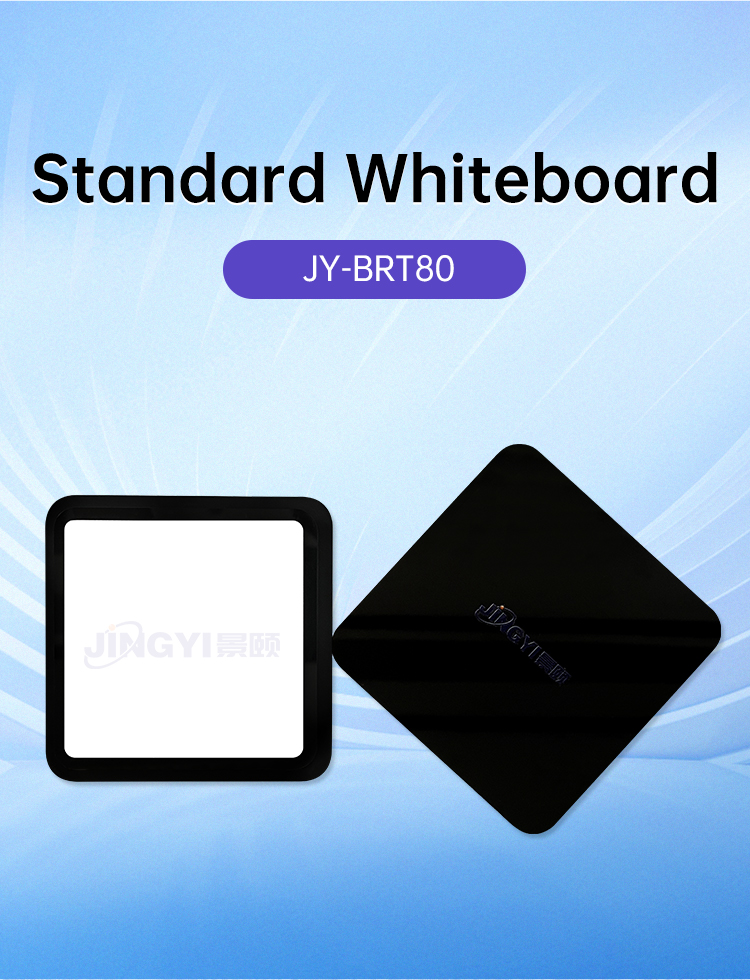

Standard Whiteboard JY-BRT80

Standard Whiteboard JY-BRT80













产品介绍:漫反射标准白板

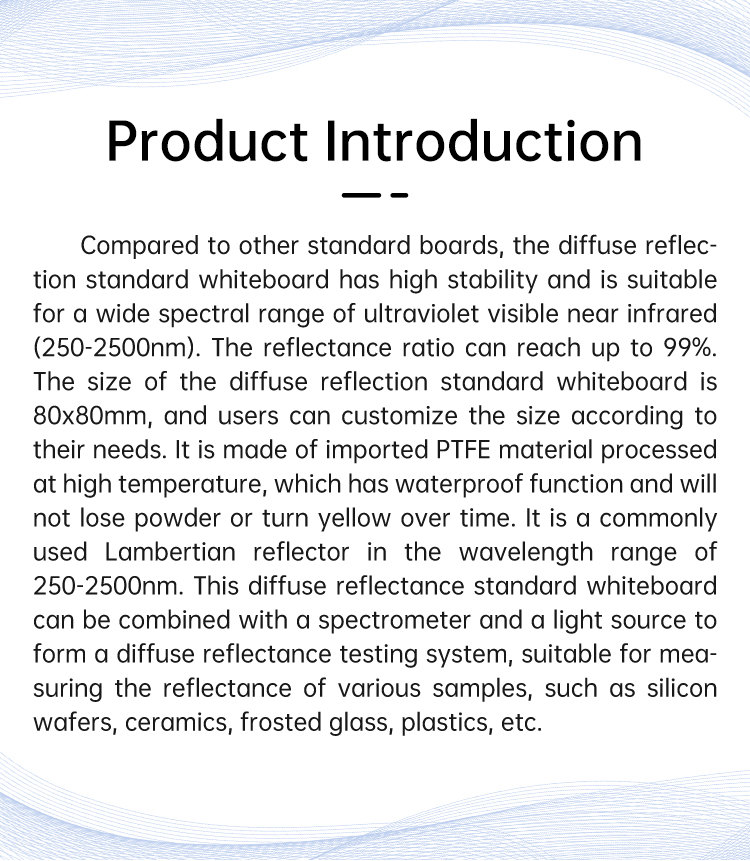

Product Introduction Compared to other standard boards, the diffuse reflection standard whiteboard has high stability and is suitable for a wide spectral range of ultraviolet visible near infrared (250-2500nm). The reflectance ratio can reach up to 99%. The size of the diffuse reflection standard whiteboard is 80x80mm, and users can customize the size according to their needs. It is made of imported PTFE material processed at high temperature, which has waterproof function and will not lose powder or turn yellow over time. It is a commonly used Lambertian reflector in the wavelength range of 250-2500nm. This diffuse reflectance standard whiteboard can be combined with a spectrometer and a light source to form a diffuse reflectance testing system, suitable for measuring the reflectance of various samples, such as silicon wafers, ceramics, frosted glass, plastics, etc.
Application Area Optical density meter Imaging equipment Integral ball system Optical experimental equipment Spectrometer system Remote sensing instruments Calibration of Reflectivity Instruments

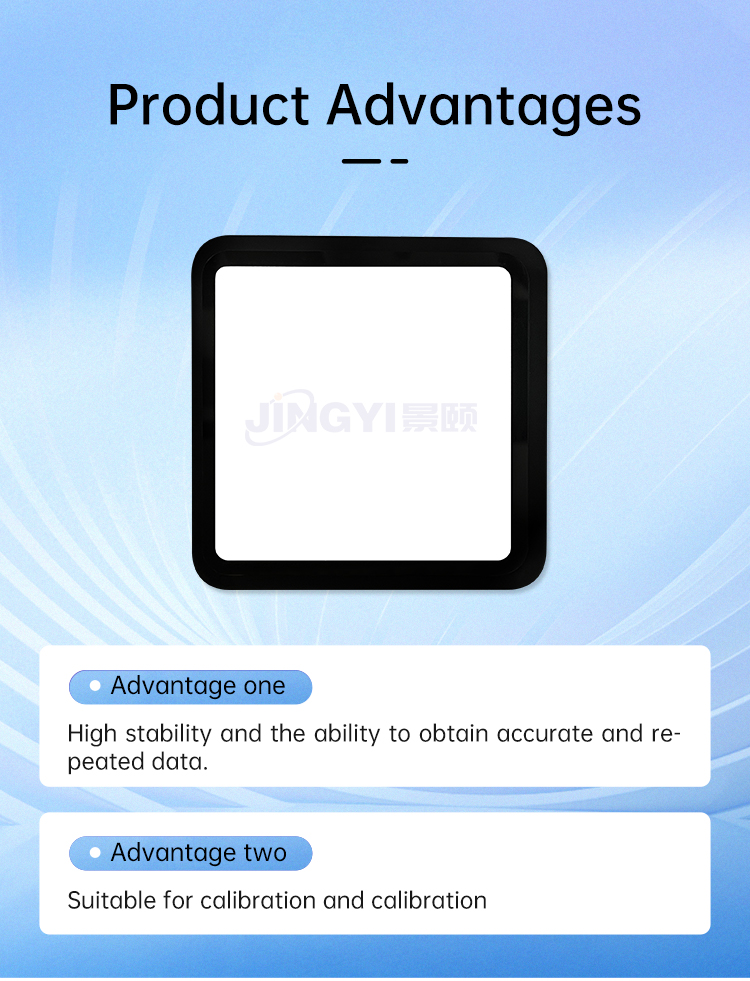

Product Advantages High stability and the ability to obtain accurate and repeated data. Suitable for calibration and calibration

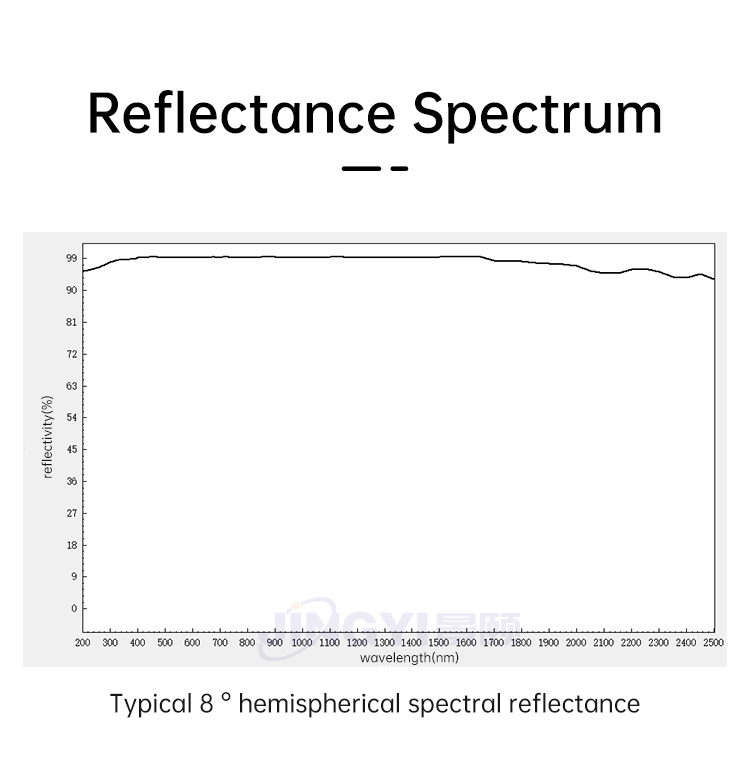

Reflectance Spectrum Typical 8° hemispherical spectral reflectance

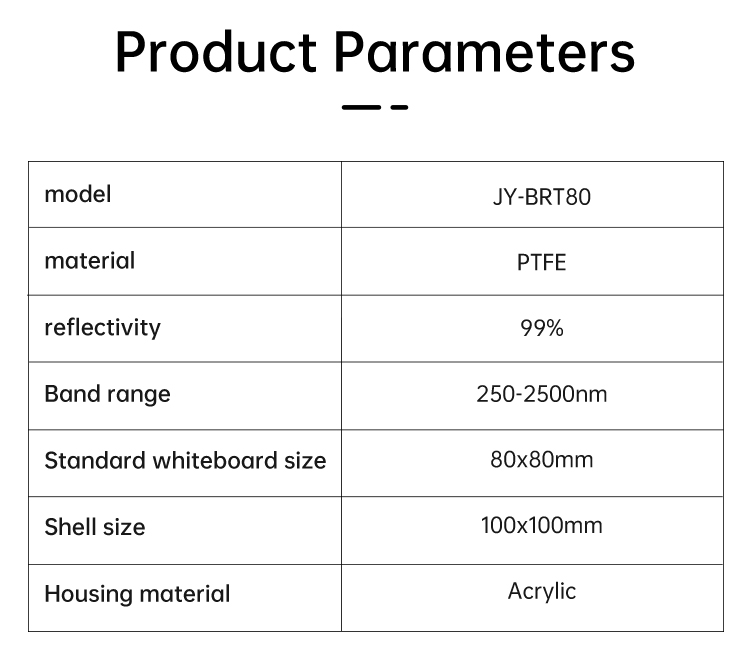

Product Parameters
Item
Parameter
model
JY-BRT80
material
PTFE
reflectivity
99%
Band range
250-2500nm
Standard whiteboard size
80x80mm
Shell size
100x100mm
Housing material
Acrylic
