Product Introduction

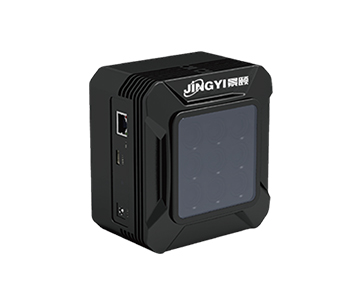

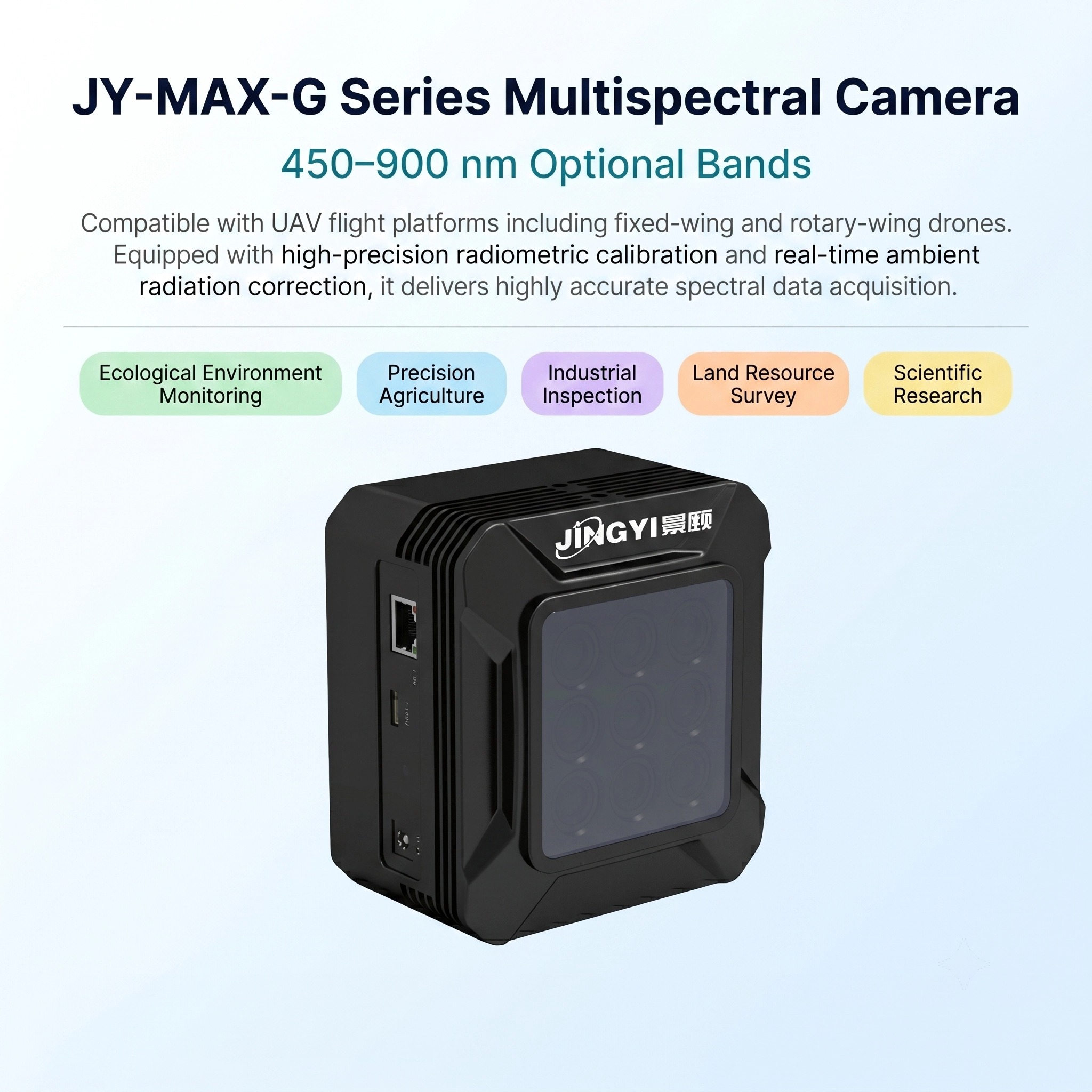

The JY-MAX-G series multispectral camera developed by Jingyi Optoelectronics can be integrated with various UAV platforms including fixed-wing and rotor drones. Equipped with high-precision radiometric calibration and real-time ambient light radiation correction, it delivers highly accurate spectral data. It is widely applied in ecological environment monitoring, precision agriculture, industrial inspection, land resource survey and scientific research.
Product Features
1. 8 spectral channels to capture abundant spectral information
2. Multiple optional wavebands provide sufficient data basis to meet diverse application requirements
3. Simultaneous multispectral and RGB imaging with high resolution of 1440 * 1080
4. Real-time image transmission and built-in basic algorithms for instant result preview
5. Supports mounting on drones, portable handheld use and indoor deployment; easy to integrate into automatic industrial inspection systems
6. High-precision radiometric calibration plus real-time ambient light correction ensures reliable spectral data
Application Scenarios
- Jujube origin traceability
- Tobacco leaf grading
- Sorghum variety identification
Product Specifications
|
Item
|
Parameter
|
|
Model
|
JY-MAX-G800
|
|
Multispectral Imaging Mode
|
7 multispectral channels + RGB
|
|
Standard Multispectral Bands
|
450 nm, 550 nm, 650 nm, 720 nm (narrowband), 750 nm (narrowband), 800 nm, 850 nm
|
|
Optional Bands
|
410 nm, 490 nm, 530 nm, 570 nm, 600 nm, 660 nm, 680 nm, 720 nm, 750 nm, 780 nm, 900 nm
|
|
Image Sensor
|
1/2.9-inch CMOS, global shutter, 1.55 megapixels
|
|
Image Resolution
|
1440 * 1080
|
|
Bit Depth
|
12 bit
|
|
Optical Lens
|
Focal length 5.35 mm, F/2.0
|
|
Field of View
|
Horizontal: 49.8°, Vertical: 38.4°
|
|
Frame Rate
|
20 fps (real-time)
|
|
Image Formats
|
IMG (ENVI standard), TIFF, JPG
|
|
Storage
|
128 GB MicroSD card
|
|
Interfaces
|
1 × Mini-HDMI, 1 × RS232, 2 × I/O, 1 × Gigabit RJ45, 1 × USB 3.0
|
|
Expandable Accessories
|
GPS/IMU, Wi-Fi, downwelling light sensor
|
|
Software
|
Dedicated control software, SDK for secondary development
|
|
Capture Mode
|
Real-time capture, external trigger capture
|
|
Power Supply
|
DC 12 V 2 A
|
|
Power Consumption
|
＜10 W
|
|
Weight
|
766 g
|
|
Dimensions
|
123 mm × 115 mm × 79 mm
|
|
Operating Temperature
|
-20°C ~ 50°C
|
|
Storage Temperature
|
-20°C ~ 60°C
|
