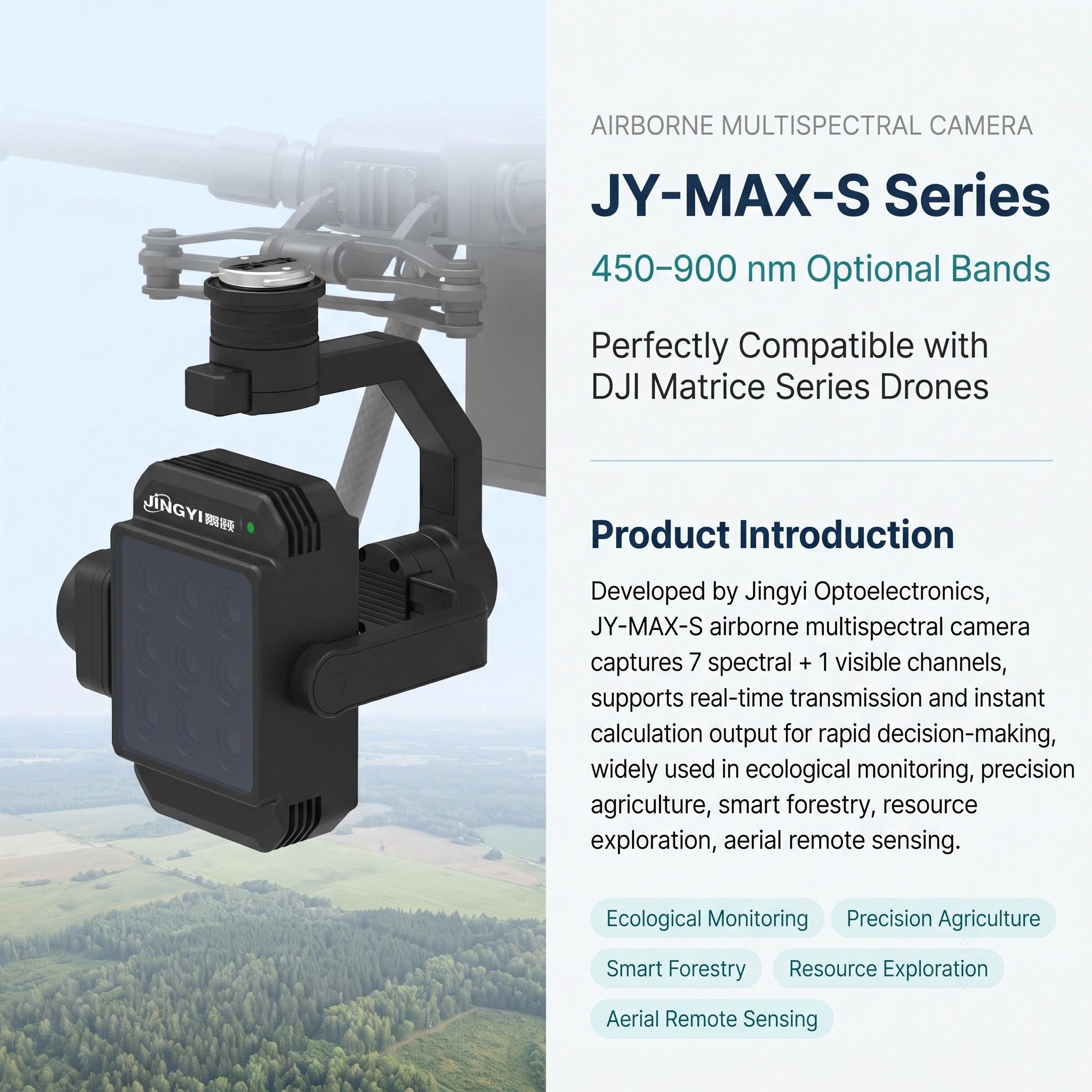

Product Introduction

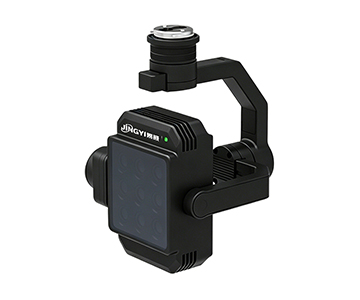

Developed by Jingyi Optoelectronics, the JY-MAX-S series airborne multispectral camera simultaneously captures image data from 7 spectral channels and 1 visible RGB channel. It supports real-time image transmission and instant display of analytical results, enabling rapid targeted decision-making for abnormal monitoring conditions. Widely adopted in aerial remote sensing applications including ecological environment monitoring, precision agriculture, smart forestry and resource exploration.



Product Features

• 8 parallel imaging channels with multiple optional wavebands, supporting acquisition of diverse vegetation indices and spectral features to meet diversified application demands

• Simultaneous multispectral and high-resolution RGB imaging

• Real-time video transmission; pre-embedded algorithms for mainstream vegetation indices (NDVI, NDRE, EVI, etc.) and professional monitoring models (pine wilt disease, oil spill leakage identification, etc.)

• High-precision radiometric calibration plus real-time ambient light radiation correction ensures highly accurate spectral data

• Plug-and-play design with seamless compatibility for DJI Matrice series drones



Application Scenarios

1、Precision Agriculture

Vegetation index monitoring,

crop growth monitoring,

pest & disease trend tracking,

crop classification,

planting area calculation



2、Water Environment Monitoring

Algal bloom monitoring,

coastal ecosystem survey,

water eutrophication assessment,

black and odorous water body detection,

chlorophyll content monitoring



3、Smart Forestry

Forest coverage survey,

tree species & quantity statistics,

pine wilt disease inspection,

wildlife intelligent monitoring,

woodland area mapping



4、Ecological Environment Protection

Ecological element monitoring,

ecological red line supervision,

invasive species identification,

ecological disaster early warning,

ecological status assessment



5、Other Industrial & Public Security Fields

Fragment identification,

poppy patrol inspection,

customs anti-smuggling detection,

camouflage target recognition



Product Specifications

Model	JY-MAX-S810
Gimbal Parameters
Mounting Type	Detachable structure
Angular Vibration	±0.01°
Controllable Pitch Range	-120° ~ +30°
Mechanical Rotation Range	Yaw: ±320°; Pitch: -120° ~ +30°; Roll: -55° ~ +55°
Max Rotation Speed	90°/s
Camera Parameters
Multispectral Imaging Mode	7 multispectral bands + RGB
Standard Wavebands	450nm, 550nm, 650nm, 720nm (narrowband), 750nm (narrowband), 800nm, 850nm
Optional Wavebands	410nm, 490nm, 530nm, 570nm, 600nm, 660nm, 680nm, 720nm, 750nm, 780nm, 900nm
Image Sensor	1/3.1-inch CMOS, global shutter, 3.2 megapixels
Image Resolution	2048 × 1536
Bit Depth	12 bit
Optical Lens	Focal length: 5.35 mm, Aperture: F/2.0
Field of View	Horizontal FOV: 46.6°, Vertical FOV: 35.8°
Typical Coverage	103.3 m × 77.5 m (at flight altitude of 120 m)
Ground Sampling Distance	5.05 cm (at flight altitude of 120 m)
Preview Function	Real-time live preview supported
Frame Rate	Triggered capture, max 1 frame per second for full channels
Trigger Modes	Single trigger, scheduled trigger, overlap rate trigger
Image Format	16-bit TIFF
Calibration & Correction	Spectral calibration, radiometric calibration, illuminance correction, lens distortion correction
Storage	128 GB Micro SD card; Class 10, U3, V30 or higher speed grade required
Interfaces	DJI X-Port, 6-core communication port
Flight Platform Compatibility
Supported Drones	DJI Matrice series with X-Port interface (M200 V2, M210 V2, M210 RTK V2, M300 RTK, M350 RTK)
Custom Development	Compatible with other multi-rotor, fixed-wing and unmanned airship platforms on demand
Control Software	DJI Pilot App
Capture Mode	Continuous real-time data acquisition without hovering
Physical & Environmental Parameters
Dimensions	Gimbal Camera: 129 × 145 × 177 mm; Downwelling Light Sensor: 75 × 47 × 31 mm
Weight	Gimbal Camera: 780 g; Downwelling Light Sensor: 54 g
Operating Temperature	-20℃ ~ 50℃
Storage Temperature	-20℃ ~ 60℃
