Product Introduction

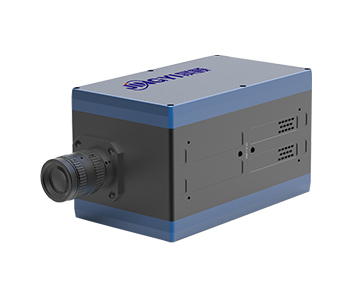

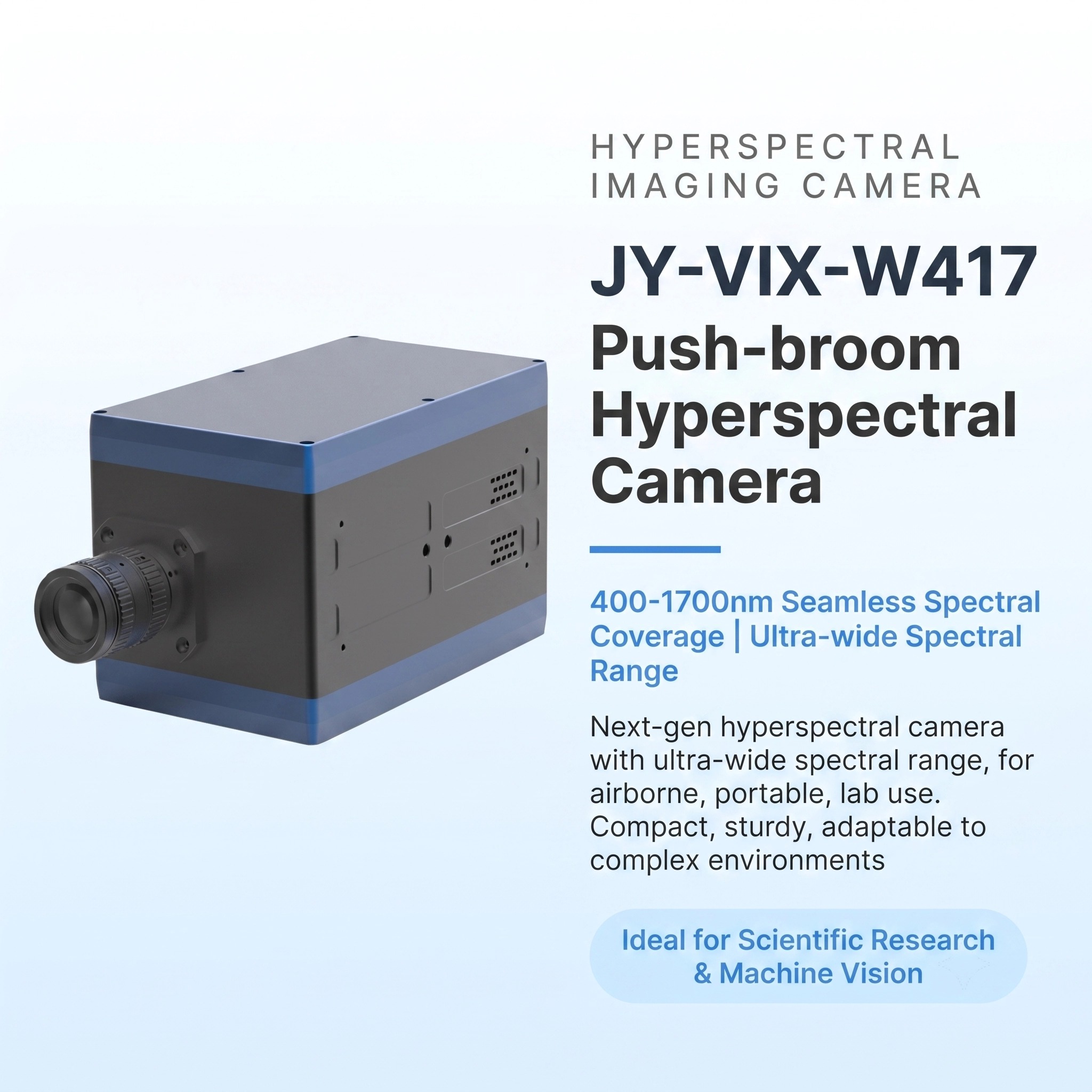

The JY-VIX-W417 push-broom visible & short-wave infrared hyperspectral camera developed by Jingyi Optoelectronics is a new-generation hyperspectral imager with an ultra-wide spectral range, applicable for UAV mounting, portable handheld use and indoor testing scenarios.
Based on push-broom imaging technology, it covers 400–1700 nm with a spectral resolution of 2.4 nm. Featuring wide spectral coverage, fast imaging speed, high sensitivity and excellent signal-to-noise ratio, it can rapidly and accurately collect spectral data for ecological monitoring, precision agriculture, industrial inspection and resource exploration. By combining spatial and spectral information, the camera enables non-destructive, non-contact, efficient target detection, identification, classification and analysis based on unique spectral signatures of different materials. With compact and rugged construction, it adapts well to complex working environments, making it an ideal tool for scientific research and machine vision applications.
Product Features
Seamless 400–1700 nm spectral acquisition eliminates data fusion errors caused by multiple devices, greatly improving research efficiency and cost performance
Spectral resolution of 2.4 nm with up to 1200 spectral channels
Plug-and-play USB 3.0 data interface for easy connection
Fast spectral and image acquisition with a full-band frame rate up to 200 fps
Compact, sturdy and reliable structure suitable for harsh working conditions
Application Scenarios
Laboratory Research
Machine Vision

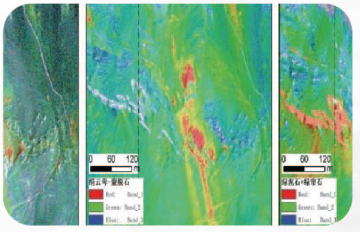

Mineral Exploration
Product Specifications
|
Model
|
JY-VIX-W417
|
|
Spectral Range
|
400–1700 nm
|
|
Sampling Interval
|
1.2 nm
|
|
Spectral Resolution (FWHM)
|
2.4 nm
|
|
Detector Type
|
TEC-cooled InGaAs
|
|
Slit Size (Width × Height)
|
25 μm × 10 mm
|
|
Number of Spectral Channels
|
1200
|
|
Number of Spatial Channels
|
1024
|
|
Effective Pixel Size
|
5 μm × 5 μm
|
|
Bit Depth
|
12 bits
|
|
Maximum Frame Rate
|
70 fps (full channels)
|
|
Shutter Mode
|
Global Shutter
|
|
Lens Mount
|
Standard C-mount
|
|
Device Interface
|
USB 3.0 Micro-B
|
|
Storage Temperature
|
-20°C ~ 50°C
|
|
Operating Temperature
|
0°C ~ 45°C
|
|
Dimensions (W × H × D, excluding lens)
|
119 mm × 118 mm × 213.5 mm
|
|
Weight (excluding lens)
|
2.1 kg
|
|
Power Consumption
|
＜25 W
|
|
Power Supply
|
USB 3.0 & DC 12 V 3 A
|
|
Optional Optical Lenses
|
Standard: 25 mm fixed focal lens; Optional: 12 mm, 16 mm, 35 mm, 50 mm
|
|
Acquisition Software Functions
|
|
Computer Configuration
|
SSD with read and write speed over 500 MB/s; Intel Core i7 or higher CPU; no less than 16 GB RAM
|
|
Operating System
|
Microsoft Windows 10 / Windows 11 64-bit
|
|
Parameter Settings
|
Supports configuration of exposure time, gain, start wavelength, end wavelength, capture mode, data format and other parameters
|
|
Spectral Preview
|
Real-time preview of spectral images and display of pseudo-color renderings
|
|
Reflectance Measurement
|
Real-time display of spectral reflectance curves and direct saving of reflectance data
|
|
Overexposure Reminder
|
Highlights overexposed areas on the preview interface
|
|
Dark Field Correction
|
Dark field correction function is available to improve measurement accuracy
|
|
Noise Reduction
|
Automatic noise reduction to eliminate random interference
|
