Product Introduction

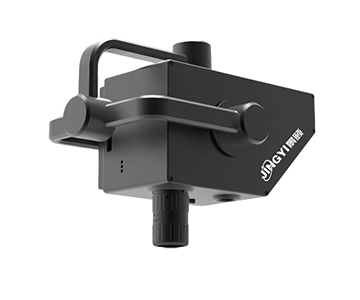

The JY-SKY series airborne hyperspectral camera from Jingyi Optoelectronics is an innovative hyperspectral imaging solution specially designed for UAV platforms. Integrating high-precision optical design and dynamic anti-interference technology, it can stably acquire high-signal-to-noise-ratio hyperspectral data under complex operating environments. It is widely used in scientific research, precision agriculture, environmental monitoring, geological exploration and other fields.
Product Features
Breaks the traditional segmented mode of 400–1000 nm and 900–1700 nm, realizing seamless continuous spectral coverage from 400 nm to 1700 nm
Full-band seamless data acquisition eliminates spectral stitching errors, boosting research efficiency and cost performance by over 50% respectively
Adopts push-broom imaging, supporting scanning without hovering for high operational efficiency
Built-in 1TB airborne storage to meet the demands of ultra-long endurance missions
Equipped with an integrated gimbal self-stabilization system to guarantee spectral data stability under high-frequency vibration
Supports direct one-step data copying to PC, eliminating intermediate external storage transfer and improving work efficiency by 60%
Synchronously triggers a 12-megapixel high-definition visible light camera for high-precision orthophoto stitching
Matched with professional airborne data processing software, integrating radiometric correction, automatic image stitching and one-click NDVI/PRI generation, easy to operate even for non-professional users
Deeply compatible with DJI M350 RTK and M400 UAV platforms
Application Scenarios

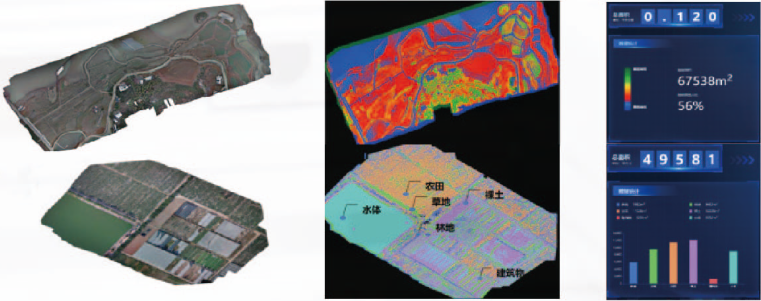

Ecological Environment Monitoring
Product Specifications
|
Model
|
JY-SKY-W417
|
|
Imaging Mode
|
Push-broom
|
|
Spectral Range
|
400–1700 nm
|
|
Spectral Resolution (FWHM)
|
2.4 nm
|
|
Number of Spectral Channels
|
1200
|
|
Number of Spatial Channels
|
1024
|
|
Slit
|
25 μm
|
|
Detector Type
|
InGaAs
|
|
Data Interface
|
USB 3.0
|
|
Frame Rate
|
50 fps
|
|
Bit Depth
|
12 bits
|
|
HD Visible Light Camera
|
12 megapixels
|
|
On-board Processor
|
Intel i7 processor, 16GB RAM, 1TB SSD
|
|
Weight
|
Approx. 1.6 kg
|
|
Mounting Interface
|
DJI SkyPort
|
|
Compatible UAV Platforms
|
M350 RTK / M400
|
|
Operating Temperature
|
0°C–40°C
|
|
Storage Temperature
|
0°C–50°C
|
