Product Introduction

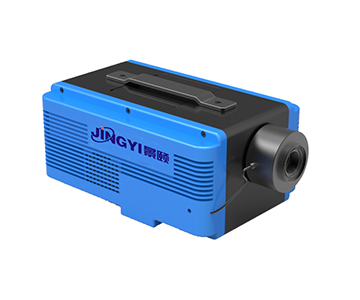

JY-VIX built-in push-broom hyperspectral camera developed by Jingyi Optoelectronics covers the spectral range of 400–1700 nm. It can complete a full-spectrum continuous push-broom imaging in as fast as 6 seconds. Equipped with high sensitivity and excellent signal-to-noise ratio, it enables non-destructive, non-contact, efficient target information acquisition, identification, classification and analysis. It is widely used for portable hyperspectral data collection in indoor and outdoor scenarios, including scientific research, field surveys, cultural relic conservation, industrial inspection and more.
Two Model Profiles

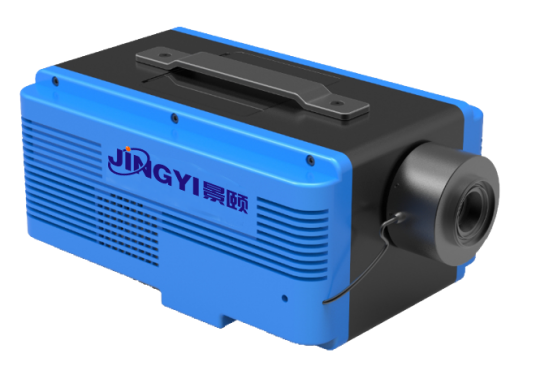

JY-VIX-N320 (400–1000 nm)
1200 spectral channels, spectral resolution ≤ 2.5 nm
Push-broom time automatically matched with exposure time; full-spectrum scanning finished within 6 seconds at fastest
Motorized auto-focus supports one-click focusing for sharp images

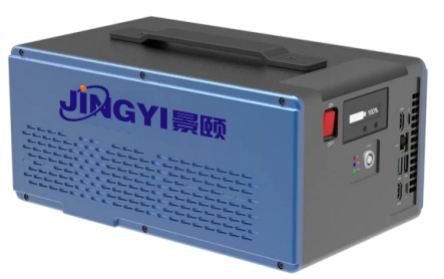

JY-VIX-W330 (Seamless spectral coverage: 400–1700 nm)
Spectral sampling interval: 1.2 nm, spectral resolution ≤ 2.4 nm
Push-broom time automatically matched with exposure time; full-spectrum scanning finished within 15 seconds at fastest
Built-in high-capacity 144 Wh rechargeable battery
Product Features
1、Lightweight & Portable
Adopts built-in push-broom hyperspectral imaging design without external push-scanning mechanism. Integrated microprocessor and high-capacity battery support convenient on-site data collection, storage and processing for diverse application scenarios.
2、Coaxial Imaging Structure
Single-lens shared design for both hyperspectral sensor and color auxiliary camera with confocal layout, enabling fast, precise framing and positioning without optical aberration.
3、Intelligent & Easy Operation
Supports GigE and Wi-Fi for flexible connection with laptops, tablets and other terminals to realize remote control and data transmission. Dual USB 3.0 interfaces enable high-speed data migration.
Product Specifications
|
Model
|
JY-VIX-N320
|
JY-VIX-W330
|
|
Spectral Range
|
400–1000 nm
|
400–1700 nm
|
|
Sampling Interval
|
0.5 nm
|
1.2 nm
|
|
Spectral Resolution (FWHM)
|
2.5 nm
|
2.4 nm
|
|
Fixed Optical Lens
|
25 mm (auto-focus supported)
|
Standard: 25 mm; Optional: 12/16/35/50 mm
|
|
Numerical Aperture
|
F/2.0
|
F/2.0
|
|
Slit Size (Width × Height)
|
25 μm × 10 mm
|
25 μm × 10 mm
|
|
Number of Spectral Channels
|
1200
|
Optional: 1200 (×1) / 600 (×2) / 300 (×4)
|
|
Number of Spatial Channels
|
1920
|
Optional: 1024 (×1) / 512 (×2)
|
|
Spatial
|
1920 × 1920
|
Optional: 1024×1280 (×1)
|
|
Full-Spectrum Scanning Time
|
Auto-adapted to exposure time, minimum ≤ 6 s
|
Auto-adapted to exposure time, minimum ≤ 15 s
|
|
Bit Depth
|
12 bits
|
12 bits
|
|
Shutter Mode
|
Global Shutter
|
Global Shutter
|
|
Lens Mount
|
Standard C-mount
|
Standard C-mount
|
|
Auxiliary Imaging
|
Shared single lens for HD auxiliary camera and hyperspectral sensor, supporting fast framing, positioning and auto-focus
|
Shared single lens for HD auxiliary camera and hyperspectral sensor, supporting fast framing, positioning and auto-focus
|
|
Interfaces
|
GigE, Thunderbolt, 2×USB3.0 Type A, 1×USB3.0 Type C, Wi-Fi
|
1×GigE, 2×HDMI, 2×Thunderbolt, 1×USB3.0 Type A, 1×USB2.0 Type A, Wi-Fi
|
|
Storage Temperature
|
-20°C ~ 50°C
|
-20°C ~ 50°C
|
|
Operating Temperature
|
0°C ~ 45°C
|
0°C ~ 45°C
|
|
Dimensions (W×H×D, excluding lens)
|
159 mm × 135 mm × 270 mm
|
179 mm × 141 mm × 304.5 mm
|
|
Weight (excluding lens)
|
＜ 2.1 kg
|
＜ 2.1 kg
|
|
Power Consumption
|
＜ 210 W
|
＜ 210 W
|
|
Built-in Battery
|
72 Wh
|
144 Wh
|
|
Remote Control
|
Supported via laptop / tablet for remote operation & data transmission
|
Supported via laptop / tablet for remote operation & data transmission
|
|
Imaging Principle
|
Transmission grating, built-in push-broom imaging
|
Transmission grating, built-in push-broom imaging
|
|
External Power Supply
|
DC 24 V 5 A
|
DC 24 V 2 A
|
|
Built-in Microprocessor
|
Equipped
|
Equipped
|
