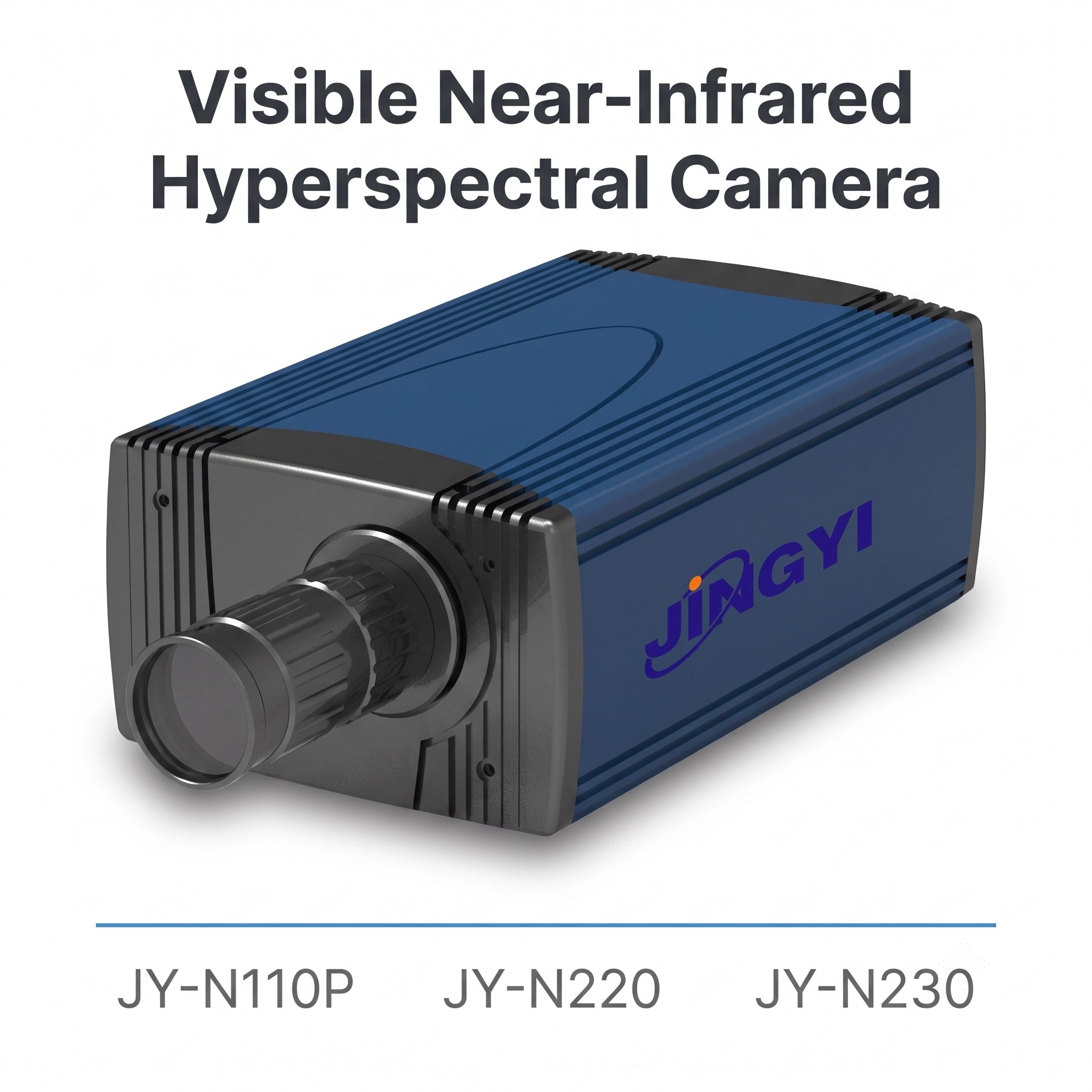

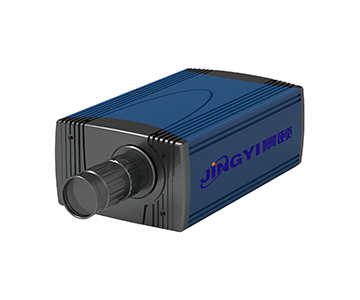

Product Introduction
The external push-broom hyperspectral camera from Jingyi Optoelectronics covers the visible to near-infrared spectral range and supports UAV mounting, portable handheld and indoor applications. Featuring lightweight structure, high imaging speed, high sensitivity and excellent signal-to-noise ratio, it is widely adopted in industrial inspection, scientific research, biomedicine, ecological monitoring, precision agriculture, resource exploration and other fields.

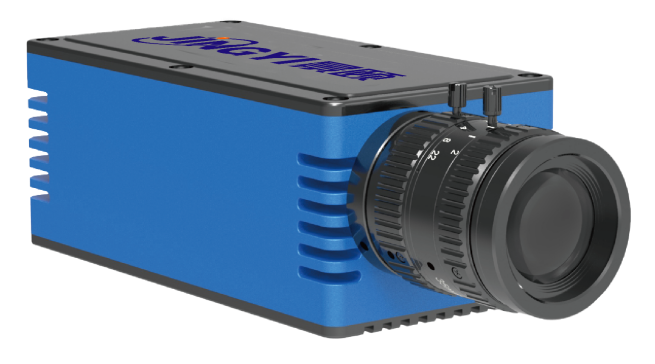

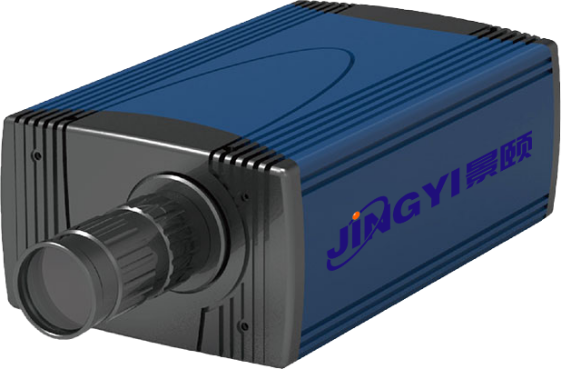

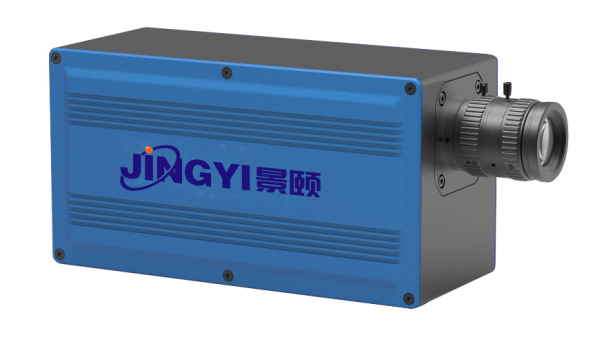

Introduction to Three Models
JY-VIX-N110P
Spectral resolution up to 1 nm
Up to 1080 spectral channels
JY-VIX-N220
Spectral resolution up to 1.6 nm
Up to 600 spectral channels
JY-VIX-N230
Spectral resolution up to 2.5 nm
Up to 720 spectral channels
Product Features
Lightweight, sturdy and reliable, easy to deploy and integrate into various complex systems
High sensitivity, high spectral precision and excellent signal-to-noise ratio to ensure accurate and reliable measurement results
Flexible adjustable spectral sampling intervals to meet diverse testing requirements
Available with USB3.0 / GigE plug-and-play data interfaces
Application Scenarios

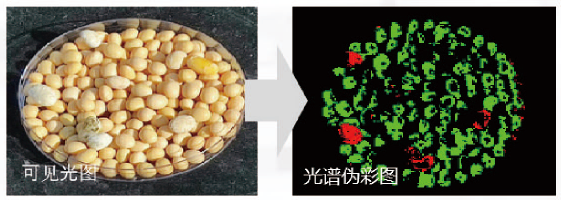

Soybean Mildew Detection (Mildewed soybeans marked in red)
Product Specifications
|
Model
|
JY-VIX-N110P
|
JY-VIX-N221
|
JY-VIX-N230
|
|
Spectral Range
|
400–1000 nm
|
400–1000 nm
|
400–1000 nm
|
|
Sampling Interval
|
0.5 nm
|
0.7 nm
|
0.8 nm
|
|
Spectral Resolution (FWHM)
|
1 nm
|
1.5 nm
|
2.5 nm
|
|
Fixed Optical Lens
|
8/16/35/50 mm
|
8/16/35/50 mm
|
16/35/50 mm
|
|
Numerical Aperture
|
F/2.8
|
F/4
|
F/2.0
|
|
Slit Size (Width × Height)
|
30 μm × 7 mm
|
25 μm × 6.5 mm
|
25 μm × 10 mm
|
|
Number of Spectral Channels
|
1080
|
850
|
720
|
|
Number of Spatial Channels
|
1200
|
1200
|
1200
|
|
Effective Pixel Size
|
6.9 μm × 6.9 μm
|
5.86 μm × 5.86 μm
|
9 μm × 9 μm
|
|
Bit Depth
|
12 bits
|
12 bits
|
12 bits
|
|
Maximum Frame Rate
|
165 fps (full frame)
|
100 fps (full frame)
|
342 fps (full frame)
|
|
Shutter Mode
|
Global Shutter
|
Global Shutter
|
Global Shutter
|
|
Lens Mount
|
Standard C-mount
|
Standard C-mount
|
Standard C-mount
|
|
Device Interface
|
USB 3.0
|
USB 3.0
|
10 GigE
|
|
Storage Temperature
|
-20°C ~ 50°C
|
-20°C ~ 50°C
|
-20°C ~ 50°C
|
|
Operating Temperature
|
0°C ~ 45°C
|
0°C ~ 45°C
|
0°C ~ 45°C
|
|
Dimensions (W × H × D, excluding lens)
|
120 mm × 85 mm × 220 mm
|
65 mm × 52.5 mm × 136 mm
|
90 mm × 110 mm × 211.5 mm
|
|
Weight (excluding lens)
|
＜ 2 kg
|
＜ 500 g
|
2 kg
|
|
Power Consumption
|
＜ 3.5 W
|
＜ 3.5 W
|
＜ 12 W
|
|
Power Supply
|
USB 3.0 powered
|
USB 3.0 powered
|
DC 24 V 2 A powered
|
