Product Introduction

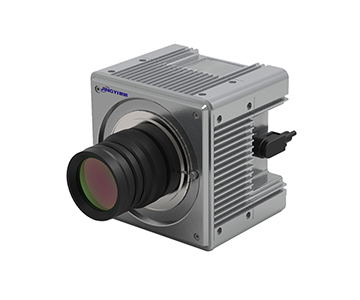

The JY-SHIS staring hyperspectral camera from Jingyi Optoelectronics adopts Liquid Crystal Tunable Filter (LCTF) and staring hyperspectral imaging technology. Within the spectral range of 400–1700 nm, the electronically controlled LCTF achieves continuous narrow-band spectral splitting and delivers high-resolution 2D area array imaging for each waveband. A complete sequence of high-definition hyperspectral images can be obtained after image processing.
Product Features
1、High Precision
Spectral scanning accuracy up to 1 nm. Equipped with precise temperature compensation and thermal control technology to ensure excellent system accuracy and consistency.
2、High Speed
Millisecond-level wavelength switching with ultra-narrowband filtering performance.
3、User-Friendly Operation
Supports ultra-fast data collection under custom wavelength settings for precise research with less data post-processing workload.
4、Lightweight Design
Compact size, low power consumption, easy expandability and stable running performance.
Application Scenarios

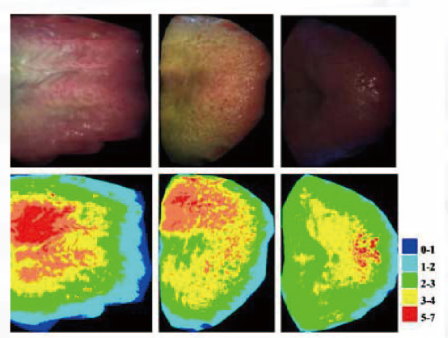

Analysis of spectral reflectance differences among samples such as clinical subjects

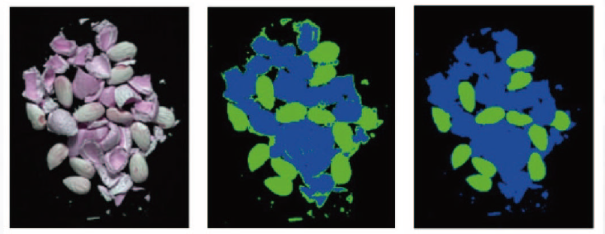

Target feature identification and material classification
Product Specifications
|
Model
|
JY-SHIS-V220
|
JY-SHIS-N220
|
JY-SHIS-S260
|
|
Imaging Mode
|
Staring hyperspectral imaging based on Liquid Crystal Tunable Filter (LCTF)
|
|
Optical Properties
|
|
Spectral Range
|
420–750 nm
|
400–1000 nm
|
920–1700 nm
|
|
Scanning Accuracy
|
1 nm
|
1 nm
|
1 nm
|
|
FWHM
|
10 nm @ 550 nm
|
10 nm @ 550 nm
|
15 nm @ 1200 nm
|
|
Response Time
|
10–200 ms
|
10–200 ms
|
10–200 ms
|
|
Horizontal Field of View
|
9.5°
|
9.5°
|
7°
|
|
Optical Lens
|
80 mm scientific fixed-focus manual lens
|
80 mm scientific fixed-focus manual lens
|
80 mm scientific fixed-focus manual lens
|
|
Image Properties
|
|
Image Sensor Type
|
Back-illuminated scientific CMOS
|
Back-illuminated scientific CMOS
|
InGaAs
|
|
Sensor Size
|
1.2 inch
|
1.2 inch
|
1 inch
|
|
Pixel Size
|
6.5 μm × 6.5 μm
|
6.5 μm × 6.5 μm
|
15 μm × 15 μm
|
|
Image Resolution
|
2048 × 2046
|
2048 × 2046
|
640 × 512
|
|
Bit Depth
|
12 bit
|
12 bit
|
14 bit
|
|
Image Format
|
ENVI standard IMG / 16-bit TIFF
|
ENVI standard IMG / 16-bit TIFF
|
ENVI standard IMG / 16-bit TIFF
|
|
System & Interfaces
|
|
Image Data Interface
|
USB 3.0 Type B
|
|
LCTF Control Interface
|
USB 2.0 Type B
|
|
Temperature Control Interface
|
M12 5-pin aviation connector
|
|
Other Specifications
|
|
Operating Temperature
|
0℃–45℃
|
0℃–45℃
|
|
Dimensions (Excluding Lens)
|
100(W) × 100(H) × 83(D) mm
|
100(W) × 100(H) × 88.3(D) mm
|
|
Weight (With Lens)
|
1.3 kg
|
1.5 kg
|
|
Power Consumption
|
＜7.5 W
|
＜7.5 W
|
|
Power Supply
|
Powered via USB port
|
Powered via USB port
|
|
Hyperspectral Software Functions
|
|
Computer Configuration
|
Intel Core 22.8 GHz or higher, RAM ≥ 4 GB, equipped with USB 3.0 and USB 2.0 interfaces
|
|
Operating System
|
Microsoft Windows 7/8/10 (64-bit)
|
|
LCTF Parameter Settings
|
Users can configure the start wavelength, end wavelength, scanning step, stabilization time, custom scanning modes and more.
|
|
Camera Parameter Settings
|
Adjustable parameters include exposure time, gain and other imaging parameters.
|
|
Other Software Functions
|
Supports white panel calibration, relative calibration, reflectance calibration, classification, pseudo-color rendering, band subtraction, ROI tools and spectral curve display, export and saving. It also enables automatic storage, single-frame and multi-frame image capture and saving.
|
