Product Introduction

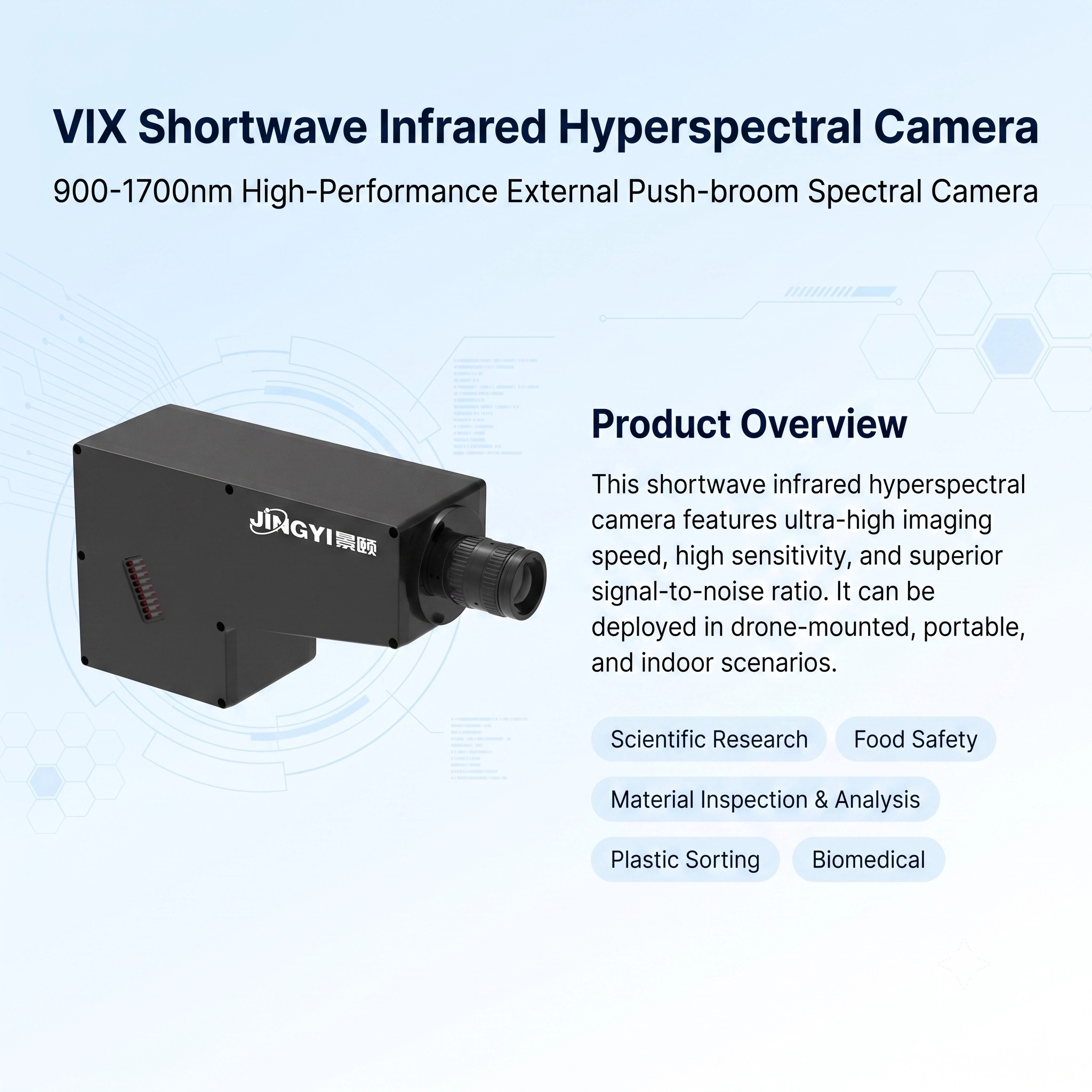

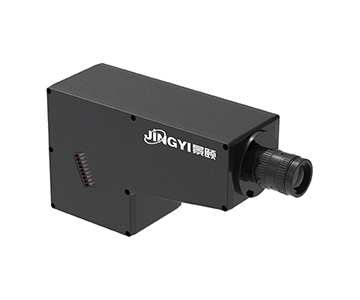

JY-VIX short-wave infrared (SWIR) hyperspectral camera from Jingyi Optoelectronics delivers ultra-high imaging speed, high sensitivity and excellent signal-to-noise ratio. It supports UAV mounting, portable handheld and indoor deployment scenarios, widely applied in scientific research, food safety, material inspection & analysis, plastic sorting, biomedicine and other industries.
Two Models Overview
JY-VIX-S230: Spectral resolution up to 3 nm, 512 spectral channels
JY-VIX-S270: Spectral resolution up to 3 nm, 800 spectral channels
Product Features
Maximum frame rate up to 1800 fps under ROI mode for ultra-fast imaging, greatly boosting operational efficiency
Lightweight design with reliable and stable performance, easy to deploy or integrate into complex industrial systems
Flexible adjustable spectral sampling intervals to meet diverse testing requirements
Equipped with USB 3.0 plug-and-play interface for convenient connection and high-speed data transmission
Application Scenarios

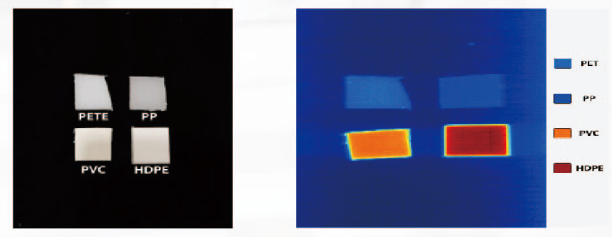

Plastic Inspection

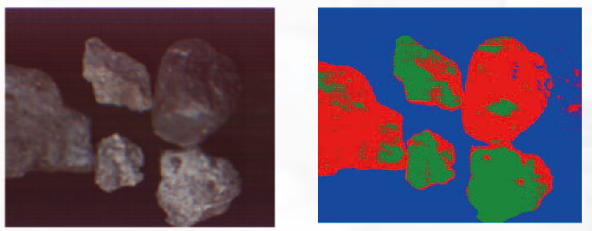

Mineral Ore Detection
Product Specifications
|
Model
|
JY-VIX-S270
|
JY-VIX-S230
|
|
Spectral Range
|
900–1700 nm
|
900–1700 nm
|
|
Spectral Resolution (FWHM)
|
3 nm
|
3 nm
|
|
Sampling Interval
|
1 nm
|
1.7 nm
|
|
Fixed Optical Lens
|
Standard: 25 mmOptional: 8 mm, 16 mm, 35 mm, 50 mm
|
Standard: 25 mmOptional: 8 mm, 16 mm, 35 mm, 50 mm
|
|
Numerical Aperture
|
F/2.5
|
F/2.5
|
|
Slit Size (Width × Height)
|
40 μm × 12 mm
|
40 μm × 12 mm
|
|
Number of Spectral Channels
|
800
|
512
|
|
Number of Spatial Channels
|
1280
|
640
|
|
Multiple ROI Regions
|
Supported
|
Supported
|
|
Effective Pixel Size
|
5 μm × 5 μm
|
5 μm × 5 μm
|
|
Bit Depth
|
12 bits
|
12 bits
|
|
Maximum Frame Rate
|
130 fps (full frame); 900 fps (ROI mode)
|
400 fps (full frame); 1800 fps (ROI mode)
|
|
Shutter Mode
|
Global Shutter
|
Global Shutter
|
|
Lens Mount
|
Standard C-mount
|
Standard C-mount
|
|
Device Interface
|
USB 3.0
|
USB 3.0
|
|
Storage Temperature
|
-20°C ~ 50°C
|
-20°C ~ 50°C
|
|
Operating Temperature
|
0°C ~ 45°C
|
0°C ~ 45°C
|
|
Dimensions (W × H × D, excluding lens)
|
140 mm × 87 mm × 236.5 mm
|
140 mm × 87 mm × 236.5 mm
|
|
Weight (excluding lens)
|
Less than 2 kg
|
Less than 2 kg
|
|
Power Consumption
|
＜2.1 W (uncooled), ＜25 W (cooled)
|
＜2.1 W (uncooled), ＜25 W (cooled)
|
|
Power Supply
|
DC 12 V / 3 A
|
DC 12 V / 3 A
|
