Product Introduction

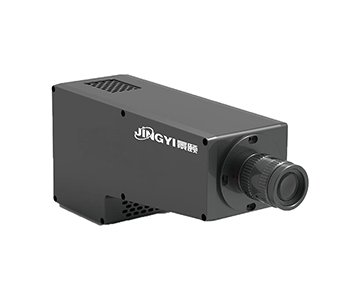

JY-VIX high-speed push-broom spectral camera developed by Jingyi Optoelectronics features ultra-fast imaging speed, high sensitivity and excellent signal-to-noise ratio, suitable for UAV mounting, portable handheld and indoor applications. Based on unique spectral characteristics of different substances, it realizes non-destructive, non-contact, high-efficiency target acquisition, identification, classification and analysis. It is widely used in industrial
inspection, food safety, material testing, plastic sorting, mineral separation and other fields.
Two Available Models
JY-VIX-S235N: Equipped with GigE interface for stable and high-speed data transmission
JY-VIX-S235G: Adopts Camera Link interface, a mainstream industrial data interface
Product Features
Full-frame frame rate up to 1000 fps, supporting online inspection speed of 3–4 m/s to meet high-efficiency conveyor belt detection requirements
Built-in cooling module delivers high sensitivity and outstanding signal-to-noise ratio to improve detection accuracy and reliability
Freely adjustable spectral sampling interval for customized testing demands
Spectral resolution of 8 nm perfectly matches the resolution requirements of high-speed industrial inspection scenarios
Application Scenarios

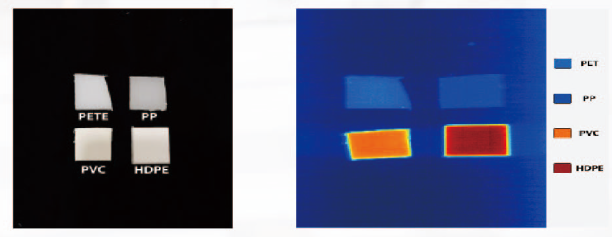

Plastic Inspection & Sorting

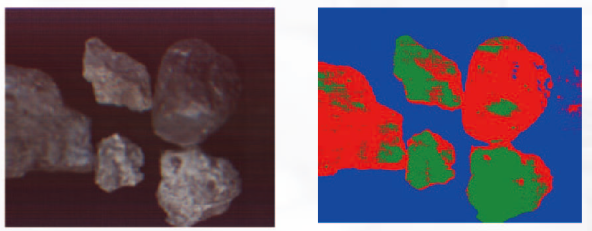

Mineral Ore Detection & Classification
Product Specifications
|
Model
|
JY-VIX-S235G
|
JY-VIX-S235N
|
|
Spectral Range
|
900–1700 nm
|
900–1700 nm
|
|
Sampling Interval
|
4 nm
|
4 nm
|
|
Spectral Resolution (FWHM)
|
8 nm
|
8 nm
|
|
Fixed Optical Lens
|
Standard:16 mmOptional:8/25/35/50 mm
|
Standard:16 mmOptional:8/25/35/50 mm
|
|
Numerical Aperture
|
F/2.5
|
F/2.5
|
|
Slit Size (Width × Height)
|
80 μm × 14 mm
|
80 μm × 14 mm
|
|
Number of Spectral Channels
|
200
|
200
|
|
Number of Spatial Channels
|
640
|
640
|
|
Effective Pixel Size
|
15 μm × 15 μm
|
15 μm × 15 μm
|
|
Bit Depth
|
12 bits
|
12 bits
|
|
Maximum Frame Rate
|
1000 fps (full frame)
|
450 fps (full frame); 750 fps (binning mode)
|
|
Shutter Mode
|
Global Shutter
|
Global Shutter
|
|
Lens Mount
|
Standard C-mount
|
Standard C-mount
|
|
Data Interface
|
Camera Link
|
GigE
|
|
Storage Temperature
|
-20°C ~ 50°C
|
-20°C ~ 50°C
|
|
Operating Temperature
|
0°C ~ 45°C
|
0°C ~ 45°C
|
|
Dimensions (W×H×D, excluding lens)
|
118 mm × 87 mm × 248.5 mm
|
118 mm × 87 mm × 251.5 mm
|
|
Weight (excluding lens)
|
＜ 2 kg
|
＜ 2 kg
|
|
Power Consumption
|
＜2.1 W (uncooled), ＜25 W (cooled)
|
＜2.1 W (uncooled), ＜25 W (cooled)
|
|
Power Supply
|
DC 12 V / 3 A
|
DC 12 V / 3 A
|
