JY2000 optical fiber spectrometer

JY2000 optical fiber spectrometer











Product Introduction

The JY2000 spectrometer adopts a linear CCD detector with high quantum efficiency; Programmable gain amplification and high-speed 16 bit AD conversion, with a large dynamic range. It is a cost-effective spectrometer that is easy to carry and suitable for building numerous spectral measurements, such as spectral measurement analysis, spectral reflectance detection, spectral transmittance measurement, spectral fluorescence detection, and so on. Its wavelength range is UV visible (200-850nm) or visible near-infrared (400-1100nm), and can also be customized according to individual needs.

Application Area

  • Transmission/reflection detection
  • LED Sorting
  • Color measurement
  • Absorption measurement
  • Industrial process monitoring

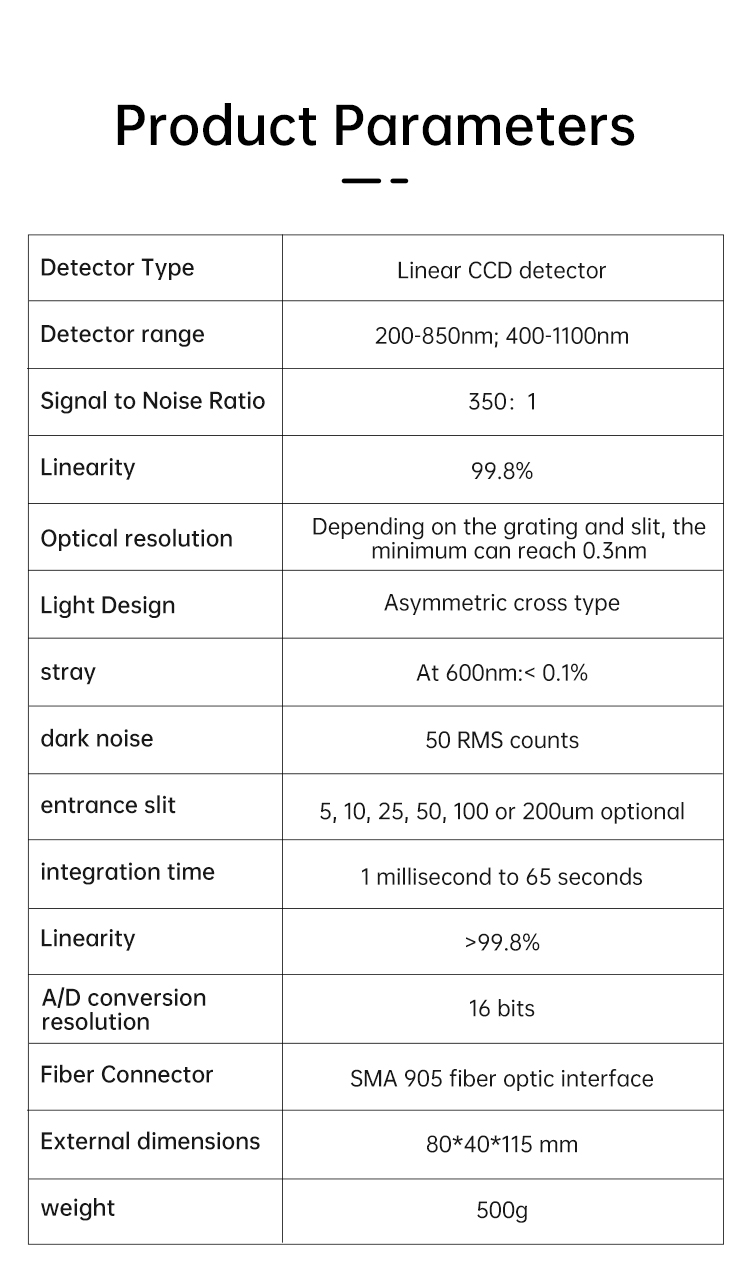

Product Parameters

Parameter Specification
Detector Type Linear CCD detector
Detector range 200–850 nm; 400–1100 nm
Signal to Noise Ratio 350:1
Linearity 99.8%
Optical resolution Depending on the grating and slit, the minimum can reach 0.3 nm
Light Design Asymmetric cross type
Stray light At 600 nm: < 0.1%
Dark noise 50 RMS counts
Entrance slit 5, 10, 25, 50, 100 or 200 μm optional
Integration time 1 millisecond to 65 seconds
Linearity >99.8%
A/D conversion resolution 16 bits
Fiber Connector SMA 905 fiber optic interface
External dimensions 80 × 40 × 115 mm
Weight 500 g
