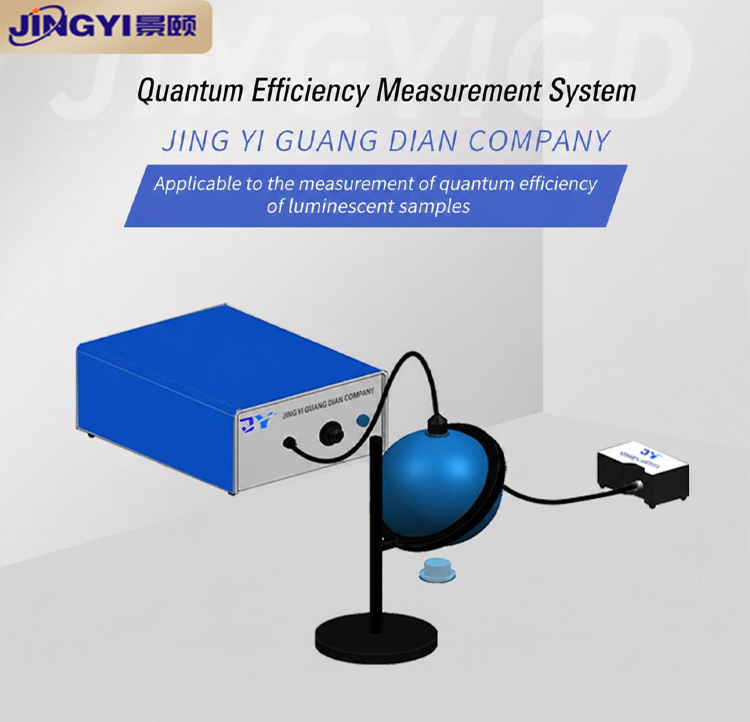

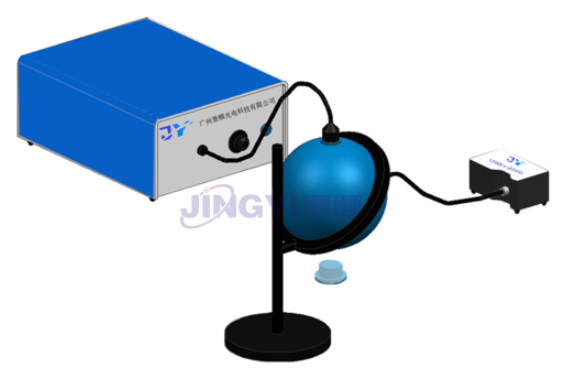

Quantum Efficiency Measurement System

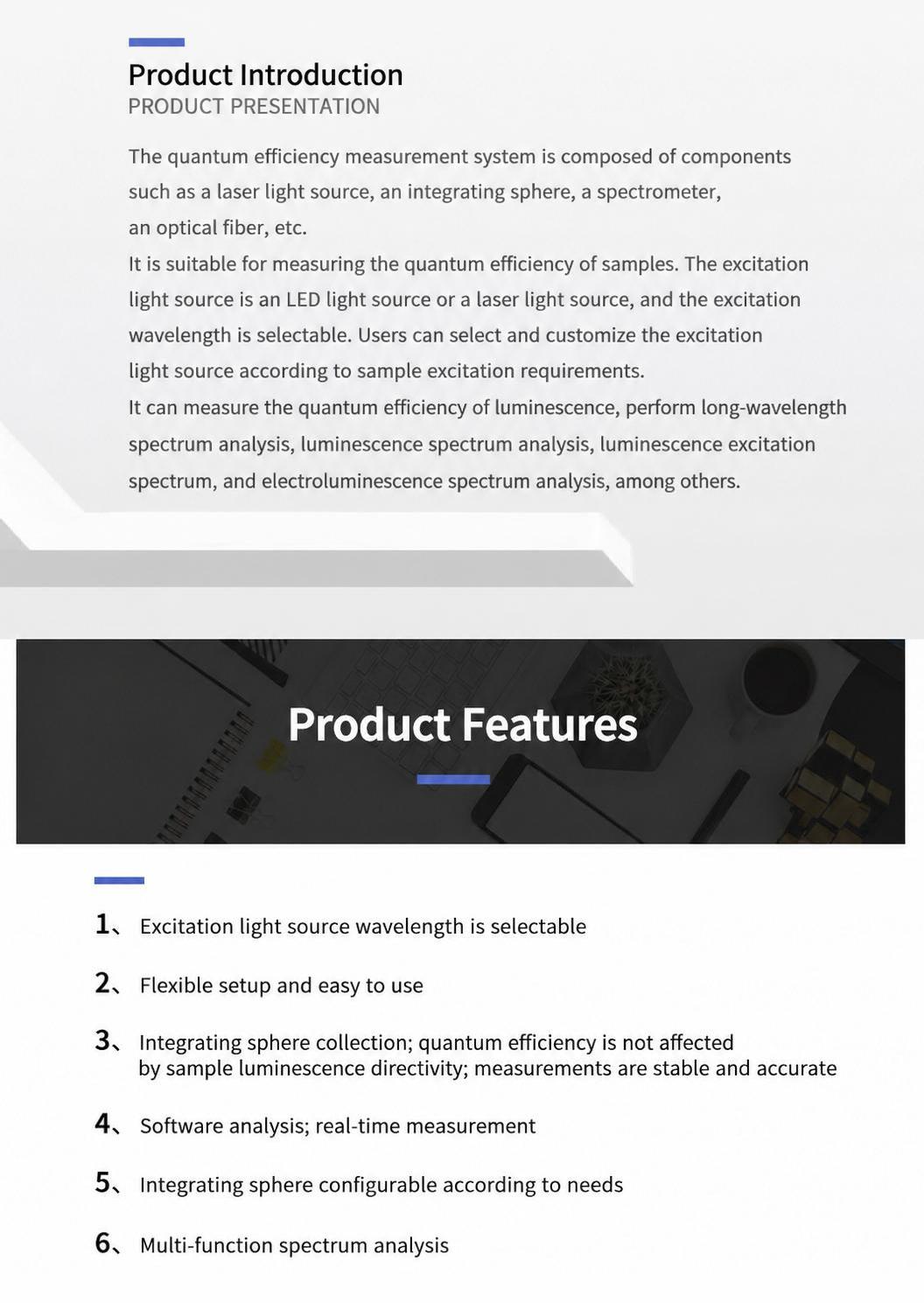

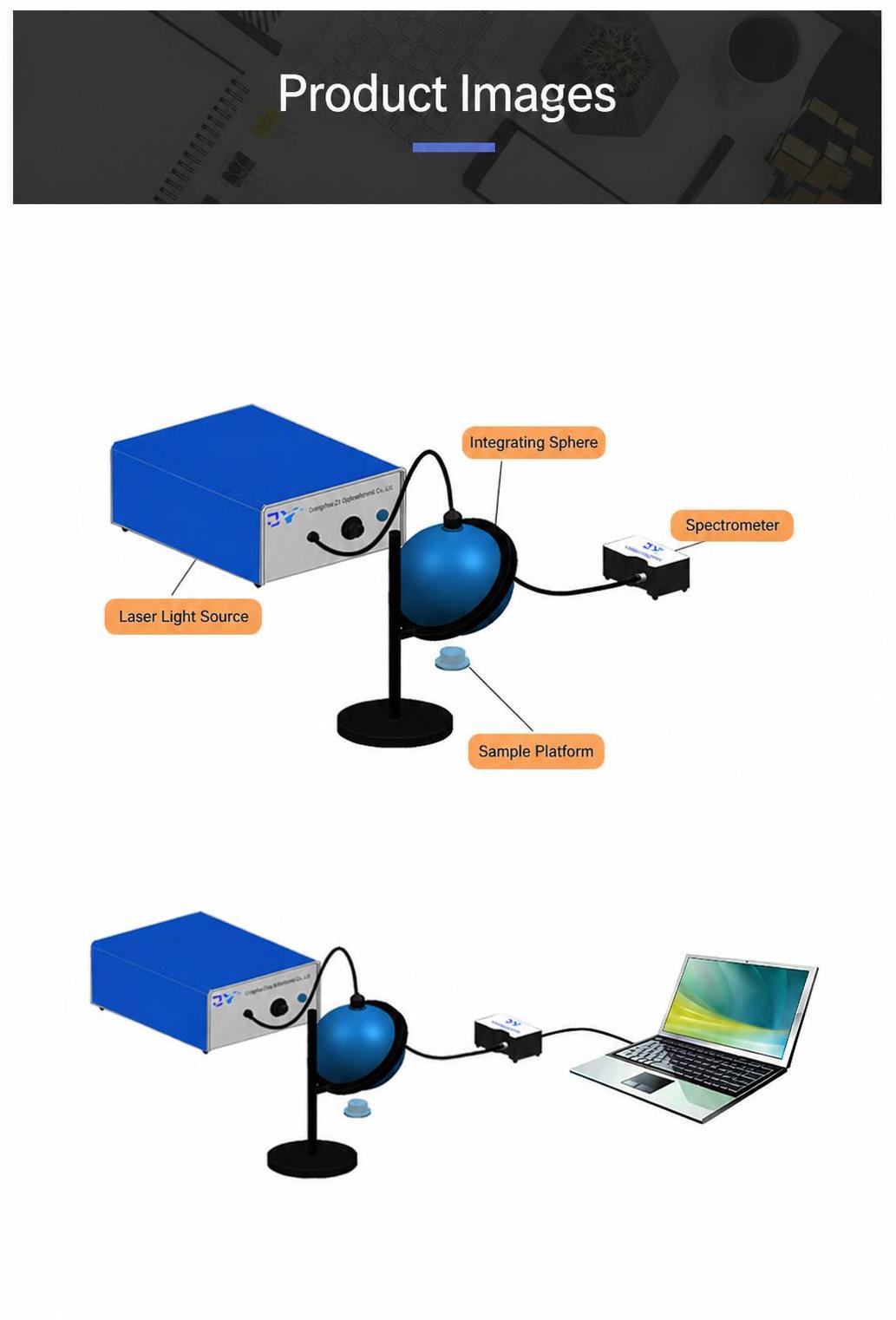

The quantum efficiency measurement system consists of an excitation light source, integrating sphere, spectrometer, optical fiber, and other components. It is suitable for measuring the photoluminescence quantum efficiency of samples. The excitation light source can be LED sources or lasers at different wavelengths, with selectable excitation wavelength ranges. Users can customize the excitation light source according to the excitation requirements of the sample. This system can measure the quantum efficiency of photoluminescence, excitation wavelength spectrum analysis, photoluminescence spectrum analysis, laser-induced photoluminescence spectra, and electroluminescence spectra.
Features
- Selectable excitation light source wavelength range
- Flexible setup, easy to use
- Integrating sphere collection ensures quantum efficiency is unaffected by the angular emission characteristics of the sample, resulting in stable and accurate measurement data
- Integrated software for analysis, enabling real-time measurements
- Customizable integrating sphere based on user requirements
- Multi-functional spectral analysis capabilities

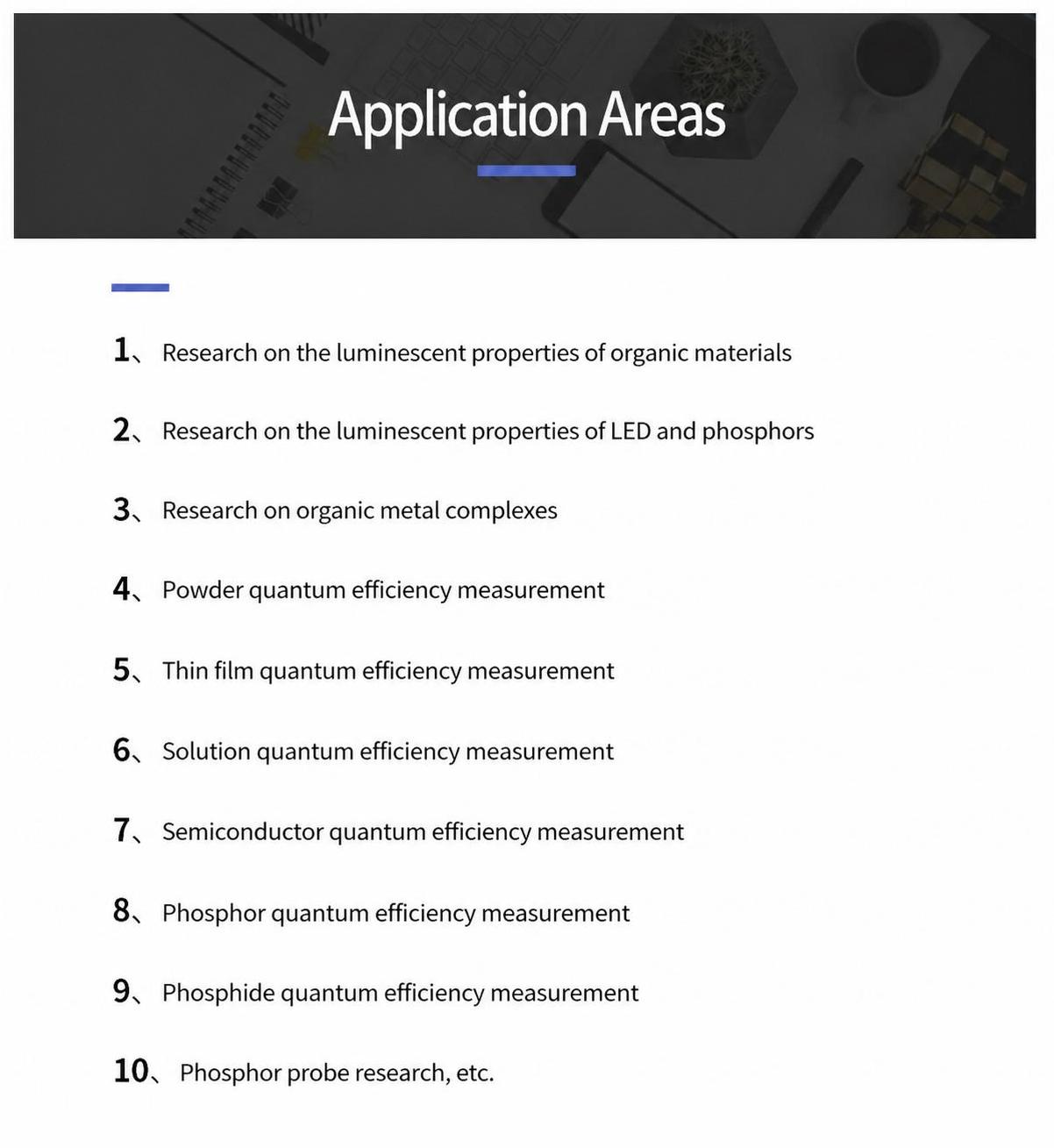

Application Areas
- Research on luminescent properties of organic materials
- Research on luminescent performance of LEDs and phosphor powders
- Study of organic-inorganic hybrid compounds
- Quantum efficiency measurement of powders
- Quantum efficiency measurement of thin films
- Quantum efficiency measurement of solutions
- Quantum efficiency measurement of semiconductors
- Quantum efficiency measurement of fluorescent materials
- Quantum efficiency measurement of phosphors
- Fluorescent probe research, etc.

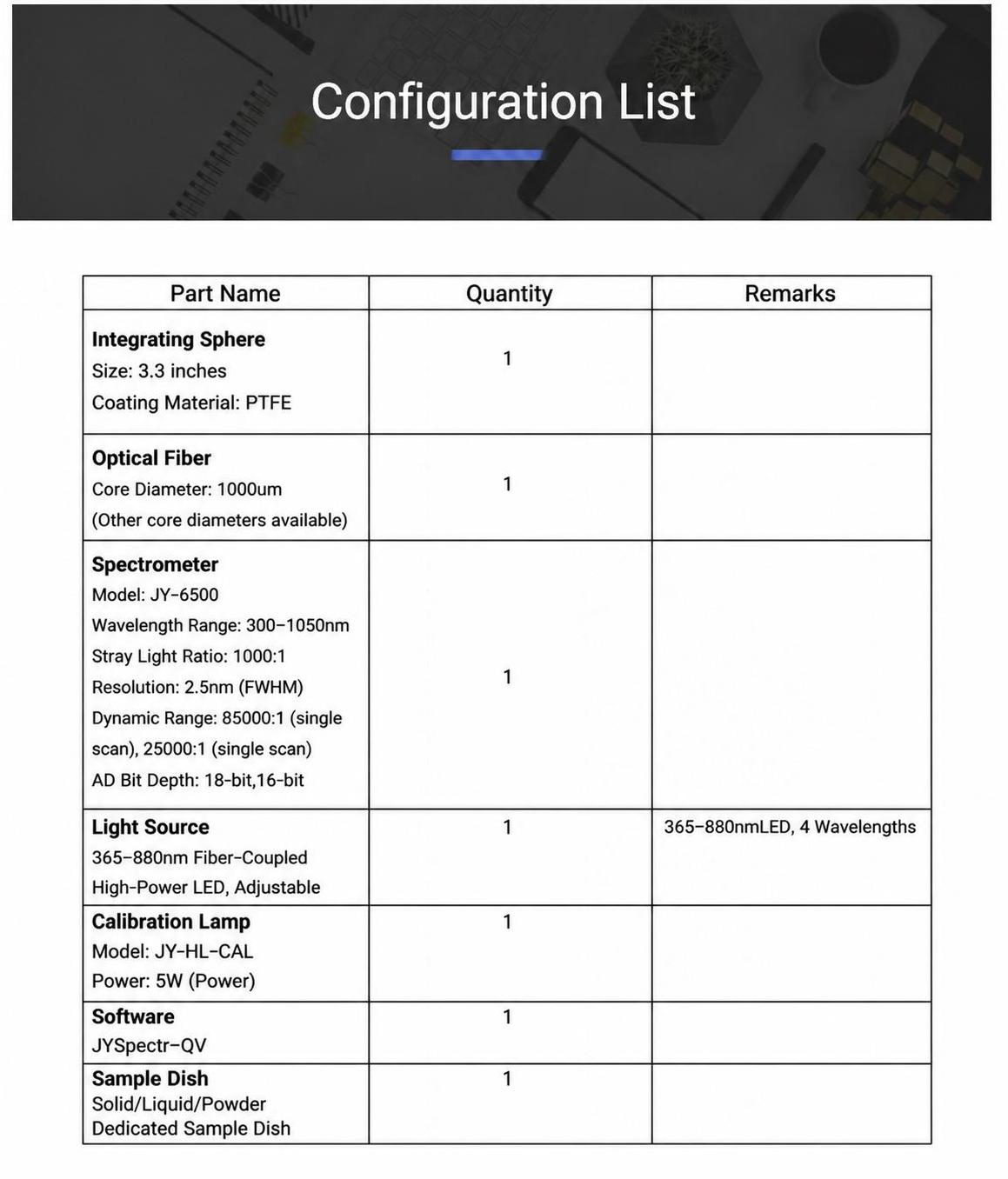

Configuration List
| Component Name |
Quantity |
Remarks |
| Integrating Sphere |
1 |
Customizable |
| Optical Fiber |
2 |
L=0.5m, d=600 μm |
| Spectrometer |
1 |
200–1100nm |
| Excitation Light Source |
1 |
None |
Technical Specifications
| Parameter |
Specification |
| Model |
JYX-0905 |
| Single Sampling Time |
Better than 2s |
| Test Repeatability |
Better than 1% |
| Integrating Sphere Coating Reflectance |
>95% |
| Spectrometer Wavelength Range |
200–1100nm |
| Wavelength Resolution |
1nm |
| Measurement Temperature |
5–35°C |
| Measurement Humidity |
5–95% |
| Data Interface |
USB |
Component 1 – Spectrometer
| Parameter |
Specification |
| Model |
USBPro6500 |
| Wavelength Range |
200–1100nm |
| Wavelength Resolution |
1nm |
| Exposure Time |
0.01ms–10s |
| Connector Type |
SMA905 |
Component 2 – Integrating Sphere
| Parameter |
Specification |
| Model |
R93 |
| Wavelength Range |
200–1100nm |
| Diffuse Reflection Rate |
>98% |
| Diameter |
50/90/125/150/200mm (customizable) |
| Fiber Connector Type |
SMA905, FC |
| Openings |
3 (customizable) |
| Opening Positions |
Two top/bottom, one side (customizable) |
| Opening Types and Sizes |
Input light port SMA905, sample port, output port SMA905 (all customizable as needed) |
Component 3 – Optical Fiber
| Parameter |
Specification |
| Model |
JYQP-600-0.5 Quartz Fiber |
| Wavelength Range |
200–1100nm |
| Core Diameter |
600 μm (customizable) |
| Fiber Length |
0.5m (customizable) |
| Connector Type |
SMA905 (customizable) |
Component 4 – Excitation Light Source
| Parameter |
Specification |
| Model |
JY-0905 |
| Light Source Type |
LED/Laser |
| LED Wavelength |
265/280/310/365/385/405/445/505/525/595/620/655/730/845/935/975 (customizable) |
| Laser Wavelength |
405/450/473/488/532/650/685/780/790/808/830/850/880/905/940/980 (customizable) |
| LED Power |
5/3W |
| Laser Power |
10/20/50/100/200mW |
| Output Connector |
SMA905/FC |
| Input Voltage |
0–12V |
| Output Port |
Fiber connector/Illumination head |
