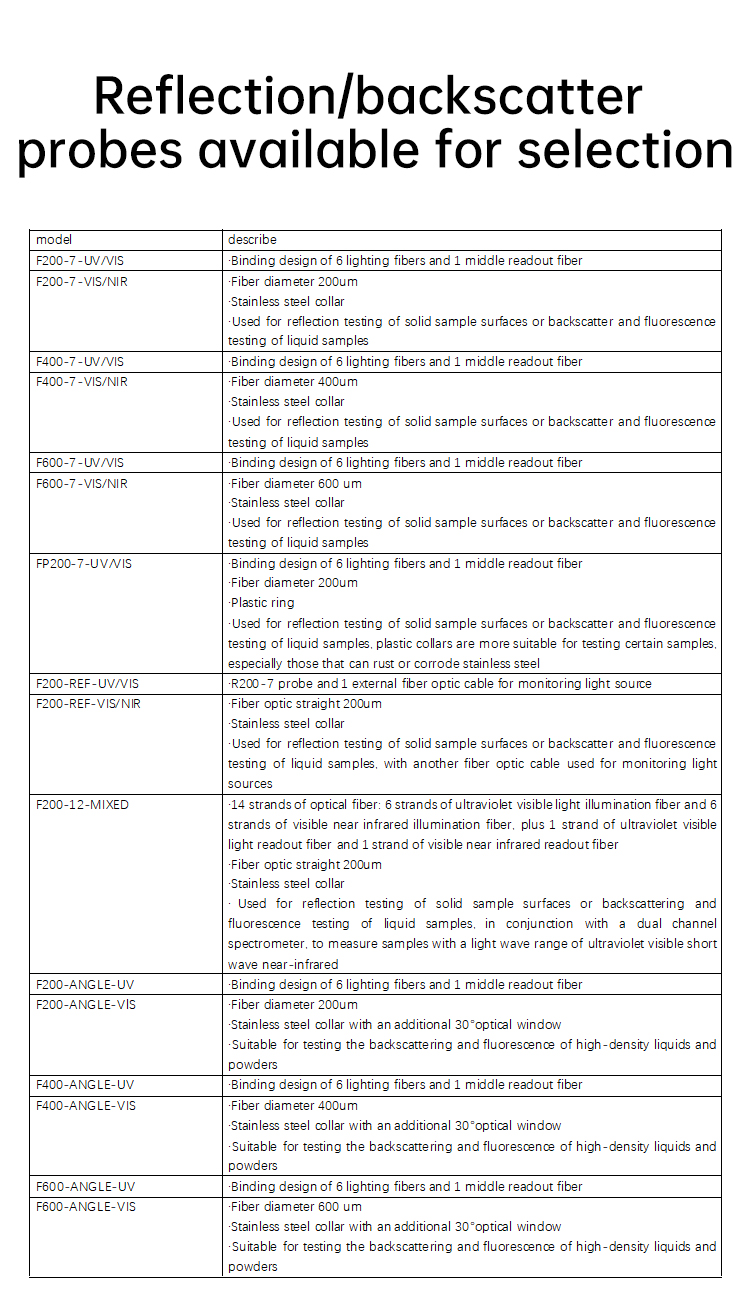

model
|
describe
|
|
F200-7-UV/VIS
|
Binding design of 6 lighting fibers and 1 middle readout fiber Fiber diameter 200um Stainless steel collar Used for reflection testing of solid sample surfaces or backscatter and fluorescence testing of liquid samples
|
|
F200-7-VIS/NIR
|
Binding design of 6 lighting fibers and 1 middle readout fiber Fiber diameter 200um Stainless steel collar Used for reflection testing of solid sample surfaces or backscatter and fluorescence testing of liquid samples
|
|
F400-7-UV/VIS
|
Binding design of 6 lighting fibers and 1 middle readout fiber Fiber diameter 400um Stainless steel collar Used for reflection testing of solid sample surfaces or backscatter and fluorescence testing of liquid samples
|
|
F400-7-VIS/NIR
|
Binding design of 6 lighting fibers and 1 middle readout fiber Fiber diameter 400um Stainless steel collar Used for reflection testing of solid sample surfaces or backscatter and fluorescence testing of liquid samples
|
|
F600-7-UV/VIS
|
Binding design of 6 lighting fibers and 1 middle readout fiber Fiber diameter 600 um Stainless steel collar Used for reflection testing of solid sample surfaces or backscatter and fluorescence testing of liquid samples
|
|
F600-7-VIS/NIR
|
Binding design of 6 lighting fibers and 1 middle readout fiber Fiber diameter 600 um Stainless steel collar Used for reflection testing of solid sample surfaces or backscatter and fluorescence testing of liquid samples
|
|
FP200-7-UV/VIS
|
Binding design of 6 lighting fibers and 1 middle readout fiber Fiber diameter 200um Plastic ring Used for reflection testing of solid sample surfaces or backscatter and fluorescence testing of liquid samples, plastic collars are more suitable for testing certain samples, especially those that can rust or corrode stainless steel
|
|
F200-REF-UV/VIS
|
R200-7 probe and 1 external fiber optic cable for monitoring light source Fiber optic straight 200um Stainless steel collar Used for reflection testing of solid sample surfaces or backscatter and fluorescence testing of liquid samples, with another fiber optic cable used for monitoring light sources
|
|
F200-REF-VIS/NIR
|
R200-7 probe and 1 external fiber optic cable for monitoring light source Fiber optic straight 200um Stainless steel collar Used for reflection testing of solid sample surfaces or backscatter and fluorescence testing of liquid samples, with another fiber optic cable used for monitoring light sources
|
|
F200-12-MIXED
|
14 strands of optical fiber: 6 strands of ultraviolet visible light illumination fiber and 6 strands of visible near infrared illumination fiber, plus 1 strand of ultraviolet visible light readout fiber and 1 strand of visible near infrared readout fiber Fiber optic straight 200um Stainless steel collar Used for reflection testing of solid sample surfaces or backscattering and fluorescence testing of liquid samples, in conjunction with a dual channel spectrometer, to measure samples with a light wave range of ultraviolet visible short wave near-infrared
|
|
F200-ANGLE-UV
|
Binding design of 6 lighting fibers and 1 middle readout fiber Fiber diameter 200um Stainless steel collar with an additional 30° optical window Suitable for testing the backscattering and fluorescence of high-density liquids and powders
|
|
F200-ANGLE-VIS
|
Binding design of 6 lighting fibers and 1 middle readout fiber Fiber diameter 200um Stainless steel collar with an additional 30° optical window Suitable for testing the backscattering and fluorescence of high-density liquids and powders
|
|
F400-ANGLE-UV
|
Binding design of 6 lighting fibers and 1 middle readout fiber Fiber diameter 400um Stainless steel collar with an additional 30° optical window Suitable for testing the backscattering and fluorescence of high-density liquids and powders
|
|
F400-ANGLE-VIS
|
Binding design of 6 lighting fibers and 1 middle readout fiber Fiber diameter 400um Stainless steel collar with an additional 30° optical window Suitable for testing the backscattering and fluorescence of high-density liquids and powders
|
|
F600-ANGLE-UV
|
Binding design of 6 lighting fibers and 1 middle readout fiber Fiber diameter 600 um Stainless steel collar with an additional 30° optical window Suitable for testing the backscattering and fluorescence of high-density liquids and powders
|
|
F600-ANGLE-VIS
|
Binding design of 6 lighting fibers and 1 middle readout fiber Fiber diameter 600 um Stainless steel collar with an additional 30° optical window Suitable for testing the backscattering and fluorescence of high-density liquids and powders
|
