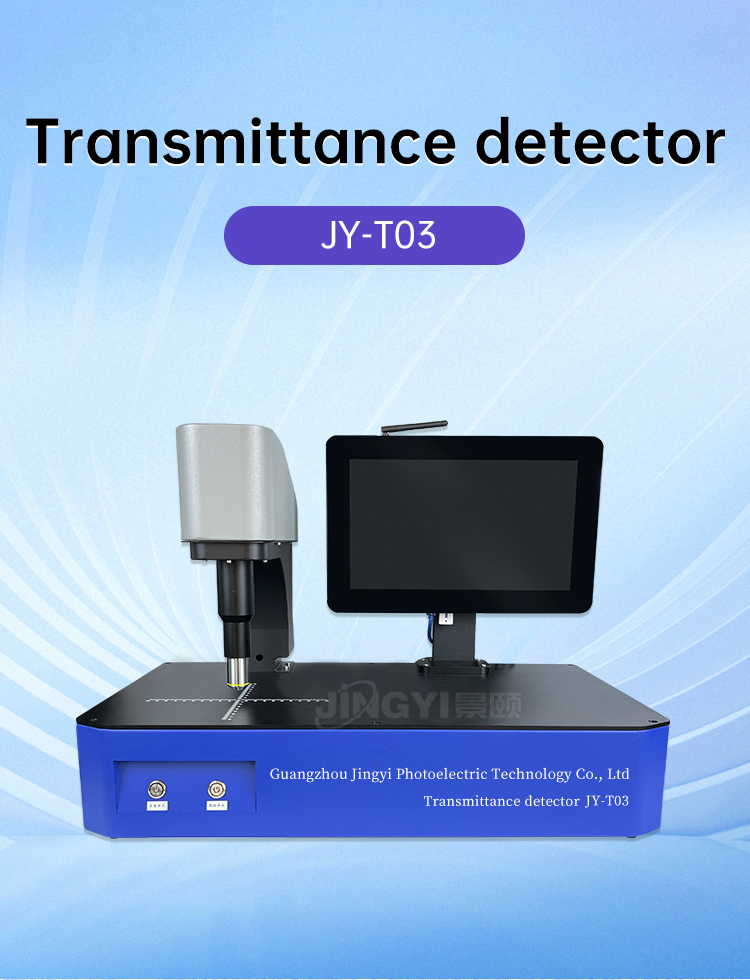

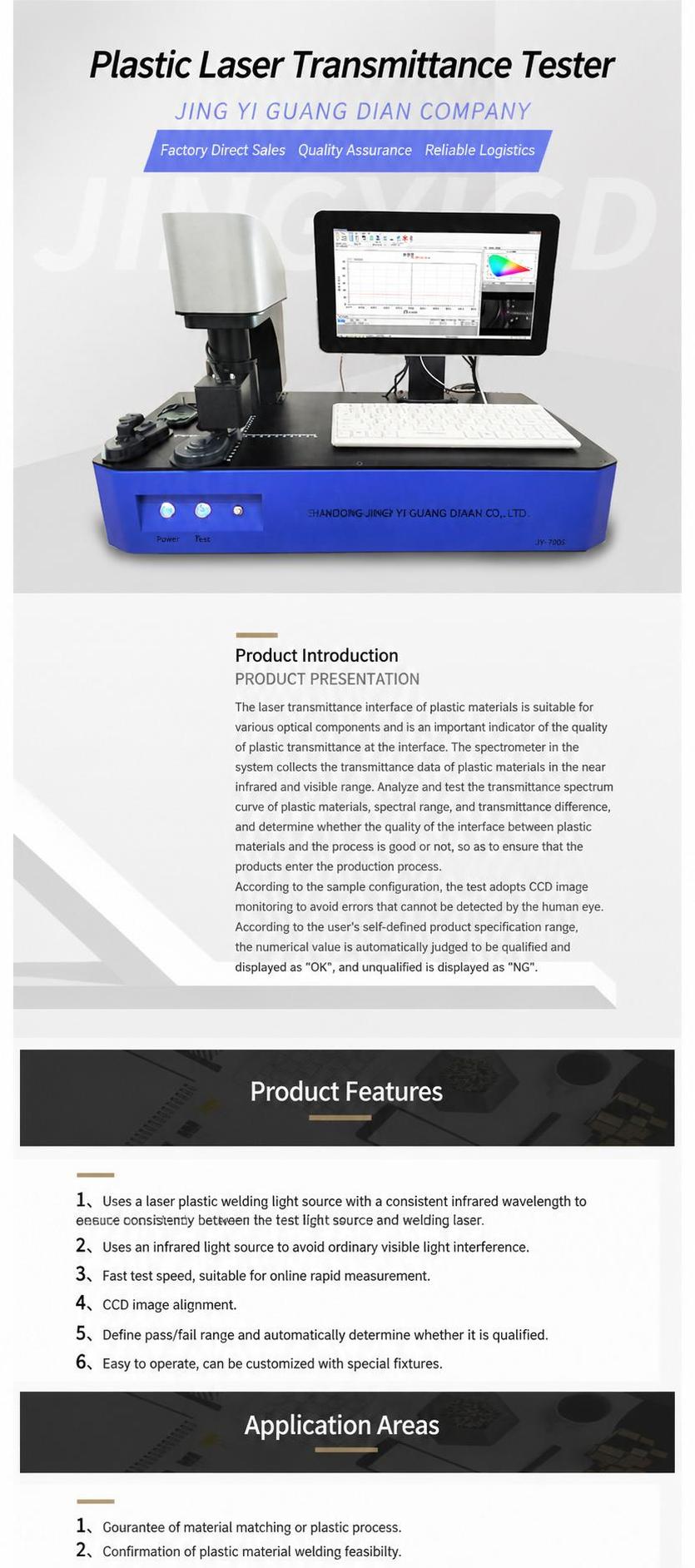

Plastic laser transmittance measuring instrument
JING YI GUANG DIAN COMPANY
Manufacturer direct sales quality assurance, high-quality logistics
Product Introduction
PRODUCT PRESENTATION
Laser welding of plastic materials has been widely used for various spare parts, and the transmittance of plastic is an important indicator of the quality of the welding process. Jingyi Optoelectronics has launched a transmittance detector specifically designed to detect the near-infrared transmittance characteristics of plastic materials for this type of plastic material. The accurate value can be detected in milliseconds to determine whether it meets the set transmittance value of the process, in order to avoid defective workpieces entering the production process. Custom fixtures can be customized based on samples, and CCD image monitoring is used at the testing site to avoid testing errors that are not visible to the naked eye in near-infrared light. Users can customize the product qualification range, automatically determine whether the values are qualified, and display qualified results
Product Features
-
- Use an infrared light source with the same wavelength as the laser plastic welding to ensure that the testing light source and the welding laser beam have the same wavelength
- Using infrared light source can avoid interference from ordinary light
- Fast testing speed, suitable for rapid measurement on production lines
- CCD image for hole alignment
- Customize the qualified range and automatically determine whether it is qualified
- Easy to operate, customizable special workpiece fixtures
Application Fields
- Guarantee of ingredients or injection molding process
- Feasibility confirmation of plastic material welding
- Incoming material control or material quality monitoring before welding
Product Specifications
| project |
parameter |
| model |
JY-T03S |
| laser wavelength |
800-1000NM |
| Laser spot size |
Φ1MM（customizable） |
| Transmittance range |
0-100% |
| precision |
≤ 1% (based on standard film) |
| detector |
2048 Array photodetector |
| Single sampling time |
superior to 1S |
| Measurable parameters |
Wavelength transmittance, transmittance curve, transmittance over time curve, etc |
| Display |
computer |
| Observation method |
Infrared CCD camera |
| Voltage |
220V |

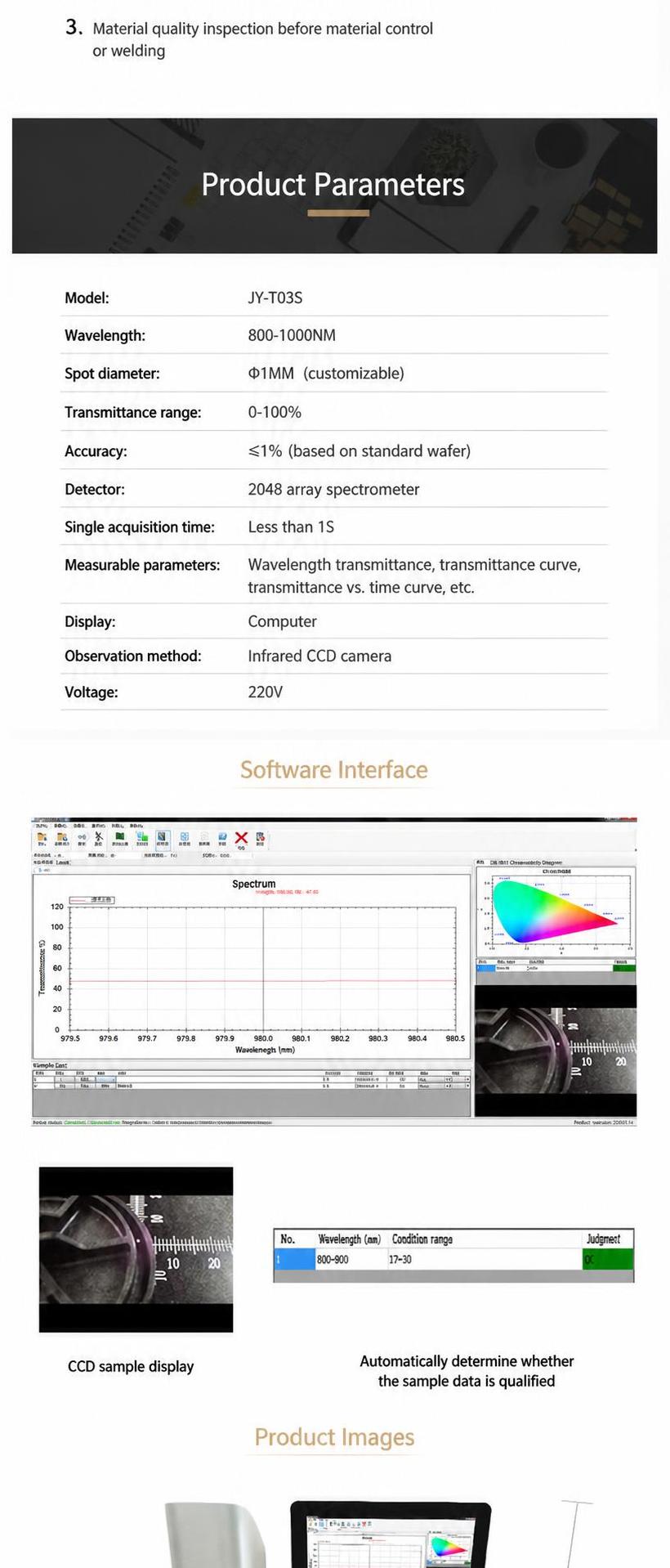

software interface
- Spectrum diagram (wavelength transmittance curve)
- CCD display sample measurement
- Automatically determine whether the data of the sample is qualified (OK/NG)

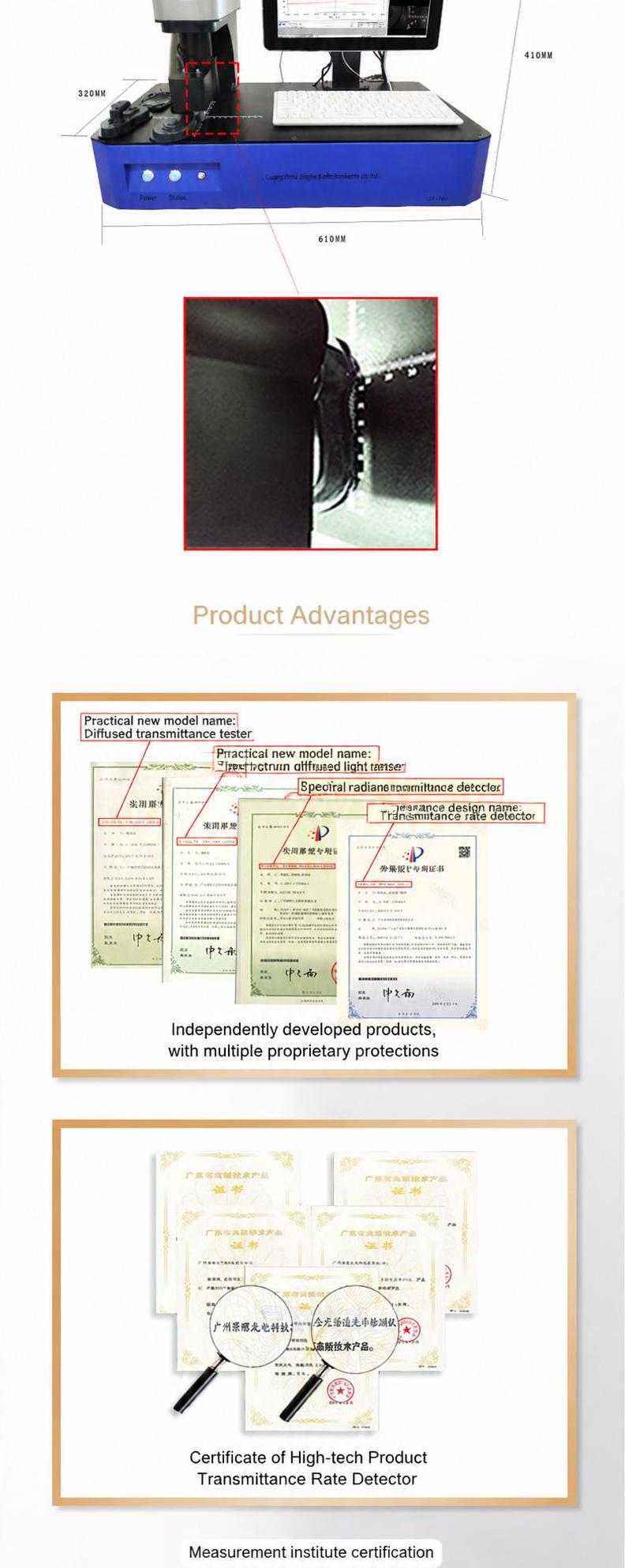

Product Advantages
- Independently developed products, applying for multiple patent protections
- Utility model name: Microscopic Spectral Transmittance Tester
- Utility model name: A full spectrum transmittance detector
- Utility model name: A wideband light source structure and its transmittance detector
- Appearance Design Name: Transmittance Tester
-
- High tech product certificate for transmittance detector

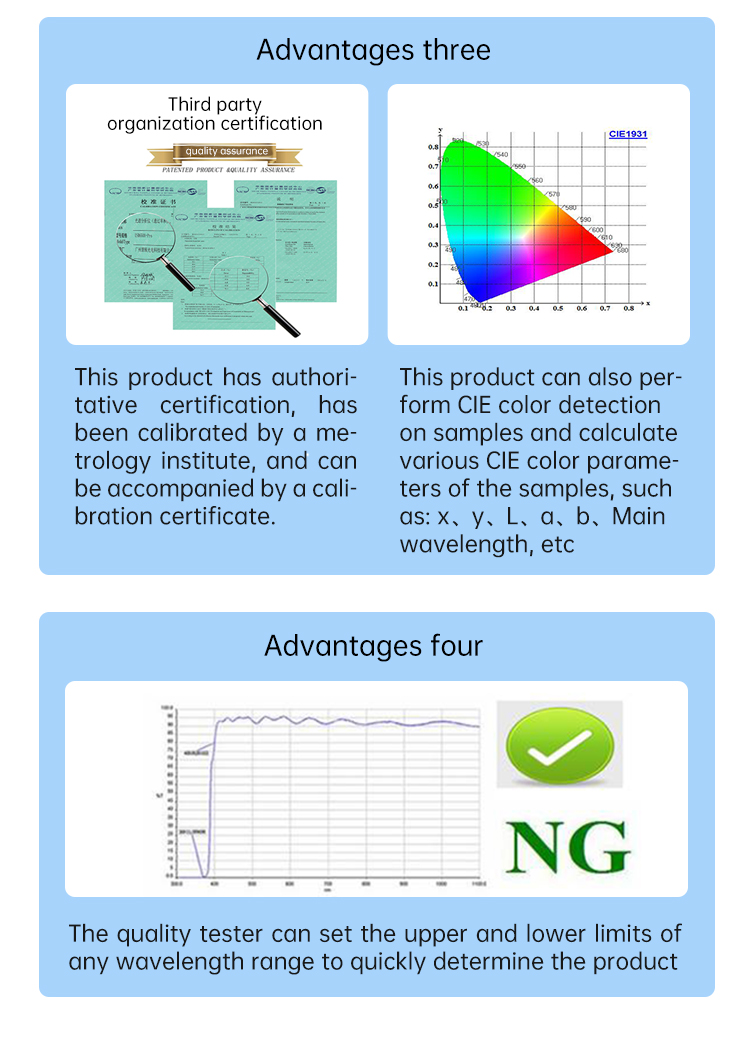

- Calibration Certificate of Metrology Institute (South China National Metrology and Testing Center/Guangdong Institute of Metrology)
Some classic customers
HUAWEI、 Apple, Sunny, Foxconn, BOE, BIEL, JOHNSON ELECTRIC, JANDA, Dianlian Technology Co., Ltd., Hefei Softec Automotive Electronics Co., Ltd
